For efficient troubleshooting, locate the power regulation module first–typically marked near the AC input connector. Modern slim-profile TVs integrate this section into a single multilayer PCB, often labeled as PSU or SMPS. Check for burnt traces around capacitors rated at 450V, 220µF–common failure points due to voltage surges. If the screen remains black after power-on, measure voltage at the DC-DC converter outputs before proceeding.
Signal processing chips, usually Broadcom or MediaTek SoCs, dominate the main logic area. Pinouts for LVDS/eDP connectors follow a standardized layout, but connector labels vary by model year. Older units use 30-pin LVDS, while newer ones opt for 50-pin eDP. Trace the data lines backward from the panel connector; any interruption here will cause image artifacts or no display. The backlight inverter, often a separate flex PCB, connects via a 6-8 pin ribbon cable–check for continuity if brightness controls fail.
To decode schematics, match reference designators on the physical layout with part numbers on the silkscreen. Main board revisions differ, so cross-reference with the last four digits of the model code printed on the rear label. Failure symptoms correlate with specific ICs: no sound points to the audio amplifier (usually TAS57xx); color distortion implicates the scaler IC (Realtek RTD29xx); intermittent shutdowns suggest overheating in the LED driver section (TI TPS61187). Always verify ground integrity before replacing components–floating grounds account for 15% of misdiagnosed issues.
For firmware-related faults, access the service menu by holding the volume and channel buttons while powering on. Navigate to “Software Upgrade” to force a re-flash if the set enters a boot loop. Keep a USB drive with the exact firmware version formatted to FAT32; mismatched revisions can brick the device. If the menu is inaccessible, locate the UART test points (four small vias near the SoC) and connect a 3.3V FTDI cable to monitor debug output during startup.

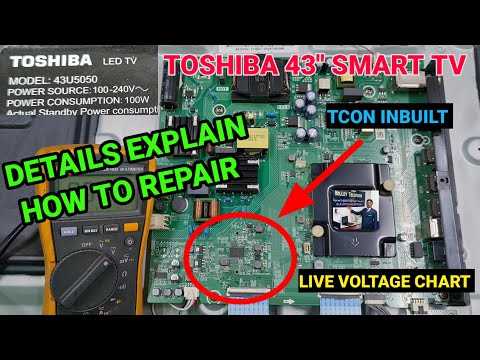

Understanding Your Television’s Internal Layout: A Hands-On Approach
Locate the power supply section first–marked by larger capacitors (1000µF or higher) and a distinct heatsink. Trace the main voltage rail (typically 12V or 18V) back to the primary switching regulator; this is the backbone of all downstream components. Reference the silk-screen labels: “PWR,” “VCC,” or “STBY” will guide you to critical injection points. If voltage readings deviate by ±5% at these nodes, suspect a failing regulator IC or dried-out electrolytic capacitor.
Identify signal paths by following clusters of small, surface-mounted resistors and inductors–these form data buses between the main processor and peripheral modules. The HDMI or LVDS interface is usually shielded by a metal can; removing it reveals a microstrip array. Use a multimeter in continuity mode to verify traces between the connector pins and the decoding chip (look for markings like “MST,” “RTD,” or “MSD”). A break here often causes intermittent video output or no signal.
Common Failure Points and Testing Methods
| Component | Failure Signs | Diagnostic Steps | Expected Reading |
|---|---|---|---|
| Primary MOSFET (e.g., Fairchild FQP6N60) | No power, clicking sound | Test gate voltage with oscilloscope | 3–5V PWM at 60–120kHz |
| Backlight driver IC (e.g., OZ9902) | Dim screen, flickering | Measure enable pin (pin 3) | 3.3V high |
| Memory chip (e.g., Winbond 25Q128) | Boot loop, error messages | Check CE# and SCK signals | Square wave at 1MHz |
Inspect vertical deflection components if the display shows horizontal lines–these include a dedicated IC (e.g., STV9388) and its surrounding diodes. Scope the output pins (typically 1 and 2); correct waveforms should resemble a sawtooth at 60Hz. A flat line here confirms IC failure, while distorted waves suggest bad coupling capacitors (look for 47µF/50V SMD types). Replace both the IC and capacitors as a pair to avoid stressing new components with old, degraded parts.
For tuner-related issues, probe the IF (intermediate frequency) stage. The SAW filter (marked “K72xx”) should output a clean 38MHz signal when injecting a test tone. If attenuation exceeds 6dB, replace the filter. Downstream, the demodulator IC (e.g., TDA18273) processes this signal; faulty solder joints here mimic channel-search failures. Reflow the IC and adjacent resistors (typically 0402 size) with flux and a hot-air station.
Advanced Troubleshooting Techniques
When audio output is distorted, isolate the class-D amplifier (e.g., TPA3125). Measure DC offset at the speaker outputs–anything above 50mV indicates amplifier failure or feedback network issues. The feedback loop relies on two precision resistors (typically 20kΩ and 10kΩ); verify their values with a 4-wire measurement. For digital audio paths, check the I2S lines with a logic analyzer; missing clock pulses (SCLK) suggest a bad master clock oscillator (usually a 12MHz or 24MHz crystal).
Lastly, document every modification directly on the layout with a fine-tip marker. Note capacitor brands (Nichicon over generic), transistor part numbers, and any deviations from the reference design. This practice accelerates future repairs and ensures consistent performance across multiple units. Keep a reference image of the untouched layout to verify component orientation during reassembly–reversed tantalum capacitors or diodes will destroy adjacent ICs when powered on.

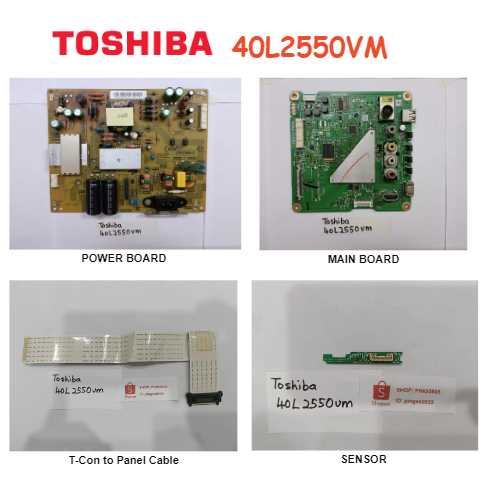

Identifying the Primary Voltage Module in Flat-Panel Displays
Remove the rear cover screws–typically four to six Phillips-head fasteners–located along the outer edges. Some models include additional screws beneath a plastic stand bracket or inside recessed ports on the lower back panel. Lift the cover upward to detach it from the internal frame; clips may require gentle prying with a non-metallic tool near the corners. The power supply sits directly behind the inlet where the AC cable connects, often distinguished by thick copper coils, black insulation sleeves, and a cluster of electrolytic capacitors measuring 1000µF or higher.
Label variations such as 32LX175U, 40RV525U, and 55XV645U position the voltage module along the right side when viewed from the back, adjacent to the logic controller. Models with LED backlights (e.g., 43L5865DB) integrate the supply behind a metallic heat shield; remove this shield by unscrewing two torx-8 bolts to access the PCB. Avoid touching transformer coils–they retain hazardous voltage even after unplugging. Use an ESD-safe multimeter to verify zero volts across filter capacitors (C801, C802) before proceeding.
For plasma variants like 50G900U, the supply resides horizontally across the bottom edge. Three ribbon cables link it to the display driver and tuner assemblies; label these connections before detachment. Troubleshooting requires a schematic for your specific chassis–check service manual codes printed near the component silkscreen (e.g., TP.M18.P or TP.MSD309.B). Replace blown fuses only after confirming no shorted MOSFETs (Q801); substitute mismatched fuse ratings cause fire hazards.

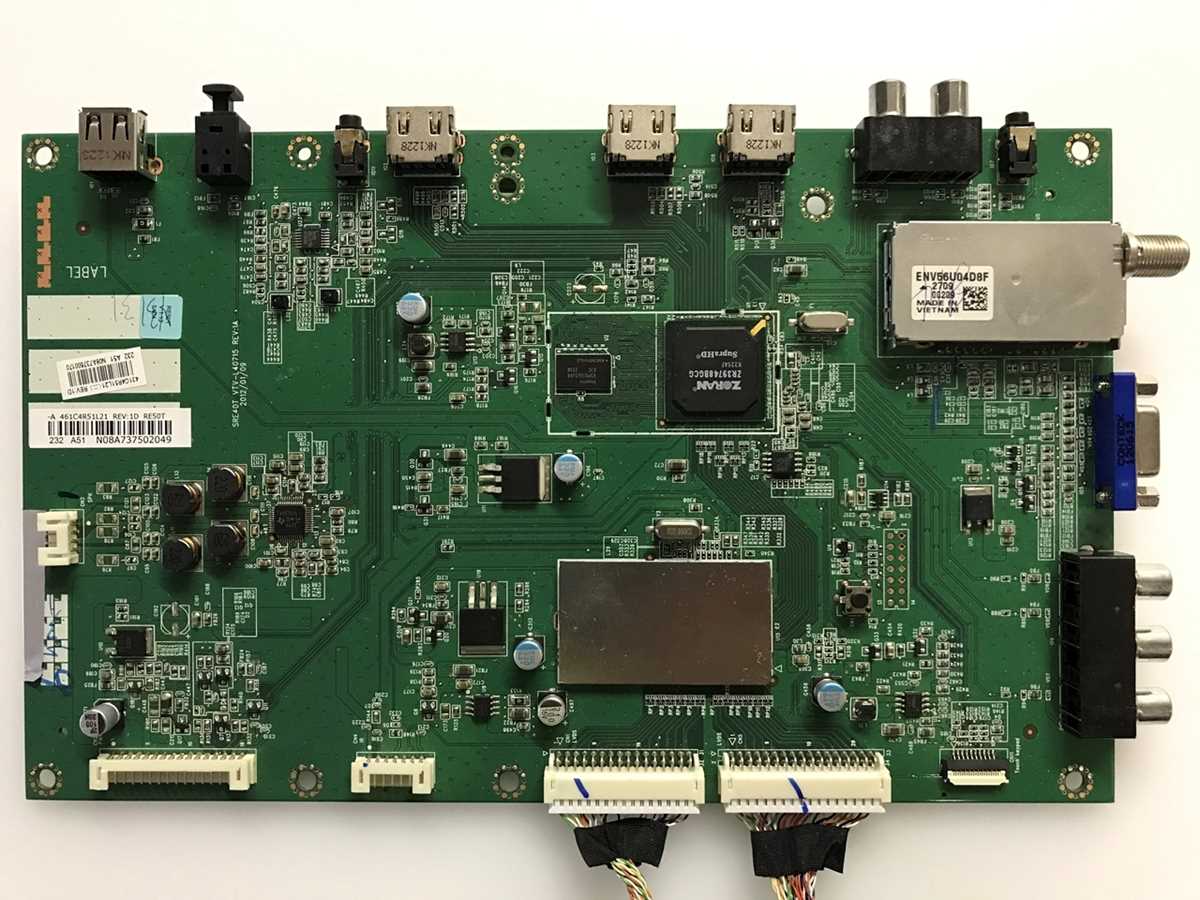

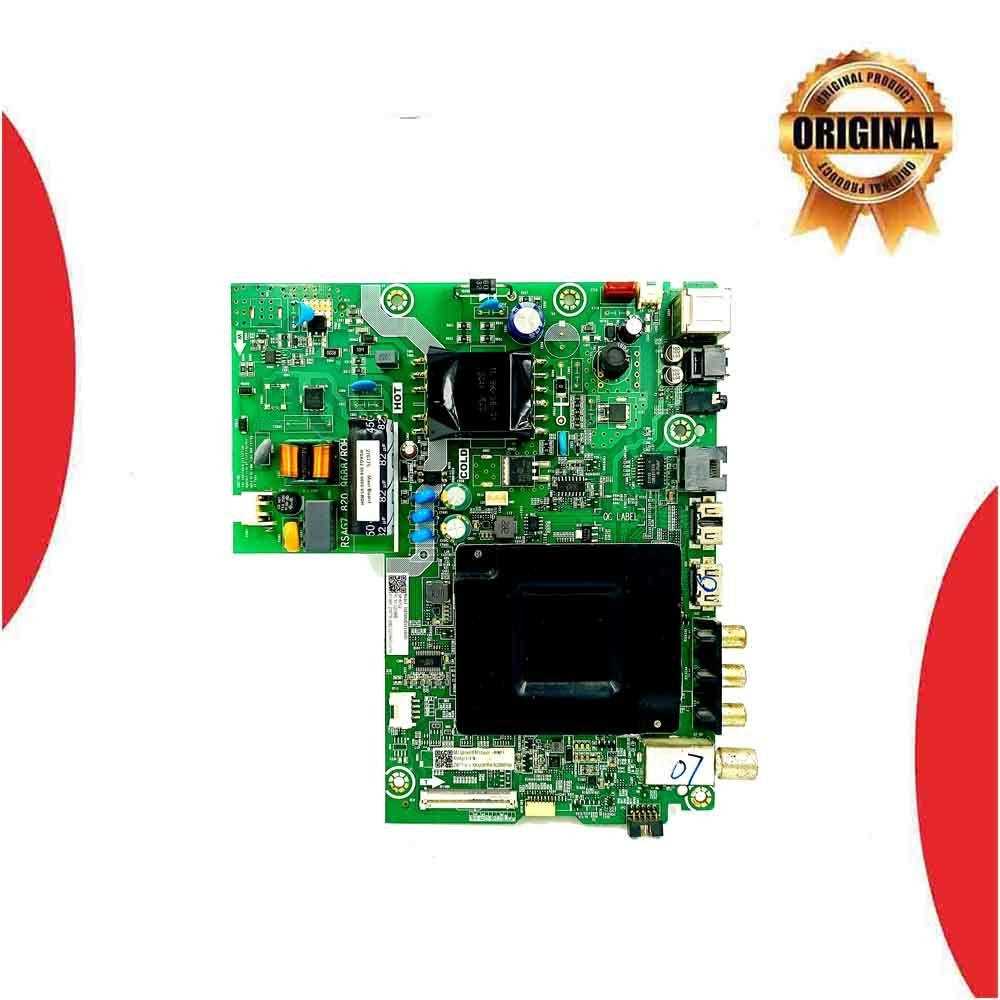

Locating Key Elements on Video Signal Processing Assemblies
Begin with the main scaler chip–typically the largest IC with a heatsink or thermal pad. Labels like *RTD2674*, *MST6M48* or *MT8227* identify this component; failure often causes no video output or distorted colors. Check adjacent power delivery capacitors rated 100µF–1000µF at 16V–25V–swollen or leaking cases indicate stress. Replace with low-ESR equivalents, ensuring solder joints avoid bridging pins on the scaler’s fine-pitch pads.
Trace the HDMI receiver blocks by following three serial resistors near the input connectors–values around 10Ω–47Ω isolate signals from electrostatic damage. Shorts here mute all external sources; verify continuity with a multimeter in diode mode while powered off. The adjacent EMI filters, marked *BLM15*, often crack under mechanical strain; missing or intermittent feeds disrupt high-definition signals without killing power LEDs.
Isolate the LVDS output stage by locating pairs of 0Ω resistors connecting the scaler to the panel flex cables. Failure here produces backlight-only symptoms; measure each line for 0.1V–0.5V differential with an oscilloscope during boot. Check the eeprom (*24C* series) for corrupted firmware if on-screen menus malfunction–reflash using exact firmware revisions to prevent irreversible EDID loss.
Decoding TV Schematic Layouts for Signal Path Tracing
Locate the primary input connector on the electronic schematic first–usually marked near the edge with labels like “ANT IN,” “HDMI 1,” or “RF.” Trace the path from this point through capacitors (typically 100nF to 470μF) and inductors (often 1μH to 10μH), which filter noise before reaching the tuner IC. Check for ferrite beads (labeled FB) or resistors in series (10Ω–100Ω) that indicate signal conditioning stages.
Identify power rails feeding the tuner and processing chips by following thick horizontal lines, often annotated with voltages (+5V, +12V, +33V). Look for test points (round pads with labels like TP101) adjacent to these rails–probe them with a multimeter set to DC voltage to confirm operational levels. If rails show low voltage, backtrack to switching regulators (commonly marked “MP1584” or “RT8205”) or linear regulators (“7805,” “AMS1117”).
Examine signal multiplexing blocks–small ICs with 16 to 48 pins labeled “SN74LVC1G” or “PI3USB.” These route audio/video between sources and the main processor. Pin assignments on these chips match standard protocols (e.g., HDMI DDC lines go to pins labeled “SCL/SDA”). Use continuity testing to verify connections between multiplexer outputs and processor inputs, ensuring no broken traces or cold solder joints.
Key Components for Signal Flow Verification
- Bandpass filters: Small 3-pin SMD components (e.g., “TDK DEA142450BT”) situated between the tuner and demodulator–measure impedance with an LCR meter (expected ~100Ω at 45MHz) to detect failures.
- Memory buffers: Chips labeled “MT47H” or “IS42S” storing firmware–solder joints often crack under thermal stress; reheat with a hot air station while monitoring resistance across pins.
- Clock generators: 2–4 pin oscillators marked “14.318MHz”–use an oscilloscope to check for clean sine waves; distorted signals point to faulty crystals or load capacitors (typically 22pF).
Track sync signals from the main processor to the display scaler–look for labels like “Hsync,” “Vsync,” or “DE” (Data Enable). These lines often pass through EMI filters (ferrite beads + capacitors) before reaching the T-Con board. Check for series resistors (47Ω–150Ω) that limit current; failed resistors cause blank screens or flickering. If sync is missing, probe the processor directly (pins labeled “LVDS OUT”) with a logic analyzer.
Analyze ground planes–solid areas around high-speed traces (HDMI, LVDS) reduce interference. Verify no copper pours intersect sensitive analog sections (e.g., tuner inputs). Look for stitching vias connecting top/bottom layers near connectors–these prevent ground loops. Test ground continuity from the power inlet to the tuner shielding frame; resistance should read <1Ω.
- Isolate sections with decoupling issues: Group capacitors near IC power pins–check for bulging or leaking electrolytics (especially near heat sinks). Replace all electrolytic capacitors (even functioning ones) if the unit was manufactured before 2018.
- Follow HDMI/DP lanes: Eight differential pairs per port; color-code them on the schematic. Trace each pair to the processor, verifying no stubs or vias cause impedance mismatches (target 100Ω differential).
- Check firmware straps: Pull-up/down resistors (typically 10kΩ) on pins labeled “MODE,” “BOOT,” or “SPI_CS”–incorrect values cause boot failures or incorrect resolution output.
Troubleshooting Signal Path Interruptions
Use a thermal camera to identify hotspot components–failed ICs often overheat. Focus on power management chips (e.g., “TPS56320”) or DC-DC converters; normal operating temps range 50°C–75°C. Probe suspect components with a milliohm meter while powered off–rapid resistance changes indicate internal shorts.
Examine solder mask damage–corrosion on copper traces appears as green/white oxidation, especially near AC inputs or high-voltage sections. Scrape corrosion off with isopropyl alcohol and a fiberglass pen, then reinforce with solder. For microscopic cracks, use a UV flashlight to spot hairline fractures in LVDS lanes–they fluoresce under UV.
