For optimal performance in adjustable sound shaping, adopt a two-stage active topology combining a Baxandall-type equalizer with a buffered output. Use NE5532 or OPA2134 operational amplifiers–they deliver 0.00003% THD at 1V RMS while maintaining 10MHz GBW for accurate frequency response. Position the bass and treble potentiometers (B50k linear taper) adjacent to their respective op-amp inputs, minimizing trace length to reduce parasitic capacitance. A 10nF polypropylene coupling capacitor between stages prevents DC offset without introducing phase shift below 20Hz.
Ground plane partitioning is critical: separate the analog reference (star-grounded at the power supply) from the signal return using a 1mm-wide trace–this eliminates ground loops that manifest as -90dB hum. For power delivery, implement 100μF tantalum decoupling at each op-amp’s Vcc/Vee with 100nF ceramic bypass capacitors mounted ≤2mm from the IC pins. Verify impedance matching: ensure the input buffer presents 1MΩ to the source while the output stage drives 600Ω loads without clipping.
Component placement dictates thermal stability: orient electrolytic capacitors (220μF/25V) ≥5mm from heat-generating resistors (1% metal film, 1/4W) and maintain ≥0.5mm clearance around trimmers to avoid solder reflow drift. For PCB fabrication, specify 2oz copper with 0.15mm minimum trace width for signal paths–this supports 300mA current handling while keeping inductance below 5nH/cm. Test phase coherence above 10kHz with a sine wave; deviations exceeding ±0.3dB indicate layout-induced crosstalk.
Audio Equalizer Board Design: Key Implementation Steps
Select a Baxandall active configuration for high and low frequency adjustment–it delivers symmetrical boost/cut behavior with minimal phase distortion. Use dual-gang potentiometers (50kΩ log taper) for precise stereo matching; mismatched resistances introduce channel imbalance above 2dB. Place input/output coupling capacitors (2.2µF film type) immediately adjacent to potentiometer pads to reduce parasitic inductance, ensuring consistent corner frequencies below 10Hz.

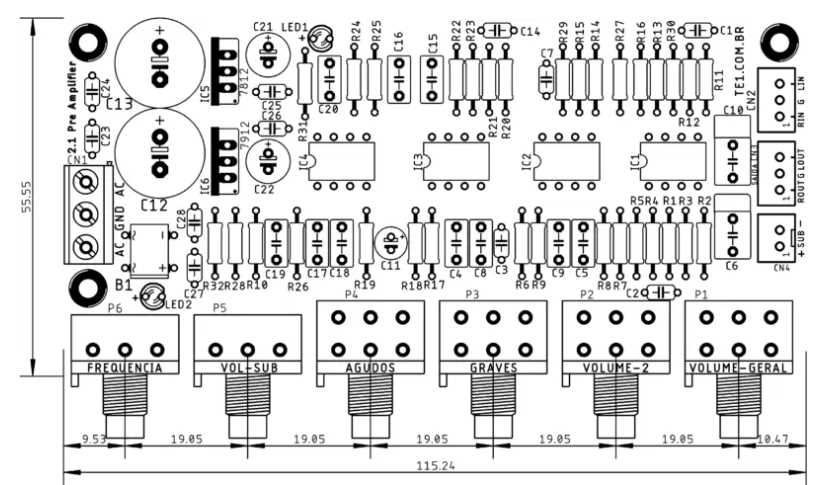

Component Placement Strategy
Position operational amplifiers (NE5532 or OPA1642) centrally on the board, maintaining ≤15mm trace length to feedback networks to prevent oscillation. Ground plane splits under signal paths increase crosstalk; instead, implement a star-ground topology with the main reference point at the power supply. Keep high-impedance nodes (
Thermal relief pads for through-hole resistors risk solder joint fractures under vibration; use direct copper pours with 1mm annular rings for mechanical stability. For surface-mount designs, prefer 1206 or smaller packages–larger footprints (e.g., 2512) exhibit higher series inductance, degrading high-frequency response above 20kHz. Include optional 1% tolerance resistors in feedback loops for predictable corner frequency accuracy.
PCB Routing Validations
Verify all signal traces carry 50mm), maintaining 8mil spacing for 50Ω impedance control when paired with a solid ground plane.
Solder mask openings over exposed copper pads reduce leakage currents but increase susceptibility to flux residue; apply conformal coating (e.g., acrylic dilution) post-assembly if operating in high-humidity environments. Testpoints for gain staging measurements should be placed at each op-amp output–ensure probes have ≤5pF input capacitance to avoid loading effects during characterization. Bypass capacitors (100nF X7R ceramic) require placement ≤2mm from op-amp supply pins; longer distances risk subharmonic oscillations above 1MHz.
Etch a 1mm-wide isolation trench between analog and digital sections if mixing signal types–this suppresses switching noise coupling by ≥20dB. For multi-layer boards, allocate an uninterrupted ground plane on an internal layer with via stitching (≤10mm spacing) to maintain low-impedance return paths. Verify pre-production prototypes with a network analyzer; phase response deviations ≥5° at 10kHz indicate improper compensation or parasitic coupling.

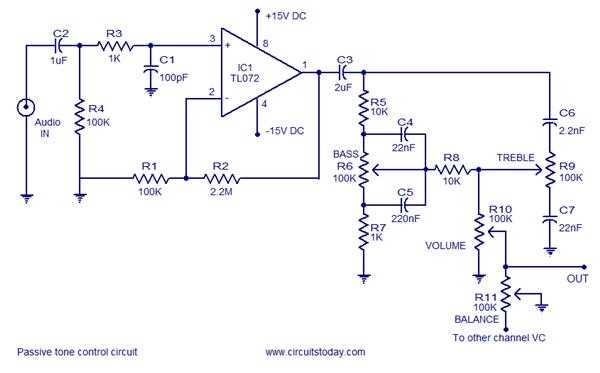

Essential Elements for a Passive Equalization Network
Select resistors with tight tolerances (≤1%) to maintain predictable frequency shaping. Carbon film types offer stability, but metal film resistors provide superior noise performance for critical applications. Values typically range from 2.2kΩ to 100kΩ, depending on desired cut/boost levels and signal impedance.
- Bass adjustment: Use 47kΩ–100kΩ resistors paired with 22nF–100nF capacitors (polypropylene preferred) for low-end manipulation.
- Treble shaping: Smaller capacitors (4.7nF–22nF) with 2.2kΩ–22kΩ resistors target high frequencies.
- Avoid ceramic capacitors in signal paths–electrolytics introduce distortion, while polyester types exhibit microphonics.
Potentiometers must have smooth taper (audio-grade) to prevent abrupt level changes. Logarithmic (B-type) pots suit bass adjustments, while linear (A-type) work better for treble. Dual-gang potentiometers maintain stereo balance–choose sealed models to prevent dust-induced crackling. Wirewound types handle higher currents but add inductance; cermet or conductive plastic are superior for audio fidelity.
Grounding follows star topology to minimize hum. Connect all reference points to a single central ground via short, thick traces (≥1oz copper). Use a 100nF decoupling capacitor close to each potentiometer’s power pin to filter noise. For PCB traces, prioritize wide paths (≥1mm) for signal lines and minimize loop areas between input/output to reduce EMI susceptibility.

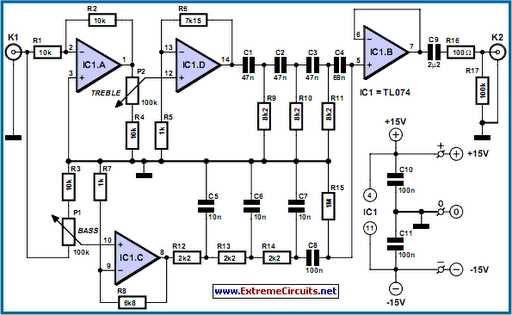

Step-by-Step Schematic Design for Bass and Treble Adjustment
Begin by selecting operational amplifiers (op-amps) with low noise and high input impedance–TL072 or NE5532 are optimal for audio frequency shaping due to their 3 MHz gain-bandwidth product and 10 V/μs slew rate. Place non-polarized capacitors at the input stage: 1 μF polyester for bass paths and 100 nF ceramic for treble to ensure phase linearity below 20 Hz and above 15 kHz. Use 1% tolerance resistors (e.g., 10 kΩ, 47 kΩ) to maintain consistent cutoff frequencies–calculate values via the formula fc = 1/(2πRC), targeting 300 Hz for bass and 3 kHz for treble adjustments.

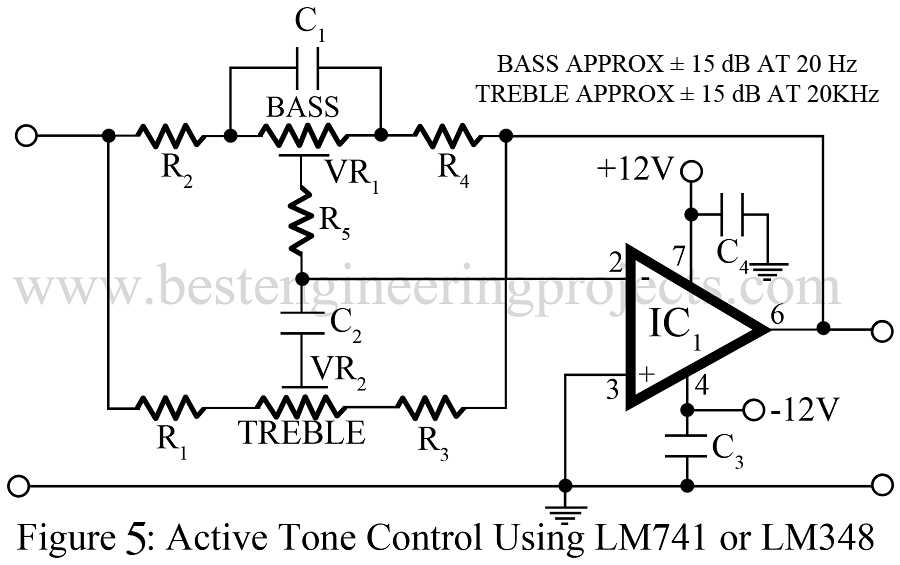

Implement a Baxandall network for each band, splitting the signal into two paths: one for boost and another for cut. For bass, pair a 100 kΩ potentiometer with a 22 nF capacitor in series, followed by a 47 kΩ resistor to ground. Treble requires a 50 kΩ pot with a 4.7 nF capacitor and a 10 kΩ resistor. Connect the wiper of each pot to the summing node of a dedicated op-amp (e.g., half of a TL072), ensuring the feedback resistor matches the input resistor (22 kΩ) to prevent DC offset. Ground references must use 10 μF electrolytic capacitors to avoid low-frequency roll-off.
| Component | Bass Path Value | Treble Path Value | Purpose |
|---|---|---|---|
| Potentiometer | 100 kΩ (log) | 50 kΩ (log) | Variable gain adjustment |
| Capacitor | 22 nF | 4.7 nF | Frequency-defining element |
| Resistor (input) | 47 kΩ | 10 kΩ | Impedance balancing |
| Feedback Resistor | 22 kΩ | 22 kΩ | Gain stabilization |
Route the output of each op-amp to a mixing stage using a 1 kΩ resistor to combine bass and treble signals, followed by a buffer (e.g., remaining half of TL072) to drive low-impedance loads. Include a 10 μF coupling capacitor at the final output to block DC while allowing audio signals (≥ 20 Hz) to pass. For PCB routing, keep traces short (≤ 10 mm) between op-amps and passive components to minimize parasitic inductance, and use a ground plane to reduce noise. Test the design with a 1 kHz sine wave at 1 Vpp; verify ±12 dB boost/cut at the target frequencies with
Critical Pitfalls to Avoid
Oversights in impedance matching will distort frequency response–ensure the potentiometer’s taper matches the log curve (commonly labeled “B”). Skip ceramic capacitors in signal paths; their microphonics introduce audible artifacts. Avoid using electrolytic capacitors in AC-coupled feedback loops, as their polarity sensitivity causes leakage. For op-amp selection, reject units with > 10 nV/√Hz noise density (e.g., LM358) or slew rates
Advanced Board Design Strategies for Minimizing Interference and Maintaining Fidelity
Route high-speed signal paths with minimal vias–each via introduces 1-3pF parasitic capacitance and 0.5-2nH inductance, degrading edge rates at frequencies above 50MHz. Keep traces shorter than λ/20 (λ = signal wavelength) to prevent unintended antenna effects; for a 100MHz clock, this translates to
Place decoupling capacitors within 2mm of component power pins using 0402 packages for frequencies 100MHz–their ESL drops from ~600pH (0402) to ~250pH (0201), extending effective decoupling to 3GHz. Implement power plane polygons with copper weights of 2oz or thicker for lower impedance; a 1oz plane at 10MHz has ~280mΩ impedance vs. ~70mΩ for 2oz. For differential pairs, maintain consistent intra-pair spacing (≤1x trace width) and inter-pair separation (≥3x trace width) to preserve 100Ω differential impedance–coupling within 0.5mm of another pair reduces common-mode rejection by 6dB. Use ferrite beads (e.g., Murata BLM18PG121SN1) on noisy rails; their impedance peaks at 100MHz (800Ω) but avoid placing them on low-noise rails (>5mVpp ripple) as they introduce 10-50mV ring at 1MHz.
Power Supply Requirements and Grounding Strategies
Use separate linear regulators for analog and digital sections to prevent noise coupling. A dual-output supply with +/- 15V rails for signal-processing stages and a stabilized +5V for logic ensures minimal cross-talk. LD1117V33 or LT1086 regulators work reliably for low-current loads under 1A, while LM338 handles higher demands up to 5A with proper heatsinking.
Star grounding eliminates ground loops by connecting all grounds to a single central point near the power input. Route analog and digital grounds separately until they converge at this point, using 2.5mm-wide traces for low-impedance paths. For mixed-signal boards, split the ground plane into analog and digital sections under the ADC/DAC, stitching them together with a single 0Ω resistor or ferrite bead.
Decoupling capacitors must be placed between each IC’s power pin and ground, with values of 0.1µF ceramic for high-frequency filtering and 10µF tantalum for mid-range stability. Mount them as close as possible to the component–no farther than 5mm–to prevent voltage spikes. Bulk electrolytic capacitors (100µF+) at the power entry point suppress ripple from the main supply.
Voltage Regulation Precision
Low-dropout regulators (LDOs) require input voltages at least 1.5V above the output to maintain regulation. For a +12V rail, a 15V input suffices; beyond this margin, efficiency drops and heat increases. Measure actual load currents–overestimating leads to oversized transformers and excessive dissipation, while underestimating causes dropout at peak demands.
Ground plane resistance should not exceed 20mΩ between any two points. Use a 2oz copper pour for the ground layer, reducing voltage gradients that distort signals. If space constraints force narrow traces, parallel multiple 1mm-wide paths or use copper tape post-assembly. Avoid running high-current traces over sensitive nodes–this introduces AC noise into DC references.
Thermal Management for Supplies
TO-220 regulators like LM7812 need heatsinks with a thermal resistance under 15°C/W for 5W dissipation. Thermal vias around the regulator’s tab improve heat transfer to internal ground planes. For higher power, TO-263 surface-mount devices on a 4cm² copper pad with thermal vias handle 10W without additional heatsinking.
Switching regulators introduce high-frequency noise; keep their inductors and output capacitors at least 20mm from analog components. Use a pi filter (LC network) on the switching output–10µH inductor with 22µF capacitors–to attenuate ripple below 1mVpp. If dual supplies are impractical, a single +30V rail with buck converters for lower voltages works, but isolate grounds with a ferrite bead or resistor.
Test power integrity with an oscilloscope on AC coupling: ripple should stay under 5mVpp across the full load range. Measure ground bounce between critical components–any voltage above 10mV indicates inadequate grounding. For ultra-low-noise designs, consider battery-backed regulators with recharge circuits to bypass mains interference entirely.
