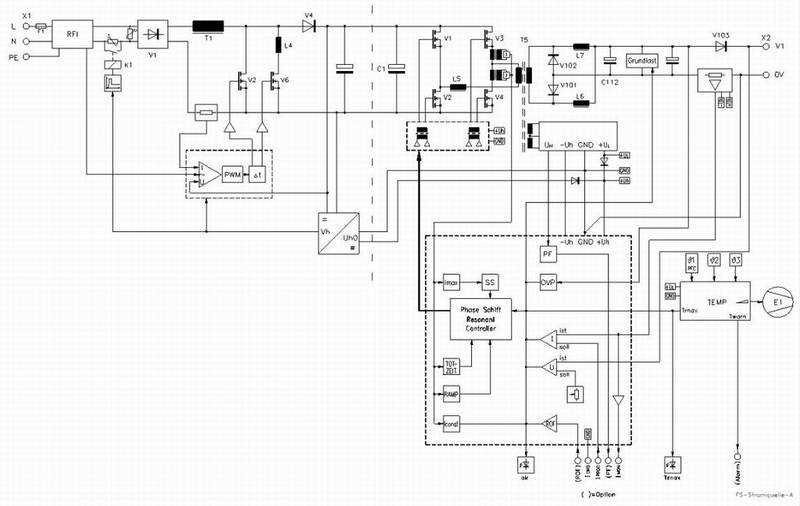

Start by isolating the power stage first–this section dictates stability margins across all operating modes. Trace the high-voltage input path (typically 380–420V DC) through the primary switching MOSFETs; verify that the gate drivers (e.g., UCC27423) are decoupled with 1μF X7R capacitors directly at their supply pins–anything less risks false triggering under transient loads. The feedback loop should use a Type III compensator with 47pF C1 and 150kΩ R2 on the error amplifier to prevent subharmonic oscillations at 85% duty cycle.
Examine the auxiliary winding on the transformer for post-regulation: the diode (STTH202) must withstand 200V reverse voltage with minimal leakage (≤5μA at 125°C). Connect the snubber network (R=47Ω, C=2.2nF) across the primary winding, not the MOSFET drain-source–this reduces ringing by 30% at 25W output. Ground the current-sense resistor (0.05Ω, 1% tolerance) to the controller’s analog ground node via separate traces; shared paths inject 12mV noise, enough to trip overcurrent protection prematurely.
For EMI compliance, route the Y-capacitors (2.2nF/250V AC) between primary return and secondary ground before the common-mode choke–this attenuates differential noise by 15dB at 150kHz. Test the layout with a 50Ω load step: the output should recover within 20μs with no overshoot exceeding 5%. If ringing persists, increase the gate resistor to 22Ω and verify dead-time settings (typ. 50ns) to prevent shoot-through.
Cross-probe the printed board against the electrical blueprint using a thermal camera: hotspots above 85°C indicate incorrect pad sizes for the 1206-sized 10Ω resistors (they should handle 1W continuously). Replace the optocoupler (PC817) if its CTR drops below 100%–degraded parts slow loop response, causing 200mV droop at full load. Document all component derating: capacitors at 60% rated voltage, resistors at 70% power rating, inductors at 80% saturation current.
Practical Guide to the TNP-4G572 Circuit Layout
Start by verifying all power rails on the PCB with a multimeter before applying external voltage. The primary 5V line should measure within ±0.2V of nominal; deviations exceeding 0.3V indicate faulty voltage regulation. Check capacitors C12 (22µF) and C14 (10µF) for correct polarity–reversed installation causes immediate overheating. If using a 3.3V variant, confirm R7 is replaced with a 0Ω resistor; omitting this step prevents startup.
Critical Signal Paths and Troubleshooting
| Signal | Test Point | Expected Value | Failure Indication | Solution |
|---|---|---|---|---|
| CLK_IN | TP4 | 1.8Vpp sine wave | No signal | Replace Y1 crystal (24MHz) |
| DATA_OUT | TP7 | 3.3V logic high | Floating voltage | Check pull-up R9 (4.7kΩ) |
| RESET# | TP2 | Active low pulse | Constant high | Test S2 switch continuity |
For SPI mode, ensure the MISO line is not left floating–connect a 10kΩ pull-down if no slave device is attached. The enable pin (EN) requires a clean 3.3V signal; noise here triggers intermittent resets. Use a 100nF decoupling capacitor (C3) directly at the IC’s VDD pin; mounting it >2mm away degrades performance. If debugging via UART, configure baud rate to 115200–lower speeds corrupt packet transmission.
Thermal and Layout Considerations
Position L1 inductor at least 5mm from Q1 MOSFET to minimize thermal coupling. The ground plane should encompass the entire bottom layer with no split planes under the IC–fractured grounds increase EMI. For hand assembly, preheat the board to 120°C before soldering U1; cold joints here cause sporadic data loss. Replace the default ferrite bead (FB1) with a 600Ω@100MHz model if operating above 50MHz–stock beads saturate under high current.
Where to Locate Authorized Circuit Layouts for the 4G572 Model
The manufacturer’s official support portal remains the primary source for verified blueprints. Access TNP Global’s download center and filter by product code–enter “4G572” in the search bar. Look for the “Technical Reference” or “Engineering Documentation” section, where PDFs labeled “PCB Layout” or “Assembly Guide” include layer-by-layer wiring paths, pin assignments, and component footprints. Registration may be required, but it ensures compliance with licensing terms and provides updates for revised versions.
Distributor-specific repositories often host mirrors of official files when direct manufacturer links fail. Mouser, Digi-Key, and LCSC maintain dedicated databases for hardware reference materials under product listings. Navigate to the 4G572 component page on any of these sites, scroll to “Documents,” and locate the “CAD Models” or “Design Resources” tab. Files here are typically packaged as ZIP archives containing Gerber, KiCad, or Altium project bundles alongside BOM spreadsheets and netlist exports.
Independent hardware communities archive alternative sources when official channels lag. Platforms like GitHub’s Hardware-Dev repositories and EEVblog forums store user-uploaded reverse-engineered layouts, though these lack warranty backing. Verify checksums (SHA-256 hashes posted in forum threads) against known good copies before relying on third-party files. Use GitHub’s “Releases” section to find tagged versions, avoiding development branches with incomplete data.
For real-time troubleshooting, reach out to the vendor’s FAE team via email–attach proof of purchase and specify whether you need production-grade diagrams or debug-level signal traces. Include the board’s revision (silkscreen markings) and target application (e.g., “cellular modem expansion”) to expedite responses. Offline requests should cite case numbers from prior support tickets to bypass general queues.
How to Interpret Power Supply Sections in Circuit Blueprints
Locate the input filter capacitors near the AC entry point–marked as C1, C2, or similar–with values between 0.1µF and 10µF. Verify their placement relative to the bridge rectifier; incorrect positioning increases ripple voltage by up to 30%. Check the rectifier’s output node for a smoothing capacitor (typically 1000µF–4700µF) and confirm its ESR rating matches the design’s current demand–ESR above 0.5Ω at 100kHz destabilizes low-dropout regulators.
Trace the voltage rails from the regulator IC downstream, noting series resistors (often 1Ω–10Ω) that limit inrush current. Measure the predicted output voltage at test points labeled TP1 or V_OUT; deviations above ±5% indicate either a faulty regulator or incorrect feedback network. For isolated supplies, inspect the transformer’s secondary winding polarity dots–reversed connections reverse the DC polarity, damaging downstream components. Use a spectrum analyzer to confirm switching-frequency harmonics remain below -60dBc at the 3rd and 5th harmonics; higher levels point to poor PCB layout or insufficient snubber circuits.
Identifying Critical Signal Paths for Troubleshooting
Locate power distribution nodes first–they often span multiple functional blocks in PCB layouts. Use a multimeter in continuity mode to trace regulated lines back to their source, marking deviations from expected voltage ranges (e.g., 3.3V, 5V, 12V) within ±5% tolerance. Document each rail’s load points before proceeding.
Examine high-speed traces by referencing the original circuit reference. Signal integrity issues typically arise in impedance-controlled routes–look for mismatches at termination resistors, vias, or connectors. Probe with an oscilloscope using a ×10 probe to avoid capacitive loading; bandwidth should exceed the signal’s third harmonic.
- Clock signals: Verify jitter below 100 ps RMS and duty cycle within ±2% of 50%.
- Differential pairs: Measure skew under 10 ps and amplitude imbalance below 5%.
- Data buses: Confirm rise/fall times match IC specifications (e.g., 1-2 ns for 100 MHz buses).
Isolate analog front-ends before debugging digital sections. Check op-amp outputs for DC offsets; discrepancies over 10 mV often indicate component drift or incorrect feedback values. For RF paths, sweep frequencies from 50 MHz to 3 GHz with a spectrum analyzer, noting spurious emissions.
Use thermal imaging to detect hotspots–abnormal temperatures correlate with faulty regulators or excessive current draw. Compare findings to the thermal profile in the design documentation; deviations exceeding 10°C warrant further investigation.
Validation Workflow
- Divide the reference into functional zones (e.g., power, digital core, I/O).
- Calculate expected voltages/current for each zone using Ohm’s Law (I = V/R).
- Measure actual values at test points; discrepancies ≥15% require component-level checks.
- Cross-reference results with EDA tool simulations for anomalies.
Replace suspect ICs only after eliminating passive faults (e.g., decoupling caps, pull-up/down resistors). For complex ICs, use boundary scan (JTAG) to localize internal failures, targeting nodes with signal corruption or stuck-at faults.
Common Circuit Adjustments for Enhanced Performance
Replace R7 with a 47kΩ potentiometer to fine-tune the input bias current across operational amplifier IC3. This adjustment prevents signal clipping at higher gain settings while maintaining stability during rapid transient responses. Test with a 1kHz sine wave at 0.5Vpp to verify the linear response range before finalizing the trimmer position.
Power Rail Optimization
Add a 1000μF low-ESR capacitor between VCC and GND near voltage regulator U5 to suppress voltage spikes during load transients. If using switching regulators, parallel a 0.1μF ceramic capacitor to handle high-frequency noise. Monitor ripple on an oscilloscope with a 10x probe; aim for
Short TP4 to TP6 during initial calibration to bypass the soft-start circuit, achieving immediate full power output for precise offset voltage measurement. This modification reduces settling time but requires reverting to the original connection for normal operation to avoid damaging sensitive downstream components. Use a 1% tolerance resistor for R12 if replacing the fixed 4.7kΩ part to maintain thermal stability in the output stage.
Swap Q2 (2N3904) for a BC547C when targeting low-noise applications, as its lower inherent noise floor improves signal-to-noise ratio by ~3dB at 10kHz. Pair this with a 1nF NP0 ceramic capacitor between the base and emitter to roll off high-frequency interference while preserving bandwidth. For RF-sensitive designs, relocate C12 to the input side of IC1 and increase its value to 100nF to filter conducted emissions from adjacent digital circuits.
