Use a 100Ω resistor between the base and ground to prevent false triggering when driving inductive loads. This simple addition stabilizes the control input, especially at higher voltages where flyback currents can disrupt operation. Pair it with a flyback diode rated for at least 1.5× the load’s continuous current to protect against voltage spikes during switching.
For currents above 2A, add a small heatsink–even a passive aluminum plate (1.5 cm² per watt) extends thermal margins significantly. Without dissipation, sustained loads risk thermal runaway, degrading performance within minutes. Direct-bonded copper substrates offer the best thermal transfer, though standard TO-220 mounting with thermal paste suffices for most applications.
Gate drive voltage should exceed 2.5V at the base to ensure saturation, but limit input to 5V for long-term reliability. Exceeding this shortens device lifespan due to excessive base current. A 1kΩ series resistor softens turn-on edges, reducing electromagnetic interference when toggling high-current loads.
Test switching speed with a 10kHz PWM signal before deployment. Rise/fall times under 5µs indicate proper drive conditions; slower transitions suggest insufficient base current or thermal throttling. For motor control, add a 0.1µF ceramic capacitor across the load to suppress high-frequency noise generated during commutation.
Ground connections must be separate for logic and power stages. Sharing traces creates ground loops, introducing erratic behavior at currents above 1A. Instead, route control signals via a dedicated return path to the power supply’s negative terminal.
Power Darlington Switching Assembly Guide
Begin by calculating the required base current–divide the load current by the device’s minimum hFE (typically 1000 for this model) and multiply by 1.5 to ensure saturation. For a 2A load, this yields a 3mA base drive; use a 1kΩ resistor from the control signal to the input lead to prevent thermal runaway while maintaining fast turn-off. Ensure the emitter connects to the ground plane with a trace at least 2mm wide per amp of intended current to minimize voltage drop.
Heat Management Strategies
Mount the package on a 35mm² copper pad with 2oz copper thickness–this configuration dissipates up to 25W continuously without additional heatsinking for ambient temperatures below 50°C. For higher power, attach a TO-220 heatsink with thermal paste; a 10°C/W sink extends safe operation to 60W. Avoid insulator pads unless electrically isolated–their added thermal resistance reduces efficiency.
Drive the input with a 5V logic signal through a 470Ω series resistor to limit current spikes; bypass the base-emitter junction with a 0.1µF ceramic capacitor to suppress high-frequency transients. Test the setup with a 10Ω dummy load and observe turn-on/turn-off times–typically under 1µs–using an oscilloscope; slower transitions indicate insufficient base drive or parasitics in the layout.
How to Identify Pin Configuration of a Darlington Pair for Schematic Layout
Locate the flat side of the TO-220 package–this marks the reference point for pin numbering. The leftmost lead (when facing the branded side) is the emitter, the center is the base, and the rightmost is the collector. Verify this arrangement with a multimeter in diode-test mode: the base-collector junction should show ~0.6V forward drop, while the emitter-base reads ~1.2V due to dual internal junctions.
Manufacturers etch identification marks on the housing–look for a notch, dimple, or beveled edge aligning with the emitter lead. For absolute certainty, cross-reference the part number with the datasheet; some variants (e.g., TIP121, TIP127) maintain identical pinouts but differ in voltage ratings. If no markings are visible, confirm polarity by tracing the metal tab: it always connects to the collector terminal.
Reverse mounting–soldering the device backward–will cause immediate failure. Use a breadboard to prototype connections before final assembly: attach power to the collector via a current-limiting resistor, drive the base through a 1kΩ resistor, and ground the emitter. Measure voltage drops across each junction to validate pin assignments under operating conditions.
Avoid relying solely on physical inspection for critical designs; thermal paste or oxidation can obscure markings. For swapped-lead packages (rare), consult the supplier’s documentation or test with a known load–incorrect pin mapping risks shorting the power supply or damaging upstream components.

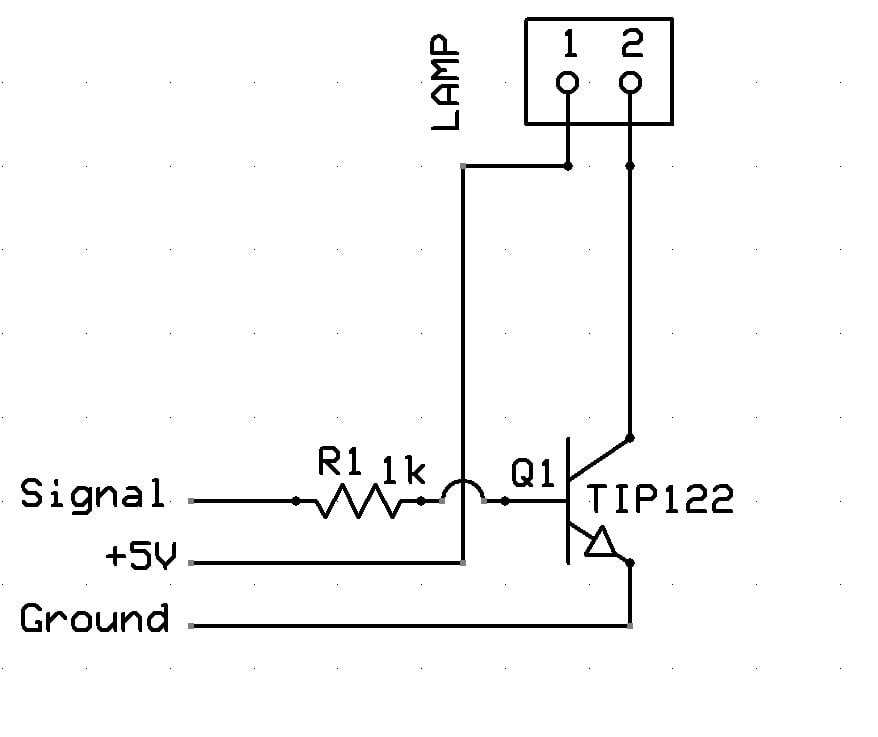

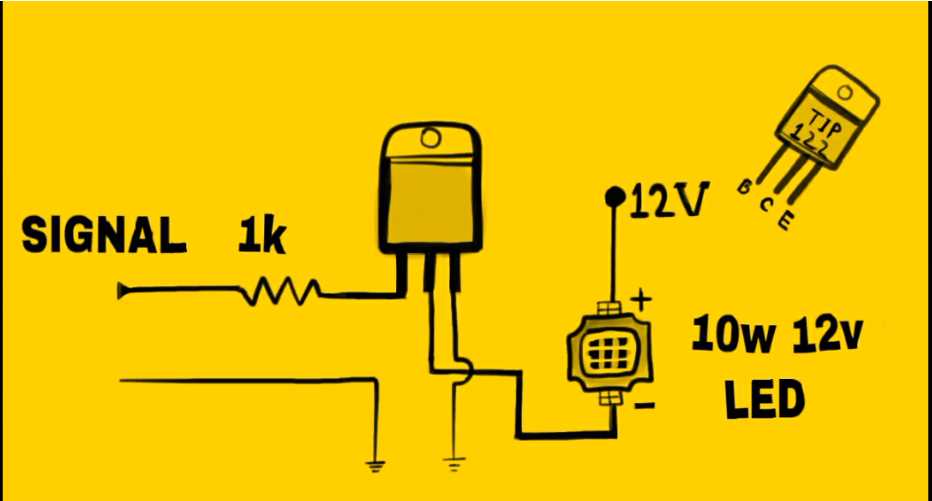

Building a High-Power Switch with Darlington Pair Components
Connect the control signal pin directly to the base resistor–use 1kΩ for 5V logic or 2.2kΩ if driving from a 12V line. Solder the emitter to ground, ensuring a solid return path for current surges up to 5A. For inductive loads like relays or motors, add a flyback diode (1N4007) across the load terminals, cathode to positive supply. Verify polarity: the larger middle lead is the collector, not the emitter–reverse connection risks thermal runaway.
Power the load through the collector: link it to the positive rail via a fuse rated 50% above expected current. Test with a multimeter first–measure base voltage at 0.7V drop when activated, collector voltage should swing within 0.2V of the supply. For switching LEDs, keep current under 1A; excess draw will degrade the junction within hours. Use a heatsink if conduction exceeds 3A continuously–thermal paste and a 10°C/W sink extend lifespan.
Calculating Base Resistor Values for Optimal Darlington Pair Efficiency
Set the base resistor to achieve a forward current gain (hFE) of at least 20% above the minimum specified for the device. For the TIP-series Darlington, this typically ranges from 1000 to 20,000 depending on collector current. Use the formula:
RB = (VIN - VBE) / (IC / hFE(min) × 1.2)
Where VIN is the control voltage, VBE is the forward voltage drop (1.4–2.0V for Darlington configurations), IC is the target load current, and hFE(min) is the minimum current gain. Failure to overshoot hFE by 20% risks partial saturation under load.
Common Load Scenarios and Resistor Values
| Load Current (A) | Suggested RB (Ω) | VIN (V) | Notes |
|---|---|---|---|
| 0.5 | 270–470 | 5 | Low-speed switching, minimal heat dissipation |
| 2.0 | 82–150 | 12 | Standard inductive loads (relays, motors) |
| 5.0 | 33–68 | 24 | High-current applications; verify thermal derating |
| 10.0 | 15–33 | 36 | Use parallel resistors to avoid exceeding power ratings |
For pulsed operation, reduce RB by 30–50% to compensate for transient current spikes. Measure actual VCE(sat) under load; values above 1.0V indicate insufficient base drive. Adjust resistor values in 10% increments until VCE(sat) stabilizes below 0.7V.
Thermal effects necessitate dynamic calculations: increase RB by 1% per °C rise above 25°C to maintain consistent switching characteristics. For example, at 85°C, multiply the calculated resistor value by 1.6.
Isolation barriers (optocouplers, transformers) add 0.7–1.5V to the VBE drop. Recalculate RB with the adjusted VIN:
RB = (VIN - VISO - VBE) / (IC / hFE(min) × 1.2)
Select resistor wattage based on P = IB2 × RB. For IC = 5A, hFE = 1000, and RB = 47Ω, power dissipation is 225mW. Use 0.5W resistors; 0.25W risks failure under prolonged load.
Parallel resistors divide current equally. For RB = 15Ω, use three 47Ω resistors in parallel to achieve 15.7Ω with 1.5W total dissipation. Verify combined power rating exceeds calculated load by 25%.
High-frequency switching (>10kHz) demands lower RB to reduce turn-off delays. For 50kHz PWM, target a base current of 5–10% of IC. Example: IC = 3A, RB = 22Ω for VIN = 12V. Monitor rise/fall times with an oscilloscope; adjust RB until waveforms show
Common Load Types and Current Ratings in Power Switching Applications
For resistive loads like incandescent lamps or heating elements, ensure the semiconductor handles at least 1.5× the continuous current. A 100W bulb at 12V draws ~8.3A, so plan for 12.5A capacity. Keep in mind inrush spikes can reach 10× steady-state values during the first 50ms, requiring transient suppression.
Inductive loads (relays, solenoids, motors) demand special attention. Back-EMF from a 12V relay coil can exceed 100V; use a flyback diode rated for 1.5× the supply voltage and peak coil current. A typical 30A automotive relay may need a 1N4007 (1A continuous, 30A surge) or 1N5408 (3A continuous) depending on duty cycle. For motors, derate to 2× the nominal current–brush DC motors often surge 3-5× while commutating.
Current Limits for Specific Devices
- LEDs: Series strings up to 20mA per segment; parallel arrays need current-sharing resistors (0.1–1Ω) to prevent thermal runaway.
- Solenoids: Continuous rating of 1–3A, peak 15–25A during actuation. Use PWM with 5–15kHz to reduce heating and audible noise.
- Peltier modules: Require 4–6A at 12V for 40×40mm cells; junction temperature must stay below 100°C to prevent degradation.
- Audio coils (8Ω): RMS currents of 1–3A; peak music signals may hit 8A–ensure the semiconductor’s saturation voltage doesn’t clip dynamics (aim for VCE(sat)
Pulse-width modulated loads introduce switching losses. At 20kHz, a 50% duty cycle with 5A average current means 10A instantaneous current during the ON period. Calculate power dissipation as Ipeak × VCE(sat) × duty cycle–this often exceeds steady-state losses. For example, 10A × 0.3V × 0.5 = 1.5W, but thermal resistance must account for the smaller effective duty.
- Match heat sinking to the load profile. A TO-220 package can sink 1–2W in still air, 10W with a 25°C/W heatsink. Below 1A continuous, clip-on tabs suffice; above 2A, use mica washers, thermal paste, and forced air if ambient exceeds 50°C.
- Add a 0.1µF ceramic capacitor directly across the load terminals to snub RFI from switching edges–especially critical near microcontrollers or radio receivers.
- For loads above 10A, parallel two switching elements with separate base resistors (100–220Ω) to balance current and improve reliability.
Battery-powered systems require additional derating. Lead-acid cells can supply 10C pulses (e.g., 100A from a 10Ah battery), but the semiconductor must handle these without desaturation. Lithium chemistries limit to 3–5C; ensure protection circuits don’t falsely trigger due to inductive kicks. Always fuse at 1.2× the continuous rating to allow for aging and over-temperature conditions.
Load-Specific Protection Schemes
Short-circuit protection demands fast intervention. A sense resistor (typically 0.05Ω) with a comparator can trip within 10µs. For inductive loads, place the sense resistor on the high side to minimize voltage spikes on ground. Alternatively, use a dedicated IC like the LM1949 for current-limiting up to 10A without additional components.
Thermal derating starts at 60°C ambient. Most silicon switches lose ~0.5% current capacity per °C above this threshold. If operating in an engine bay (85°C typical), derate to 60% of the 25°C rating. For example, a 15A-rated device should carry no more than 9A continuously in such conditions. Always verify junction-to-case thermal resistance (RθJC)–values above 1°C/W may need auxiliary cooling.
