Start by selecting a 555 IC in astable configuration for intervals under 10 minutes–this setup requires just two resistors and a capacitor. For R1, use 10 kΩ, and choose R2 between 1 kΩ and 1 MΩ based on the delay needed. A 10 µF electrolytic capacitor works for most applications, but for sub-second precision, switch to a ceramic 100 nF. Calculate the interval with T = 1.1 × R1 × R2 × C, ensuring R2 is at least ten times R1 to maintain stability.
For longer sequences (hours to days), replace the 555 with a CD4060 binary counter. This chip integrates an oscillator and 14-stage ripple counter, reducing component count while extending the range exponentially. Pair it with a 32.768 kHz crystal for temperature-compensated accuracy (±20 ppm). Add a 22 pF load capacitor to each crystal pin to minimize drift–critical for timed industrial processes.
Include a MOSFET (IRF540N) to handle loads above 500 mA. Trigger it with a 10 kΩ pull-down resistor on the gate to prevent false activation. For AC-powered devices, opt for a solid-state relay (e.g., Omron G3MB) to isolate high-voltage circuits safely. Always fuse the supply line at 125% of the maximum load current–this prevents board damage during surges.
Test the assembly on a breadboard first. Use an oscilloscope to verify the pulse width at the output pin (3.3V or 5V logic). If the signal flickers, add a 0.1 µF decoupling capacitor near the IC’s power pins. For remote monitoring, incorporate an ESP8266 module to log events via Wi-Fi–this adds telemetry without redesigning the core timing mechanism.
Designing a Precise Delay Mechanism: Key Schematics
Begin with a 555 IC in monostable configuration for delays between microseconds and hours. Connect pin 2 (trigger) to a push button or sensor output with a 10 kΩ pull-up resistor to VCC. Link pin 6 (threshold) and pin 7 (discharge) together through a timing capacitor, then to ground via a timing resistor. For a 1-second pulse, use a 100 µF electrolytic capacitor and a 10 kΩ resistor; adjust values linearly for other intervals (T = 1.1 × R × C). Ensure the capacitor is low-leakage (e.g., tantalum) to avoid drift.
For sub-second accuracy, pair the 555 with a Schmitt trigger gate (e.g., 74HC14). Replace the timing resistor with a potentiometer (10 kΩ) for adjustable delays; add a fixed resistor (1 kΩ) in series to prevent zero resistance. Power the IC at 5V for logic compatibility or 12V for higher current outputs. Decouple VCC with a 100 nF ceramic capacitor near the IC to suppress noise, avoiding false triggers from voltage spikes.
Microcontroller-Based Alternatives
Replace analog delays with an ATtiny85 programmed in C or Arduino IDE. Use delayMicroseconds() for sub-millisecond precision or millis() for non-blocking intervals. Example code:
- Set pin 3 as output and toggle it after 2.5 seconds:
unsigned long startTime = millis(); while (millis() - startTimeFlash the ATtiny with an AVR programmer; power it via USB or 3.3V regulator for portability. Add an external 16 MHz crystal for clock stability if timing errors exceed ±1%.
High-Precision Techniques
For nanosecond delays, use a crystal oscillator (e.g., 20 MHz) with a counter IC like the 74HC393. Cascade two counters for longer spans; each stage divides the input frequency by 2. Example: 20 MHz → 0.05 µs per tick → 216 ticks = 3.28 ms max delay. For AC line synchronization, derive the clock from a 50/60 Hz transformer via a zero-crossing detector (e.g., MOC3021 optocoupler).
For extreme stability, integrate a DS3231 RTC module. It provides ±2 ppm accuracy at 25°C and can trigger interrupts at preconfigured intervals via I²C. Connect the SQW pin to a microcontroller’s interrupt input; program the alarm registers using Arduino’s
RTClib. Example:
- Initialize RTC:
#include <RTClib.h> RTC_DS3231 rtc; void setup() { rtc.begin(); }- Set alarm for 10 minutes:
rtc.setAlarm1(rtc.now() + TimeSpan(0, 0, 10, 0), DS3231_A1_Minute);Combine these methods for hybrid solutions. Use the 555 for short, predictable bursts and an RTC for long-term scheduling. For portable designs, add a lithium coin cell (CR2032) to retain RTC data during power loss. Always validate delay accuracy with an oscilloscope; fine-tune resistor/capacitor values empirically to compensate for component tolerances.
Key Parts for a Straightforward Time-Based Setup
Start with a 555 integrated chip–opt for the NE555 variant for reliability in monostable mode. Pair it with a resistor-capacitor pair to set the delay duration: a 10 kΩ resistor and 100 µF capacitor yield roughly 1.1 seconds, while swapping the capacitor for 470 µF extends it to about 5.2 seconds. Ensure the capacitor is polarized electrolytic for accurate timing and avoid ceramic types under 10 µF, which introduce voltage drift.
Add a pull-up resistor of 1 kΩ–10 kΩ on the control pin (pin 7) to prevent false triggers, especially if the input source is mechanical (e.g., a push-button). For power, a 9V battery works, but a regulated 5V supply improves stability–use a 7805 linear regulator if feeding from higher voltages. Include a flyback diode (1N4007) across any inductive loads (relays, buzzers) to protect the chip from voltage spikes.
Component Selection Quick Reference
| Component | Recommended Value | Critical Notes |
|---|---|---|
| Resistor (timing) | 1 kΩ–1 MΩ | Metal film preferred (1% tolerance) |
| Capacitor (timing) | 10 µF–1000 µF | Electrolytic; check leakage current for long delays |
| Bypass capacitor | 0.1 µF | Ceramic; place within 5 mm of chip VCC/GND |
| Load resistor | 220 Ω–1 kΩ | Matches LED/relay coil impedance |
For repeatable results, twist the timing resistor-capacitor leads together to minimize noise pickup, or use a small protoboard for neat soldering. Test delay accuracy with an oscilloscope on the output pin (pin 3)–expect a clean rectangular pulse. If the delay drifts, replace the capacitor first; low-leakage types like tantalum improve consistency by 20–30% over standard electrolytic.
Assembling a 555 Integrated Chip Setup: Precise Connections
Begin by securing the 555 IC on a solderless breadboard, ensuring pin 1 aligns with the ground rail. Connect a 10kΩ resistor between pin 2 (trigger) and pin 7 (discharge), then link pin 7 to the positive supply via another 10kΩ resistor. This establishes the charge path for the capacitor, critical for oscillation. For a 1Hz output, pair a 1µF electrolytic capacitor between pin 6 (threshold) and ground–polarity matters, so connect the negative terminal to ground. Attach a 1kΩ resistor from pin 3 (output) to an LED’s anode, with the cathode grounded, to visualize the signal.
Verify power: apply 5V DC to pin 8 (Vcc) and ground pin 1, using a regulated source to avoid voltage spikes. If the LED fails to blink, recheck connections–common issues include reversed capacitor polarity, incorrect resistor values, or floating pins. Pin 5 (control voltage) can be left unconnected for standard operation but decouple it with a 0.1µF ceramic capacitor to ground if noise suppression is needed in sensitive environments.
Adjust timing by replacing the 1µF capacitor: use 10µF for ~0.1Hz or 100nF for ~10Hz. For stability, avoid exceeding 15V on Vcc, as exceeding the 555’s absolute maximum rating risks irreversible damage. Clean the breadboard of debris to prevent short circuits, and test each component’s continuity with a multimeter before powering on.
Adjusting Time Delays with Resistors and Capacitors
To fine-tune delay intervals in a timing configuration, select resistor-capacitor pairs based on the RC time constant (τ), where τ = R × C. For a 1-second delay, combine a 100kΩ resistor with a 10µF capacitor (τ ≈ 1s). Use precision resistors (1% tolerance) and low-leakage capacitors (e.g., polyester or polypropylene) to minimize drift. For shorter delays, reduce capacitance: 10kΩ + 1µF yields τ ≈ 10ms. Avoid electrolytic capacitors for high-precision applications due to inherent leakage currents.
Key Factors Affecting Accuracy
- Temperature drift: Film capacitors and metal-film resistors exhibit <50 ppm/°C, making them ideal for stable delays. Ceramic capacitors degrade above 85°C.
- Voltage rating: Ensure the capacitor’s voltage rating exceeds the supply (e.g., 16V for a 12V system) to prevent dielectric breakdown.
- Parasitic effects: Trace lengths >2cm introduce inductance; keep PCB tracks short for nanosecond-scale adjustments.

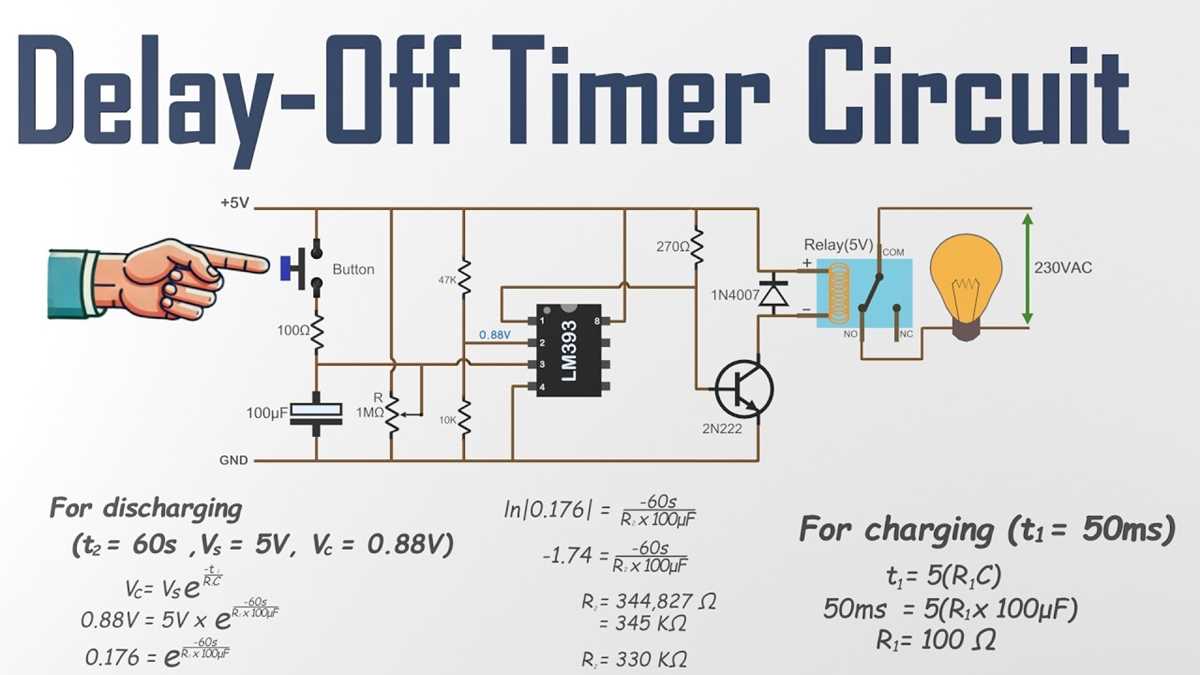

- Non-linear discharge: For delays >10s, use a comparator-based threshold (e.g., LM393) to reset the charge cycle precisely at 63.2% Vcc.
For adjustable delays, replace fixed resistors with a linear potentiometer (10kΩ–1MΩ) or a digital rheostat (e.g., MCP4131). Calibrate using an oscilloscope: measure the time from signal onset to the 63.2% Vcc point. Compensate for loading effects by adding a buffer (e.g., unity-gain op-amp) if the output drives low-impedance loads. For microsecond precision, use surface-mount 0402 components to reduce stray capacitance (
Common Troubleshooting Issues in Timekeeping Modules
Check power supply stability first–fluctuations as small as ±5% can disrupt sequencing. Use a regulated DC source or verify capacitor values in smoothing stages if the control unit resets unpredictably. Low-cost voltage regulators often fail under load; replace with a linear LM7805 or buck converter for consistent output.
Oscillator drift occurs when ceramic resonators replace quartz crystals–switch to a 32.768 kHz crystal for microsecond precision. Inspect solder joints and traces for corrosion; residue from flux can create parasitic capacitance, altering delay periods. Clean with isopropyl alcohol and a stiff brush if timing intervals shorten or stretch irregularly.
Load-Driven Faults
Inductive loads (relays, motors) generate back EMF, damaging output stages–add flyback diodes or optocouplers to isolate the switching element. For resistive loads exceeding 500 mA, upgrade the transistor to a MOSFET (e.g., IRLZ44N) and confirm sink/source current ratings match the schematic.
False triggers often stem from noise on control lines–place a 0.1 µF decoupling capacitor directly across the IC’s power pins. If the sequencing stops mid-cycle, probe the reset pin; floating inputs default high, halting operation unexpectedly. Pull-down resistors (10 kΩ) prevent this in 555-based designs.
Thermal runaway in BJTs (e.g., 2N2222) can cause timing shifts–switch to a Darlington pair or heat sink for prolonged operation. For microcontroller-driven modules, ensure firmware loop delays account for instruction execution times; unoptimized code introduces milliseconds of jitter.
