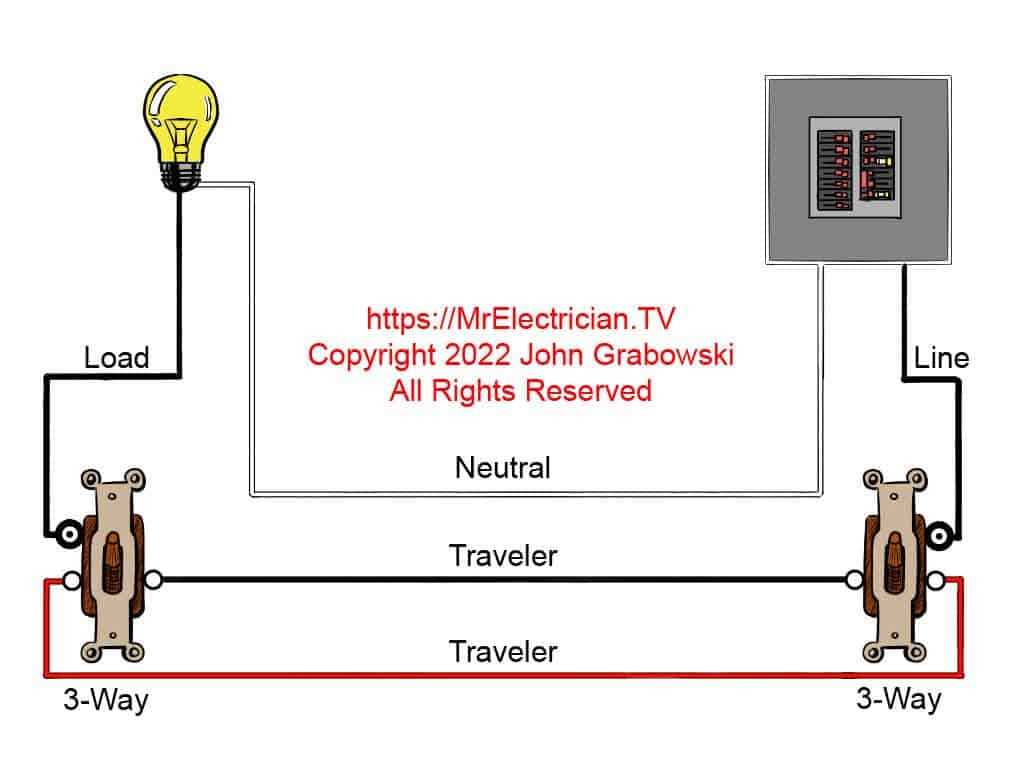

Install a pair of SPDT (single-pole, double-throw) toggle controls at opposing ends of a corridor or stairwell to enable independent operation from two distinct points. Ensure the common terminal on each device connects to the load (luminaire) or power source via a traveler conductor. The remaining terminals on both devices should form a continuous loop with two 14 AWG copper wires, creating an uninterrupted path that allows either toggle to disrupt or restore current flow regardless of the other’s state.
Begin by isolating the circuit at the breaker panel; verify the absence of voltage with a non-contact tester. Strip ¾ inch of insulation from each conductor, crimp the stripped ends with fork terminals for secure attachment to the toggle terminals. Route the traveler cables through ½-inch EMT conduit if running exposed–adhering to NEC Article 358–or through existing wall cavities, ensuring a minimum 18-inch buffer from HVAC ducts to prevent overheating. Ground each device with a dedicated bare copper wire bonded to the metal junction box; failure to ground increases arc-fault risk.
For three-entry configurations (e.g., a split-level area), incorporate a four-way intermediary between the two SPDT devices. This device cross-connects the traveler terminals, enabling a third control point. Wire the four-way device by attaching incoming travelers to one pair of terminals and outgoing travelers to the opposing pair–incorrect polarity here results in non-functional or erratic toggling. Label each traveler conductor with color-coded sleeves (red for hot, black for neutral) during installation to eliminate confusion during future troubleshooting.
Test the configuration with a continuity tester before re-energizing the circuit. Actuate each device independently while observing the luminaire–any delays, flickering, or partial illumination indicates a miswired traveler loop. If issues persist, measure voltage between the common terminal and each traveler terminal; expected readings are 120V AC (North American standard) or 0V depending on toggle position. Replace any faulty devices immediately–compromised internals can create latent hazards, including overheating or shorts.
Multi-Location Circuit Configuration Guide

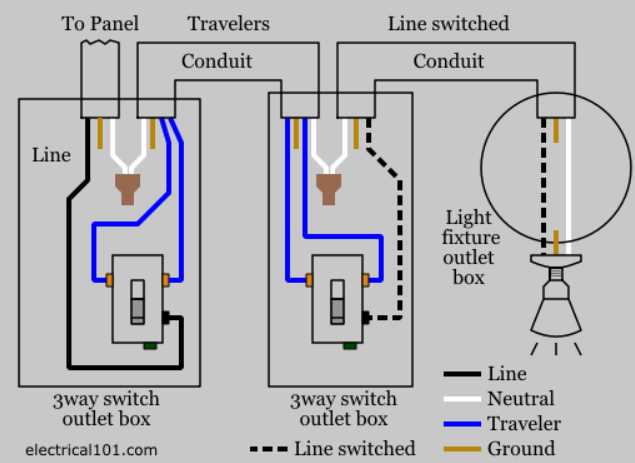

Start by connecting the common terminal of the first control point to the power source–use 14-gauge copper wire for 15-amp circuits, marked with black insulation for hot leads. Attach the remaining terminals to traveler wires (colored red and white for differentiation) routed through the electrical box, ensuring each end lands on corresponding traveler slots of the second control device. Cap the neutral wire in both boxes if not used, but verify local code compliance, as some jurisdictions mandate neutral availability for smart modules.
Key Wire Pairings for Reliable Operation
| Control Point | Terminal Type | Wire Color | Gauge |
|---|---|---|---|
| Primary | Common | Black | 14 AWG |
| Primary/Secondary | Traveler | Red/White | 14 AWG |
| Secondary | Common | Black or Marked | 14 AWG |
Test continuity with a multimeter before energizing–probes on traveler terminals should show zero resistance when toggled correctly. Label all cables at both ends to avoid misconnections during future modifications, and secure splices with wire nuts rated for 600 volts, twisting strands clockwise before crimping.
Essential Gear and Supplies for Multi-Location Circuit Setup
Start with 14-gauge copper conductors for standard 15-amp residential circuits or 12-gauge for 20-amp lines–verify local electrical codes before purchasing. Include at least six insulated wires per connection: two travelers (usually red and black), one common terminal (typically black), one neutral (white), and one ground (bare or green). Add a 10% length buffer to avoid splices mid-run; measure the full path from power source to fixture and between control points twice.
Specialized Instruments for Safe Handling
Equip yourself with a non-contact voltage tester (minimum 50V sensitivity) to confirm de-energized lines before touching terminals. Use lineman’s pliers with insulated grips rated for 1000V for cutting and twisting conductors, and a long-nose wire stripper with 12-18 AWG markings to remove insulation cleanly without nicking cores. A multimeter (preferably auto-ranging) with continuity and resistance modes helps verify connections and troubleshoot mismatched wires. Include a fiberglass push stick for guiding cables through confined spaces like wall cavities.
For mounting, select single-gang electrical boxes with at least 18 cubic inches of volume to accommodate extra conductors–plastic or metal based on existing infrastructure. Secure travelers with wire nuts rated for the gauge in use (e.g., yellow for 12-10 AWG) and wrap splices with electrical tape as secondary insulation. If replacing old hardware, have a no-drive screwdriver on hand to pry loose corroded terminals. Store leftover materials in labeled plastic bins with silica gel packets to prevent moisture damage during future repairs.
Step-by-Step Guide to Identifying Messenger Cables in Installed Electrical Paths
Turn off the power at the breaker panel before touching any conductors. Use a non-contact voltage tester to confirm all lines are dead–ignore this step and risk severe injury or fatality. Label each wire at both connection points with masking tape and a permanent marker. Note colors, screw terminals, and positions relative to the toggle or rocker position.
Disconnect the terminals at both control points, separating the wires completely. Group suspiciously similar colored wires (usually red and black) together; these are your candidate messenger cables. If the setup includes a grounded neutral (white), it will typically be pigtailed and not run between the two devices. Ignore any green or bare copper–they’re safety grounds.
Set a multimeter to continuity mode or the lowest resistance setting. Touch one probe to a bare portion of a suspected messenger conductor at the first box. With the other probe, touch each wire at the second box sequentially. A reading near zero ohms confirms a direct link–the messenger pair. Repeat for the remaining wires until both messengers are isolated.
- If resistance reads infinite, the line is either open, feeding a load, or not a messenger.
- Messenger cables are almost always identically colored between boxes, but exceptions occur in older installations with mixed wire types.
- Document each pair found by wrapping them together with a twist tie or small zip tie–this prevents accidental reconnection during later steps.
Reconnect power temporarily with all wires still disconnected. Flip either control to its active position. The messengers should show identical voltage (typically 120V in US residential circuits) when measured to ground or neutral. If one shows zero while the other carries full voltage, the circuit logic is reversed–swap their labels immediately.
Once verified, wrap each messenger terminal with red electrical tape near the screw. This color-coding prevents mistakes during reassembly and matches the standard convention for switching circuits. Never reattach any wires until both messengers are clearly marked and all safety checks are complete–errors here cause lamps to malfunction or create safety hazards.
Standardized Color Codes and Wire Labeling for Multi-Location Circuits
Use black (hot/common) for the traveler terminal connected to the power source or fixture. This wire carries ungrounded current and must be clearly distinguished from other conductors in the cable assembly. If the circuit includes a neutral (required in modern installations per NEC 2011+), identify it with white–never repurpose this conductor for switched travelers. For grounded conductors, stick to bare copper or green with an additional stripe; no exceptions should be made for temporary labeling.
- Traveler terminals: Always use red and blue for the two switched conductors linking control points. If red is unavailable, substitute with yellow but avoid mixing color schemes within the same run–consistency prevents miswiring during maintenance. Label each traveler at both ends using heat-shrink tubing or permanent marker: “T1” for red/blue, “T2” for the second conductor.
- Common terminal: Mark the black/switched-hot lead with “COM” at each connection point, ideally using write-on sleeves or pre-printed adhesive tags. This terminal carries power to the load when either control point is activated.
- Neutral integrity: If the circuit lacks a neutral in the switch box (older installations), install a gray jumper from the load’s neutral splice to the control point if future smart device upgrades are anticipated–verify conductor size matches circuit ampacity (14 AWG for 15A, 12 AWG for 20A).
Junction Box Labeling Protocol
At every termination point, attach a printed or handwritten label detailing:
- Circuit identifier (e.g., “Hallway Light – North Wall”).
- Terminal designation (COM, T1, T2, NEUTRAL, GROUND).
- Wire gauge and insulation type (e.g., “12 THHN”).
Seal labels with clear packing tape to prevent smudging from handling. For conduits, use colored tape wraps at both ends of each conductor–matching the color code above–to enable quick visual verification.
For mixed-voltage systems (e.g., 120V/277V), use purple for travelers on 277V circuits to avoid lethal confusion. When retrofitting existing conduits, photograph all existing wires before disconnection and affix prints to the junction box cover using photo-safe adhesive–never rely on memory. Test continuity between all traveler pairs with a multimeter prior to energizing; any resistance above 0.5Ω indicates a loose connection requiring re-termination.
