Begin by selecting a circular bacterial vector with proven stability–pSRK-Km or pET-28a are optimal for high-copy replication and robust selection via kanamycin resistance. Linearize the chosen vector using a single-cut restriction enzyme like BamHI or EcoRI, ensuring the cut site lies outside critical regions (e.g., origin of replication, antibiotic resistance gene). Run the digest on a 1% agarose gel stained with ethidium bromide to verify complete cleavage; partial digests introduce confounding background in downstream steps.
Amplify the target gene via PCR using primers engineered with 15-20 bp overhangs matching the vector’s cut site. Include a 5’ phosphate group on the forward primer to enable direct ligation–omitting this risks inefficient circularization. Use a high-fidelity polymerase (Phusion or Q5) with proofreading capability to minimize errors; standard Taq yields error rates of 1 in 104 bases, unacceptable for constructs >1 kb. Purify the PCR product via a silica-based column (Qiagen QIAquick or Zymo DNA Clean & Concentrator), eluting in ≤30 µL nuclease-free water to maximize concentration (target: 50–100 ng/µL).
Mix the linearized vector and purified insert at a 1:3 molar ratio in a 20 µL ligation reaction containing T4 DNA ligase and ATP-supplemented buffer. Incubate at 16°C for 4–12 hours; shorter incubations (50%. Transform the ligation mix into chemically competent E. coli (DH5α or NEB 5-alpha) via heat shock at 42°C for 45 seconds–prolonged exposure or incorrect calcium chloride concentration (optimal: 50–100 mM) drops transformation efficiency below 106 CFU/µg. Plate immediately on LB agar containing the selection agent; delays of >2 hours reduce viable colonies by 70% due to plasmid degradation.
Screen transformants via colony PCR using primers flanking the insertion site–avoid sequencing-based validation initially, as it adds unnecessary cost and delay. Pick 5–10 colonies, resuspend each in 50 µL water, and use 2 µL as template in a 20 µL PCR. Run products on a 1% gel; bands matching the expected insert size confirm correct assembly. Sequence a single candidate using primers 100–200 bp upstream/downstream of the insertion to detect frameshift mutations or off-target integrations. For constructs >5 kb, additionally verify structural integrity via restriction digest mapping to rule out large-scale rearrangements.
Visualizing DNA Vector Assembly Workflow
Begin with linearizing the circular bacterial vector using a single-cut restriction endonuclease–BamHI or EcoRI offer reliable blunt or sticky ends for downstream ligation. Precipitate cut fragments with ethanol to remove enzyme traces, then quantify via nanodrop; 260/280 ratios between 1.8 and 2.0 confirm purity. Avoid UV exposure during handling to prevent cross-linking.
| Step | Enzyme/Reagent | Incubation (min) | Temperature (°C) |
|---|---|---|---|
| Digestion | BamHI | 60 | 37 |
| Ligation | T4 DNA Ligase | 120 | 16 |
| Transformation | CaCl2-competent cells | 30 | 4 |
Insert preparation demands parallel treatment: amplify target sequences via PCR with primers adding compatible overhangs, then purify using gel extraction (1% agarose, 100V for 45 minutes). Excise bands at expected sizes–1.5 kb for kanamycin resistance cassettes–using blue-light transilluminator to minimize damage. Elute in 30 µl nuclease-free water; concentrations should exceed 50 ng/µl for efficient joining.
Combine vector and insert in a 1:3 molar ratio with T4 ligase buffer; ATP concentration above 0.5 mM prevents re-circularization. Include a no-insert control to gauge background colonies. Heat-inactivate ligase at 65°C for 10 minutes post-reaction. Store at -20°C if immediate transformation isn’t possible–freeze-thaw cycles degrade ligase activity by 30% per cycle.

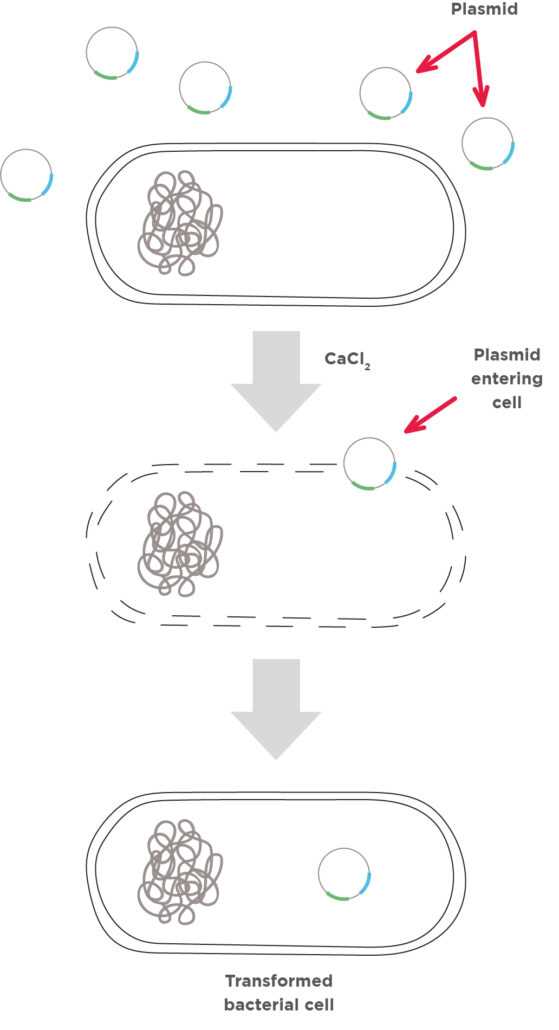

For transformation, thaw CaCl2-competent *E. coli* DH5α on ice. Add 5 µl ligated product, incubate for 30 minutes, then heat-shock at 42°C for 45 seconds. Recover in SOC medium at 37°C for 45 minutes before plating on LB agar with 50 µg/ml kanamycin. Incubate plates inverted at 37°C for 12-16 hours; colonies should be 2-3 mm in diameter. Screen via colony PCR using M13 primers–expected amplicon sizes for correct constructs range from 800-1200 bp.
Key Optimization Parameters
Sticky-end ligations yield 5-10x more colonies than blunt ends; use phosphatased vectors only when insert carries a 5’ phosphate. For high-copy vectors (pUC19 derivatives), reduce ligase volume to 0.5 µl per 20 µl reaction to avoid concatemer formation. Verify construct orientation with two restriction digests–one targeting the vector backbone, another confirming insert direction.
Key Markers for Recognizing Plasmid Elements in Illustrations
Locate circular structures first–plasmids typically appear as closed loops distinct from linear bacterial chromosomes. Identify origin points (ori) by searching for small, often labeled segments where replication initiates. These regions frequently include repeat sequences or AT-rich zones, shown as clusters of adenine-thymine pairs.
Examine antibiotic resistance genes, depicted as elongated segments with clear annotations like ampr, kanr, or tetr. These cassettes are usually flanked by promoter regions and terminator sequences forming precise boundaries. Tools like restriction maps or PCR primer sites may appear as vertical lines or arrows indicating cutting locations.
Note insertion sequences–transposons or integrons manifest as modular blocks between functional genes. Look for inverted repeats (IRs) at their edges, often drawn as mirrored sequences. Multiple cloning sites (MCS) stand out with dense clusters of unique restriction enzyme cut locations, frequently labeled with enzyme names like EcoRI or BamHI.
Trace regulatory elements: promoters appear as upstream regions driving gene expression, sometimes illustrated with arrows indicating transcription direction. Operator sequences–binding sites for repressor proteins–typically sit adjacent to promoters as smaller, unlabeled segments.
Check for plasmid copy number indicators, usually shown near the ori as numerical values like “high-copy” (100–500) or “low-copy” (1–20). External tags like Green Fluorescent Protein (GFP) fusion constructs add linear extensions with distinct visual markers–colored segments or labeled boxes clearly separating from native plasmid components.
Practical Protocol for Isolating Bacterial Vector DNA
Centrifuge 1.5 mL of overnight bacterial culture at 12,000 × g for 30 seconds to pellet cells. Resuspend pellet in 250 µL ice-cold Buffer P1 (containing 50 mM Tris-HCl pH 8.0, 10 mM EDTA, 100 µg/mL RNase A). Vortex briefly to ensure uniform suspension–avoid excessive agitation to prevent genomic DNA shearing. Add 250 µL Buffer P2 (200 mM NaOH, 1% SDS), invert tube 4–6 times until solution turns viscous and translucent. Incubate at room temperature for exactly 5 minutes; over-incubation lyses genomic DNA, contaminating preparations.
- Chill Buffer P3 (3 M potassium acetate pH 5.5) to 4°C before use–warm buffer reduces precipitate efficiency.
- Add 350 µL Buffer P3, invert tube immediately 5–10 times until white flocculent precipitate forms.
- Centrifuge at 16,000 × g for 10 minutes at 4°C. Transfer supernatant to a new tube using a pipette; avoid disturbing the pellet containing cell debris, proteins, and chromosomal DNA.
Pass supernatant through a silica spin column equilibrated with Buffer QBT (750 mM NaCl, 50 mM MOPS pH 7.0, 15% isopropanol, 0.15% Triton X-100) by centrifugation at 1,000 × g for 1 minute, followed by 14,000 × g for 1 minute to bind DNA. Wash column twice: first with 700 µL Buffer QC (1 M NaCl, 50 mM MOPS pH 7.0, 15% isopropanol), then with 500 µL Buffer PE (80% ethanol, 10 mM Tris-HCl pH 7.5). Dry column by centrifuging at 14,000 × g for 2 minutes–residual ethanol inhibits downstream applications. Elute DNA with 50 µL pre-warmed (65°C) Buffer EB (10 mM Tris-HCl pH 8.5) or sterile water, incubating for 2 minutes before a final spin at 14,000 × g for 1 minute. Store eluate at -20°C; typical yield ranges 5–15 µg from 1.5 mL culture.
Choosing Restriction Enzymes for Vector Cleavage
Prioritize enzymes cutting within the multiple cloning site (MCS) of your circular DNA construct. Opt for pairs generating compatible overhangs–EcoRI (G↓AATTC) and BamHI (G↓GATCC) leave matching 5′ overhangs, reducing ligation bias. Verify enzyme activity in a single buffer; FastDigest enzymes (e.g., XbaI, SalI) operate efficiently in CutSmart or Tango buffers, minimizing optimization steps.
Avoid enzymes with star activity under suboptimal conditions–HindIII (A↓AGCTT) loses specificity at >5% glycerol, while NotI (GC↓GGCCGC) requires ≥100 ng/μL DNA for reliable cleavage. Check manufacturer data for unit definitions: one unit digests 1 μg λ DNA in 1 hour at 37°C in 50 μL, but some enzymes (e.g., PstI) demand longer incubation.
- Select enzymes inserting ≥1 cut in your target fragment and 0–1 in the backbone to prevent circularization.
- Use NEBuffer Performance Chart (neb.com) to confirm compatibility–SmaI (blunt cutter) pairs poorly with KpnI (3′ overhang) due to buffer incompatibility.
- For directional cloning, pick enzymes generating distinct overhangs (e.g., XhoI CTCGAG vs. BglII AGATCT) to prevent vector self-ligation.
Calculate required units based on DNA quantity and enzyme concentration. For 1 μg pUC19, 5–10 units EcoRI suffice, but 0.5 μg linearized DNA may need 15–20 units to overcome supercoiling resistance. Use ≤10% v/v enzyme to avoid glycerol toxicity; dilute enzymes in storage buffer if exceeding this limit.
Addressing Common Pitfalls
Incomplete digestion arises from methylation or secondary structures. For dam-methylated DNA (e.g., E. coli host), use DpnI (Gm↓ATC) to degrade templates or switch to methylation-insensitive enzymes like BsaI (GGTCTC). Restriction sites near hairpin loops (e.g., CG-rich regions) may require heat inactivation (65–80°C) or proteinase K treatment to expose cleavage sites.
Validate digestion with agarose gel electrophoresis (0.8–1.2% gel). Include undigested control; partial digestion appears as a smear between supercoiled and linear bands. For troubleshooting, add 1 μg BSA and incubate 4–16 hours–some enzymes (e.g., NdeI) exhibit time-dependent activity.
- For blunt-end cloning, prefer SmaI (CCC↓GGG) over EcoRV (GAT↓ATC)–SmaI cuts at lower temperatures (25°C) and avoids star activity common with EcoRV.
- For Golden Gate assembly, select Type IIS enzymes (e.g., BsaI, BbsI) cutting outside their recognition sites, enabling scar-free ligation of fragments with custom overhangs.
Plan for downstream steps–heat-labile enzymes (e.g., XbaI) can be inactivated at 65–80°C for 20 minutes, but thermostable enzymes (e.g., SapI) require phenol-chloroform extraction or column purification. Store digested DNA at −20°C; avoid freeze-thaw cycles to maintain overhang stability.
