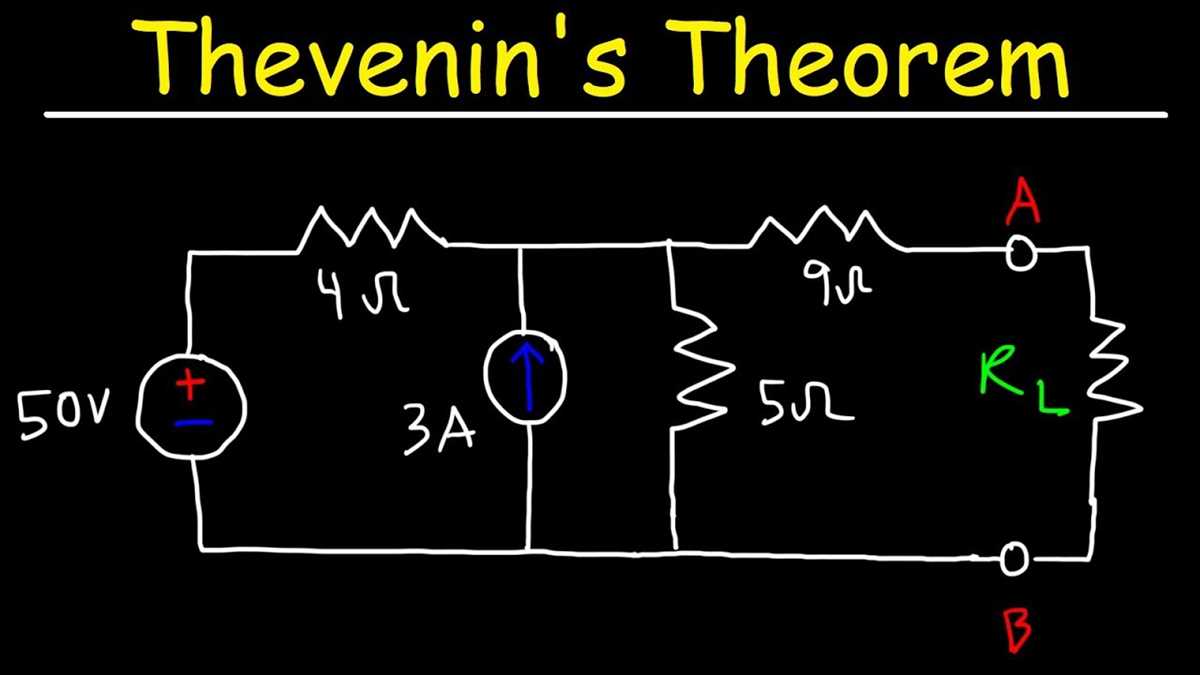

Replace any resistive network–no matter how complex–with a single voltage source and series resistor. This substitution drastically reduces analysis time while preserving exact load behavior. Begin by identifying the output terminals where the equivalent model will connect. Disconnect the load resistor entirely before proceeding.
Measure or calculate the open-circuit voltage between the terminals to determine the substitute source. Use a multimeter directly for real-world setups. For SPICE simulations, probe nodes with `.op` analysis. For manual calculations, apply nodal or mesh techniques to solve the network with the load removed. Record this value precisely–errors here propagate through all subsequent steps.
Find the equivalent resistance by replacing all independent sources with their internal impedances. Short voltage sources; leave current sources open. For dependent sources, maintain their governing equations during reduction. Measure resistance looking back into the terminals. Alternately, apply a test voltage or current and solve for the resulting value.
Validate the model by reconnecting the original load and comparing currents and voltages. Differences within 1% confirm accuracy. Extend the concept to AC networks by substituting impedances for resistances. Phasor forms maintain the same two-step process: open-circuit voltage, then equivalent impedance.
Automate repetitive reductions with Python scripts leveraging SymPy for symbolic solutions or NumPy for numerical ones. Precompute tables of equivalent values for fixed network topologies to minimize repeated hand calculations. Store models as SPICE subcircuits for reuse across multiple designs.
Simplifying Complex Networks: A Hands-On Approach
Start by isolating the load resistor in your linear network. Replace all remaining active sources with their internal resistances–voltage sources become short circuits, current sources open circuits. Measure the equivalent resistance across the open terminals where the load was connected using an ohmmeter or by calculation if the network topology is known. This value represents the passive resistance of the simplified model and must match the original system’s behavior under identical conditions.
Next, determine the open-circuit voltage at the same terminals. Use a voltmeter or apply nodal/mesh analysis if dealing with a schematic. For networks with dependent sources, solve the system algebraically while maintaining their defined relationships. Common errors include misidentifying the reference node or neglecting polarity–ensure the voltage’s sign aligns with the actual direction of current flow when reconnecting the load.
Reconstruct the network by combining the measured resistance and voltage into a single voltage source in series with a resistor. Validate accuracy by reconnecting the original load and comparing current/voltage values–deviation should not exceed 5% for most practical applications. For non-ideal sources, account for internal resistance by adjusting calculations or using a multimeter’s low-impedance mode during measurement.
When dealing with AC networks, replace resistances with impedances and voltages with phasors. Tools like LTspice or a handheld impedance analyzer simplify this process, though manual calculation requires tracking frequency-dependent components. Document each step–labeling terminal points and annotating reference directions–to avoid confusion during prototype testing or troubleshooting.
How to Identify Components for a Simplified Voltage Source Model
Begin by isolating the section of the network where the equivalent is needed–remove all loads and external branches temporarily. Measure the open-circuit voltage (Voc) across the two terminals with a voltmeter; this value becomes the ideal voltage source in the reduced network. Next, short the same terminals (while disconnecting any independent sources) and calculate or measure the current flowing through the short, then divide Voc by this current (Isc) to determine the internal impedance. For complex networks, suppress only independent sources (retain controlled sources) when computing the impedance; use superposition if multiple sources exist.
- Use ohmmeter mode on a multimeter for direct impedance readings when independent sources are disabled.

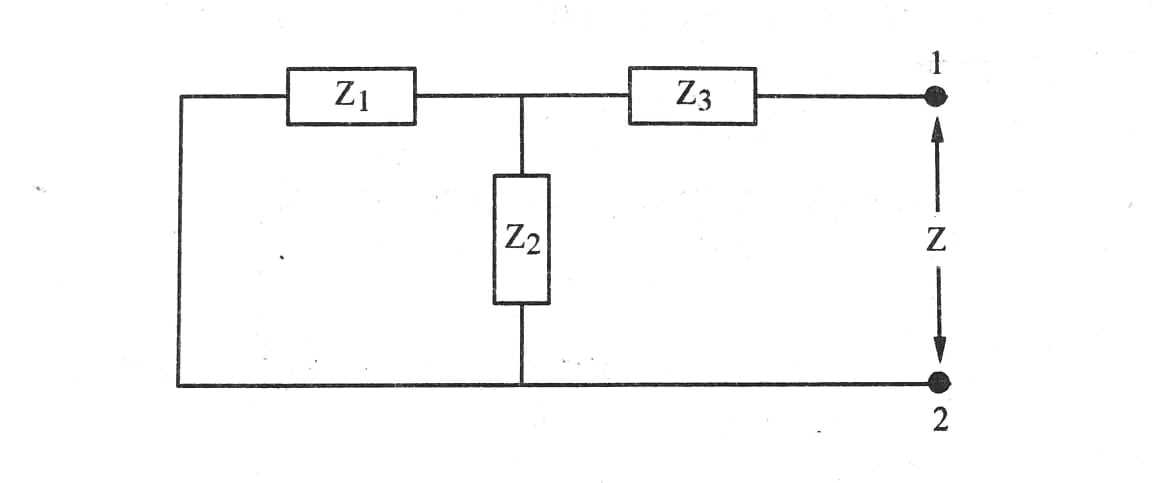

- For AC networks, replace resistance with impedance (
Z), measured in ohms; phase angles must align betweenVocandIsc. - If the network includes capacitors or inductors, compute transients first to reach steady-state before applying the simplification steps.
- Verify results by reconnecting the original load–terminal voltage should match simulations within 5% tolerance.
Step-by-Step Process to Remove Load and Determine Idle-Port Potential
Isolate the network’s output terminals by disconnecting the resistor or component under test–this exposes the unloaded node pair where the open-port voltage will be measured. Use a multimeter set to DC voltage mode and connect its probes directly to the terminals, ensuring no residual connections interfere. For accuracy, verify the absence of parallel paths or sneak currents by temporarily lifting adjacent components if ambiguity exists. Record the measured potential, denoted as VOC, as the baseline reference for subsequent calculations.
| Action | Tool/Method | Critical Notes |
|---|---|---|
| Disconnect target element | Soldering iron or jumper removal | Avoid disturbing fixed solder joints; use desoldering braid if necessary |
| Measure VOC | Multimeter (10MΩ input impedance) | Prevent probe shorting; record polarity as per terminal labeling |
| Check for hidden paths | Schematic cross-reference | Trace PCB tracks; lift one lead of suspected parallel components |
| Document results | Bench notebook or SPICE model | Include test conditions (ambient temp, supply rails, component tolerances) |
If the signal source includes reactive elements (inductors, capacitors), allow settling time before measurement–LC networks may exhibit transient ringing. For precision networks, substitute the multimeter with an oscilloscope to capture potential drift over milliseconds. When dealing with high-impedance nodes, employ a unity-gain buffer amplifier (e.g., op-amp follower) to eliminate loading errors from probe resistance. Re-measure VOC after any network modification to confirm stability.
Measuring Equivalent Resistance in Networks with Mixed Sources

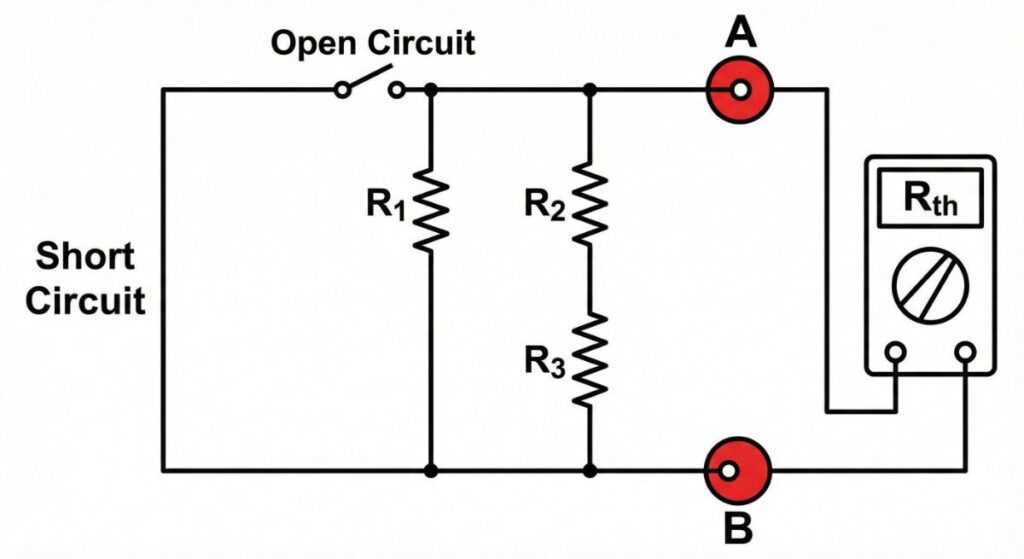

Deactivate all independent voltage/current generators by replacing them with their internal impedances–short circuits for ideal voltage sources, open circuits for ideal current sources–while leaving dependent generators intact. Apply a test signal (1A current or 1V voltage) across the target terminals to measure the resulting voltage or current, then compute the ratio Vtest/Itest; this ratio directly yields the linear network’s equivalent resistance.
- For dependent sources, retain their original connections–do not short or open them–because their values scale with internal variables and thus affect the equivalent impedance.
- In SPICE tools, use the
.TFanalysis command between the target nodes; the output will automatically resolve the equivalent resistance including all active elements. - If manual calculation is required, write node-voltage or mesh-current equations with the test source inserted, substitute known branch relationships for dependent generators, and solve for the unknown ratio.
Test accuracy declines in networks where dependent generators create negative resistances or feedback loops; simulate first to flag potential measurement instability.
Building a Simplified Network Model from Derived Parameters
Start by verifying the open-circuit voltage across the designated terminals. Measure this value directly or compute it using loop or nodal analysis if the original system contains multiple sources. Ensure the calculated or measured voltage matches the expected output under no-load conditions–discrepancies often indicate overlooked components or miscalculated impedances.
Next, replace all independent sources with their internal impedance equivalents. For voltage generators, substitute a short; for current sources, use an open branch. This step strips the system down to its passive network, revealing the total equivalent resistance seen from the terminals. Use a multimeter or simulate this resistance to confirm it aligns with theoretical calculations–even minor deviations can distort final performance.
Combine the validated voltage and resistance into a single-source representation. Connect the derived voltage source in series with the equivalent resistance, adhering strictly to the terminal orientation established earlier. Polarity errors here propagate through subsequent simulations, leading to incorrect load responses or unstable behavior in dependent components.
Test the model by attaching a variable load resistor to the terminals. Sweep resistance values while monitoring voltage and current–results should closely track the original network’s behavior. If divergences arise, revisit the resistance calculation step, checking for parallel paths or overlooked reactive elements that might skew impedance values.
Document all derived parameters, including open-circuit voltage, equivalent resistance, and test load variations. Store these alongside simulation files or schematic notes, as discrepancies during integration often trace back to mismatches between recorded and implemented values.
