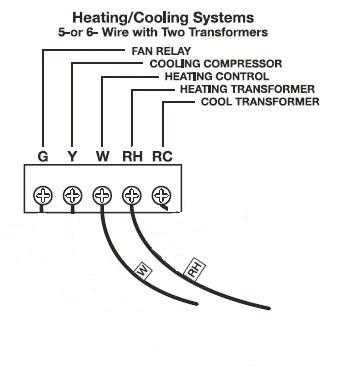

Begin by identifying the R (power) and C (common) terminals on your heating or cooling system’s control board. Most modern setups require a 24V AC circuit, so verify compatibility before proceeding. For single-stage furnaces, connect the R wire from the system to the Rc port on the device, while heat pump configurations often split R into Rc (cooling) and Rh (heating). Dual-transformer systems demand separate connections to avoid voltage conflicts.
Label all wires during disconnection to prevent misconfiguration. Common color-coding includes red (R) for power, white (W) for heating, yellow (Y) for cooling, green (G) for fan control, and blue or brown (C) for the common return. Older models may deviate, so cross-reference with the manufacturer’s layout to confirm correct mapping. Failure to match terminals precisely risks damaging the unit or causing erratic operation.
For multi-stage systems, additional terminals like W2 (auxiliary heat) and Y2 (secondary cooling) must be wired according to system specifications. Ensure the circuit breaker is off before handling any connections. Use a multimeter to test for voltage absence before touching exposed wires. Incorrect staging can lead to inefficient operation or equipment overuse.
Programmable or smart devices often include a humidity sensor wire (typically orange or pink), which must be connected only if the system supports it. Skipping this step won’t harm operation but will disable advanced climate features. Always secure connections with wire nuts and wrap them in electrical tape or heat-shrink tubing to prevent shorts. After installation, restore power and run a system test in both heating and cooling modes.
Understanding Your Climate Control System Connections
Begin by identifying the labeled terminals on your control unit–typically marked with letters like R, C, W, Y, G, and O/B. Match each wire to its corresponding terminal based on color codes: red (power), white (heating), yellow (cooling), green (fan), blue (common), and orange/black (heat pump). Use a voltmeter to confirm 24VAC between R and C before proceeding, ensuring safety and preventing equipment damage.
For heat pump systems, note the reversing valve (O/B) wiring–some models energize it during cooling (O), while others during heating (B). If your system lacks a C terminal, connect the blue wire to an alternate transformer terminal labeled “X” or “U,” but avoid linking it directly to R to prevent short circuits. Label each wire with masking tape before disconnecting to streamline reinstallation.
If integrating a smart interface, prioritize compatibility with dual-fuel setups by verifying the HVAC manual for jumpers–some configurations require bridging R and W terminals for emergency heat activation. For multi-stage units, secondary W2/Y2 wires (often brown or light blue) must align with the correct stage terminal to avoid inefficient cycling. Always power down the circuit breaker before handling connections.
When troubleshooting, check for loose terminals–corrosion or improper crimping can cause intermittent failures. Replace damaged wires with 18-gauge solid copper (never stranded) and secure connections with wire nuts or terminal screws. For advanced zoning, ensure dampers synchronize with the climate regulator’s signals by testing each zone independently with a manual override switch.
How to Identify Terminal Labels on Climate Control Devices
Check the backplate of your unit first. Most models use standardized lettering: R (power), C (common), W (heating), Y (cooling), G (fan). On programmable variants, look for O/B (heat pump changeover) or auxiliary labels like E (emergency heat) and L (service light). Older mechanical models may deviate–consult the paper tag beneath the cover for exact mappings.
Use a multimeter for unclear markings. Set it to continuity mode and probe each screw terminal while activating corresponding functions via the interface. A reading confirms the connection. For systems with multiple transformer inputs (Rc for cooling, Rh for heating), verify jumpers–many devices ship with a metal bridge that must remain intact unless separating circuits.
| Label | Function | Voltage Check (AC) |
|---|---|---|
| R / Rh / Rc | Power supply, heating/cooling split | 24V between R and C |
| W | Heating relay activation | 24V when calling heat |
| Y | Cooling relay activation | 24V when calling cool |
| G | Fan relay activation | 24V during fan-only mode |
Note color codes only as a secondary reference–manufacturers frequently override conventions. Typical associations: red (R), white (W), yellow (Y), green (G), blue or black (C). Mark mismatched wires temporarily with tape to prevent misconnection during reinstallation. For heat pumps, O/B often splits–O for cooling mode, B for heating, though some units consolidate both under a single terminal.

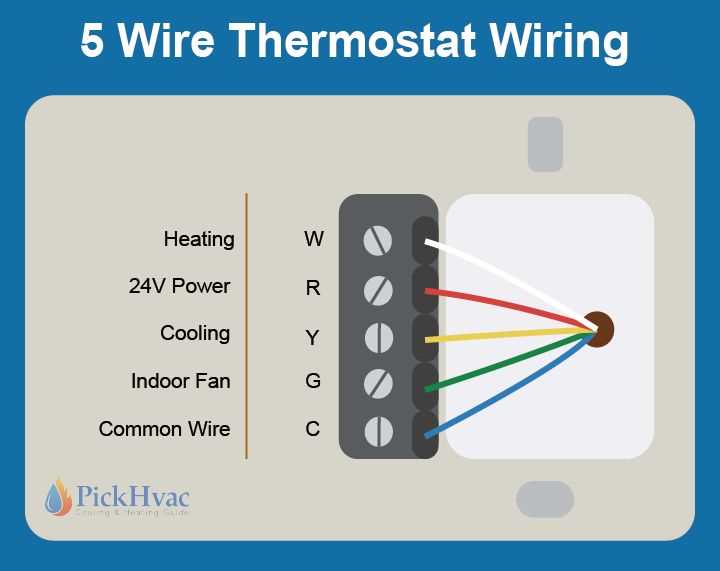

Step-by-Step Guide to Connecting a Climate Control Unit for Basic HVAC Systems
Before handling any connections, shut off power at the circuit breaker for the HVAC system to prevent electrical hazards. Strip 1/4 inch of insulation from each wire end, ensuring no frayed strands remain. For a standard single-stage system with heating and cooling, match the following wire colors to their corresponding terminals on the baseplate:
- Red (R) → Power (Rc or Rh if separate)
- White → Heat relay
- Yellow → Cooling compressor
- Green → Fan relay
- Blue or Black (C) → Common (if equipped)
Secure each wire under its terminal screw, tightening firmly without overtightening. If your system lacks a C-wire, use an adapter kit or repurpose the G-wire for power if compatible with your setup. Verify connections against the system’s schematic to confirm compatibility with single-stage components.
Final Checks Before Powering On
Double-check all screws for tightness and ensure no exposed wire touches another terminal or metal surface. Reattach the control panel to the baseplate, then restore power at the breaker. Test both heating and cooling modes by adjusting the setpoint 5°F above and below room temperature. Listen for the HVAC unit’s startup–delays longer than 5 minutes or unusual noises require immediate re-inspection. For systems with heat pumps, refer to the manufacturer’s alternate terminal assignments.
Common Control Unit Installation Errors and Corrective Measures
Connecting the incorrect voltage wires to terminals R and C will cause immediate failure. Most residential climate systems use 24V AC for power, but mistakenly linking 120V lines to these points will fry internal circuits. Verify voltage with a multimeter before attaching any cables–red (R) must show 24V when the system is active, while blue/black (C) should register as the return path. If readings deviate, inspect the transformer output at the air handler or furnace first.
Terminal Misplacement Issues
- Swapping Y and G wires activates cooling instead of fan operation during test runs. Label all cables at the source before detachment.
- Reversing W and Y triggers heating when cooling mode is selected, risking compressor damage. Check furnace control board for correct W1/W2 labels.
- Omitting the C wire entirely leads to erratic behavior or blank displays. Trace unused wires in the bundle–one may serve as an undocumented common.
Loose terminal screws create intermittent faults that surface only under load. After securing each wire, tug firmly–proper torque avoids oxidation buildup. For erroneous “open circuit” errors, strip an additional 1/8″ of insulation and reinsert the wire; insulation sometimes prevents full contact. Aluminum cables require anti-oxidant paste at junctions to prevent corrosion over time.
Incorrect polarity on power connections generates phantom heating or cooling demands. Measure DC polarity at the unit’s circuit board–some models require specific orientation of R and C wires. If the display flashes or resets randomly, check for shared neutrals with other appliances; separate circuit isolation resolves most instability conflicts.
Key Variations in Electrical Schematics Across Control Unit Lineups
Prioritize matching the terminal labels on your climate regulator to the system’s low-voltage connections. RTH variants, such as the RTH2510, typically feature a simplified 4-wire setup (R, W, G, Y) for single-stage heating and cooling. T-series models like the T5+ introduce a C-wire requirement and support for dual-fuel systems, adding terminal O/B for heat pump reversing valves. Lyric controllers expand further with multi-stage equipment support, accommodating up to two heating and two cooling stages (W2, Y2), alongside auxiliary terminals like E for emergency heat. Verify compatibility by cross-referencing your HVAC specs with the unit’s quick-reference guide–mismatched connections risk damaging relays.
Heat Pump vs. Conventional System Configurations
For heat pump installations, the O/B terminal’s role differs markedly between series. On RTH units, this terminal is optional and primarily used for basic heat pump operation, while T-series devices mandate its connection to enable defrost cycles and auxiliary heat coordination. Lyric models separate these functions, assigning O/B exclusively to reversing valve control and using AUX/E for secondary heating. Conventional furnaces and air handlers ignore the O/B terminal entirely, relying instead on W1/W2 for staged heating. Always confirm whether your system includes a reversing valve–incorrect wiring here forces the compressor into continuous operation or disables auxiliary heat.
Lyric’s advanced energy-management features necessitate additional terminals not found in RTH or T-series variants. The HUM (humidifier) and DEHUM (dehumidifier) terminals allow direct integration with whole-home humidity controls, a capability absent in most basic setups. T-series units support similar functions but require external relays for high-voltage devices. RTH models lack these options entirely, limiting humidity control to manual adjustments. When upgrading, audit existing humidity hardware–Lyric’s native support eliminates the need for external adapters but demands precise wiring to avoid corrupting the system’s humidity calibration.
Grounding and power requirements shift between product lines. RTH regulators often tolerate loose C-wire connections due to lower power demands, while Lyric and T-series devices risk erratic behavior or LCD errors without a stable 24V common. The Lyric lineup also introduces Zigbee compatibility, requiring a dedicated Z terminal absent in earlier series. For multi-transformer systems, T-series and Lyric controllers support separate Rc/Rh terminals, isolating heating and cooling power sources–a feature RTH units consolidate into a single R input. Measure voltage at each terminal before installation; Lyric models may trigger false “no power” alerts if the C-wire voltage fluctuates outside 20–30V AC.
