For a classic single-coil tone with modern flexibility, install a 4-way blade switch in place of the stock 3-way. Position 1 bypasses the neck pickup’s tone capacitor, delivering brighter highs, while Position 4 engages both pickups in series for a fuller, humbucker-like output. Use 250K linear pots for volume and 0.022µF orange drop capacitors on the tone controls to retain clarity without muffling treble.
Replace the standard two-conductor bridge pickup with a 4-wire hum-cancelling model if RF interference disrupts your signal. Solder the red (+) and white (-) leads together for single-coil operation, or ground the black wire separately to split coils. Keep the ground wire from the bridge saddle isolated from the metal control cavity to prevent ground loops.
For push-pull pots, opt for DPDT on-on switches instead of push-pull types–these offer more reliable engagement. Wire one to coil-cut the neck pickup for a thinner sound or combine it with a no-load tone pot (0.047µF cap) to eliminate treble bleed when rolling off. Always shield the cavity with copper foil tape, connecting it to the amp’s ground but not the strings.
Test continuity with a multimeter before reinstalling components. The bridge pickup’s hot lead should read ~6.5K ohms, while the neck pickup’s resistance should be ~5.5K ohms. If noise persists, flip the phase of the neck pickup by reversing its white (+) and green (-) wires–this cancels hum in positions 2 and 4.
Custom Electrical Schematics for Solid-Body Guitars
For optimal tonal clarity in a two-pickup configuration, install a 0.047µF capacitor between the bridge pickup’s hot lead and its ground. This modification reduces harsh high frequencies while preserving midrange punch–critical for genres like country or blues. Pair it with a push-pull pot to split the neck humbucker into single-coil mode, expanding versatility without additional switches. Ensure all connections are soldered with 60/40 rosin-core wire (gauge 22 AWG) to prevent oxidation and signal degradation over time.
- Bridge circuit: Use a 250K audio taper potentiometer for volume control, paired with a 0.022µF orange drop capacitor for treble bleed. This maintains high-end definition when rolling off volume.
- Neck circuit: A 500K linear potentiometer avoids muddiness when blending with the bridge, especially with high-output pickups. Test resistance values with a multimeter before soldering to confirm accuracy.
- Grounding: Star-ground all components to the bridge plate–never loop grounds through controls. This eliminates 60-cycle hum and buzz from poor shielding.
Alternative configurations demand precise component pairing. For example, coil-splitting a four-conductor humbucker requires a DPDT on-on switch wired to the pickup’s south coil (typically the red and white wires). Omit the standard 2.2K-ohm resistor used in some schematics–it weakens the split-coil output without tangible noise reduction. For active circuits, use a 9V battery clip with a low-current LED (2mA) to monitor power; exceeding 5mA shortens battery life. Always isolate the output jack’s ground tab with heat-shrink tubing to prevent short circuits against the metal casing.

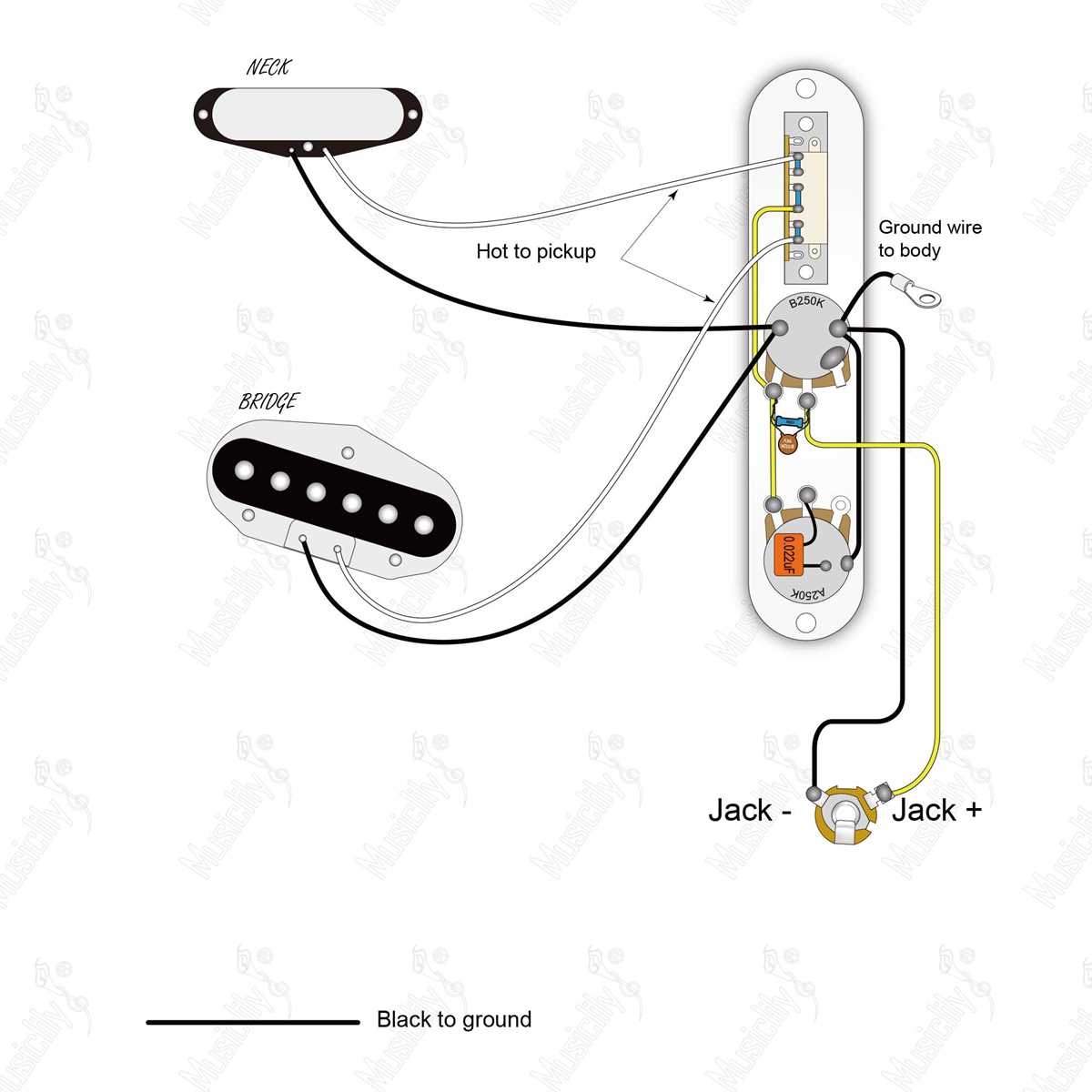

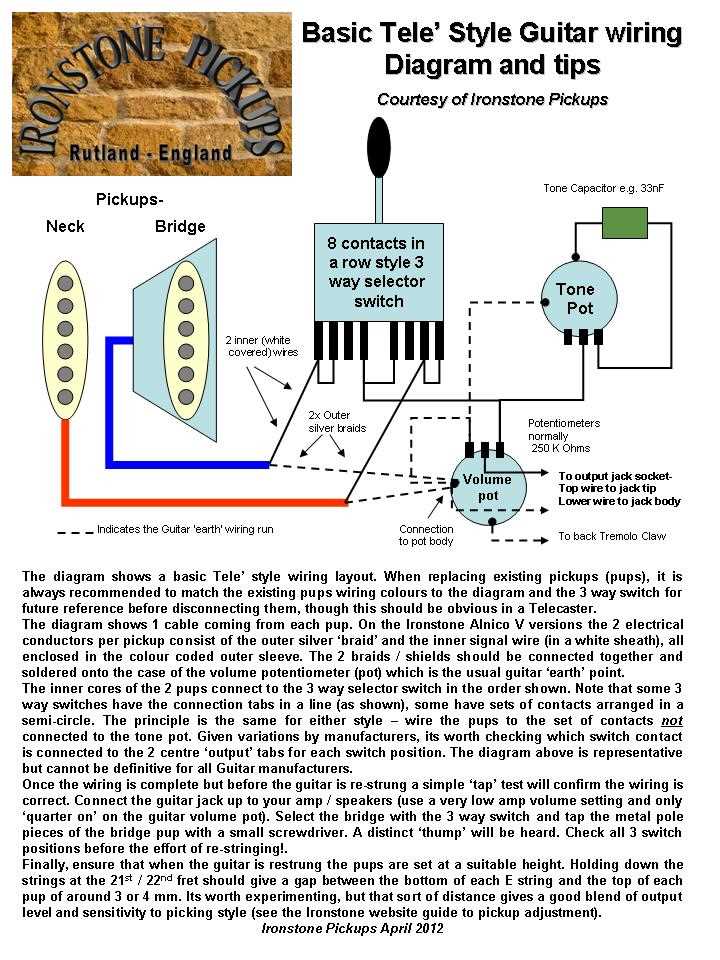

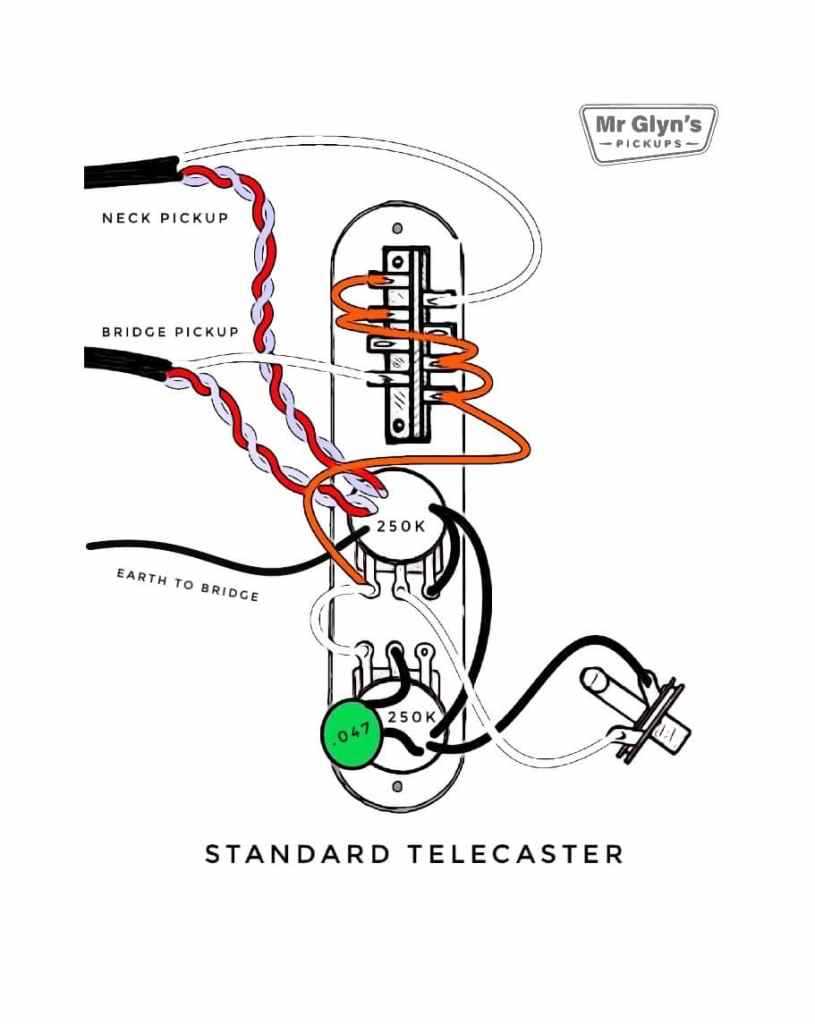

Standard 3-Position Toggle Setup for Single-Coil Fender-Style Guitars
Start by soldering the neck pickup’s hot lead directly to the middle lug of the 3-way switch. This ensures the bridge position remains independent while allowing the two pickups to combine in the middle toggle setting. Ground the pickup’s base plate to the back of the volume pot’s casing–use a short wire and secure it tightly to prevent buzzing.
Connect the bridge pickup’s hot wire to the switch’s top lug (position 3). For best results, use 22-gauge cloth-insulated wire for vintage authenticity and reduced interference. If modifying a stock configuration, label each wire before disassembly to avoid confusion during reassembly.
The key to proper signal flow lies in the switch’s internal construction. A standard 3-position toggle breaks the circuit between positions, unlike modern superswitches. This means:
| Switch Position | Active Pickup(s) | Key Wire Connection |
|---|---|---|
| 1 (Bridge) | Bridge only | Top lug to volume input |
| 2 (Middle) | Bridge + Neck in parallel | Middle lug bridges both pickups |
| 3 (Neck) | Neck only | Bottom lug to volume input |
Ground the volume pot’s casing to the guitar’s bridge plate using a braided wire for noise reduction. Avoid daisy-chaining grounds–each component should connect directly to a central ground point, ideally the bridge itself. Test continuity between the strings and ground before final assembly to confirm proper shielding.
For tone shaping, wire the 250k volume pot with a 0.047µF capacitor between the input and output lugs. This preserves high frequencies when rolling off the knob, unlike linear taper pots which can sound dull. The tone control benefits from a 0.022µF capacitor for single-coils–experiment with ceramic or orange drop types to fine-tune the voicing.
When installing the toggle, orient it so position 3 (neck) faces the guitar’s body. This prevents accidental switching during play. Secure the nut tightly and apply a dab of Loctite to prevent loosening. For Strat-style knobs, ensure the pointer aligns vertically at 12 o’clock for consistent feel.
Troubleshoot by checking these common issues first:
– No output in position 2? Verify the middle lug has a jumper wire connecting both pickup circuits.
– Excess noise? Reflow solder joints and check ground connections at the bridge.
– Weak signal? Confirm the switch’s lever moves freely–sticky mechanisms cause intermittent contact.
Blade Switch Insights: 4-Position Circuit Alternatives for Single-Cut Designs
Opt for a 4P3T (four-pole, three-throw) blade selector if blending bridge and neck pickups in series is critical–this eliminates tonal gaps common in standard 3-way layouts. Pre-wire a 0.047µF capacitor between the switch’s fourth pole and the bridge unit’s hot lug to soften harsh highs when engaging the series mode; position it as close to the switch as possible to reduce noise. Test continuity with a multimeter before assembly: series connections should register ~8-12 kohms between pickups, while standard parallel phases must read ~6-7 kohms.
For out-of-phase sounds without additional switches, solder the neck pickup’s start lead to the second throw of a 4P4T blade selector, grounding the bridge pickup’s finish wire to the selector’s unused lug. This creates a dedicated out-of-phase position (third throw) that doesn’t require coil-splitting–ideal for cutting through dense mixes. Use braided shielding on all leads longer than 3 inches to prevent RF interference, especially if running active electronics.
Replace stock 250k pots with 500k audio-taper units if using high-output pickups in the 4-way layout; this preserves high-frequency detail in series mode. When wiring the fourth position (both units in parallel but with a 0.022µF treble bleed capacitor bridging the bridge unit’s lugs), solder the capacitor directly to the pot’s casing for a solderless disassembly option later. Verify the phase relationship with an oscilloscope: parallel phases should align in polarity, while series and out-of-phase positions will show inverted waveforms.
Push-Pull Potentiometer Mods for Coil Switching Efficiency
Install a push-pull pot with a DPDT switch to toggle between humbucker series and parallel modes–this preserves output clarity while enabling hum-cancelling split functionality. Use 500K pots for humbuckers to maintain high-end response; 250K works for single-coils if tonal warmth is preferred. Wire the switch so the pull position engages parallel mode by connecting the coils in-phase but with separate paths to ground, reducing output by ~30% while retaining harmonic richness.
For Strat-style or PAF-style pickups, solder the lugs as follows:
- Lug A (input): Hot wire from pickup
- Lug B (wiper): Output to jack
- Lug C (ground): Common ground
- Switch terminals: Connect middle lugs of the DPDT to bridge the coils in parallel when pulled
Test continuity with a multimeter before finalizing solder joints–parallel mode should show lower resistance (typically 3-4kΩ for humbuckers) compared to series (6-8kΩ). If tonal imbalance occurs, verify phase alignment by flipping one coil’s start/finish wires. Ground the pot’s metal casing directly to the bridge plate or control cavity shield to minimize interference.
Replace standard wire with tinned copper, 22 AWG for signal paths and 20 AWG for grounding to reduce signal loss. Avoid daisy-chaining grounds; instead, use a star configuration with all grounds converging at a single solder point on the pot casing. For active setups, pair the push-pull with a low-impedance buffer (e.g., JFET-based) to prevent tone suck when parallel mode is engaged.
Label potentiometer shafts with adhesive markers to indicate switch positions–series (pulled) yields hotter output with pronounced midrange, while parallel (pushed) delivers strat-like quack with reduced hum. For pickup sets with mismatched impedance (e.g., rail humbucker + strat single-coil), use a blending resistor (470kΩ-1MΩ) on the parallel circuit to equalize volume.
In high-gain contexts, shield push-pull components with conductive paint or copper foil applied to cavity walls, extending coverage to underside of pickguards. Ensure solder joints are heat-sunk with alligator clips to prevent lifting pot contacts during extended soldering. If coil split is also desired, integrate a secondary SPST mini-toggle or use a 4PDT push-pull pot to isolate individual coils while preserving both series/parallel modes.
Calibrate the mod’s performance by measuring frequency response with an audio interface and spectrum analyzer–series mode should emphasize 150-250Hz and 2-4kHz, while parallel flattens midrange peaks. For mixed magnet types (e.g., Alnico II + Ceramic), expect tonal shifts; adjust EQ accordingly, boosting 800Hz-1.2kHz for parallel mode to compensate for reduced bass.
