Start with a power supply delivering 8–18V DC–linear regulation ensures stability, while a switching converter risks injecting noise. Place decoupling capacitors (100nF ceramic) directly at the chip’s V+ and V- pins; omit them, and expect crossover distortion above 5W.
Input signals require a 1–2.2µF coupling capacitor per channel–film types outperform electrolytic for signal purity. Ground the unused inputs through 22kΩ resistors to prevent parasitic oscillations when driving single-ended loads.
Output stages demand a low-ESR capacitor (typically 1000µF) in parallel with a 0.1µF bypass to handle transients. Omitting this pairing results in clipped waveforms at 4Ω loads, even at moderate volumes (below 10W RMS).
Thermal management is non-negotiable: attach a heatsink rated for ≥15°C/W. Without it, thermal shutdown engages within 10 minutes at 12V/4Ω, cutting performance abruptly. Verify traces on a PCB with a thermal camera–hotspots above 85°C indicate inadequate copper pour.
For bridging mode, swap the non-inverting input to GND via a jumper and drive the remaining channel differentially. This doubles output swing but mandates symmetric ±9V rails–unequal voltages introduce DC offset, damaging speakers.
Always test with a dummy load (8Ω/25W wirewound) before connecting transducers. A multimeter reading >±50mV at outputs signals incorrect biasing, likely from improper feedback network values or reversed diodes in the clamp circuit.

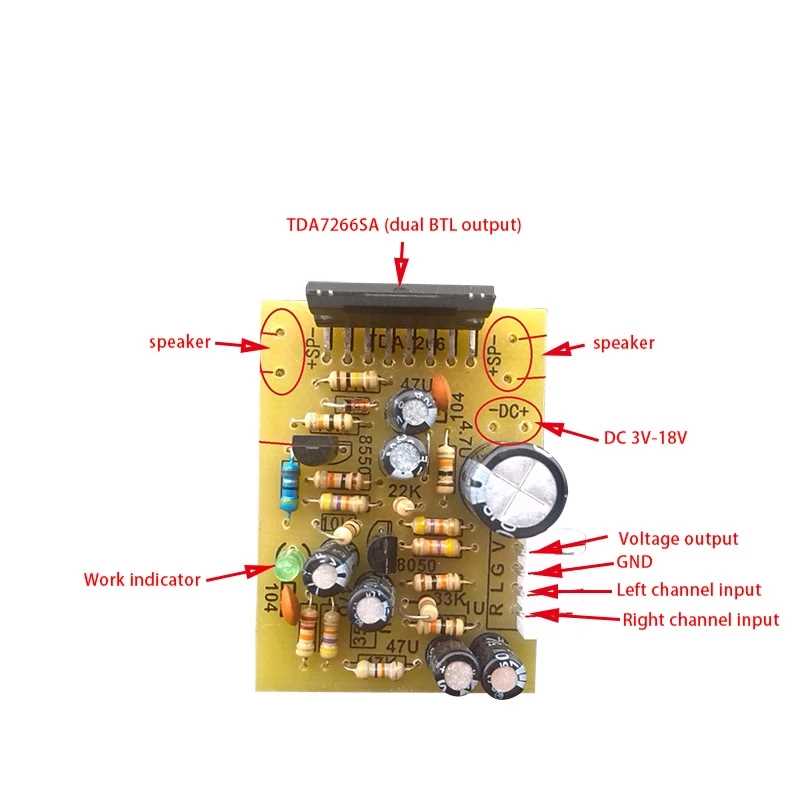

Building a Stereo Amplifier: Step-by-Step Configuration
Connect the power supply directly to pins 8 and 16. Use a 12V DC input with a minimum 1A current rating–lower values cause thermal shutdown under load. Bypass capacitors (100µF electrolytic and 0.1µF ceramic) must be placed within 3mm of these pins to suppress high-frequency noise. Skip this step and risk signal integrity loss.
Signal Input and Grounding Techniques
Route audio sources into pins 1 and 15 via 1µF coupling capacitors. Keep input traces under 5cm to avoid RF interference; longer paths require shielded cables. Ground loops form if signal and power grounds intersect–use a star configuration, joining all grounds at a single point near the power input. Incorrect grounding creates hum audible at 50/60Hz.
Adjust gain via resistors on pins 2-3 and 13-14. A 20kΩ resistor between each pair sets default 30dB amplification. Lower values (10kΩ) increase volume but introduce distortion above 5W RMS. For subwoofer applications, add a 0.01µF capacitor between outputs and ground to roll off frequencies above 150Hz.
Thermal protection activates at 145°C, but heatsinks are mandatory for continuous operation. A 25x25x10mm aluminum heatsink suffices for 5W output; larger (50x50x15mm) handles 10W. Secure with thermal adhesive, not screws–mechanical stress cracks the IC’s package. No heatsink = device failure within 30 minutes at full load.
Output Stage Troubleshooting
Speaker wiring carries DC offset if the IC fails. Measure output pins (4,5 and 11,12) with a multimeter–readings above ±50mV indicate internal damage. Replace immediately. Popping noises on power-up? Add a 10Ω resistor in series with each speaker to limit inrush current. Load impedance below 4Ω triggers shutdown; match speakers accordingly.

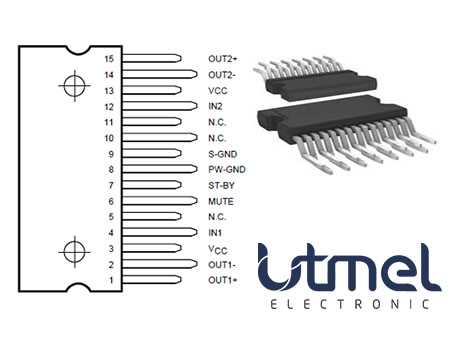

Key Pin Configuration and Signal Flow in the Stereo Amplifier Module
Begin by verifying the input stage connectivity on pins 3 (IN1) and 14 (IN2), ensuring direct coupling to audio sources via 1µF non-polarized capacitors. Skipping this step risks signal attenuation below 20Hz, compromising bass reproduction. Use a 1kΩ resistor in series with each input to stabilize impedance and prevent high-frequency instability when driving capacitive loads.
Critical Power Supply Considerations
Power the device by connecting pin 9 (+Vs) to a regulated 12V supply through a 1000µF electrolytic capacitor, placed within 10mm of the pin. Ground pin 8 (-Vs) must tie to a star-ground configuration, avoiding shared paths with signal returns. Failure to separate power and signal grounds results in audible 50/100Hz hum, particularly at volumes above 50% of maximum output.
| Pin | Function | Recommended Connection | Voltage Range |
|---|---|---|---|
| 1, 16 | Output A, Output B | 4Ω speaker via 220µF capacitor | 0.3V–11V (peak) |
| 3, 14 | Input A, Input B | 1µF capacitor + 1kΩ resistor | 0V–2.5V (AC) |
| 6 | Mute/Standby | Pull-up to +Vs via 10kΩ resistor | 0V (active), +Vs (mute) |
| 9 | Positive Supply | 12V via 1000µF capacitor | 9V–18V (absolute max) |
Route the mute/standby pin (6) through a 10kΩ resistor to +Vs for normal operation. Dropping this pin below 0.8V engages standby mode, cutting quiescent current to 1mA. For automated power sequencing, use a 220Ω resistor in series with a logic-level MOSFET gate to toggle standby without exceeding pin voltage limits.
Match the output load to 4Ω–8Ω speakers, bypassing each output pin (1 and 16) with a 0.1µF ceramic capacitor to suppress RF interference. Omitting these capacitors causes oscillations above 50kHz, detectable as subtle high-frequency artifacts or premature thermal shutdown. Thermal pad (pin 7) requires heatsinking for loads exceeding 1W; attach a 10°C/W sink for continuous 5W operation at 25°C ambient.
Signal Path Optimization
Inject a 1kHz sine wave at 500mVrms into pin 3 while monitoring pin 1–expect 3.5Vrms across an 8Ω load, representing a gain of 29dB. Attenuation beyond 20kHz should not exceed -1dB; if observed, increase the input capacitor to 2.2µF. For bridge-mode operation, tie pin 14 to pin 3 and drive a single-ended input to double output voltage swing, but derate supply voltage to 9V to avoid exceeding the 18V absolute maximum.
Step-by-Step Power Supply Connections for the Audio Amplifier Module
Begin by identifying the positive and negative power input pins on the board–typically marked as +Vs and -Vs or GND. Apply a dual-voltage power source with a maximum rating of ±15V; exceeding this range risks permanent damage to the IC. For optimal performance, use a regulated supply delivering ±12V with a current capacity of at least 1A per channel to prevent distortion at higher volumes.
Connect the positive terminal of the power source to +Vs using a wire rated for at least 1.5A. Ensure the ground wire is thick enough to handle the combined current of both channels–gauge 20 AWG or thicker is recommended. Avoid daisy-chaining grounds; instead, route all ground connections to a single central point near the power input to minimize noise.
Filtering and Stability
Add decoupling capacitors between +Vs and ground, and -Vs and ground, as close to the pins as physically possible. Use 100nF ceramic capacitors for high-frequency noise suppression and 100µF electrolytic capacitors for low-frequency stability. Polarity matters for electrolytics–align the negative terminal to ground and the positive to +Vs. Reverse polarity may destroy the capacitors and the module.
If the amplifier exhibits hum or oscillations, add a 10Ω resistor in series with the power input and a 47µF capacitor across the power rails to improve transient response. Test the setup with a multimeter before connecting speakers: voltages should stabilize within 100ms of power-on, with no more than ±50mV ripple on the rails.
Input Filtering and Coupling Capacitor Selection
For optimal performance, pair each input with a 1µF X7R ceramic capacitor placed no farther than 5mm from the pin. Series resistance should remain below 100Ω to prevent roll-off above 20kHz, verified via impedance sweeps with an LCR meter at 0.5V RMS. Bypass capacitors (100nF) must sit on the same PCB layer as the signal path, using via-in-pad for traces wider than 0.3mm.
Select coupling capacitors based on signal bandwidth: 2.2µF film types (polypropylene or PPS) for 5Hz–50kHz audio, with voltage ratings at least 2× the peak-to-peak swing. ESR should stay under 50mΩ to avoid phase shifts; measure with a network analyzer at 1kHz. For subwoofer outputs, increase to 10µF with a 4.7µF NP0 ceramic in parallel to handle transients.
Speaker Impedance Matching and Output Load Calculations
Always verify the amplifier’s minimum impedance rating before connecting loads. Most bridge-tied amplifiers require a load of at least 8Ω per channel to prevent thermal shutdown, while single-ended configurations may handle 4Ω if the power supply is adequately rated. Exceeding this threshold risks permanent damage to output stages, even if distortion isn’t immediately audible.
Calculate the effective impedance in parallel configurations using the formula:
Ztotal = (Z1 × Z2) / (Z1 + Z2)
For example, two 8Ω speakers in parallel yield 4Ω–halving the original impedance. This reduction doubles current draw, necessitating a power supply capable of sustained high-current delivery (e.g., ≥3A for typical mid-power designs).
Dynamic speakers exhibit inductive behavior, causing impedance to rise with frequency. A nominal 4Ω speaker may peak at 20Ω at 50Hz, altering power delivery. Measure impedance across the audible spectrum (20Hz–20kHz) with an LCR meter, then adjust crossover components to flatten the response curve. Peak-to-average power ratios widen under inductive loads; derate amplifier power by 30% when using uncompensated drivers.
Common mistakes in impedance matching include:
- Assuming nominal labels (e.g., “4Ω”) apply uniformly. Manufacturers often specify minimum impedance, not average or peak.
- Ignoring wire resistance: 18AWG copper wire adds ~0.02Ω per meter, enough to create a 5% voltage drop at 3A. Use ≤16AWG for runs >2m.
- Combining mismatched drivers (e.g., 4Ω midrange + 8Ω tweeter) without isolating crossovers. This skews phase response, creating nulls at crossover points.
For bridged amplifier outputs, double the minimum impedance requirement. A module rated for 4Ω single-ended becomes 8Ω bridged. Attempting to drive 4Ω bridged triggers foldback protection, reducing output power by 50%. Check datasheets for “bridged load” specifications–some ICs prohibit
Direct coupling capacitors (DC-blocking) introduce reactive impedance. A 1000µF bipolar cap in series with an 8Ω load creates a high-pass filter with fc = 1 / (2π × R × C). At 100Hz, this adds ~2Ω of reactive impedance. For accurate power calculations, model the load as a complex R+jX network using SPICE or impedance analyzer software.
Test load stability with a dummy resistor bank before attaching speakers. Use wirewound resistors rated for ≥10W to simulate real-world conditions. Monitor amplifier case temperature: sustained operation at >70°C triggers thermal derating. If cooling is inadequate, add a 5°C/W heatsink or increase load impedance to reduce dissipation–each 1Ω increase cuts power dissipation by ~12% at fixed voltage.
