Begin by ensuring the power supply outputs a consistent 7.5–12V DC. Lower voltages may cause slow motor response, while excess voltage risks overheating. For most rotary tools, a 1A–2A rating is optimal–verify compatibility with your device’s specifications before proceeding. Use a multimeter to confirm voltage at the connector terminals, accounting for potential drops over extended cable lengths.
Connect the positive lead directly to the motor’s input terminal, avoiding intermediate switches that can introduce resistance. For the ground circuit, route through a footswitch or momentary push button to allow controlled operation. A 16–18 AWG stranded copper wire minimizes signal loss; thinner wires increase resistance and degrade performance. Solder all connections and insulate with heat-shrink tubing to prevent shorts.
If integrating a speed controller, place it after the power supply and before the rotary unit. PWM (Pulse Width Modulation) regulators require stable input–fluctuations above ±0.3V can cause erratic behavior. For low-noise setups, add a 1000µF capacitor across the power terminals to smooth current delivery. Test operation at 50% duty cycle before full engagement to verify motor torque under load.
For dual-coil systems, separate each circuit with individual grounds to prevent cross-talk. Use a DPST (Double Pole Single Throw) switch to isolate power pathways, ensuring one pathway remains inactive while the other is engaged. Label all wires at both ends–mismatched connections are a primary failure point. If incorporating LED indicators, limit their current draw to 20mA to avoid voltage sags during peak motor operation.
Before enclosure assembly, perform a dry run with the device secured. Observe motor response under simulated load–hesitation or stuttering indicates insufficient current or loose connections. Finalize adjustments by trimming wire lengths to reduce interference pathways. Secure all components with zip ties or adhesive mounts to prevent vibration-induced shorts during prolonged use.
Understanding Professional Ink Machine Electrical Layouts
Begin by identifying the core components: the power supply, motor, needle assembly, and foot pedal. The standard configuration requires a 12V DC adapter with a minimum 2A output to ensure consistent performance. Connect the positive terminal directly to the rotary motor’s input, then route the negative wire through the foot switch before grounding. Avoid soldering wires thinner than 18 AWG, as they may overheat under prolonged use.
The most reliable setup includes a dual-coil system for liner and shader configurations. For liners, use a 6-8 wrap coil with 0.35mm copper wire, while shaders demand 8-12 wraps of 0.40mm wire for optimal magnetic field strength. Calculate impedance using Z = (N² × μ × A) / L, where N is turns, μ is core permeability (typically 1.2566 × 10-6 H/m for standard iron), A is core cross-section in m², and L is core length in meters. Mismatched values risk inconsistent needle movement.
- Use silicone-insulated wires (rated 150°C+) to prevent melting during extended sessions.
- Install a 0.1μF capacitor across the motor terminals to reduce electrical noise.
- Verify polarity with a multimeter before final assembly–reversed current will damage the motor.
- For adjustable speed, integrate a 10KΩ potentiometer between the power source and motor.
Grounding must terminate to a dedicated earth point on the frame, not the workbench. Test continuity with a probe set to 200Ω; readings above 5Ω indicate poor connections. Replace corroded contacts immediately–oxidation increases resistance, leading to voltage drops during peak operation. For modular builds, use 3.5mm audio jacks for detachable coils, ensuring a secure fit to prevent arcing.
Critical Elements of an Ink Applicator Electrical System
Begin by verifying coil impedance–standard electromagnetic tools operate optimally between 4–8 ohms. Deviations beyond this range indicate damaged windings or poor solder connections, requiring immediate disassembly for rewinding or joint reinforcement. Copper wire gauge (typically 28–32 AWG) directly impacts magnetic flux density; thinner wires increase resistance while thicker variants enhance durability at the cost of precision.
Always position contact screws asymmetrically–primary coil connections should sit 1–2 mm higher than secondary counterparts to ensure staggered electromagnetic engagement. Brass or silver-plated alloys minimize galvanic corrosion; avoid steel variants as they introduce parasitic resistance over prolonged use. Capacitors must match driver board specifications, typically 22–47 μF, to smooth voltage spikes–exceeding this range risks erratic armature movement and premature component failure.
Inspect the pivot spring’s tension–ideal deflection ranges between 0.5–1.0 mm under load. Springs exceeding 1.2 mm require adjustment or replacement, as excessive flex compromises ink deposition consistency. Rubber grommets isolating coils from the frame must exhibit Shore A hardness of 50–70; softer materials degrade rapidly while harder variants transfer excess vibration, reducing needle stability.
Voltage regulation demands attention: linear power supplies introduce ripple current, whereas switching adapters (5–15V) deliver cleaner output but necessitate LC filters (100μH inductor + 10μF capacitor) to mitigate high-frequency interference. Ground paths should terminate at a single chassis point to prevent ground loops–multiple connections induce hum and uneven motor response. Never bypass fuse holders with direct solder bridges; use self-resetting polyfuses rated 0.5A above peak current draw.
Armature bar alignment tolerances are non-negotiable: misalignment exceeding 0.1 mm causes lateral needle whip, corrupting fine detail work. Heat sinks on voltage regulators (e.g., LM7805) must exceed 5°C/W thermal resistance; insufficient dissipation shortens regulator lifespan and introduces thermal throttling artifacts. Replace standard potentiometers with multi-turn variants for voltage fine-tuning–single-turn models drift under vibration, compromising repeatability during sessions.
Lastly, document each configuration: note coil turns, capacitor values, and spring tension in a logbook. Reconstructing optimal settings after disassembly becomes effortless, reducing trial-and-error downtime. Periodic megohmmeter tests (minimum 500V DC) between coils and chassis detect insulation breakdown; values below 1MΩ mandate coil rewrapping or frame reconditioning to prevent electrical hazards.
Building Reliable Connections for Electromagnetic Needle Machines

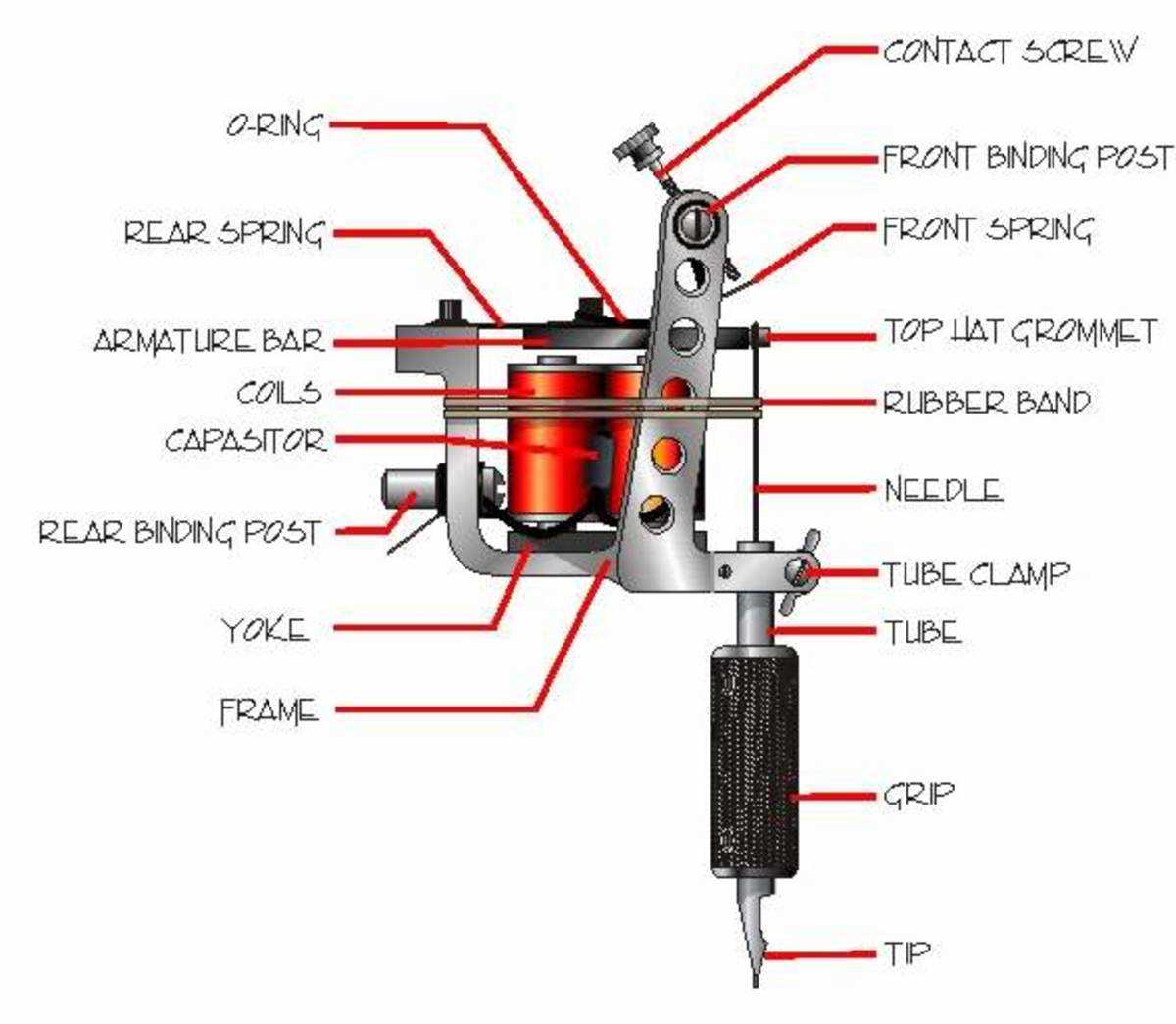

Begin by identifying the electromagnetic assembly’s core components: the coil set, armature bar, capacitor, power supply unit, and foot pedal connector. Each piece must be stripped of insulation at precise points–no more than 3mm–to prevent short circuits while ensuring solid contact.
Secure the primary coil leads to the power input terminals. Use 18-gauge silicone-coated copper wire for flexibility and heat resistance. Twist the strands tightly before inserting them into the binding posts to avoid loose connections that cause voltage drops.

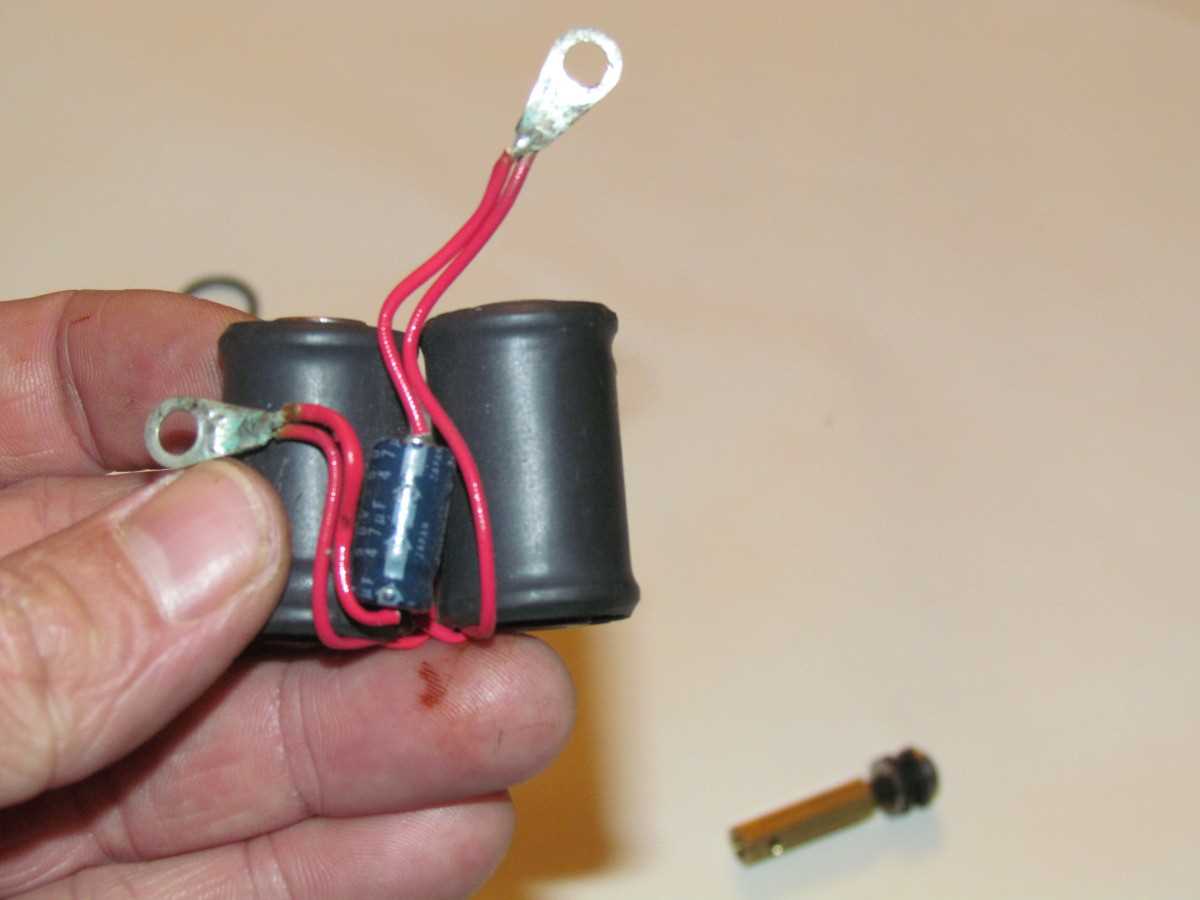

Attach the secondary coil leads to the capacitor. A 100V, 470µF electrolytic capacitor works best for stabilizing current flow. Solder the connections if possible–mechanical joints corrode over time, leading to uneven performance.
Connect the armature bar to the capacitor’s negative terminal. This completes the circuit loop. Ensure the contact point is clean and free of oxidation; use fine-grit sandpaper or a brass brush to prep the surface before fastening.
Key Connection Checks
- Test continuity between the power source and coils with a multimeter set to 200 ohms. Resistance should read between 2-5 ohms for standard setups.
- Verify capacitor polarity–reverse polarity will destroy the component instantly. Mark the negative terminal with a dot or striped line.
- Insulate all exposed joints with heat-shrink tubing or electrical tape. Avoid cloth tape; it absorbs moisture and deteriorates.
- Secure wires along the frame using zip ties or adhesive clips. Loose wiring vibrates, causing intermittent failures.
Integrate the foot pedal switch into the power line. Use a momentary switch rated for at least 10A–cheaper models burn out under repeated use. Splice the wires with a crimp connector rather than twisting; soldering here risks fragility due to frequent flexing.
After assembly, run the device at half voltage for 30 seconds to check for overheating. Hot coils indicate incorrect gauge wire or improper capacitance values. Adjust accordingly–doubling the capacitor value softens the stroke, while halving it increases speed.
Troubleshooting Immediate Issues
- No response? Confirm the power supply delivers at least 6V DC. Lower voltages fail to energize the coils.
- Weak oscillation? Check for loose armature screws or misaligned contact points. Tighten all fasteners to manufacturer torque specs.
- Excessive sparking? Reduce capacitor value incrementally–overcapacitance creates erratic motion.
- Inconsistent speed? Inspect the foot pedal solder joints; cold solder breaks under vibration.
For extended lifespan, replace the capacitor every 200 hours of use. Store the unit in a dry environment to prevent oxidation of copper contacts. Periodically re-tighten all connections–thermal cycling loosens screws even in high-quality builds.
