Start by identifying the live (hot), neutral, and ground conductors in your circuit. The live wire–typically black or red–delivers current from the breaker to the load. The neutral wire–white or gray–returns current to the panel. The ground wire–bare copper or green–provides a safety path. Verify their positions using a multimeter before proceeding. Incorrect connections risk short circuits, overheating, or electrical fires.
Use a pigtail splice for shared connections between the control element and receptacle. Twist the bare ends of the same-color wires together, secure with a wire nut, and wrap with electrical tape. For screw terminals, bend a hook into the wire end, loop it clockwise around the screw, and tighten to prevent loosening. Solid 12- or 14-gauge copper wire is preferred for residential circuits; stranded wire may require ferrules for secure termination.
Follow the color-coding standard strictly:
- Black/red: Live (current-carrying) conductor.
- White/gray: Neutral (return) conductor.
- Green/bare: Ground (safety) conductor.
Deviations violate electrical codes (NEC 200.6, 210.5) and increase failure risk.
Install a jumper wire between the control device and power interface if splitting a single circuit. Leave a 6–8 inch tail when cutting wires to allow adjustments. Strip 3/8 inch of insulation for clean connections–excess bare copper can cause arcing. Secure all connections in an approved junction box; exposed splices violate safety regulations.
Test the configuration with a non-contact voltage tester before energizing the circuit. Activate the breaker, check for proper function, and measure voltage at the device terminals. Expected readings: 120V (U.S.) or 230V (EU) between live and neutral; 0V between neutral and ground. Discrepancies indicate wiring errors or faulty components.
Converting Control Device Circuits Into Power Sources
Begin by disconnecting the circuit from the mains at the breaker panel–verify absence of voltage with a non-contact tester before touching any conductors. Identify the feed conductor (typically black or red, 12-14 AWG for residential use) and locate its origin point, usually the back of the existing device box. If the incoming line terminates at a single-pole mechanism, splice its live conductor to both the new receptacle’s brass terminals (hot side) and optionally extend a jumper to maintain functioning control if needed. Ground and neutral must remain separate unless dealing with a neutral-sharing setup, which requires pigtailing to the new power point’s silver terminal.

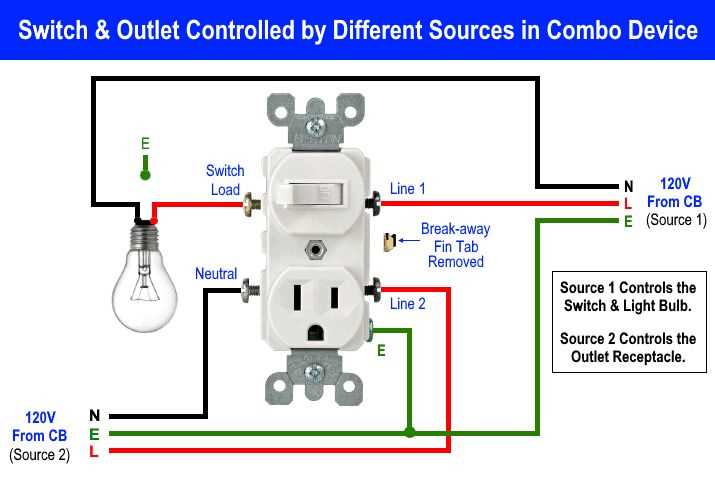

For split-tab receptacles where partial control retention is desired, use a 12-gauge pigtail to bridge the feed conductor to one brass terminal while connecting the remaining conductor to the second terminal via the original control path. Ensure the tab on the receptacle’s hot side is removed if maintaining independent feeds; for shared loads, leave the tab intact. Ground must be bonded to the metal box with a green grounding screw if no dedicated ground conductor exists–mandatory for all modern installations covered by NEC 250.130(C).
Common Pitfalls and Safety Checks
Never assume color-coding remains consistent–test each conductor with a multimeter in continuity mode against known neutrals or grounds. Back-stab connections on devices degrade over time; use side-screw terminals or push-in connectors rated for 20 amps minimum. Staple or secure conductors within 12 inches of the enclosure if extending cables, adhering to NEC 314.17 spacing. For aluminum wiring splices, use purple wire nuts with antioxidant compound or Al/Cu-rated connectors like Copalum or Alumiconn.
Measure box fill before finalizing: each 12 AWG conductor counts as 2.25 cubic inches–factor in clamps, devices, and grounds per NEC 314.16(B). If space exceeds limits, replace with a deeper box or reduce conductors by combining neutrals on a single terminal where permitted. Test polarity and GFCI protection (if applicable) with a receptacle tester before energizing. For overhead circuits, verify support brackets can handle added weight of cables within joists or studs.
Label all modifications at the breaker panel with indelible marker, noting “converted device-to-power source” with date. Archive the revised schematic using NFC tags inside the cover for future reference. Use tamper-resistant receptacles for outlets in child-accessible areas unless exempt per NEC 406.12. If integrating smart or USB-enabled units, confirm load ratings–most 15-amp models are limited to 12 watts per port to avoid overloads.
Essential Gear for Reconfiguring Electrical Connections
Begin with a non-contact voltage detector to confirm circuits are de-energized before touching any conductors. Choose a model with both audible and visual alerts, such as the Klein Tools NCVT-3, which senses voltages from 12V to 1000V AC without direct contact. Avoid units with only visual indicators–background lighting in work areas often interferes with LED signals.
For stripping and terminating wires, invest in precision cutters and strippers calibrated for 12-14 AWG solid copper conductors. The Ideal 45-121 accommodates insulation diameters down to 0.045 inches, ensuring clean cuts without nicking the wire core. Verify the tool’s alignment with the gauge you’re working with–most residential installations use 14 AWG for 15-amp circuits and 12 AWG for 20-amp setups. Keep a separate pair of linesman’s pliers for twisting and securing loops under terminal screws.
- Fish tape (25 ft minimum) for pulling conductors through conduit or cavities
- Cable ripper (Klein Tools 63050) for removing outer sheathing from NM cable
- Multimeter (Fluke 117 or equivalent) with true-RMS for verifying voltage, continuity, and resistance
- Junction box extender if retrofitting existing enclosures that lack depth
- Screwdrivers with insulated shafts rated to 1000V (VDE-certified)
Secure connections with UL-listed wire nuts, sized appropriately for the conductor count and gauge. For two #14 wires, use yellow nuts; for three #14 or two #12, opt for red. Pre-twist the copper ends before applying the nut to prevent loosening under load. For splicing multiple feeds, consider lever nuts like the Wago 221 series, which eliminate the need for twisting and provide tool-free, repeatable connections.
Use only 12-gauge pigtails for bonding grounds in mixed-gauge installations–never reduce the ground path. For metal boxes, attach a grounding clip (Bryant 77B3218) to the back of the enclosure and bond it to the incoming ground conductor. If the box lacks a threaded ground screw hole, drill and tap a #10-32 hole, ensuring no metal shavings remain inside.
- Verify local building codes for AFCI/GFCI requirements–some jurisdictions mandate dedicated circuits for new receptacle installations.
- Label all conductors at both ends before disconnecting any feeds to avoid confusion during reassembly.
- Test continuity between neutral and ground at the new termination to rule out neutral-ground bonds upstream.
- Use a torque screwdriver (Wiha 26190) to tighten terminal screws to manufacturer specifications–loose connections cause overheating.
- Cap unused conductors with wire nuts even if they’re not energized to prevent accidental shorts during future work.
How to Connect a Control Device to a Receptacle: Practical Steps

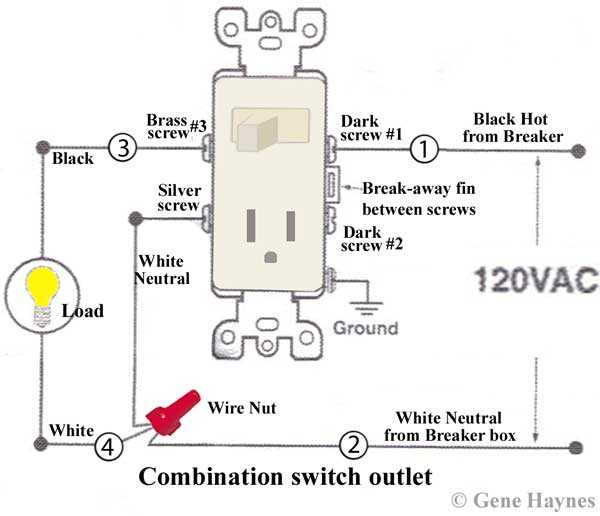

First, verify the circuit is de-energized at the breaker panel using a non-contact voltage tester. Strip 1/2 inch of insulation from the ends of a 12-gauge NM-B cable–black (hot), white (neutral), and bare copper (ground). Insert the black conductor into the brass terminal on the control device, ensuring it’s clamped securely beneath the screw. Attach the white conductor to the silver terminal on the receptacle, which corresponds to the wider slot. Loop both wires clockwise around their respective screws before tightening to prevent loosening during installation.
Route the bare copper ground wire to the green grounding screw on the receptacle, then daisy-chain it to the control device’s grounding point if present. For a single-pole configuration, connect a second black conductor from the control device’s remaining brass terminal to the receptacle’s brass terminal. Alternatively, for a split setup–where half the receptacle is always powered–transfer the tab connecting the brass screws before making this connection, leaving one half controlled and the other continuously live.
Secure all components into the electrical box with mounting screws, ensuring no exposed conductors touch the box or adjacent terminals. Restore power at the breaker and test functionality with a plug-in voltage tester. Confirm the control device toggles power as intended–illuminated status LEDs should align with the receptacle’s current state.
Critical Errors in Electrical Circuit Configuration
Mixing wire gauges in a single circuit causes overheating at connection points. Copper conductors sized at 14 AWG carry 15 amps safely, while 12 AWG handles 20 amps. When joined improperly, the thinner wire becomes a failure point, especially under sustained loads above 12 amps. Use identical gauge throughout every branch to maintain thermal consistency.
Ignoring terminal torque specifications guarantees loose connections. Screw terminals on devices require 12–16 in-lbs of torque for optimal contact pressure. Under-torqued screws oxidize faster; over-torqued screws deform threads, reducing grip over time. A calibrated torque screwdriver eliminates guesswork and prevents intermittent power interruptions.
Reverse polarity in combined lighting and receptacle circuits creates shock hazards. Hot wires (black or red) must terminate on brass screws, neutrals (white) on silver screws, and grounds (bare/green) on green screws. Swapping neutral and hot wires on a dual-function device energizes the neutral, exposing surfaces to 120V when “off.” Verify connections with a non-contact voltage tester before securing the faceplate.
Faulty Ground Path Practices
Grounding conductors require continuous, low-impedance paths back to the panel. Daisy-chaining grounds through device yokes instead of pigtailing to a single junction introduces resistance. Each additional connection point compounds voltage drop under fault conditions. The table below shows permissible ground wire lengths based on circuit ampacity:
| Circuit Rating (A) | Max Ground Conductor Length (ft) |
|---|---|
| 15 | 60 |
| 20 | 45 |
| 30 | 30 |
Exceeding these lengths violates NEC 250.122 requirements, delaying overcurrent device tripping during faults.
Incompatible Device Pairings
Standard toggle mechanisms lack the current rating for dimmable LED loads or heavy-draw appliances. Mechanical contacts in basic models arc excessively when switching inductive loads like motors or transformers. GFCI receptacles integrated with lighting controls often trip from leakage currents below 6mA, creating nuisance interruptions. Match device ratings to load characteristics: use quiet-type mechanisms for resistive loads, electronic relays for inductive loads, and dedicated circuits for variable-speed drives.
