Begin by selecting an internationally standardized graphical notation for mechanical contact elements. IEC 60617 and ANSI/IEEE Std 91a are the two authoritative sources–adhere strictly to one to ensure compatibility across engineering teams. Use the form A (normally open) or form B (normally closed) notation for single-pole configurations, and replicate the pattern for multi-pole setups with consistent spacing of 10 mm between adjacent lines. This spacing prevents misinterpretation and maintains clarity in crowded layouts.
For momentary-contact toggles, append an arc symbol to the fixed contact line, pointing in the direction of mechanical actuation. In latching designs, omit the arc and place a solid dot at the intersection of the movable and stationary contact lines. Always verify the dot’s diameter–2.5 mm is optimal–before finalizing the drawing. Smaller dots risk being overlooked during fabrication; larger ones can be confused with solder junctions.
When documenting push-button variants, extend the movable arm beyond the fixed contact by a minimum of 5 mm. This visual cue distinguishes momentary toggles from maintained types without requiring extra labels. Use dash-dot lines for ghost outlines of alternate positions if the element can occupy multiple states simultaneously. Assign unique reference designators–K1, K2, etc.–and cross-reference them in both schematic and bill-of-materials.
For thermal or magnetic overload protectors, overlay a thermal bimetal symbol (a zigzag line) or a magnetic coil symbol (two concentric semicircles) adjacent to the contact notation. Keep a 7 mm clearance between the overlays and the primary contact lines to avoid visual clutter. Annotate critical parameters–voltage rating, current capacity, bounce time–in 8-point Arial font directly beneath the graphical notation, ensuring all text remains outside the active schematic area.
Validate toggles in series-parallel configurations by tracing each current path with a highlighter. Confirm every path terminates at a valid node–either a power source, ground, or load. Misrouted lines introduce hidden failure modes that simulation tools may overlook. Save final schematics in both .sch and .pdf formats, embedding font data to preserve visual fidelity during cross-platform transfers.
Standardized Toggle Representations in Schematics
Use the IEC 60617 standard for precise graphical depictions: a break-type selector shows a gap between contacts, while a make-before-break variant adds a bridging arc. ANSI Y32.2-1975 prescribes filled circles for terminals–ensure these are 2.5 mm in diameter on scaled prints. For momentary toggles, append a diagonal line intersecting the stem; latching selectors omit this detail. Include a reference designator starting with “S” followed by sequential numbering (e.g., S1, S2) positioned 3 mm above the component body.
Adopt color-coding for critical paths: red for high-voltage activation (above 48 V), blue for logic-level (3.3–5 V), and green for auxiliary signals. Label switch functions directly beneath the schematic glyph using 1.5 mm Arial Narrow font–avoid abbreviations unless listed in IEEE Std 315. For multi-pole arrangements, stack individual poles vertically with consistent 8 mm spacing; mirror horizontal layouts for balanced readability. Verify footprint dimensions against IPC-2221A class 2 tolerances (±0.15 mm) when integrating into PCB layouts.
How to Recognize Key Toggle Representations in Schematics

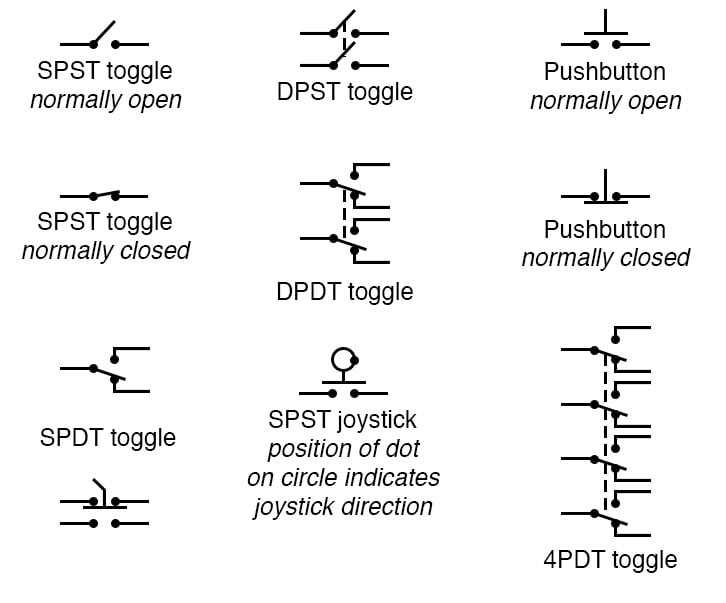

Start by locating the basic shapes that define control elements. A single-pole single-throw (SPST) device appears as two lines touching a third perpendicular line–one line ends in a gap when open. For single-pole double-throw (SPDT), the middle line extends into a Y-shape, branching to two contacts. Polarized variants, like push-buttons, often include an additional line crossing the center stem to signal momentary action. Double-pole configurations mimic two parallel SPST or SPDT arrangements, stacked vertically to indicate simultaneous operation.
- Normally open (NO): A single break in the line.
- Normally closed (NC): A dot at the junction marks continuous flow.
- Relay contacts: Coil shown as a rectangle beside separated NO/NC pairs.
- DIP selectors: Multiple rectangles in a row, each crossed by a diagonal.
- Slide types: Arrow intersecting a single straight bar.
- Rotary encoders: Circle with three radial spokes, center dot for common.
Match symbols to device ratings: curved lines for high-voltage isolates, zigzags for resistive loads. Annotated letters clarify function–PB for momentary, SW for maintained. Grid squares often measure 0.1 inches; larger outlines denote heavier current capacity.
Step-by-Step Guide to Drawing Push Button Control Glyphs
Begin with a 4mm square base–this ensures clarity when scaled to schematics. Sketch two parallel vertical lines 1.5mm apart within the square; these represent the mechanical contacts. Add a horizontal bar 0.8mm above the midpoint to form the actuating surface. For momentary types, include a small inward arc (0.3mm radius) at the top of the bar to indicate spring return. Bistable variants omit the arc and replace it with a diagonal tickmark (1mm) crossing the left vertical line, signifying latching action. Keep line weight at 0.2mm for all elements unless ISO 9001 documentation requires thicker strokes (0.35mm).
Common Variations and Corrective Measures
| Variant | Modification | Tolerance |
|---|---|---|
| Normally Open | Leave vertical lines unconnected at bottom | ±0.1mm |
| Normally Closed | Join lines with 0.5mm horizontal connector | ±0.05mm |
| Illuminated | Add 2mm diameter circle centered 3mm below contacts | ±0.2mm |
| Double Throw | Split lower half into two 0.8mm-wide branches | ±0.1mm |
Verify dimensions by overlaying a 0.5mm grid template; discrepancies exceeding listed tolerances will interfere with automated PCB routing software. Use a non-reproducible blue pencil for initial drafts to prevent scanner artifacts. Finalize with rapidograph ink (0.35mm nib) or vector CAD tools set to 0.2mm stroke width for consistency across printouts.
Distinguishing Toggle Types in Electrical Schematics
Select SPST (Single Pole Single Throw) for basic on/off control–it’s the simplest mechanism, featuring two terminals that either connect or disconnect a single path. Use it for uncomplicated applications like power buttons or isolated loads where no alternate paths are needed. Avoid this type if you require branching or multi-path switching, as it lacks that flexibility.
SPDT (Single Pole Double Throw) offers a middle-ground solution by routing one input to one of two outputs through a three-terminal configuration. Ideal for selector applications–like choosing between two power sources–it enables toggling between two distinct circuits. However, it can’t handle simultaneous multi-path control, so ensure your design doesn’t require parallel connections.
- SPST: 2 terminals, single path activation
- SPDT: 3 terminals, single input to dual outputs
- DPST: 4 terminals, dual independent paths
- DPDT: 6 terminals, dual inputs to dual outputs
Opt for DPST (Double Pole Single Throw) when managing two isolated circuits simultaneously with a single actuator–its four terminals create two separate on/off paths. This works well for dual-power applications (e.g., splitting AC phases) but isn’t suited for directional changes, as all terminals must be in the same state.
For advanced routing, DPDT (Double Pole Double Throw) provides six terminals, allowing two inputs to toggle between two outputs each. This configuration excels in reversing motors, swapping signal polarities, or bridging independent circuits. Validate terminal pairing in schematics, as miswiring here risks unintended feedback or shorts. Reserve this for complex setups where SPST/SPDT/DPST fall short.
Series vs. Parallel Control Element Integration
Connect control elements in series to ensure all must activate for current flow–ideal for fail-safe systems where redundancy prevents unintended operation. Example: safety interlocks in industrial machinery require every toggle to close; one open breaks the path entirely. Measure total resistance as the sum of individual resistances (Rₜ = R₁ + R₂ + … + Rₙ); voltage divides across components proportionally. Use this for low-power signals where cumulative load doesn’t exceed source capacity.
Parallel connections allow pathways to function independently–critical for branching controls like multi-location lighting. Here, toggles operate in isolation; closing one completes its path without affecting others. Current splits inversely to resistance (I₁/I₂ = R₂/R₁), while voltage remains constant across branches. Calculate equivalent resistance as (1/Rₜ = 1/R₁ + 1/R₂ + … + 1/Rₙ). Avoid overloading: sum branch currents shouldn’t surpass source rating.
Series controls suit sequential dependencies–think emergency stop systems where each press must be intentional. Voltage drop per component (Vₓ = I×Rₓ) scales with resistance; use identical values to evenly distribute load. Replace toggle failures promptly; one faulty unit halts the entire chain. Lower resistance units tolerate higher currents but risk uneven voltage drops if mismatched.
In parallel, prioritize trace width and connector ratings to handle combined branch currents. A 12V source feeding three 4Ω branches sees 3A per path (total 9A); undersized wiring melts. Use this for modular designs like zone heating where toggles activate individual resistors independently. Add fuses to each branch to isolate faults without disabling the entire network.
Mixing both topologies creates hybrid chains, e.g., series diodes with parallel load segments. Diodes ensure unidirectional flow; parallel loads share voltage. Verify Ohm’s Law applies across each segment: I = V/Rₜ. For 5V across a 10Ω series string with two 20Ω branches, series current is 0.5A; each branch carries 0.25A.
Thermal management differs: series elements heat sequentially, while parallel setups distribute heat but risk hotspots if currents mismatch. Copper traces should thicken per branch current (minimum 2oz/ft² for 10A). Mount sensitive toggles away from heat sources; parallel fans or resistors can raise ambient temperatures.
Test continuity in series by probing end-to-end; an open anywhere breaks the loop. For parallel, probe each branch–faulty units may short-circuit others. Use a multimeter’s diode test mode to identify backflow paths in mixed configurations. Logical states invert: series needs all high for conduction, parallel needs one high per branch.
For rapid prototyping, breadboard series chains vertically (shared rails) and parallel horizontally (dual rails). Replace mechanical toggles with MOSFETs or relays for silent, high-speed switching; series logic gates (AND configurations) simulate toggle chains digitally. Always derate traces by 50% of theoretical capacity–real-world resistances and thermal effects exceed ideal calculations.
