For off-grid solar setups or motor control applications, a DC-to-AC converter operating at 20 kHz or higher minimizes losses while delivering clean output. Use a half-bridge configuration with IRF540N MOSFETs for power levels under 500W–these handle 100V/33A continuous current with sub-40mΩ on-resistance, reducing thermal dissipation. Pair each MOSFET with a UCC27424 gate driver for 4A peak output, ensuring fast 15ns rise/fall times to prevent shoot-through.
Select a ferrite core transformer (e.g., EE42/21/15) with a 22-turn primary and 120-turn secondary ratio for 12V to 230V conversion. Wind primary bifilar for leakage inductance below 5µH, verified with an LCR meter at 100 kHz. Snubber circuits across the transformer primary–10Ω resistor in series with a 1nF 1kV film capacitor–suppress voltage spikes exceeding 150% of the DC bus.
Implement overcurrent protection by sampling shunt resistance (0.01Ω, 5W) on the DC input with an INA219 sensor. Configure a microcontroller (STM32F103) to shut down PWM if current exceeds 120% of nominal load for more than 50µs. For EMI compliance, shield the high-frequency sections with a copper tape enclosure grounded to the chassis, reducing radiated noise below 60 dBµV/m at 30 MHz.
Use a resonant tank (LCLC topology) for soft switching if efficiency above 92% is required. A 3.3µH inductor (custom-wound on an RM10 core) and 100nF 630V polypropylene capacitors form the tank, tuned to 25 kHz. Simulate in LTspice with rise time constraints to avoid overvoltage on switching devices.
Practical Guide to Building a High-Frequency Power Conversion Layout
Choose a half-bridge configuration for versatility in low-to-medium power applications up to 3 kW–this topology minimizes component count while maintaining efficiency above 92% with 1200 V IGBTs or SiC MOSFETs. Ensure gate drivers (e.g., isolated IXYS IXDN609SI) have propagation delays under 50 ns to prevent shoot-through; pair with a dead-time of 300–500 ns adjusted via firmware. Implement a snubber network (RC series: 1–10 Ω, 1–10 nF) across each semiconductor to clamp voltage spikes exceeding 1.3× the DC link, critical when switching at 50–200 kHz.
Use a toroidal inductor (e.g., Micrometals T130-26) with a saturation current margin of 40% above nominal; wind with Litz wire (38 AWG, 150 strands) to reduce skin-effect losses at higher frequencies. Select a DC bus capacitor bank (film type, e.g., KEMET R75IR42204030J) with a ripple current rating 1.5× the load current to ensure ESR stays below 10 mΩ–this prevents premature failure under continuous 100 kHz operation.
Key Components of a Power Conversion Device and Their Roles
Prioritize high-frequency semiconductor devices like IGBTs or MOSFETs with a minimum voltage rating of 600V for 230V AC outputs to ensure robustness under transient loads. Pair them with ultrafast recovery diodes (trr ≤ 50ns) to prevent shoot-through during commutation–critical for thermal stability in high-switching-frequency designs (50–150kHz). For drives exceeding 3kW, implement 1200V-rated modules to accommodate voltage spikes from inductive loads, even if the nominal input is 400V DC.
| Component | Recommended Specifications | Failure Risk if Under-Specified |
|---|---|---|
| Power transistors | IGBT: 600–1200V, ≥10kHz MOSFET: 600V, Rds(on) ≤ 50mΩ |
Thermal runaway, gate oxide breakdown |
| Gate drivers | Isolated: ≥5kV/µs CMR Non-isolated: Dead-time ≤ 100ns |
Cross-conduction, false triggering |
| DC link capacitor | Film: 100µF/kW, ≥400VDC Aluminum: ESR ≤ 10mΩ @ 100kHz |
Voltage ripple >5%, premature aging |
Use gate driver ICs with built-in desaturation detection and Miller clamp functionality to suppress parasitic turn-on during high dV/dt events (common in SiC-based designs). Opt for isolated drivers with ≥5kV/µs common-mode transient immunity (CMR) when operating above 20kHz to prevent ground bounce from corrupting control signals. Incorporate 1–2Ω series gate resistors for MOSFETs (0.5–1Ω for IGBTs) to dampen oscillations during turn-off–critical for reducing electromagnetic interference (EMI).
Select DC link capacitors with low equivalent series resistance (ESR ≤ 10mΩ at 100kHz) to minimize ripple current stress; film capacitors (100µF/kW) outperform electrolytic types in high-frequency applications due to lower ESR and longer lifespan. For input filtering, combine a common-mode choke (L ≥ 1mH) with X-rated capacitors (0.1–1µF) to suppress conducted noise per CISPR 22/EN 55022. Implement snubber circuits across switching elements (RC series: 10Ω + 1nF) to limit voltage overshoot to

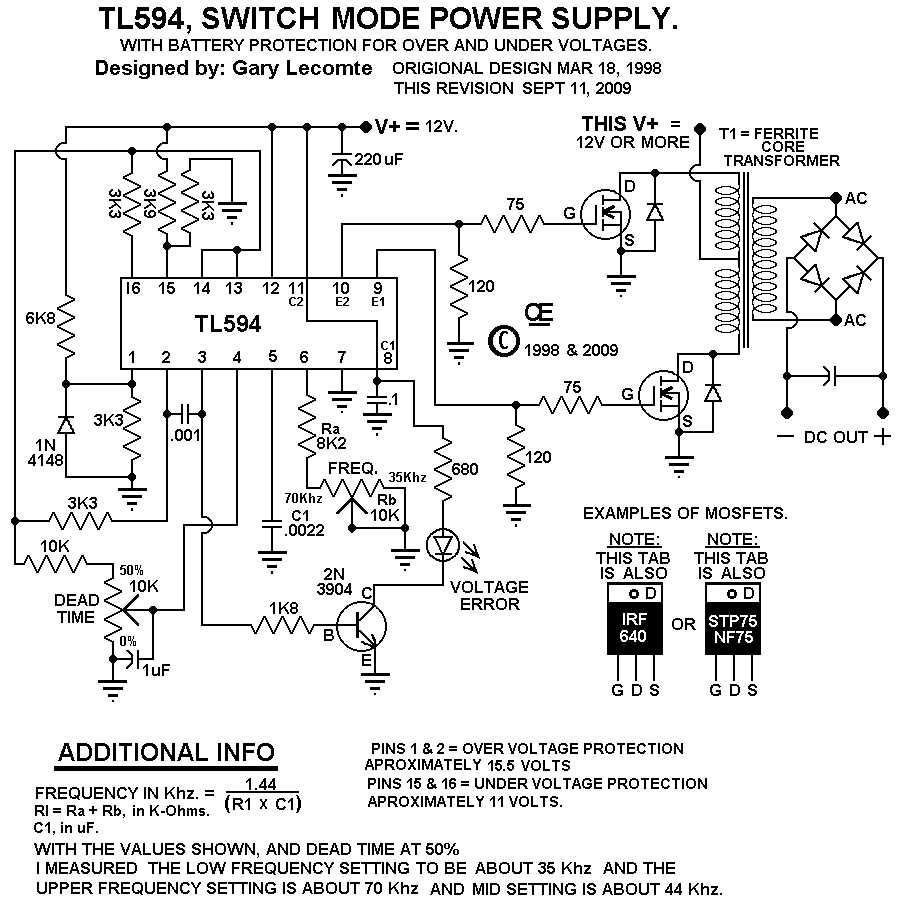

Step-by-Step Assembly Guide for a 12V to 220V Power Conversion Unit
Begin by securing a ferrite core transformer with a 12V primary and 220V secondary winding ratio. Verify the core’s saturation limit–opt for toroidal or E-core types rated for at least 150W continuous output to prevent thermal degradation. Wind the primary with 1.5mm enameled copper wire, ensuring uniform turns (typically 15-20 for 12V input), then layer insulation tape between windings. The secondary should use 0.7mm wire with 180-200 turns, adjusted for exact voltage calibration; test with a multimeter before finalizing.
Mount IRF3205 MOSFETs or equivalent on a heatsink–minimum 50cm² aluminum per transistor–using thermal paste and nylon screws for electrical isolation. Connect the gates to SG3525 PWM controller outputs (pins 11 and 14), configuring RT (5kΩ) and CT (2.2nF) on pins 6 and 5 for a 50Hz output. Add a 100nF ceramic capacitor across the controller’s VCC and ground to suppress high-frequency noise. For feedback, tap the secondary winding through a voltage divider (e.g., 1MΩ + 10kΩ resistors) wired to the controller’s error amplifier (pins 1 and 2), setting the output to ±10% of 220V.
Solder a 470µF/25V electrolytic capacitor to the primary’s positive rail to smooth input ripples, followed by a fuse holder rated at 20A. Use 16AWG stranded wire for all high-current paths, crimping terminals with a ferrule tool to prevent oxidation. Before powering, attach an oscilloscope to the output–verify sine wave purity and absence of DC offset. If waveform distortion exceeds 5%, adjust the PWM dead-time via ST resistor (pin 7) or recalibrate the feedback loop’s gain.
Common Faults in Power Conversion Units and Troubleshooting Techniques
Check for blown fuses first–this is the quickest way to confirm if the issue stems from an overcurrent event. Use a multimeter in continuity mode to test fuses without removing them; a dead short or open circuit indicates replacement is needed. If fuses fail repeatedly, inspect the downstream components for shorted semiconductors or capacitors, particularly in the high-frequency transformer secondary windings or output rectifiers.
Overheating is a frequent cause of premature failure, often due to inadequate cooling or excessive load. Verify fan operation and clean air vents to ensure proper airflow. Thermal imaging can pinpoint hotspots on heatsinks or power modules. If temperatures exceed 85°C under normal load, check thermal paste integrity and consider upgrading to higher-capacity cooling solutions. Pulse-width modulation ICs or gate drivers may also malfunction if junction temperatures rise above 125°C, leading to sporadic shutdowns.
Capacitor Degradation and Its Consequences
Electrolytic capacitors in DC-link sections degrade faster than other components, especially under ripple current stress. Bulging, leaking, or reduced capacitance (measured via an LCR meter) confirms failure. Replace capacitors with identical or higher voltage ratings (e.g., 450V instead of 400V) and low ESR values to improve longevity. Film capacitors, though more expensive, offer better reliability in high-frequency applications. Always discharge capacitors fully before servicing–residual voltage can destroy test equipment or cause hazardous arcs.
Gate drive faults appear as erratic operation or complete silence. Test gate resistors and optocouplers with an oscilloscope; a distorted or missing gate pulse suggests a failed driver IC or open resistor. For MOSFET-based designs, measure gate-source voltage–it should toggle between 0V and 12–15V. Dual-transistor topologies may suffer from shoot-through if dead-time settings are incorrect; adjust via firmware or dedicated dead-time generator circuits. Short circuits on the load side often trigger overcurrent protection–check for weld spatter or debris in output terminals.
Oscillator and Control Logic Issues
- No output? Verify the oscillator IC (e.g., UC3843, SG3525) is receiving proper VCC; marginal supply voltage can cause sporadic operation.
- Use a signal generator to inject a 50–100kHz square wave into the error amplifier input if natural oscillations fail–this bypasses feedback loops for isolation.
- Check for dry solder joints on surface-mount resistors in the feedback network; reflow suspect points with a fine-tip soldering iron.
- Firmware-controlled units may lock up if watchdog timers expire–reset via dedicated pins or power cycle while monitoring microcontroller clocks.
- For transformer-isolated designs, test winding continuity and insulation resistance (>50MΩ) between primary and secondary.
Output voltage instability often traces back to feedback loop miscalibration. Adjust the potentiometer in the voltage divider network while monitoring output; small changes (5–10%) should reflect linearly. If noise persists, add a 100nF ceramic capacitor across the feedback resistor to filter high-frequency spikes. For units with current-mode control, ensure the sense resistor (typically 10–50mΩ) is not open or corroded. Replace any corroded components with high-precision resistors to prevent drift in protection thresholds.
