Begin with a ground-fault circuit interrupter (GFCI) for all circuits supplying underwater fixtures, pumps, or auxiliary equipment. NEC Article 680 specifies this as mandatory for any conductive pathway within 1.5 meters of the basin’s edge.
Separate branch circuits into dedicated feeds: one for lighting, another for filtration systems, and a third for heating or automation. Wire gauge must match the load–12 AWG for 20-amp circuits, 10 AWG for 30-amp. Bond all metallic components (ladders, rails, drains) using 8 AWG solid copper wire to a common grounding grid to eliminate stray currents.
Install a double-pole breaker for all submerged pumps, sized to handle 125% of the motor’s full-load amperage. Label each breaker clearly at the panel with water-resistant identifiers to prevent accidental re-energizing during maintenance.
Route cables in schedule 80 PVC conduits buried 45 cm below grade, with watertight junctions at every splice. Use THHN/THWN-2 conductors rated for wet locations. Avoid running non-waterproof cables within 3 meters of the basin unless shielded in sealed conduit.
Place outdoor-rated disconnect switches no closer than 1.2 meters from the basin’s perimeter, mounted at 1.5 meters above grade for accessibility. Equip each switch with a lockable cover to comply with OSHA lockout-tagout requirements.
Test bonding continuity with a minimum 30-amp current before filling. Verify GFCI operation monthly using the integrated test button–replace units if trip time exceeds 5 milliseconds or leakage current surpasses 5 milliamps.
Key Components of a Water Facility Wiring Blueprint
Install a residual current device (RCD) rated at 30 mA or lower for all circuits serving the basin area. This includes pumps, lighting, heating elements, and auxiliary outlets. RCDs must be positioned as close to the power source as possible–ideally within the main distribution board–to minimize unprotected wiring segments.
Use 10 AWG (5.26 mm²) or thicker copper conductors for all submerged components, even if load calculations suggest smaller gauges. Insulation must meet UL 1262 standards for moisture resistance, with XHHW-2 or THWN-2 designated cables mandatory. Route conduit along the shortest path, avoiding sharp bends exceeding 30° to prevent insulation damage during pull-through.
Subpanel and Circuit Distribution
Dedicate a subpanel exclusively for water-related circuits, located at least 1.5 meters from the basin edge and elevated above the 100-year floodplain mark. Populate it with double-pole breakers sized at 125% of the continuous load, rounded up to the next standard rating. Label each breaker with its corresponding load (e.g., “Main Pump – 20A”) and include a warning: “Do not operate unless RCD is engaged.”
Segregate circuits into three categories: essential (pump, filtration), secondary (lighting, heating), and non-critical (outlets, automated systems). Wire essential circuits with red conductors for phase, blue for neutral, and green/yellow for grounding–never deviate. Secondary circuits may use black for phase, but non-critical must employ orange or purple to prevent cross-connection errors.
Grounding and Bonding Specifications
Drive a copper-clad ground rod 2.4 meters into the earth, spaced at least 1.8 meters from the basin’s deepest point. Connect it to the main panel with continuous 6 AWG (13.3 mm²) bare copper wire, unspliced. Bond all metallic components–ladders, railings, drain covers, jet nozzles–to this rod using the same conductor. Verify bonding integrity with a 500V megohmmeter; readings below 1 MΩ mandate reassessment.
For underwater luminaires, use low-voltage (12V) transformers with grounded secondary windings. Position transformers indoors, at least 3 meters from water. Route secondary wiring in liquid-tight flexible conduit labeled “FOR LUMINAIRE USE ONLY”, with no splices permitted within 1 meter of the basin. Test luminaire circuits monthly with a portable GFCI tester to confirm trip times under 25 milliseconds.
Include an emergency stop switch within 1 meter of the basin, clearly marked in high-visibility red. Wire it to interrupt all non-essential circuits simultaneously. The switch must meet NEMA 4X enclosure standards and be tested quarterly by simulating a fault condition. Document all test results in a log, noting date, technician name, and trip duration.
Key Components Required for a Safe Water Facility Wiring Plan
Install a ground-fault circuit interrupter (GFCI) on all circuits supplying submerged or splash zone equipment. The GFCI must trip at 5 mA leakage within 25 ms. Verify compliance with UL 943 Class A devices; cheaper residential-grade models fail under wet conditions. Mount GFCIs indoors, at least 1.5 m horizontally from the basin edge, inside weatherproof enclosures rated NEMA 3R or higher.
Cables routed within 3 m of water must be either liquid-tight flexible nonmetallic (LFNC-B) or rigid metallic conduit (RMC) with corrosion-resistant PVC-coated galvanized finish. Buried runs deeper than 45 cm require 2-mm thick PVC Schedule 40; shallower depths mandate Schedule 80 to resist puncture. All junction boxes within the wet area must have non-venting, sealed covers and drain holes facing downward, minimum IP68 rating.
Critical Circuit Specifications
| Equipment | Voltage | Conductor Size | Conduit Type | Special Requirement |
|---|---|---|---|---|
| Underwater luminaire | 12 V AC | 10 AWG | RMC or LFNC-B | Silicone seal at housing entry |
| Circulation pump | 240 V AC | 6 AWG | PVC Sch 80 | Thermal overload relay set to 115% FLA |
| Salt chlorinator | 24 V DC | 8 AWG | LFNC-B | Reverse polarity protection diode |
Equipotential bonding conductors must form a continuous loop connecting all conductive parts–ladders, rails, coping tile reinforcing steel, metallic deck structures–using solid 8 AWG bare copper. Bonding grid resistance to earth should not exceed 1 Ω. Embed conductors 25 mm below finished deck surface; avoid cutting expansion joints. Test bonding continuity before filling and quarterly thereafter with a 25 A test current for 3 s.
Include a manual disconnect switch within line-of-sight of every motor-driven device and submerged fixture. Locate switches 1.2–1.5 m above deck, clearly labeled, and accessible without obstructions. Label each branch circuit with waterproof, UV-stable markers indicating voltage, amperage, and connected load. Store a duplicate diagram inside the main service panel door showing conductor paths, conduit fill calculations, and GFCI locations.
Equipment Placement Distances
| Component | Minimum Distance from Basin Edge | Clearance Above Finish Grade | Additional Condition |
|---|---|---|---|
| Main panel | 3 m | 1.8 m | Not in direct splash zone |
| Junction box | 0.3 m | 0.6 m | Drain hole facing down |
| Underwater luminaire | N/A | Below water line | Housing to withstand 1.2× static head pressure |
Step-by-Step Process for Designing a Water Circulation Pump and Filtration Circuit
Begin by sketching the main power source, typically a 230V or 120V dedicated breaker in the control panel, sized at 15–20 amps for residential setups. Label the live (hot), neutral, and ground wires with distinct colors–red/black for phase, white for neutral, and green or bare copper for grounding–to maintain clarity during installation.
Position the circuit breaker as the first component, ensuring it matches the pump’s motor rating (check the nameplate for FLA–full load amps). For a 1.5 HP motor, a 20-amp breaker is standard; undersizing risks tripping, while oversizing may fail to protect the system. Wire the breaker directly to the pump motor using 12 AWG or 10 AWG wire, depending on distance and voltage drop limits (max 3% for 230V circuits).
Integrate a timer or automation switch after the breaker to regulate filtration cycles. Mechanical timers require manual adjustment but are cost-effective; digital controllers offer programmability for variable-speed pumps. Connect the timer’s input terminals to the breaker’s output, then route its output to the motor starter or directly to the pump if no starter is needed (common for single-speed motors).

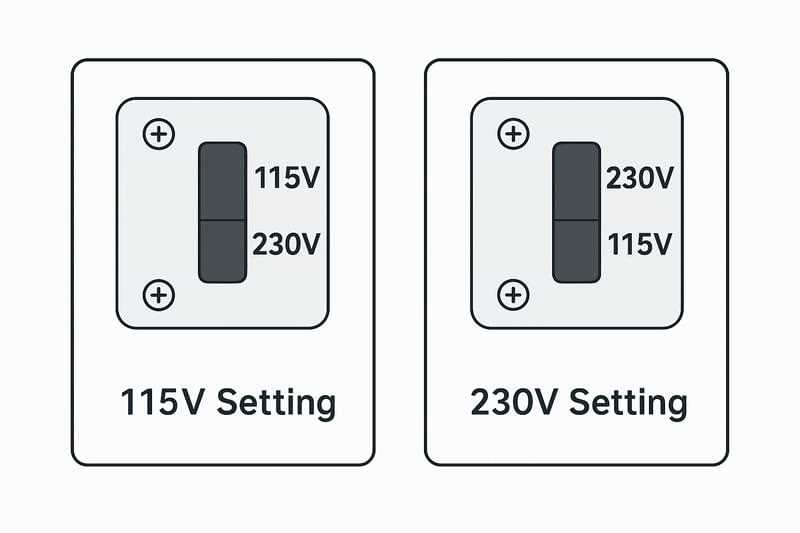

For multi-speed or variable-speed pumps, include a separate speed controller or variable frequency drive (VFD) between the timer and motor. Wire the controller’s L1, L2, and ground terminals to the pump’s corresponding leads, ensuring compatibility with the motor’s voltage (e.g., 115V or 230V). Verify the controller’s amperage rating exceeds the pump’s FLA to prevent overheating.
Add a ground fault circuit interrupter (GFCI) immediately downstream of the breaker for safety, especially in wet environments. Test the GFCI with a plug-in tester before energizing the circuit; a faulty unit must be replaced, not bypassed. Connect the pump’s ground wire to a dedicated grounding rod or the facility’s main grounding bus, resistance ≤25 ohms per NEC guidelines.
Install a pressure switch or flow sensor in the filtration line to monitor performance and trigger alarms if pressure exceeds 30 psi or drops below 10 psi (adjust thresholds per manufacturer specs). Wire the switch’s normally open (NO) or normally closed (NC) contacts to an indicator light or alarm system, using 18 AWG wire for low-current signals.
Finalize the layout by labeling all components–breaker, timer, controller, pump, and sensors–with durable, weatherproof tags. Use a wiring diagram template to cross-reference connections, ensuring no loose ends or misrouted wires. Before powering the system, perform a continuity test on all conductors with a multimeter and verify torque specifications for terminal screws (typically 12–15 in-lbs for 10–14 AWG wire).
