Start with a scaled foundation plan marking the basin’s perimeter. Use 0.5 mm ink lines for structural elements and 0.25 mm dashed lines for plumbing and electrical conduits. Label inlet and outlet vents with exact diameters–standard sizing is DN50 for return jets and DN100 for main drains. Avoid clutter by grouping filtration, heating, and chemical dosing components in a dedicated service zone, no less than 1.2 meters from the basin’s edge.
Indicate water depth transitions with height markers at 0.1 m intervals, using distinct line weights: solid thick for floor gradients and dotted for safety ledges. Position overflow channels along longitudinal sides if hydrodynamic flow demands lateral evacuation–calculate sloping angles at 0.5% minimum. Specify tile finish in the legend, noting slip resistance rating (e.g., R11 for submerged steps).

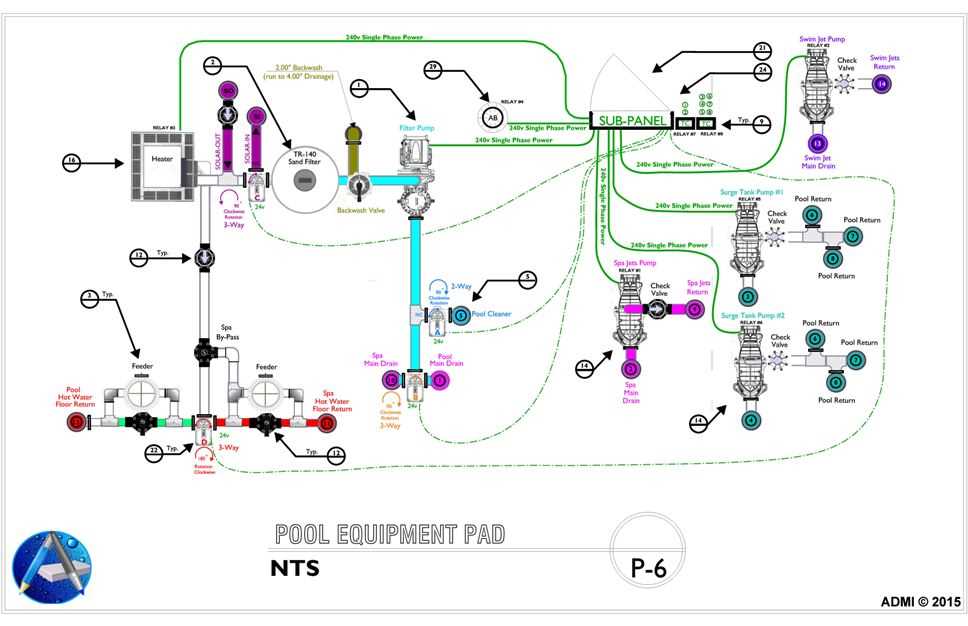

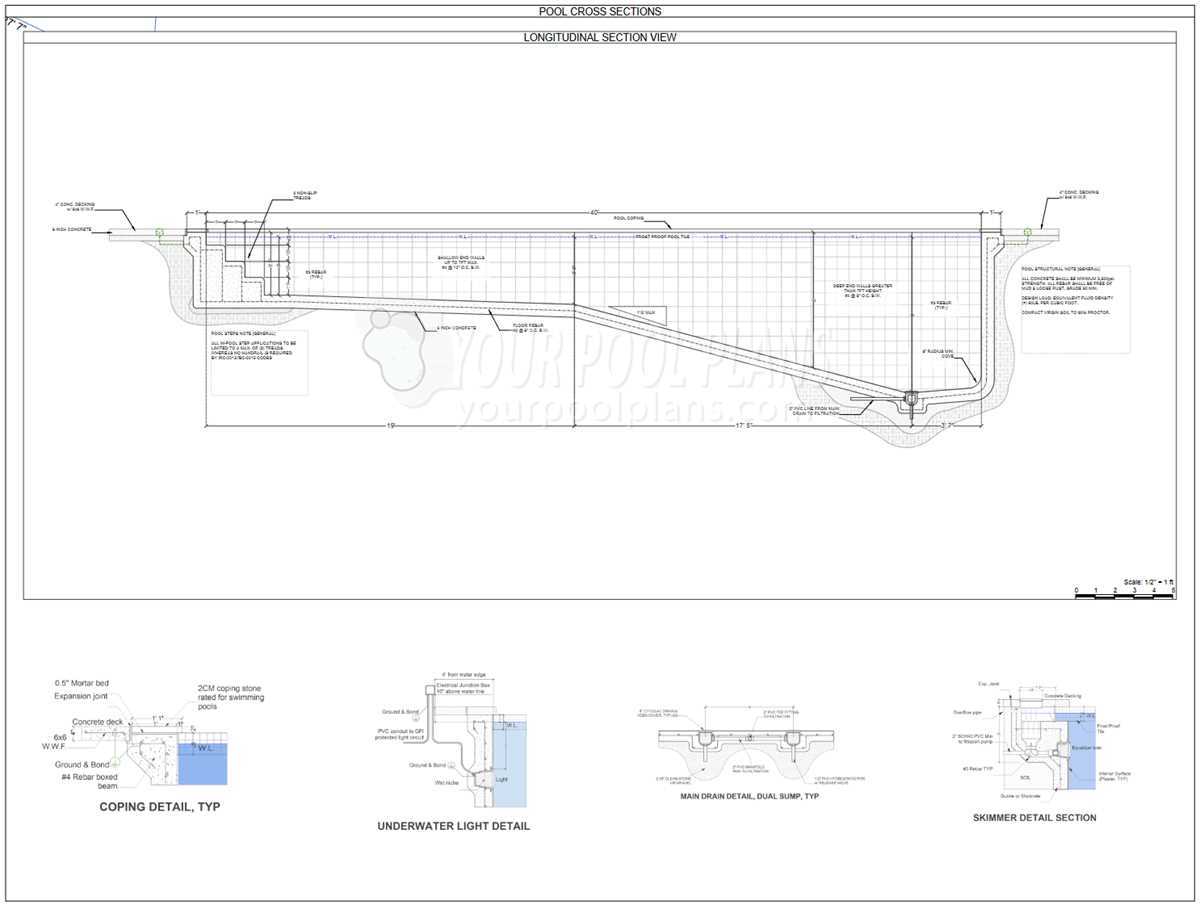

Embed cross-sectional sketches at key points: include skimmer draw rate (typical 4-6 m³/h), pump suction depth, and backwash cycle duration. Color-code piping: blue for cold water, red for heated circuits, and yellow for chemical feedlines. Verify that electrical diagrams isolate low-voltage sensors from high-power circuits using IEC 60364 standards. Finalize with QR links to component datasheets for installer reference.
Essential Water Basin Layout Blueprints
Begin with a scale drawing of the basin’s perimeter, marking all structural elements at 1:50 ratio. Use waterproof ink on laminated polyester film to prevent smudging during on-site adjustments. Include mandatory components:
- Intake and return jets positioned at opposite ends to create circular flow (minimize dead zones)
- Skimmers at waterline level, spaced no more than 6 meters apart
- Main drain at deepest point with anti-vortex cover (prevents suction entrapment)
- Backwash lines integrated with filter system (specify pipe diameter: 50mm minimum)
Layer the schematic in three distinct tiers:
- Underground plumbing – color-code pipes (red = supply, blue = return, green = drain) and note depth below slab (typically 300-450mm)
- Mechanical infrastructure – label pumps, heaters, and UV sanitizers with voltage requirements (e.g., 240V 3-phase for commercial setups)
- Surface fixtures – indicate ladder locations, diving board foundations (reinforced with 20cm concrete), and lighting niches (IP68 rated)
For chlorinated systems, add a dedicated chemical controller circuit with probes at two feet and five feet depths to monitor pH and ORP. Specify probe calibration intervals (bi-weekly) and sensor lifespan (18-24 months). Saltwater setups require titanium-coated electrodes (avoid copper-based corrosion).
Mark emergency shutoff valves at every branch connection. Use ball valves for manual override and solenoid valves for automated control. Indicate electrical conduit routing (minimum 50mm diameter, Schedule 40 PVC) with 90° sweeps instead of sharp bends to prevent wire strain.
Include a hydraulic calculations table on the schematic’s margin:
- Turnover rate: 6-8 hours (commercial)
- Flow rate: 50-75 L/min per jet
- Head pressure loss: ≤ 15m for 1HP pumps
- Total dynamic head (TDH): Add 10% for pipe friction
For outdoor basins, overlay a shading analysis showing sun path at peak UV hours (10 AM – 4 PM). Position variable-speed pumps under north-facing eaves to reduce heat exposure. Specify R-13 insulation for all mechanical housing to prevent condensation.
Add a material schedule cross-referencing the drawing:
| Component | Material | Grade/Standard |
|---|---|---|
| Vessel lining | Ethylene propylene diene monomer | ASTM D4637 |
| Structural shell | Reinforced concrete | ≥ 3000 PSI at 28 days |
| Copings | Natural stone/porcelain | ≤ 0.04% porosity |
| Handrails | 316L stainless steel | ANSI A117.1 load-bearing |
Finalize the drawing with a sequential installation checklist numbered in construction order:
- Excavation (+5% tolerance for sloping sides)
- Rebar grid (#4 bars at 300mm centers)
- Plumbing rough-in (pressure-test at 1.5x operating PSI)
- Electrical conduit placement (AWG 12 wire min)
- Shell pour (monolithic preferred)
- Finish coating (ts epoxy primer + topcoat)
- Water fill (balance pH before adding sanitizer)
Critical Elements for Water Facility Blueprint Layouts
Begin with precise measurements of the basin’s perimeter, including depth transitions and slope gradients. Mark structural boundaries, such as walls, steps, and ledges, with exact dimensions–each tolerance deviation above ±2 cm risks misalignment during construction. Incorporate scale indicators (e.g., 1:50 or 1:100) to ensure proportional accuracy across all sections of the plan.
Integrate mechanical systems placement: filtration units, pumps, and heating lines must be plotted with clear connection points and flow direction arrows. Specify pipe diameters (minimum 50mm for suction lines, 63mm for returns) and material types (PVC-U for chlorinated water, PE-X for heated systems). Include access hatches for maintenance–minimum 60×60 cm for equipment retrieval–and label electrical conduits separately to avoid interference with hydraulic routes.
Indicate safety features: non-slip surfaces near entry/exit zones, depth markers at 1m intervals, and automated monitoring sensors (pH, chlorine, temperature) linked to a central control panel. Designate emergency cutoff switches no farther than 3m from any operational area, and annotate surface materials (exposed aggregate for high-traffic zones, smooth finishes for competition lanes).
Step-by-Step Guide to Drawing a Water Circulation and Cleaning Setup
Start with tracing the primary intake line from the basin’s deepest point to the pump inlet. Use a 1-inch diameter solid line for the suction path, labeling it “MAIN DRAIN” every 6 inches. Include a Y-shaped splitter 12 inches before the pump, connecting a secondary line for skimmers–depict this with dashed ¾-inch lines. Mark all valves with standard butterfly symbols and note flow direction with arrowheads spaced every 4 inches.
Pressure Side and Filter Integration
Draw the pump’s discharge port as a 1.25-inch solid line extending 8 inches outward, then split it into two branches: one leading to the filter (1-inch solid) and the other to a backwash line (½-inch dashed). Position the filter tank 18 inches right of the pump, using a 4-inch diameter circle for the housing. Inside, sketch a cylindrical cartridge or sand bed with diagonal hatching for media type. Label the filter’s pressure gauge port at the top and the waste outlet at the bottom with a ⅜-inch dotted line.

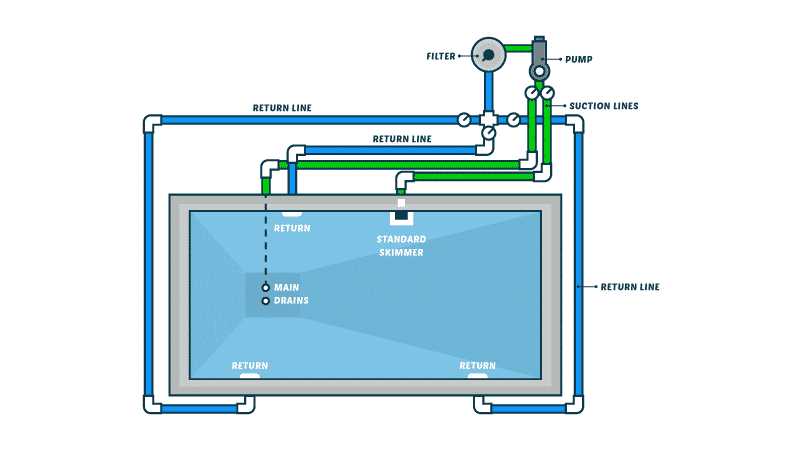

From the filter’s output, route a 1-inch solid line toward the heater or chlorinator–if included–then continue to return jets. Standard jets should be drawn as 1-inch circles with an internal cross (X) for directional flow. Space three jets evenly along the basin’s perimeter, 24 inches below the waterline. Add a bypass loop (½-inch dashed) around the filter, controlled by a three-way valve symbol for maintenance.
Ancillary Components and Annotations
Include a 24-inch vertical standpipe for the overflow drain, connected to the main circuit via a ¾-inch dotted line. Sketch the automatic cleaner’s dedicated line as a 1-inch dashed path branching off the pump’s discharge, ending in a triangular port near the shallow end. Label all components with engraved-style text: “PUMP,” “FILTER,” “HEATER,” etc., using 10pt uppercase Arial. For electrical connections, use lightning bolt symbols at the pump, timer, and UV sanitizer if present, linking them to a 110V power source symbol on the left margin.
How to Label Piping and Valves in a Water Facility Blueprint
Use standardized nomenclature for pipes and valves to ensure clarity across teams. Begin with a prefix indicating the system type (e.g., FW for freshwater, CH for chemical, RT for return lines) followed by a sequential identifier. For example, FW-101 denotes the first freshwater pipe in the system. Include the pipe diameter in millimeters in parentheses, such as FW-101 (50mm). Valves should follow the same logic but include the valve type, like FW-V-101-GV for a gate valve on the first freshwater line. This method eliminates ambiguity during installation or maintenance.
Create a legend table directly on the blueprint detailing all abbreviations and symbols. Here’s a reference format:
| Prefix | System Type | Example |
|---|---|---|
| FW | Freshwater supply | FW-101 (50mm) |
| CH | Chemical feed | CH-V-201-BV |
| RT | Return line | RT-301 (75mm) |
| DR | Drain | DR-V-401-CV |
| HV | Heater circuit | HV-501 (65mm) |
Color-code pipes and valves on the layout to align with their function. Assign specific colors (e.g., blue for freshwater, red for chemical lines, green for return, yellow for drains) and include a color key in the legend. Ensure labels are placed alongside pipes rather than across them to avoid confusion. For complex junctions, use directional arrows or reference tags pointing to separate detail views. If multiple valves serve the same pipe segment, group them under a single label with sub-identifiers, like RT-V-301-A/B/C for three check valves on the same return line.
Annotate pressure ratings and material specifications where critical. For instance, label FW-102 (50mm, 10bar, PVC) or CH-V-202-BV (316SS). Use bold text for safety-critical components (e.g., emergency shutdown valves) and italics for temporary or test lines. Avoid over-labeling–restrict annotations to essential data only. Cross-reference pipe labels with a systems manual or P&ID if the blueprint lacks space for full details.
