Use CAT6 solid copper cables for runs exceeding 150 meters to maintain signal integrity–aluminum conductors degrade image quality over distance. For PoE (Power over Ethernet) setups, select IEEE 802.3af/at compliant switches with per-port power budgets of at least 30W to avoid voltage drops in extended deployments. Avoid daisy-chaining power adapters; instead, run individual feeds from a central distribution box to each endpoint to eliminate cascading failures.
Shielded twisted pair (STP) is mandatory in high-interference zones–near industrial equipment or power lines–where unshielded cables can introduce ghosting artifacts. Ground both ends of the shielding to a common earth reference, or use capacitive decoupling to prevent ground loops. For outdoor installations, seal connections with gel-filled junction boxes rated IP67 or higher to resist moisture ingress, which degrades connections within weeks.
Map termination points in advance: assign separate channels for video, power, and alarm triggers to simplify diagnostics. Use color-coded labels–orange for video, blue for power–and document each run’s length, gauge, and connector type (e.g., BNC, RJ45) in a spreadsheet. Test continuity and resistance before finalizing runs; a proper reading should show less than 10 ohms between conductor and ground, any higher indicates corrosion or poor crimps.
For analog HD systems, RG59 coax with 95% copper braiding outperforms cheaper alternatives under 250 meters, but requires compression connectors screwed tight to prevent signal bleed. Digital IP setups benefit from modular patch panels, allowing quick reconfiguration without rewiring–install blank keystones as placeholders for future expansion. Reserve 20% spare capacity in conduits and switch ports to accommodate upgrades without disruptive rework.

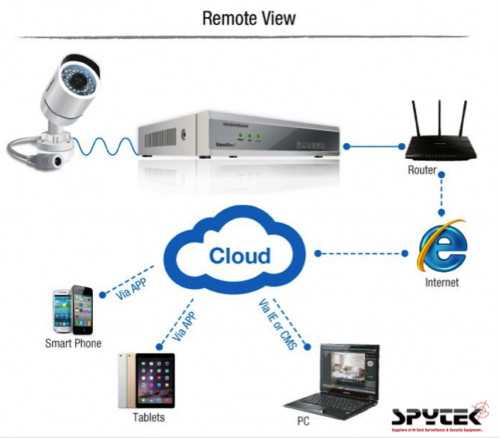

Key Steps for Installing a Security Device Cabling Layout
Connect power adapters directly to a dedicated 12V DC circuit with a minimum 2A rating to avoid voltage drops. Use shielded twisted pair (STP) cables for video feeds in environments with electromagnetic interference–avoid unshielded Cat5/6 for runs exceeding 100 meters. Label each end of the cable with unique identifiers before installation; mismatched connections cause hours of troubleshooting.
For analog setups, terminate BNC connectors with a compression tool to prevent signal loss. Coaxial RG-59 cables support distances up to 300 meters without amplifiers but require solid grounding at the recorder end. Split signals only with high-quality passive splitters; active splitters introduce latency and degrade quality.
Power over Ethernet (PoE) switches simplify installations but require compatibility checks: verify device voltage input ranges (e.g., 48V IEEE 802.3af) and total wattage limits. Use a multimeter to test voltage at the endpoint before mounting devices–fluctuations above ±5% damage sensors. Reserve 20% extra cable length for adjustments; taut wires fail under thermal expansion.
Fiber optic lines eliminate interference over long distances but need specialized crimping tools and SC/LC connectors. Terminate both ends of a duplex cable properly; a single misaligned strand cripples bidirectional transmission. Test continuity with an optical power meter before sealing conduits.
Daisy-chaining multiple devices risks cumulative signal attenuation. Instead, use a star topology with a central distribution hub for uniform voltage and minimal latency. Configure recorder settings to match the exact resolution and frame rate supported by the wiring; overclocking burns out circuits.
Selecting Optimal Cables for Various Monitoring Device Configurations
For IP-based devices operating at 4K resolution or higher, Cat6a cabling ensures minimal signal degradation over distances up to 100 meters. Its 500 MHz bandwidth handles multi-stream data without interference, critical for PTZ models requiring real-time adjustments. Shielded variants (STP) reduce electromagnetic interference in industrial environments where heavy machinery operates nearby.
Analog HD devices, particularly those using HD-TVI or AHD protocols, benefit from RG59 coaxial cables with solid copper cores. The 75-ohm impedance maintains signal integrity for 1080p streams up to 500 meters. For longer runs, RG6 with thicker insulation and aluminum foil shielding prevents signal loss where budget constraints limit fiber adoption.
Thermal imaging units demand low-voltage power cables paired with shielded twisted pairs. 18 AWG solid copper wires deliver 12V DC power reliably while Cat5e cables manage control signals. Oxidation-resistant connectors prevent voltage drops in outdoor installations where temperature fluctuations occur daily.
Specialized Requirements for Niche Applications
Wireless transmission points require hybrid cables combining fiber optics and copper. Single-mode fiber handles the backhaul of high-definition video from remote locations, while 22 AWG copper wires power the access point. This dual approach eliminates the need for separate power injectors in hard-to-reach areas like rooftops or poles.
Dome units installed in high-traffic areas benefit from reinforced cables with kevlar strands. The added tensile strength prevents cable cuts during routine cleaning or equipment manipulation. For vandal-resistant models, stainless steel braided cables resist tampering while maintaining flexibility for tilt adjustments.
Low-light units, including those with starlight sensors, require coaxial cables with ultra-low loss characteristics. Belden 1694A coaxial cables maintain signal clarity for color fidelity in night vision modes, outperforming standard RG59 by 30% in poorly lit environments. The foamed dielectric insulation reduces capacitance, preventing ghosting effects in high-contrast scenes.
Power and Data Integration Strategies
PoE+ switches feeding multiple 8MP models should use Cat6 cables with 23 AWG conductors. The thicker gauge reduces resistance, ensuring 30W power delivery without overheating. For units exceeding 15W, midspan injectors with individual cable runs prevent voltage sags affecting multiple devices simultaneously.
Bulk deployments of miniature units, such as those used in retail analytics, rely on slim-profile Cat5e cables with bonded pairs. The reduced diameter facilitates installation behind thin drywall or ceiling tiles while maintaining compliance with TIA-568 standards. Jumbo frame support at 9K packet size optimizes bandwidth for high-frame-rate analytics processing.
Step-by-Step Guide to Connecting Power Supply to Security Devices
Identify the voltage requirements for each unit before connecting. Most outdoor models operate on 12V DC or 24V AC, while indoor variants may use lower voltages like 5V USB. Check the manufacturer’s label or technical manual for exact specifications–mismatched power can damage circuitry or cause intermittent failures. Always use a multimeter to verify the output of the power adapter before proceeding.
Prepare the cabling based on the installation environment. For outdoor setups, use weatherproof Siamese cables (combining power and data lines) to reduce interference and simplify routing. Indoors, cat5e or cat6 cables with PoE (Power over Ethernet) injectors eliminate the need for separate power adapters. Follow these steps:
- Measure cable runs to avoid excess slack; aim for 10-15% additional length for adjustments.
- Strip 10-12mm of insulation from both power wires (red for positive, black for negative).
- Twist exposed strands tightly to prevent fraying and apply solder or crimp connectors for secure joints.
- Cover connections with heat-shrink tubing or electrical tape rated for outdoor use if applicable.
Connecting to the Power Source
For direct DC power, match polarity strictly–reversing wires risks permanent damage. If using a central power distribution box, connect all positive leads to the common positive terminal and negatives to the grounded terminal. For PoE setups, ensure the injector or switch supports the wattage of each device (e.g., 15W for standard models, up to 30W for PTZ units). Test each connection with a voltage tester before finalizing.
Mount the power supply in a secure, ventilated location. Wall-mounted transformers should have at least 20cm clearance for heat dissipation; enclosed power boxes require fans or vents for outdoor use. Label all cables and connections clearly–use waterproof tags for external setups. After powering on, monitor the device’s LED indicators: steady green usually confirms proper operation, while blinking red may indicate voltage issues or faulty cabling. If flickering occurs, recheck connections or replace the power adapter.
How to Route and Hide Cables for Video Monitoring Devices
Use fish tape or a stiff wire to pull cables through walls, conduits, or tight spaces. Insert the fish tape into the entry point, pushing until it exits the destination hole, then attach the cable securely with electrical tape or a pulling grip. For vertical runs, secure the cable every 1.5 meters with insulated staples or hooks to prevent sagging or exposure. Avoid sharp bends–maintain a minimum radius of 10 times the cable’s outer diameter to prevent signal degradation or physical damage.
Route cables along baseboards, crown molding, or door frames for indoor concealment. For permanent installations, run cable inside plastic or metal raceways, matching the wall or trim color. If drilling through studs or joists, use a spade bit with a depth stop to avoid piercing pipes or electrical lines on the opposite side. For drywall, cut a precise hole slightly larger than the cable diameter to minimize patching work. Pre-drill pilot holes at a 45-degree angle near edges to prevent wood splitting.
Conduit and Cable Specifications for Outdoor Runs
| Environment | Conduit Type | Cable Type | Min. Burial Depth (mm) |
|---|---|---|---|
| Direct burial (no conduit) | N/A | Outdoor-rated, gel-filled | 450 |
| PVC conduit (Schedule 40) | ½”–¾” | Solid copper, shielded | 300 |
| Rigid metal conduit (RMC) | ¾” | Plenum-rated, UV-resistant | 150 (with concrete encasement) |
| Liquidtight flexible conduit | ½” | Stranded, water-blocked | N/A (above-ground) |
Bury conduits 300mm deep for PVC and 150mm for metal if encased in concrete. Use sweep elbows instead of sharp 90-degree bends to ease cable pulling. Backfill trenches with sand around conduits before covering with soil to prevent crushing. For above-ground runs, mount conduits on walls or fences using weatherproof straps, spaced every 1.2 meters, and seal entry points with silicone or duct seal compound.
For outdoor devices mounted under eaves, route cables inside gutters or downspouts, securing with UV-resistant zip ties. Avoid running alongside high-voltage lines; maintain at least 300mm separation to prevent interference. If crossing power lines is unavoidable, do so at a 90-degree angle. Use drip loops at entry points to divert water away from connections–position the downward loop below the entry hole and secure it with a silicone-filled service loop box.
Discreet Indoor Concealment Techniques
Hide small bundles behind furniture, inside false ceilings, or beneath raised floors. For retrofits, use thin-profile raceways (≤10mm) painted to match walls–apply a primer before painting to ensure adhesion. Run cables inside hollow doors by removing the internal foam core and threading conduit through the void before resealing. For carpeted areas, tuck cables under the edge or use a slim adhesive channel to route along corners.
When routing behind drywall, insert cables through existing outlets or switch boxes. Remove the faceplate, drill a small hole in the drywall behind the box, and push the cable through using a bent coat hanger. Reattach the plate after ensuring no visible gaps. For multi-room runs, bundle cables tightly with velcro straps (not zip ties) to allow for future adjustments without straining conductors.
In attics or crawl spaces, lay cables along joists, securing with insulated staples, and avoid contact with insulation. For vulnerable areas (e.g., garages, basements), encase cables in split-flex tubing to protect against rodents or physical damage. Label both ends of each cable with sequential numbers and destination tags–use heat-shrink tubing or permanent markers for durability.
For devices near windows or doors, use flexible conduit bent at 45-degree angles to follow trim lines. Seal conduit ends with closed-cell foam gaskets to block drafts and pests. Test all connections with a continuity meter before final concealment–verify signal integrity and voltage at termination points to avoid rework.
