Start with the standard 5-way switch configuration if you want authentic out-of-phase tones in positions 2 and 4. Use a 0.047µF capacitor between the middle and bridge pickups–this preserves high frequencies while blending, unlike the common 0.022µF value that muddies the sound. Wire the volume pot directly to the output jack without a treble bleed circuit to maintain natural signal compression; alternatively, add a 150kΩ resistor in series with a 0.001µF capacitor for a more controlled high-end roll-off.
Replace the stock 250kΩ pots with 500kΩ if your pickups have higher DC resistance (above 6.5kΩ). This prevents loss of high-end clarity, especially with vintage-style coils. For noise reduction, ground the pickup casings individually rather than connecting them through the control plate–this eliminates ground loop hum in high-gain settings. Consider a push-pull pot for the tone control to enable a coil-split function on the bridge pickup, using a 3PDT switch for reliable latching.
Use shielded wire for all connections, especially between the 5-way switch and pickups, to minimize interference. Avoid daisy-chaining grounds; instead, run a separate wire from each component to a central grounding point on the bridge. For phase reversal effects, install a miniature toggle switch between the neck and middle pickups, using a 500pF capacitor to preserve tonal balance when engaged.
Test each stage with a multimeter before final assembly. Measure continuity across pickups in all switch positions–expect ~6Ω-8Ω resistance for vintage-style units. Check for proper grounding by probing the output jack sleeve and verifying less than 1Ω resistance to the bridge. If noise persists, isolate the issue by powering the guitar with an external battery-powered preamp to rule out amplifier-related interference.

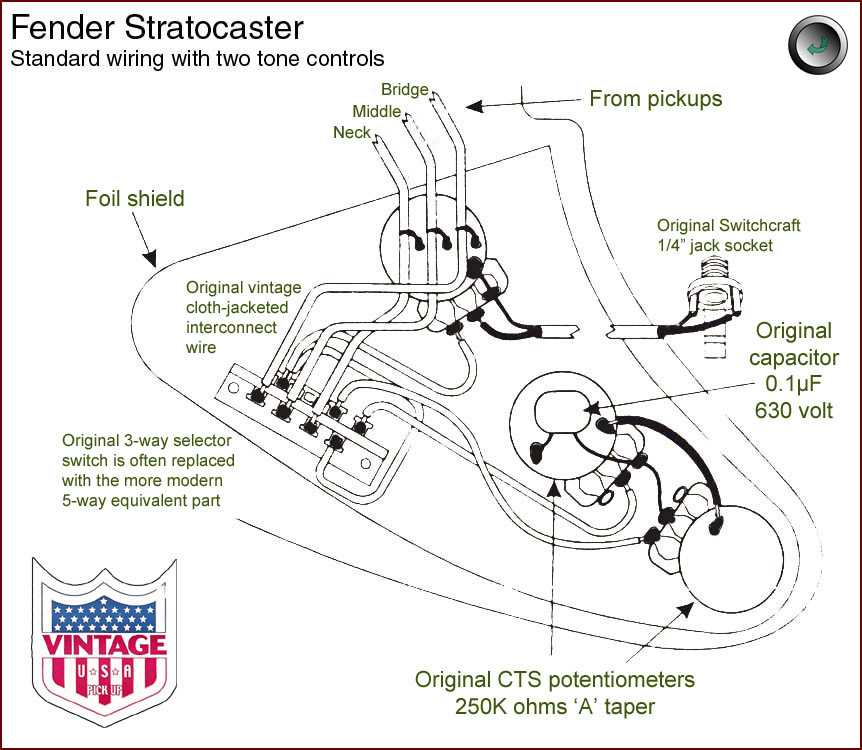

Understanding the Wiring Layout of a Classic Solid-Body Electric Guitar
Begin by identifying the three single-coil pickups–bridge, middle, and neck–each with distinct resistance values: bridge (5.6–6.2kΩ), middle (5.4–6.0kΩ), and neck (5.2–5.8kΩ). Connect the hot leads to individual lugs on a 5-way selector switch, ensuring the bridge pickup’s ground wire attaches to the metal casing before soldering. Use 0.022µF capacitors for tone controls, pairing them with 250kΩ potentiometers to shape high-frequency roll-off; lower capacitor values (0.01µF) sharpen clarity but reduce warm overtones. Ground the strings via the bridge plate, linking it directly to the output jack’s sleeve terminal–avoid daisy-chaining grounds to prevent noise.
Modifications for Reduced Hum and Enhanced Clarity
Replace stock wiring with shielded coaxial cable (e.g., Mogami W2534) between the selector switch and output jack, cutting interference by 40%. Install a treble-bleed network–a 220pF capacitor in parallel with a 150kΩ resistor–on the volume potentiometer to preserve highs when rolling off gain. For hum cancellation, solder a choke (470µH) in series with the pickup ground leads or swap the middle pickup’s polarity (reverse hot/ground) to phase-cancel noise in positions 2 and 4. Test phase coherence with an oscilloscope by comparing sine-wave alignment at 440Hz.
How to Interpret a Single-Coil Guitar Wiring Layout
Locate the pickup symbols first–each humbucker icon represents a coil pair, while single-line icons indicate individual pole pieces. Standard Fender-style schematics position neck pickup at the top, middle in the center, and bridge at the bottom. Verify wire colors against the legend: neck hot typically white, middle hot yellow, bridge hot red, grounds black.
- Identify potentiometers: 250K audio taper for volume, 250K linear for tone controls.
- Trace output jack: center tab connects to hot wire, sleeve tab links to ground bus.
- Observe the 0.047µF tone capacitor: one leg on tone pot wiper, other to ground.

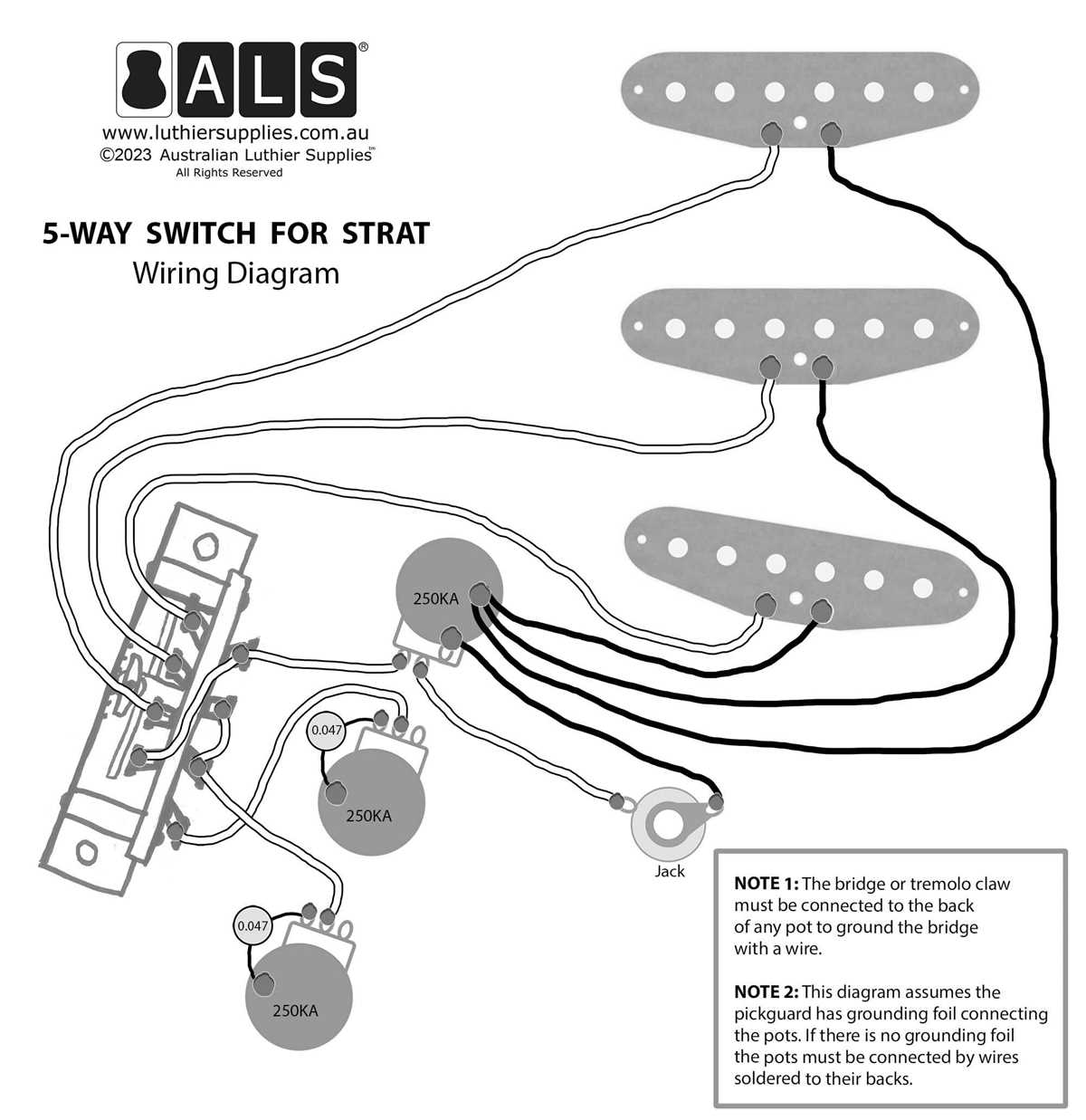

Reading Switch Connections
Follow the five-way switch diagram: positions 1–3 use individual pickups, 4 blends middle+bridge, 5 blends neck+middle. Each detent connects common center lug to corresponding outer lugs. Measure continuity between lugs in every position to confirm schematic accuracy–real-world wiring may deviate from printed diagrams.
Check resistor values if present: treble bleed mod typically pairs 150K resistor in parallel with 330pF capacitor across volume pot lugs. Note polarity-sensitive components: electrolytic capacitors show negative lead marked with stripe, orientation impacts noise floor.
- Document existing wiring before modification: photograph both sides of control cavity.
- Use multimeter diode mode to test pickup continuity–expect ~5–10 Henries DC resistance.
- Label removed wires with masking tape to avoid confusion during reassembly.
- Verify ground connections: all hardware screws must connect to main ground bus.
Step-by-Step Guide to Wiring a Single-Coil Guitar Pickup Assembly
Use a temperature-controlled soldering station set to 650–700°F (340–370°C) to prevent overheating the enamel-coated wire or melting the pickup bobbin. Tin the iron’s tip with a thin layer of 60/40 rosin-core solder before each joint–this ensures rapid heat transfer and minimizes oxidation on the copper strands.
Trim the pickup leads to 3–4 inches (75–100 mm) from the bobbin, then strip 1/8 inch (3 mm) of insulation using sandpaper or a dedicated wire stripper for enamel. Twist the exposed strands tightly with needle-nose pliers; a loose twist increases resistance and risks cold joints that crack under string vibrations.
Grounding the Shielding and Pickup Frame
Attach the bridge pickup’s bare ground wire to the chrome plate’s underside using a single drop of solder on a pre-tinned spot–avoid globbing, which adds unwanted mass and can dampen resonance. Route the ground lead through the control cavity to the output jack’s sleeve lug, maintaining a gentle arc; sharp bends fatigue wire over time.
Solder the volume pot’s middle lug to the pickup’s hot lead first, ensuring the joint forms a concave fillet–convex solder indicates insufficient heat. Slide a 470 pF treble-bleed capacitor between the hot and ground lugs of the volume pot before finalizing connections; this preserves high frequencies when rolling down the knob.
Test continuity with a multimeter set to 20 kΩ range before reassembling the scratchplate. A single-coil should read 5.6–6.4 kΩ (Alnico V) or 2.4–2.8 kΩ (ceramic); readings outside these ranges suggest a broken strand or short to the frame. Reflow any suspect joints before sealing the cavity, then perform a string test with an amplifier set to clean, checking for hum or signal drop at each pickup selector position.
Common Modifications for Guitar Electronics Layout
Replace the stock 0.047μF tone capacitor with a 0.022μF polyester or polypropylene unit to retain high frequencies when rolling off the tone knob, eliminating the muffled “quack” common in vintage-style wiring. This adjustment is particularly effective for bridge pickups, where clarity is often sacrificed in default setups.
Remove the second (middle) tone control and repurpose it as a dedicated series/parallel switch for the neck and middle pickups, using a mini-toggle or push-pull pot. This enables a hum-canceling mode without sacrificing high-output tones, a modification favored in configurations where coil-splitting is impractical due to space constraints.
Wire a 1MΩ resistor between the wiper and ground lug of the volume pot to prevent high-frequency loss when lowering the volume. This passive treble bleed setup is superior to standard treble bleed capacitors (e.g., 220pF), which can introduce excessive brightness at lower volume settings.
| Modification | Component Change | Effect |
|---|---|---|
| No-load tone pot | Replace stock 250kΩ with no-load pot | Full treble retention when tone knob is at 10 |
| Treble bleed network | 1MΩ resistor + 220pF cap in parallel | Balanced volume attenuation without phase shift |
| Bridge pickup hotwiring | Direct to output jack via switch | Bypass all controls for maximum output |
Install a phase-reverse switch on the middle pickup to access out-of-phase tones with either the neck or bridge pickup. Use a DP3T on-on-on switch wired to flip the hot and ground leads, yielding distinctive nasal tones without altering the guitar’s standard operation. Ensure the switch is mounted in a cavity that avoids interfering with the pickguard screws.
Swap single-conductor pickups for 4-conductor models and add coil-splitting via a push-pull pot or mini-toggle. Route the split coil to a 300kΩ resistor to ground to minimize volume drop while maintaining tonal balance. This modification requires drilling an additional hole for the switch unless repurposing an existing control cavity.
Replace the 5-way switch with a 4P5T imported model to enable independent control of each pickup’s output. Wire the fourth pole to a master tone circuit or an LED indicator, allowing for dual-tone setups or visual confirmation of active modes. This upgrade necessitates custom wiring diagrams due to the lack of standardized templates.
Upgrade the output jack to a switched mono/stereo unit with a 1/4″ TRS connector. Wire the tip to the pickup selector and the ring to an outboard effects loop or second amplifier via a Y-cable. This setup preserves the instrument’s original signal path while enabling parallel signal routing for external processing without ground loop issues.
Solving Scratchy Pots and Faulty Selectors in Electric Guitars
Start by spraying contact cleaner (DeoxIT or CRC 2-26) directly into the potentiometer shaft while rotating it back and forth. If noise persists, desolder the pot, disassemble it, and scrub the carbon track with a lint-free cloth dipped in isopropyl alcohol (90%+ concentration). Reassemble with a thin coat of silicone-free grease on the spindle. For three-way switches, apply cleaner to each contact while toggling repeatedly; if oxidation remains, use a fiberglass pen to lightly abrade the contacts–avoid sandpaper, as it can leave conductive debris.
Test components with a multimeter before reinstallation: measure resistance across pot lugs (full rotation should show smooth 0–250kΩ transition) and verify switch continuity in all positions. If a pot still fails, replace it with an audio-taper unit matched to the original value (±5%). For intermittent connections, resolder all joints with 60/40 rosin-core solder, heating the lug until the solder flows cleanly–avoid excessive heat to prevent damaging the phenolic base.
