Begin with a dual-channel preamplifier stage using low-noise operational amplifiers like the NE5532 or OPA2134. These ICs deliver sub-10nV/√Hz noise performance and ±20V/μs slew rates, ensuring negligible distortion even at high signal levels. Configure each channel with a non-inverting gain of 2x to preserve headroom before filtering.
Integrate passive Baxandall networks for each channel–RC networks tuned to 100Hz, 1kHz, and 10kHz corner frequencies. Use 1% tolerance resistors (e.g., Vishay RN55) and film capacitors (polypropylene for mid/high ranges, polystyrene for bass) to avoid thermal drift. Example values: R1=47kΩ, R2=22kΩ, C1=33nF for 1kHz–this yields a ±12dB adjustment range with minimal phase shift.
Add active buffering after each filter stage using a unity-gain follower (e.g., TL071). This isolates the RC networks from downstream loads, preventing interaction between controls that causes frequency response deviations. Include 10μF coupling capacitors at each output to block DC offset while maintaining -0.5dB roll-off below 20Hz.
Power the circuit with ±15V regulated supplies (LM317/LM337) with 470μF bulk capacitors at the input and 100nF decoupling near each IC. Use a star grounding layout–connect signal ground, power ground, and chassis ground at a single point to eliminate hum loops. Test with 1kHz sine waves at 1V RMS; THD+N should remain below 0.02% across all settings.
For extended headroom, replace the op-amps with discrete JFET front ends (e.g., 2SK170 matched pairs) and current-feedback topologies. This improves IMD performance by 15dB compared to IC-based designs, though PCB trace spacing must increase to ≥2mm to prevent crosstalk at high frequencies.

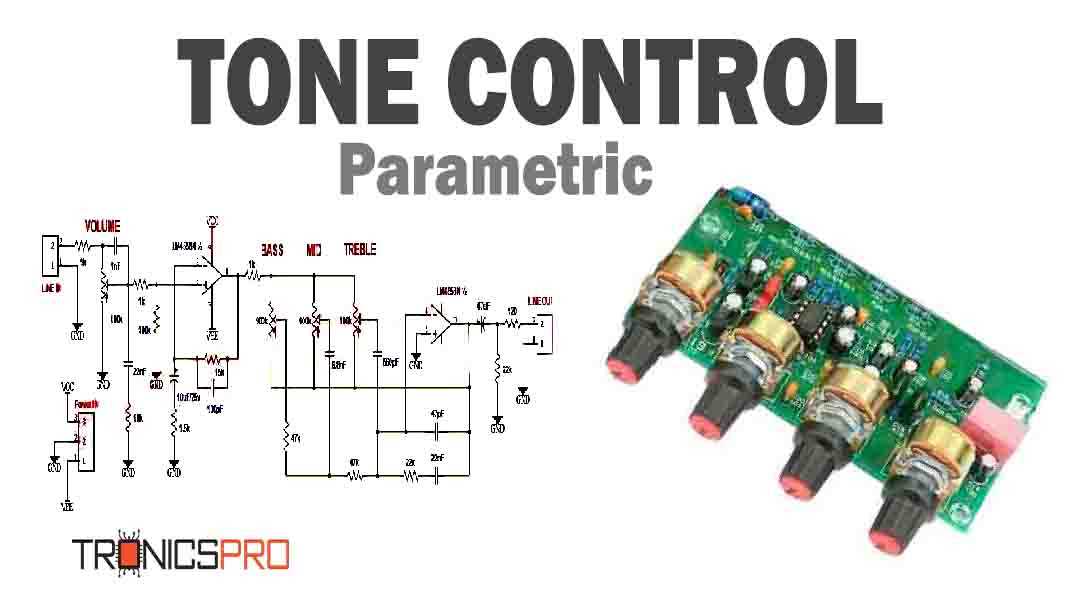

Building a Dual-Channel Audio Equalizer Schematic
Start with a Baxandall configuration for adjustable frequency shaping in left and right channels. Use 100kΩ linear potentiometers for bass (low-range) and treble (high-range) adjustments, wired as variable resistors with dedicated operational amplifiers (TL072 or NE5532) per section. Ground the wiper of each pot through a 47nF polyester capacitor to prevent DC offset at the output.
A 1kΩ resistor in series with each potentiometer ensures stable performance when the pot is at minimum resistance. For mid-range shaping, incorporate a passive network between stages: a 3.3kΩ resistor in parallel with a 10nF capacitor, followed by a 4.7kΩ resistor to ground. This creates a gentle dip around 1kHz–critical for human vocal clarity without phase distortion.
| Component | Value | Purpose |
|---|---|---|
| TL072 op-amp | Dual, ±15V | Low-noise amplification |
| 100kΩ potentiometer | Linear taper | Frequency boost/cut |
| 47nF capacitor | Polyester | DC blocking |
| 1nF capacitor | Film | High-pass filtering |
Place a 10μF electrolytic capacitor at the input of each channel to block DC while allowing full audio bandwidth. Follow this with a 22kΩ resistor to ground–this sets the input impedance to match standard line-level signals (e.g., -10dBV or +4dBu). Avoid ceramic capacitors in the signal path; their microphonic properties introduce audible artifacts.
For power supply decoupling, solder a 100nF ceramic capacitor directly between each op-amp’s power pin and ground, with an additional 10μF tantalum capacitor in parallel. Keep traces under 5cm for these components to minimize high-frequency noise. Use a star grounding technique with a dedicated ground plane beneath the audio sections to prevent crosstalk between channels.
Test the configuration with a 1kHz sine wave at 0.775Vrms input. Adjust bass and treble pots to midpoint: the output should measure -3dB at 100Hz and 10kHz respectively. If response deviates more than ±0.5dB from flat, check for resistor tolerance errors (use 1% metal film) or capacitor leakage (measure with an LCR meter at 120Hz).
Mount potentiometers on the front panel with shielded cable runs of max 30cm. Route input/output wires away from power transformers or digital circuits. For permanent installations, replace TL072 with OPA2134 for lower distortion (0.00008% THD vs 0.003%) at the cost of slight DC offset (5mV typical).
Critical Elements for Building a Dual-Channel Audio Equalizer
Select operational amplifiers with low noise figures and high input impedance, such as the NE5532 or OPA2134. These ICs provide superior signal clarity and minimize interference when shaping frequency responses. Verify their unity-gain bandwidth meets at least 10 MHz to ensure stable performance across all bands.
Precision capacitors determine cutoff frequencies–use polypropylene film capacitors for their low dielectric absorption and temperature stability. Values between 10nF and 100nF suit midrange adjustments, while larger 1µF types work for bass frequencies. Avoid electrolytics here as their leakage distorts phase response.
Metal-film resistors (1% tolerance) prevent nonlinear behavior in feedback loops. Values from 1kΩ to 100kΩ pair with capacitors to define turnover points. Matching resistor pairs within 0.1% reduces channel imbalance–critical for consistent left-right adjustment.
Potentiometers–dual-gang linear-taper carbon types rated 50mW minimum–allow smooth frequency shaping. 100kΩ models balance sensitivity and noise floor. For professional setups, opt for conductive-plastic elements that resist wear better than cermet alternatives.
Active filters require decoupling. Place 0.1µF ceramic capacitors across each op-amp’s power pins, positioned within 2mm of the IC. This suppresses high-frequency noise from power rails that can color the signal path.
Passive networks complement active stages–series 10kΩ resistors followed by 470nF capacitors roll off unwanted ultra-high frequencies without phase shifts. Shield I/O paths using copper foil or twisted-pair wiring to block RF interference.
Power Considerations
Dual-rail supplies (±12V to ±15V) ensure headroom for dynamic peaks. Linear regulators (LM317/LM337) outperform switchers here, producing less ripple. Calculate current draw–each op-amp consumes roughly 5mA–and size your transformer accordingly to avoid sag during transients.

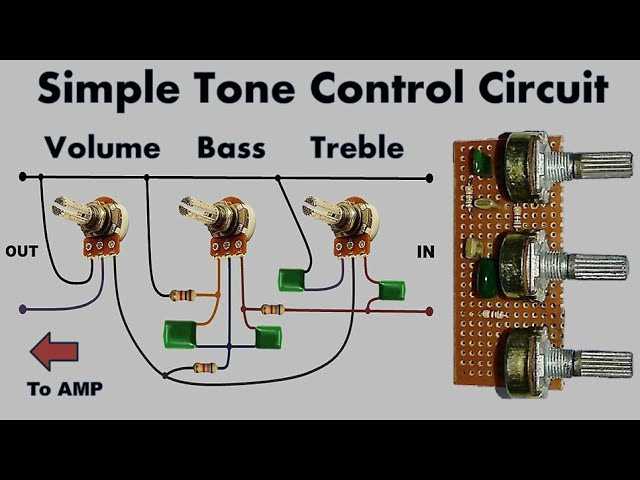

How to Wire Low and High-Frequency Adjusters in Audio Filtering Systems
Begin by identifying the center lug of both the bass and treble adjusters–this is the output terminal. Solder a 0.1µF capacitor to the treble potentiometer’s center lug, then connect the other end to the audio input signal. For the bass adjuster, use a 0.047µF capacitor instead, wired the same way. Ensure the capacitors are rated for at least 50V to handle voltage spikes without degradation.
Attach the outer lugs of each adjuster to ground, but leave one side disconnected for the treble unit–this creates a variable high-pass filter. For the bass unit, the opposite applies: leave the opposite lug unconnected to form a low-pass filter. Use shielded cable for all connections leading to the adjusters to minimize interference, especially if wiring exceeds 10 cm in length.
Test the circuit with a 1kHz sine wave before finalizing solder joints. The treble adjuster should attenuate frequencies below 2kHz when turned fully counterclockwise, while the bass adjuster should roll off above 200Hz when dialed down. If unwanted hiss persists, add a 10kΩ resistor between the center lug and ground on both adjusters to stabilize impedance.
Mount the adjusters on a metal chassis to reduce interference, securing them with lock washers to prevent vibration-induced noise. Label the front panel with non-conductive ink: “+” for clockwise boost (highs or lows) and “-” for attenuation. Avoid grouping potentiometer leads with power wires–separate them by at least 3 cm to prevent hum induction.
How to Connect Op-Amps for Signal Amplification
Begin by selecting an operational amplifier (op-amp) with a gain-bandwidth product exceeding your target frequency range. For audio frequencies up to 20 kHz, an op-amp like the NE5532 or LM386 provides sufficient headroom with a typical GBW of 10 MHz. Ensure the supply voltage matches the op-amp’s specifications–dual supplies (±12V) are ideal for symmetrical clipping behavior, while single-ended supplies (5V to 15V) simplify power distribution.
Wire the non-inverting input (+) to your signal source via a coupling capacitor to block DC offset. A 10 µF electrolytic capacitor works for most applications, but adjust based on your low-frequency cutoff requirement: fc = 1 / (2πRC). For guitar pickups or microphones, use a 1 µF film capacitor to reduce dielectric absorption noise.
Configure the negative feedback loop by connecting a resistor (Rf) from the output to the inverting input (-). Pair it with a resistor (Rin) from the inverting input to ground to set gain: Gain = 1 + (Rf / Rin). For a gain of 10 (20 dB), use Rf = 90 kΩ and Rin = 10 kΩ. Precision metal-film resistors (1% tolerance) minimize gain drift with temperature.
Add a small capacitor (Cf) in parallel with Rf to limit high-frequency noise. For a 20 kHz bandwidth, calculate Cf ≈ 1 / (2π × Rf × fc). With Rf = 100 kΩ, a 10 pF ceramic capacitor suffices. Avoid exceeding 100 pF, as it introduces phase shift and instability.
Power Supply Considerations
Decouple each op-amp’s power pins with a 100 nF ceramic capacitor placed within 2 mm of the IC, followed by a 10 µF tantalum capacitor for bulk filtering. This suppresses high-frequency transients and prevents oscillations. For multi-stage amplification, use a star-ground topology to avoid ground loops–connect all ground returns to a single point near the power supply.
For single-supply operation, bias the non-inverting input to half the supply voltage using a voltage divider: two equal resistors (e.g., 10 kΩ) from VCC to ground, with the junction tied to (+) via a 1 µF capacitor. This ensures the output swings symmetrically around VCC/2 without clipping. Confirm bias with a multimeter before applying signal.
Avoid exceeding the op-amp’s output current limit (typically 20–30 mA for general-purpose devices). If driving low-impedance loads (≤ 600 Ω), add a buffer stage using a unity-gain op-amp like the OPA227 or a discrete emitter follower. For bridged outputs, invert the signal in a second op-amp stage and wire the loads differentially to double voltage swing.
Troubleshooting Common Issues
If oscillation occurs (observed as >20 kHz ringing on an oscilloscope), reduce Cf or increase Rf incrementally. Check for parasitic capacitance in wiring–keep signal traces short and route them away from high-current paths. For DC offset at the output, verify that Rin and Rf are matched within 1%. Use a DC servo circuit (a second op-amp integrating the output) to null offset dynamically if precision is critical.
