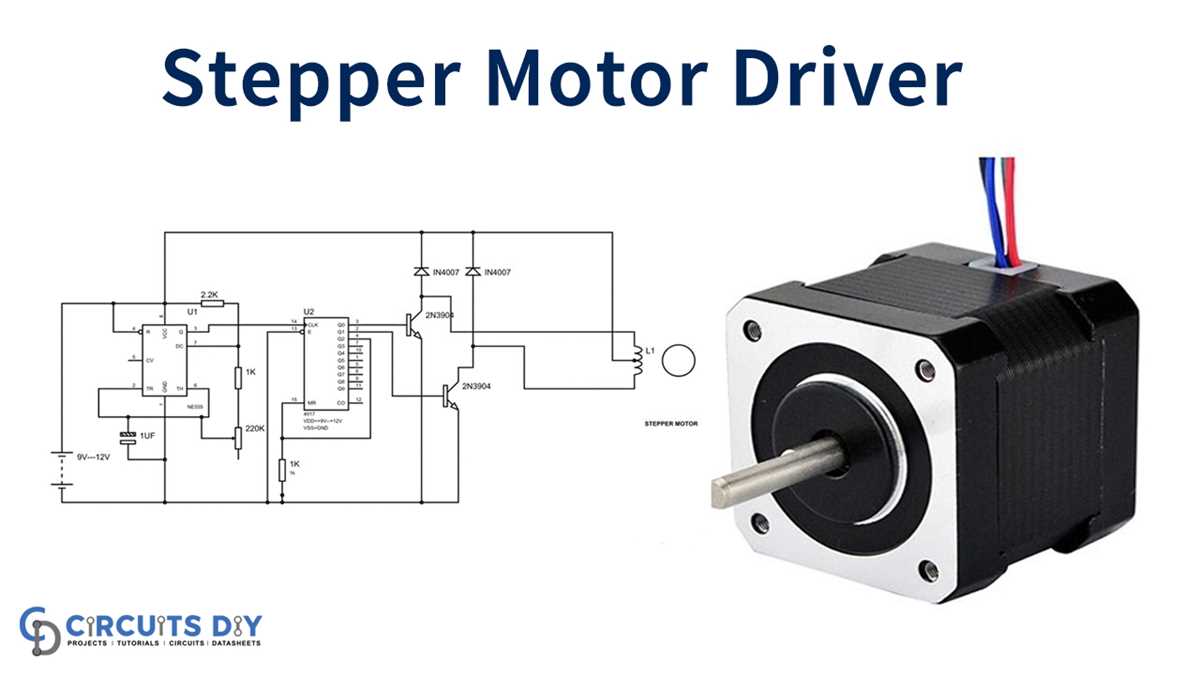

For accurate positioning in automation, begin with an H-bridge configuration using four power transistors (e.g., TIP120 or MOSFET IRFZ44N). Wire each pair in complementary mode–upper and lower switches must never activate simultaneously to prevent short circuits. Include 1N4007 flyback diodes across each transistor to suppress voltage spikes from inductive loads. A microcontroller (Arduino Uno, STM32) should drive the gates via current-limiting resistors (220Ω typical) to avoid damaging the transistors.

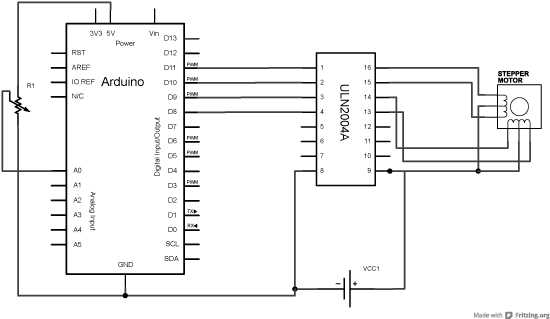

Use a dedicated IC like the ULN2003 or TB6600 for simplified wiring–these integrate transistors, diodes, and often built-in logic. For bipolar devices, each coil requires an H-bridge per phase; unipolar ones need only a single transistor per winding. Ensure power supply voltage matches the coil ratings (12V or 24V common), and decouple the supply with a 100µF capacitor near the IC to mitigate noise.
Pulse timing determines movement. Generate step pulses (5V TTL) via microcontroller output pins, adjusting frequency to control speed (start at 50-200Hz; higher requires acceleration curves). For direction, toggle an additional pin–current reversal in coils defines rotation. Add optocouplers (PC817) if isolating logic from high-voltage sections to improve reliability. Test with basic code: digitalWrite(pin, HIGH); delayMicroseconds(1000); digitalWrite(pin, LOW); as a starting point.
Heat dissipation is critical. Transistors/ICs must mount on heatsinks if driving loads >1A. For 4-wire (bipolar) actuators, verify coil resistance (typical 1-10Ω) to calculate current draw (I = V/R); exceed coil limits even briefly risks burnout. Use a multimeter in continuity mode to confirm no shorts between phases before powering. For microstepping, replace discrete components with an integrated driver (DRV8825), which handles sine waves internally–solder 2.2kΩ resistors to set resolution (e.g., 1/32 microsteps).
Precision Control Module Schematics for Rotary Actuators
Select a chopper-based regulator like the DRV8825 or A4988 for bipolar mechanisms, ensuring microstepping resolution up to 1/32. Connect VMOT to supply voltage (8.2–45V), GND to ground, and route logic inputs (STEP, DIR, ENABLE) to a microcontroller with 3.3V–5V tolerant pins. Use decoupling capacitors (100µF electrolytic + 0.1µF ceramic) across VMOT and GND near the module to suppress voltage spikes; omit these components at your peril–transient surges can fry both regulator and actuator coils.
| Component | Value | Purpose |
|---|---|---|
| Logic IC | DRV8825/TMC2209 | Pulse-width modulation, current limiting |
| Resistor (RS) | 0.1Ω–0.2Ω | Current sensing for stall detection |
| Diode (Flyback) | 1N5817 | Clamping inductive kickback |
| Capacitor (Bulk) | 470µF | Supply filtering |
For high-torque setups (>2A/phase), add a heatsink to the regulator and use active cooling if ambient exceeds 40°C–thermal shutdown thresholds for most modules (e.g., TMC2208) kick in at 150°C junction temperature. Wire coil pairs (A+/A–, B+/B–) directly to the module, avoiding ribbon cables longer than 30cm; induced noise disrupts microstep accuracy. Verify phase sequence with a multimeter: continuity between A+ and A– should measure ~2Ω (adjust for specific bipolar model resistance); swap leads if torque direction reverses unexpectedly.
Core Elements Required for Precision Actuator Control
Begin with a microcontroller capable of pulse generation–Arduino Nano or STM32F103 offer sufficient GPIO and PWM resolution for sequencing. Select a logic-level MOSFET (e.g., IRLZ44N) or dedicated IC (DRV8825, TMC2209) to handle switching; ensure its current rating exceeds the coil’s peak draw by at least 30%. Include flyback diodes (1N4007) across each winding to suppress voltage spikes during transitions–failure to do so risks destroying the switching element within milliseconds.
- Power supply: Match voltage to the winding specification (12V/24V common); linear regulators waste energy–use a buck converter for efficiency.
- Current limiting: Adjust potentiometer on DRV-series ICs to 10-20% below rated coil current to prevent thermal runaway.
- Decoupling capacitors: Place 100 µF electrolytic and 0.1 µF ceramic near the switching IC to stabilize transient loads.
Opt for a 4-layer PCB if compactness is critical–dedicated ground and power planes reduce EMI and improve torque consistency. Replace discrete MOSFETs with a single integrated H-bridge module (A4988) for hobbyist setups; it simplifies layout and includes built-in thermal shutdown. Always verify coil wiring polarity before power-up–reversed connections immediately demagnetize permanent magnets in hybrid units.

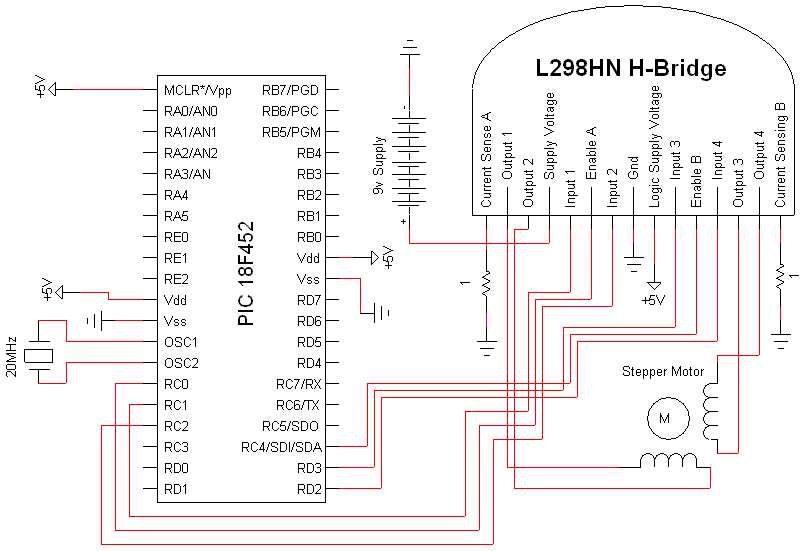

How to Connect a Bipolar Actuator to an L298N Controller
Identify the actuator’s four leads first. Bipolar units have two coils, each with a pair of wires:
- Coil A: Wire 1 (often red) and Wire 2 (often blue)
- Coil B: Wire 3 (often green) and Wire 4 (often black)
Use a multimeter in resistance mode to confirm–each pair should show roughly equal impedance (typically 2–50 Ω depending on model).
Attach the L298N module’s OUT1 and OUT2 terminals to Coil A’s pair, and OUT3 and OUT4 to Coil B’s pair. Polarity at this stage doesn’t affect direction yet–swap them later if rotation is reversed.
Supply power to the L298N via its 5–35 VDC input. Observe the onboard LED indicators:
- Green: Logic power active (5 V jumper engaged)
- Red: High-side transistor enabled (blinks during operation)
Remove the 5 V jumper if using an external logic supply–failure to do so risks damage.
Connect the logic inputs (IN1–IN4) to your microcontroller. Use these pin mappings for full-step sequencing:
- IN1: HIGH, IN2: LOW, IN3: HIGH, IN4: LOW → Position 1
- IN1: HIGH, IN2: LOW, IN3: LOW, IN4: HIGH → Position 2
- IN1: LOW, IN2: HIGH, IN3: LOW, IN4: HIGH → Position 3
- IN1: LOW, IN2: HIGH, IN3: HIGH, IN4: LOW → Position 4
Cycle through the sequence to verify rotation. A single missed state causes erratic movement.
Wire the enable pins (ENA, ENB) to PWM-capable outputs for speed control. Maximum torque occurs at 100% duty cycle; reduce to 60% for quieter operation if resonance is audible.
Add flyback diodes if your L298N lacks onboard protection. Use 1N5822 Schottky diodes across each coil pair, cathode toward the positive rail. Omitting these may cause inductive voltage spikes exceeding the module’s 46 V limit.
Ground the actuator chassis and controller ground plane to the same node. Floating grounds introduce noise, especially at switching speeds above 500 PPS, leading to missed steps.
Test rotation under load before final assembly. A Nema 17 actuator rated at 1.7 A/coil should stall at ~4 kg·cm when powered by 12 V. Reduce supply voltage if overheating occurs (ambient

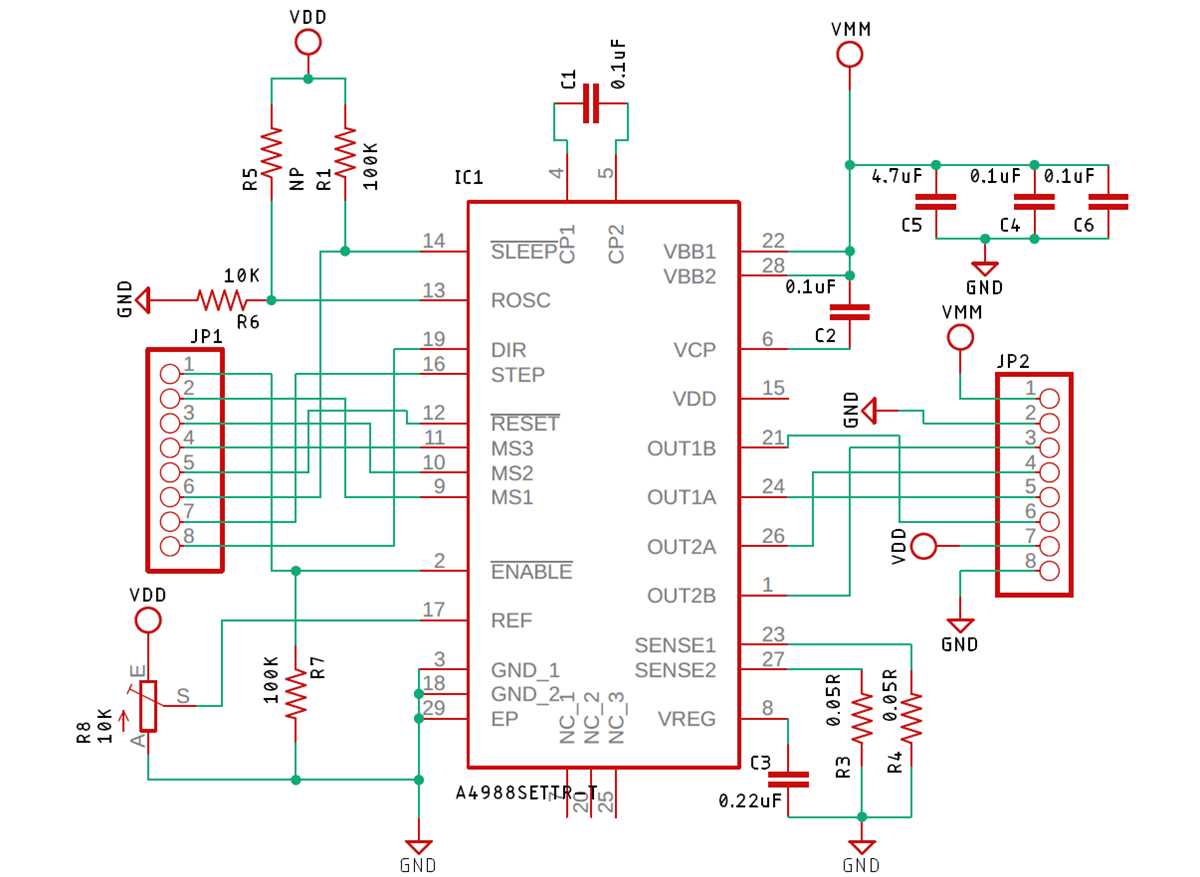

Configuring Microstepping in DRV8825 or A4988 Controllers
Set microstepping via MS1, MS2, and MS3 pins on the DRV8825 by pulling them high or low. For full-step mode (no subdivision), leave all pins disconnected or tie them to ground. For 1/16 microstepping–the most common setting–connect MS1, MS2, and MS3 to VDD (logic high). Intermediate resolutions like 1/2, 1/4, 1/8 microsteps require specific combinations: check the datasheet for exact pin states. Ensure logic levels match your control board’s voltage (typically 3.3V or 5V); failure to do so risks erratic behavior or overheating.
Current limiting adjusts proportionally to microstep resolution. At 1/16, the coil current should be ~70% of the maximum rated current for stable torque without overheating. Use the onboard potentiometer to set the reference voltage (VREF) according to VREF = Imax × 8 × Rsense, where Rsense is 0.1Ω for DRV8825 (0.05Ω for A4988). For example, targeting 1.5A requires VREF = 1.5 × 8 × 0.1 = 1.2V. Measure VREF at the potentiometer’s center tap with a multimeter while the device is powered but the enable pin is held high (disabled).
Avoid leaving microstep pins floating; always define their state explicitly. Unintended floating inputs can cause intermittent missed steps or uncontrolled acceleration. Decoupling capacitors (100nF ceramic) near the controller’s VMOT and GND pins suppress voltage spikes from switching transients, which are amplified at higher subdivisions. Without them, the device may reset unexpectedly under load.
Test microstep accuracy by sending a sequence of single steps (e.g., 200 per revolution for a 1.8° rotor) and verifying smooth rotation. Discrepancies point to incorrect pin configuration, insufficient current, or mechanical binding. If rotation is jerky at low speeds, reduce microstepping to 1/8 or 1/4–higher resolutions demand tighter tuning of acceleration profiles in firmware to prevent instability.
Power Supply Requirements for Reliable Actuator Control
Select a power source with a voltage rating 20–30% above the actuator’s nominal voltage to compensate for inductive voltage drops during transient load changes. For a 12V nominal actuator, this means supplying 14.4–15.6V; below this threshold, torque ripple increases by up to 40%, while exceeding 1.5× nominal risks overheating and demagnetization of rotor magnets. Ensure the power source can deliver continuous current at least 1.2× the actuator’s rated current–most common NEMA-17 variants require 1.7A per phase, demanding a minimum 2.0A supply with
Use a regulated switching supply with a minimum 85% efficiency rating and active power factor correction to reduce harmonics below 5%. Linear regulators waste 30-50% energy as heat under load, making them unsuitable for currents above 1A. Include a bulk capacitance of 2200µF per ampere near the controller input to absorb transient back-EMF peaks–omitting this causes voltage sags, sudden positional errors, and premature wear of mechanical linkages.
