Implement a three-phase wye layout by grounding the common terminal to ensure stable voltage levels and minimize neutral current discrepancies. Use a neutral conductor sized no smaller than the phase conductors–typically 120% of the phase cross-section for copper, 167% for aluminum–to prevent overheating under unbalanced loads. Connect non-linear devices at least 15 meters from the central node to reduce harmonic interference, or install a separate grounding electrode system with resistance below 5 ohms.

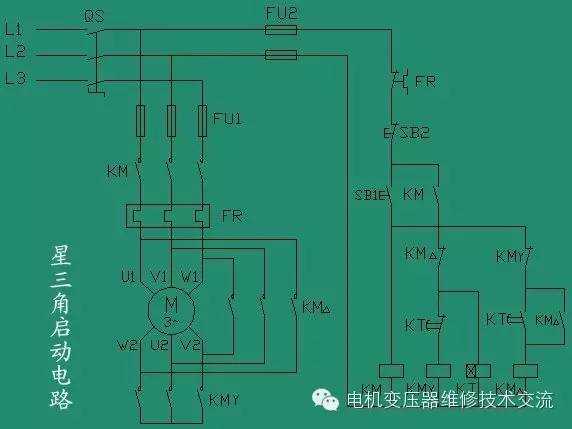

Terminal blocks must be rated for 1.25 times the line voltage; for 480V systems, specify blocks with 600V insulation. Use star-delta transitions for motors exceeding 5HP to soft-start and reduce inrush currents–commutate within 10 seconds to avoid relay burnouts. Apply torque values strictly: 12 Nm for M10 bolts, 18 Nm for M12, and 25 Nm for M16; under-tightening risks arcing, over-tightening cracks porcelain insulators.
Establish separate metering loops for active power and reactive compensation. Place capacitor banks 0.3 meters from transformer terminals to mitigate voltage sags–capacitance value calculated as: C (μF) = (kVAR × 10⁶) ÷ (2π×V²). Copper busbars require thermal expansion gaps–0.8mm per meter for ambient swings above 40°C. Verify phase rotation with a portable scope before final energization–counterclockwise sequence reduces inter-turn stress in induction loads.
Supply-side protection demands inverse-time circuit breakers calibrated to 1.15 times full load amperage, with instantaneous trip set to 2.5 times. Installation clearances must adhere to IEC 60364-4-41: 2.5m above finished floor, 1.2m horizontal clearance from combustible surfaces. For outdoor setups, elevates terminals on fiberglass pedestals to maintain 30cm separation from standing water. Document every connection with thermal imaging within 48 hours post-energization–hotspots exceeding 10°C differential above ambient indicate poor crimping or nascent oxidation.
Wye Configuration Schematic: Key Implementation Insights
First, verify the phase voltage matches the load specifications before finalizing the wiring layout. In a balanced three-phase system with 400V line voltage, each leg will measure 230V to neutral–this ratio (√3:1) is critical for avoiding overloading motors or transformers. Always use a true-RMS multimeter to confirm readings, as non-sinusoidal waveforms can distort standard meter outputs by up to 15%. For inductive loads, add a 10% derating factor to account for reactive power; neglecting this leads to premature insulation breakdown in windings.
Ground the neutral conductor at a single point–typically the supply transformer–to prevent circulating currents that create electromagnetic interference (EMI). In sensitive applications (e.g., variable frequency drives), isolate the neutral from equipment chassis using a 1:1 isolation transformer; otherwise, stray currents may corrupt 4-20mA signal loops or cause nuisance tripping in ground-fault protection devices. For systems exceeding 100A, use a 70mm² copper conductor for the neutral to comply with IEC 60364-5-54:2021, even if calculations suggest a smaller gauge–this accounts for harmonic distortion from non-linear loads like switching power supplies.
Common Pitfalls in Y-Topology Deployments
Never connect phase conductors directly to the neutral bus; this violates NEC Article 250.24(A) and risks 2x phase voltage across single-phase loads. When retrofitting older installations, test for parallel paths (e.g., metallic conduits acting as unintended conductors) using a megohmmeter at 500VDC–resistance should exceed 1MΩ per phase-to-ground. For outdoor setups, seal junction boxes with IP67-rated gaskets to prevent moisture ingress; even 50ppm moisture accelerates corrosion, increasing contact resistance up to 300% over six months in coastal environments.
Use a phase rotation meter to confirm sequence alignment before energizing, particularly in mixed-voltage systems (e.g., 480V motor with 208V controls). Mismatches here cause directional misoperation in pumps or compressors, reducing efficiency by 22% due to opposing magnetic fields. For redundancy-critical applications (data centers, medical imaging), implement a dual-neutral topology with automatic transfer switches; this isolates faults without interrupting service, unlike conventional schemes that rely on single-point failure designs.
In variable frequency drive applications, add a passive harmonic filter between the Y-point and inverter output; unfiltered 5th and 7th harmonics (common in 6-pulse drives) distorts neutral voltage, leading to bearing currents that erode motor shafts at 0.5mm/year. For 480V systems, select reactors with 3% impedance at fundamental frequency; lower values (5%) introduce excessive voltage drop, compromising torque accuracy by ±1.8%.
Illustrating a Three-Phase Wye Configuration

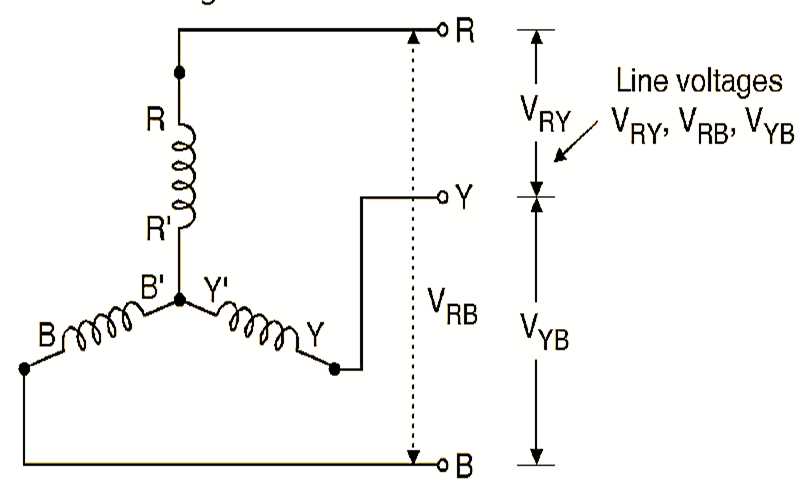

Sketch the neutral point as a central node, then extend three equidistant branches outward at 120-degree angles for each live conductor. Label phase lines L1, L2, and L3 from left to right, ensuring consistent spacing to reflect balanced voltage relationships. Use solid lines for conductors and a dashed line for the neutral return if applicable. Add voltage notations (e.g., 230V phase-to-neutral) adjacent to each branch to clarify magnitude and reference.

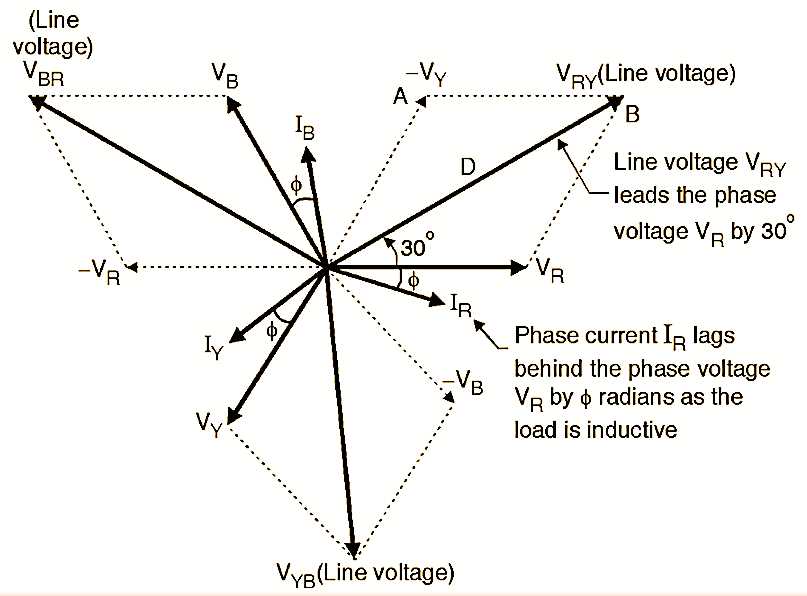

Verify angular separation between branches matches the phasor diagram’s symmetry–misalignment distorts impedance representation. Include component symbols (loads, breakers) at terminal ends, aligning them radially to maintain clarity. Color-code phases if required (e.g., red, yellow, blue) but ensure contrast for monochrome reproduction.
Critical Elements for an Astro-Linked Electrical Arrangement
Use a balanced three-phase power source rated for the motor’s specifications–typically 208V, 230V, or 400V depending on regional standards. Verify line-to-line voltage with a calibrated multimeter before integration, ensuring deviations do not exceed ±5%. Low-quality sources introduce harmonic distortion, reducing efficiency and risking premature winding failure.
Select conductors sized to handle 125% of the motor’s full-load current. For a 10 HP motor at 230V, AWG 6 copper wire suffices; undersized wiring causes voltage drops exceeding acceptable 3% thresholds. Use THHN insulation for indoor setups or XHHW for harsh environments, prioritizing heat resistance and mechanical durability.
Equip each lead with a properly configured overload relay, matching its trip class to the motor’s inertia–Class 10 for low-inertia loads, Class 20 for high-inertia applications. Overcurrent settings should align with the manufacturer’s service factor, typically 1.15 for NEMA motors. Avoid generic relays; mismatched trip curves lead to nuisance tripping or catastrophic overheating.
Incorporate a neutral point with a grounding conductor sized per NEC Table 250.122 if the system requires a reference for voltage stabilization or fault detection. For floating neutral configurations, add a surge arrester rated for 1.2x line voltage to mitigate transient spikes exceeding 6kV, particularly in industrial environments with inductive loads.
Install a high-break capacity fuse or molded-case circuit breaker (MCCB) upstream, sized to interrupt fault currents safely. For 400V systems, a 65kA MCCB prevents arc flash risks; lower-rated breakers may fail catastrophically under short-circuit conditions. Verify coordination with downstream protective devices to ensure selective tripping, isolating faults without unnecessary power disruption.
Step-by-Step Wiring Procedure for Three-Phase Induction Arrangements
Disconnect the main power supply before initiating any terminal work–this prevents accidental energization and ensures compliance with OSHA lockout/tagout protocols. Verify phase-to-phase voltages at the motor’s input terminals using a calibrated multimeter: readings must match the nameplate specifications (e.g., 400V ±5% for 415V systems).

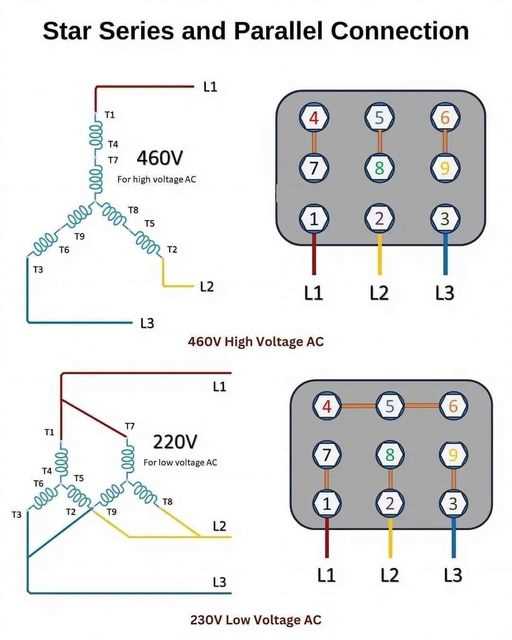

Identify the winding terminals labeled U1, V1, W1 (start) and U2, V2, W2 (finish) on the motor’s junction box. For a standard Y-configuration, link U2, V2, and W2 to form the neutral node–use 6 AWG copper conductors with ring terminals crimped and sealed using heat-shrink tubing rated for 90°C insulation. Tighten terminal screws to 12 Nm torque, ensuring no exposed strands remain.
Terminal Pairing Sequence
| Phase Conductor | Linked Terminals | Recommended Fastener |
|---|---|---|
| Line L1 | U1 + Jump to W2* | M8 zinc-plated steel bolt |
| Line L2 | V1 + Jump to U2* | M8 stainless steel bolt |
| Line L3 | W1 + Jump to V2* | M8 silicon bronze bolt |
*Neutral node formed by connecting the finish terminals.
Route incoming phase conductors from the contactor to the motor terminals: L1 to U1, L2 to V1, L3 to W1. Use color-coded THHN wire–brown (L1), black (L2), gray (L3)–encased in flexible conduit meeting NEC Article 356 for indoor installations. Secure conduit bends with strain relief connectors spaced ≤1.2 m apart.
Ground the motor frame using a bare 4 AWG copper conductor bonded to the enclosure’s ground lug–verify continuity with a megohmmeter (≥1 MΩ between phases and ground). Attach a surge protector rated for 50 kA impulse across each phase and the neutral node if the installation exceeds 5 kW or operates above 460V.
Before re-energizing, rotate the motor shaft manually to confirm no mechanical obstructions–listen for unusual noises (grinding, scraping) indicating misaligned bearings or debris. Apply a ramp-up test using a variable-frequency drive set to 10 Hz initial frequency, monitoring current draw: steady-state values should stabilize within 30 seconds and not exceed 110% of FLA (full-load amperage) per NEMA MG 1 standards.
Label all terminals with engraved phenolic tags: specify phase designations, rotation direction (CW/CCW), and date of wiring per NFPA 79. Seal the junction box with a gasketed cover and IP66-rated silicone to prevent ingress of dust or moisture–critical for motors in washdown environments or outdoor use.
Post-Wiring Verification Steps
Conduct a thermal scan 15 minutes after full-load operation: surface temperatures should not exceed 80°C at any winding node or 60°C at terminals. For motors driving centrifugal loads (pumps, fans), confirm vibration levels remain below 2.5 mm/s RMS (ISO 10816-1 zone A) using a triaxial accelerometer positioned at both bearing housings.
