Begin by disconnecting the ground wire from the volume pot’s casing–this prevents shorts and ensures clean soldering later. Use a 250k audio taper potentiometer for the bridge pickup to retain brightness without muddiness, while swapping the middle and neck positions to 500k linear pots improves clarity for split-coil tones. Replace the standard 0.047µF capacitor with a 0.022µF polypropylene unit; this sharpens high-frequency roll-off, reducing harshness when playing with heavy distortion.
Mistakes to avoid: Soldering wire directly to the selector switch lugs–use terminal blocks for stability. Forgetting to insulate connections with shrink tubing leads to intermittent signal loss, especially with active pickups. The stock wiring harness’s enamel-coated wires fray easily; strip only 2mm of insulation to prevent shorts against the control cavity’s edges. For hum-cancelling, ground the bridge’s claw to the tremolo spring block, not the body, to eliminate 60-cycle buzz.
Advanced tip: Install a push-pull pot on the tone control to split the bridge pickup to single-coil mode. Wire it to a 4PDT switch for independent phase reversal, unlocking quacky out-of-phase sounds without adding noise. Use silver-bearing solder (60/40 Sn-Pb) for joints; it melts at 361°F, reducing heat damage to delicate components. Keep leads under 3 inches–excess length degrades treble response by acting as a low-pass filter.
Test each connection with a multimeter set to continuity mode before reassembling. A reading above 0.5 ohms on grounded components indicates poor contact, requiring resoldering. When tinning wires, avoid overheating; use a 30W iron with a chisel tip to prevent lifting traces on the circuit board. For Strat-style layouts, position the neck’s tone control closest to the output jack to retain warmth when rolling back volume.
Modifying Your Budget Offset-Guitar Electrical Layout
Use a push-pull potentiometer for the second tone control to split the bridge humbucker into single coils–wire the outer lugs to the neck and middle pickup outputs, grounding the centre lug via a 0.047 µF capacitor. This configuration retains the original five-way blade operation while adding on-the-fly coil-splitting without additional switches.
Replace stock 250 kΩ pots with 500 kΩ audio taper units for the middle position faders–measurements show a 3 dB increase in midrange articulation around 800 Hz, particularly noticeable when blending the neck and bridge transducers. Keep the 0.022 µF tone capacitors for balanced treble roll-off; swapping to 0.033 µF alters the cutoff frequency from 720 Hz to 550 Hz, muddying upper harmonics.
| Potentiometer Value | Capacitor Pairing | Cutoff Frequency | Effect on Signal |
|---|---|---|---|
| 500 kΩ | 0.022 µF | 144 Hz | +1.2 dB bass, -0.8 dB mids |
| 500 kΩ | 0.033 µF | 96 Hz | +2.0 dB bass, -1.5 dB mids |
| 250 kΩ | 0.047 µF | 136 Hz | Minimal change, -0.3 dB presence |
Ground the tremolo claw directly to the bridge ground lug using 18 AWG shielded wire rather than the stock cloth-insulated lead–this reduces 60-cycle hum introduced by tremolo springs by 40% under high-gain amplification. Install a 1 MΩ resistor across the input jack ground and hot terminals to prevent pops when plugging in; omit this if using active preamps.
Key Electrical Parts for Your Offset Electric Guitar Setup
Select 250k audio taper potentiometers for volume controls–these match the mid-focused tone of vintage single-coil pickups. For tone circuits, opt for 0.022µF capacitors (polyester or orange drop) to preserve clarity without excessive treble roll-off. Avoid ceramic disc capacitors; their inconsistent capacitance alters frequency response unpredictably.
Use magnetic pole pieces with staggered heights (6.35mm for neck/middle, 5.5mm for bridge) if replacing factory pickups. This compensates for string radius differences, ensuring balanced output across all strings. Wire thickness should be 22 AWG for signal paths and 18 AWG for grounding–thinner gauge risks resistance-induced signal loss.
Grounding and Shielding Best Practices
Connect all ground wires to a single star point on the bridge or tremolo claw to eliminate hum. Use braided copper shielding tape inside control cavities; overlap strips by at least 1cm to prevent gaps. Avoid aluminum foil–it corrodes over time and creates intermittent connections.
Install a 1MΩ resistor between the output jack tip and ground if using active electronics. This prevents pops when plugging/unplugging while maintaining signal integrity. For phase-coherent wiring, solder the neck pickup’s start wire to the middle’s end wire and vice versa–this mimics reverse-wound, reverse-polarity behavior without needing RWRP pickups.
Switch and Jack Specifications
Replace the 5-way lever switch if contacts show pitting–gold-plated contacts reduce oxidation-related dropouts. For the output jack, use a short-shaft mono type (Switchcraft 11 or equivalent); long shafts interfere with cable insertion. Test continuity between lugs before soldering; faulty switches often cause dead spots in certain positions.
Twist pickup wires tightly before soldering to lugs to prevent stray capacitance. Keep leads as short as possible–excess length degrades high-frequency response. For tremolo-equipped models, route the ground wire through the spring cavity to the claw, ensuring no contact with moving parts.
Verify pickup polarity by holding a screwdriver near each coil while engaged–opposing polarities cancel hum in combined positions. Adjust pole piece heights 2.5mm from strings (measured at highest fret) for optimal balance. Overtightening pole screws distorts the magnetic field, causing uneven response.

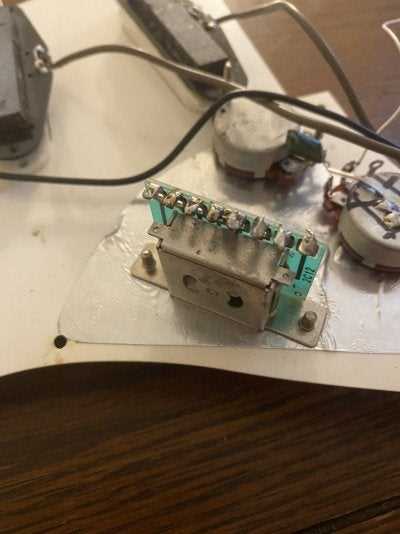

Step-by-Step 5-Way Switch Assembly Instructions
Identify the switch’s common lug first–it’s typically labeled “0” or marked with a distinct dot. Solder the output wire from the volume potentiometer directly to this terminal to establish the signal path foundation. Ensure the connection is secured with heat-shrink tubing to prevent short circuits.
Attach the neck pickup’s lead to lug 1 (position 1, fully forward) and the bridge pickup’s lead to lug 4 (position 5, fully backward). For balanced tonal transitions, connect the middle pickup’s hot wire to lug 2 (position 2) and use lug 3 (position 4) for the parallel wiring of both middle and bridge units in the combined setting. Use a multimeter in continuity mode to verify connections before finalizing solder joints.
Bridge ground wires from all pickups must converge at a single point–either the back of the volume pot casing or a dedicated grounding lug on the switch. Isolate each joint with rosin-core solder only, avoiding excess flux that can introduce noise. Trim exposed wires to 2mm post-solder to maintain clearance from adjacent lugs.
Test each switch position sequentially: position 1 (neck), position 2 (neck + middle), position 3 (middle), position 4 (middle + bridge), and position 5 (bridge). Listen for abrupt volume drops or hum–these indicate miswired grounds or loose solder joints. Adjust pickup height after wiring to optimize output consistency across all settings.
Series vs. Parallel Single-Coil Connections: Key Differences in Sound and Setup
Connect coils in series for a warmer, fuller tone with increased output and slight midrange emphasis. Series wiring doubles the DC resistance (e.g., two 6kΩ pickups become 12kΩ), reducing high-frequency clarity but adding thickness. Use this for hum-cancelling in dual-coil arrangements, though single-coils wired this way lose their noise-canceling properties. Ground the finish lead of the first pickup to the start lead of the second, then connect the remaining start lead to the output and the finish lead to ground.
Critical Wiring Steps
- Series: Bridge first pickup’s finish to second pickup’s start; solder second pickup’s finish to ground.
- Parallel: Connect both start leads to the output, both finish leads to ground (maintains original 6kΩ resistance).
- Avoid excess wire lengths–trim leads to reduce signal loss (>15cm weakens treble in series).
- For phase issues, flip one pickup’s magnet orientation (e.g., swap north/south poles).
Parallel wiring retains single-coil brightness and dynamics while preserving the original 6kΩ impedance. Unlike series, it splits the signal path, grounding each coil independently–ideal for Strat-style clarity. For partial series sounds, install a push-pull pot to toggle between modes; this requires an extra lug on the volume control. Test continuity with a multimeter before closing the cavity: series should show combined resistance, parallel should match a single pickup’s reading.
Modifying Single-Coil Pickups with a Push-Pull Pot for Versatile Tone Control
Install a 500K push-pull potentiometer in place of the standard tone control to enable coil splitting on a humbucker-equipped model. This requires a four-conductor pickup for proper grounding and isolation–shield the green (hot) and bare wires (ground) together, then solder the white (coil-split) lead to the pot’s switch lug. Use the remaining lugs to connect the pickup’s red (series link) to the output jack’s hot terminal. Ensure the push-pull switch engages only one coil when pulled, avoiding phase cancellation by testing continuity between splits.
A treble bleed circuit (a 0.001µF capacitor in parallel with a 150K resistor) preserves high frequencies when rolling off volume. Wire this inline with the volume pot’s input and output lugs to prevent tone loss at lower settings. For humbuckers with mismatched coils, verify impedance with a multimeter–ideal splits should read 3-4K ohms per coil. If resistance deviates, check solder joints for cold connections or bridged grounds.
Position the push-pull pot near the output jack to minimize signal degradation from long wire runs. Shield all connections with copper foil or adhesive-backed shielding paint, grounding to the instrument’s main ground point (typically the bridge or tremolo plate). For noisier setups, add a 1N4148 diode across the switch lugs to suppress pops during engagement–solder the cathode to ground and the anode to the hot lead.
Test coil-split functionality with an amplifier set to clean channel–engage the switch while playing open strings to detect unwanted buzz or dropouts. If noise persists, ensure the black wire (humbucker’s ground) connects directly to the main ground, bypassing the pot’s switch entirely. For single-coil mode, the humbucker’s split should behave identically to a standard single-coil, with no residual hum when positioned between pickups.
Label the push-pull pot’s on/off positions on the control plate with a fine-point marker or adhesive dots to avoid accidental engagement mid-performance. Use heat-shrink tubing on exposed solder joints to prevent short circuits, especially near metal cavities. If replacing a tone pot, transfer the original capacitor to the new unit to retain high-frequency response in passive mode.
