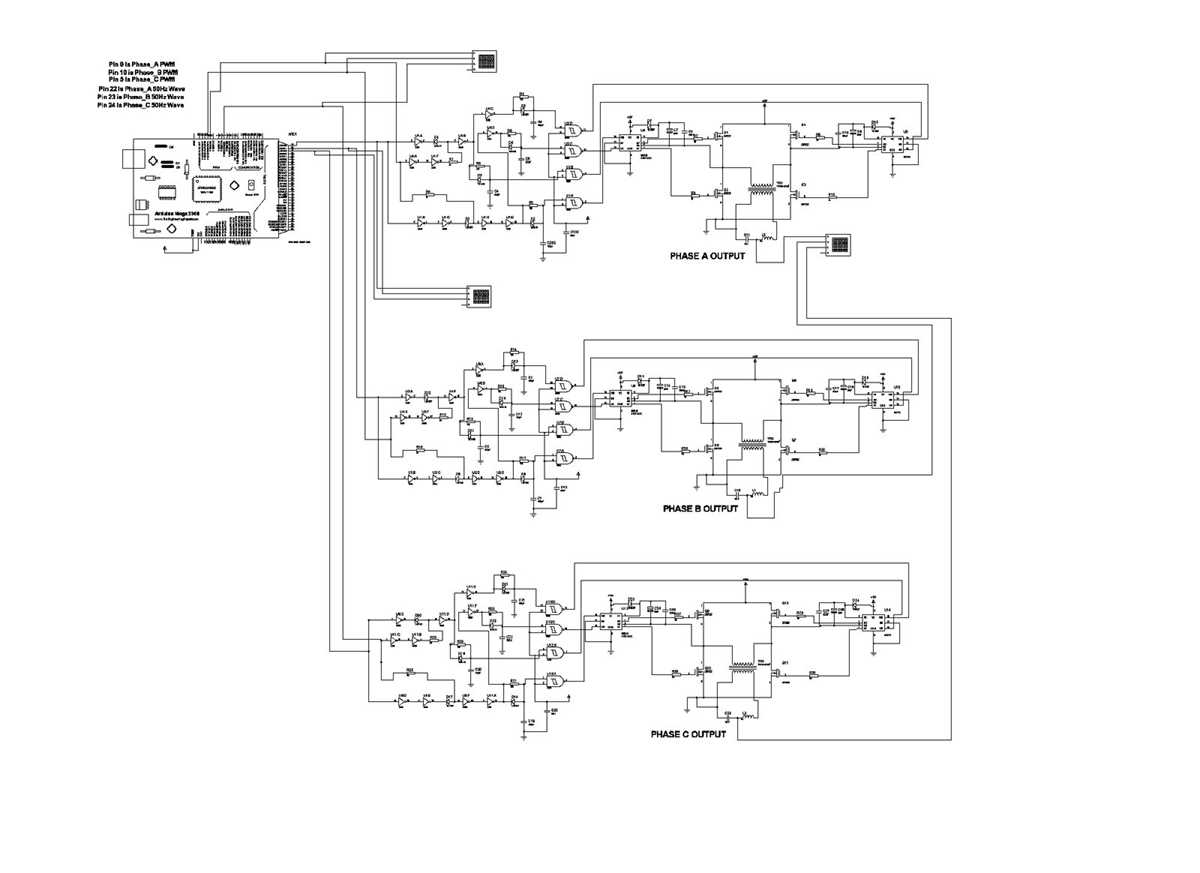

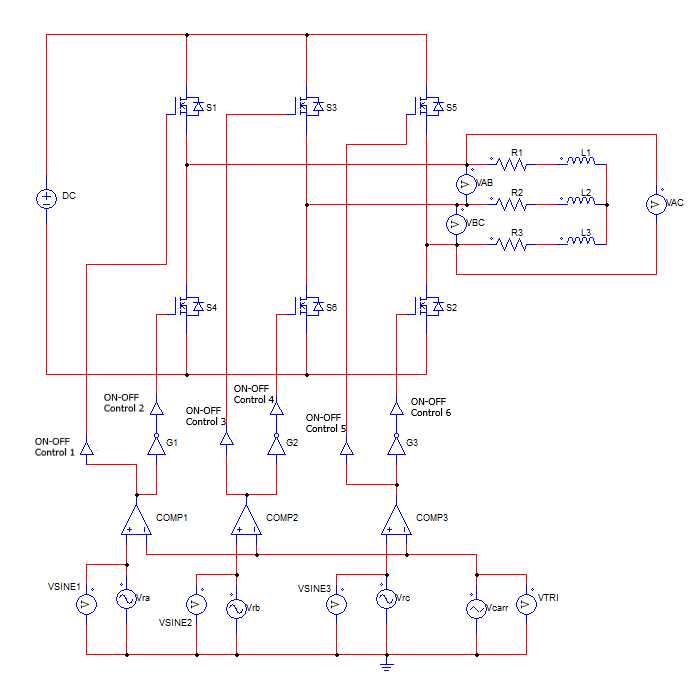

For precision switching applications, a triangular carrier wave intersecting with a reference sine signal remains the most reliable method to generate gate pulses. Use a comparator IC (LM311 or LM393) to compare these signals–this ensures clean, jitter-free transitions at frequencies up to 50 kHz. Connect the carrier to the non-inverting input and the sine reference to the inverting input for standard bipolar modulation. For unipolar outputs, reverse the inputs.
Power stage selection directly impacts efficiency. A half-bridge configuration with MOSFETs (IRF540N) or IGBTs (IKW15N60T) suits most applications, but ensure gate resistance (10–47 Ω) is optimized to prevent ringing. Snubber circuits (RC networks: 10 Ω, 10 nF) across the switching devices reduce voltage spikes during turn-off, extending component lifespan. Heat sinks are non-negotiable–thermal resistance must stay below 1.5 °C/W for continuous loads.
Pulse generation accuracy demands stable references. A microcontroller (STM32F4 or ATmega328) can synthesize the sine wave via a lookup table, but an analog oscillator (ICL8038 or XR2206) delivers superior harmonic purity. Use a low-pass filter (cutoff: 1–2 kHz) after the comparator to eliminate high-frequency artifacts before feeding the drivers. For galvanic isolation, opt for optocouplers (6N137) or gate driver ICs (IR2110), but verify propagation delay–excessive lag (>1 μs) degrades performance.
Grounding is critical. Separate analog, digital, and power grounds, connecting them at a single star point near the power supply. Noise coupling through shared traces causes false triggering. Keep signal paths short and shield sensitive components (e.g., oscillator) with a grounded copper pour on the PCB. Test the scheme with an oscilloscope–validate dead-time (1–3 μs) between complementary pulses to avoid shoot-through. For variable frequency control, adjust the carrier wave, not the reference amplitude, to maintain modulation index.
Start with a 24 VDC input and a 50 W resistive load to verify low-voltage behavior before scaling up. Monitor junction temperatures–IGBTs tolerate 150 °C; MOSFETs degrade above 125 °C. If switching losses dominate, consider SiC or GaN devices (e.g., C3M0065090D), though gate drive requirements tighten (VGS: -5/+20 V). Log total harmonic distortion () to confirm waveform purity, especially near zero-crossing points where distortion spikes.
Building a Practical Sinusoidal Pulse Width Modulation System
Begin with a microcontroller generating a reference sine wave at 50–60 Hz. Use an STM32 or ATmega328P with DMA or timers for precise waveform generation, avoiding CPU load. A 12-bit DAC or low-pass filtered PWM output refines the sine signal before feeding it to comparators.
Select high-speed comparators (LM311, MAX999) with propagation delays under 100 ns. Pair each with a dead-time generator circuit–RC networks or a dedicated IC like IR2104–to prevent shoot-through in the power stage. Set dead-time between 500 ns and 2 μs based on MOSFET switching speeds.
- For IGBTs (600V+), use gate drivers with galvanic isolation (e.g., ACPL-337J).
- For MOSFETs (≤200V), opt for bootstrap drivers (IR2110) with 10–22 Ω series resistors.
- Film capacitors (22–47 μF) on the DC bus suppress voltage spikes during switching.
Connect the comparator outputs to the gate driver through a logic-level translator if needed (74HC14 for signal conditioning). Ensure the driver supply voltage matches the MOSFET/IGBT requirements–typically 12–15V for standard devices. Test gate pulses with an oscilloscope before applying power to the load.
Optimize the switching frequency between 10–20 kHz for industrial motors; 30–50 kHz for induction heating. Higher frequencies reduce audible noise but increase switching losses–balance with heatsinks (5°C/W for TO-220 packages). Sample code for sine reference generation (STM32 HAL):
- Initialize timer in PWM mode (e.g., TIM3, 1 MHz clock).
- Use DMA to transfer a 256-point precomputed sine lookup table.
- Set duty cycle via
__HAL_TIM_SET_COMPARE()in the DMA interrupt handler.
Ground the control signals separately from the power stage to minimize noise coupling. Use twisted-pair wiring for all low-level connections. For thermal protection, add a thermistor (NTC 10kΩ) near the semiconductors and disable outputs if temperatures exceed 85°C.
Critical Elements for Constructing a Sinusoidal Pulse Width Modulation Power Converter
Begin with a high-speed microcontroller like the STM32F4 or dsPIC33F series–these cores handle real-time modulation demands with clock speeds exceeding 100 MHz and dedicated PWM peripherals. Ensure the chosen model supports complementary output pairs to minimize dead-time insertion errors, typically below 100 ns for 20 kHz switching frequencies. For galvanic isolation, opt for isolated gate drivers such as the ISO5852S or UCC21520, which provide 5 kV RMS isolation and peak currents up to 4 A, preventing shoot-through in half-bridge configurations.
Switching elements must balance conduction losses and thermal performance. Silicon carbide (SiC) MOSFETs like the C3M0065090D offer 900 V, 65 mΩ ratings with switching speeds under 30 ns, reducing dead-time distortion by 40% compared to IGBTs. Pair them with ultrafast diodes, such as the IDH16G65C6, to clamp reverse recovery currents below 1.5 A at 150°C. Heat dissipation requires a copper baseplate or direct-bonded aluminum (DBA) substrates, lowering junction temperatures by 15°C under 30 W/cm² loads.
Output filters shape the sinusoidal waveform to THD levels below 3%. Use a two-stage LC topology: first-stage inductors wound with litz wire (e.g., 100 strands of 0.1 mm) to mitigate skin effect losses above 1 kHz, followed by metallized polypropylene film capacitors (MKP) like the EPCOS B32674D, rated for 450 VAC and ripple currents exceeding 20 A RMS. Core materials for inductors should shift from ferrite to nanocrystalline alloys (e.g., FINEMET FT-3H) for frequencies above 50 kHz, reducing core losses by 30%.
Gate drive circuitry demands precise timing synchronization. Implement a bootstrap circuit with floating regulators like the LM5111-2M for high-side drives, ensuring minimum 12 V gate-source voltage even during 95% duty cycles. For noise immunity, separate analog ground planes and route high-current paths with 2 oz copper pours, maintaining trace impedances below 1 mΩ. Feedback sensing requires differential amplifiers (e.g., INA826) with CMRR > 110 dB to reject common-mode noise from switching edges, coupled with delta-sigma ADCs for 16-bit resolution at 1 MSPS sampling rates.
Protection mechanisms must act within microseconds. Overcurrent detection relies on Hall-effect sensors (e.g., ACS730) with 200 kHz bandwidth, triggering shutdown via latch-up proof comparators like the TLV3501. Undervoltage lockout (UVLO) should monitor both DC bus and gate drive supplies, using window comparators to prevent false resets during transient dips. Thermal shutdown integrates NTC thermistors or PTC resistors embedded in MOSFET packages, disabling outputs when junction temperatures exceed 150°C. For EMI compliance, insert common-mode chokes (e.g., WE-CMB NC) with 10 A saturation current and 3 kΩ impedance at 1 MHz, reducing conducted emissions by 25 dBμV.
Step-by-Step Wiring of a Pulse-Width Modulation Signal Controller
Connect the power supply to the microcontroller’s VCC and GND pins first, ensuring a stable 5V DC input with a 100μF decoupling capacitor across terminals to filter voltage spikes. Use a 16 MHz crystal oscillator with two 22pF capacitors for clock stability, directly soldered to the microcontroller’s XTAL pins. For signal output, wire a 10kΩ pull-down resistor to the PWM output pin to prevent floating states during initialization. Below is the pinout mapping for precise connections:
| Component | Pin/Terminal | Microcontroller Connection | Notes |
|---|---|---|---|
| ATmega328P | VCC | 5V Regulated Supply | Add 0.1μF ceramic cap near pin |
| Crystal Oscillator | XTAL1, XTAL2 | PB6, PB7 | 22pF caps to GND |
| PWM Output | OC0A | PD6 (Arduino Pin 6) | Connect to gate driver via 220Ω resistor |
| Gate Driver (IR2104) | HIN, LIN | Microcontroller PWM pin | Isolate with optocoupler for high-side switching |
Set the microcontroller’s timer to Fast PWM mode with a prescaler of 8 for optimal resolution. Load the following code snippet into the chip to generate a 20kHz carrier frequency with adjustable duty cycle via a 10kΩ potentiometer on analog pin A0:
void setup() {
DDRD |= (1
For isolation, insert a HCPL-3120 optocoupler between the microcontroller’s PWM pin and the gate driver’s input, using a 270Ω resistor on the LED side and a direct connection on the phototransistor side. Verify waveform integrity with an oscilloscope, ensuring the output spans 0–5V with ≤100ns rise/fall times before connecting to the power stage.
Determining Optimal Switching and Signal Wave Frequencies for Pulse-Width Modulation
Set the carrier frequency at least 10–20 times higher than the modulating signal’s frequency to minimize harmonic distortion while balancing switching losses. For industrial inverters, a carrier range of 2–20 kHz suits most applications–lower values (2–5 kHz) reduce losses in high-power systems, while higher values (10–20 kHz) improve waveform quality in precision drives. Ensure the modulating signal remains below 1/3 of the carrier frequency to avoid sideband overlap, which degrades output fidelity. For example, a 50 Hz fundamental requires a carrier above 1.5 kHz (3×50 Hz × 10 = 1.5 kHz) to meet this criterion.
Adjust the carrier-to-modulating ratio to control total harmonic distortion (THD). A ratio of 21–33 (e.g., 3 kHz carrier for a 100 Hz signal) typically achieves THD below 5% in three-phase systems. Beyond 33, marginal THD improvements diminish, while switching losses escalate quadratically. For single-phase setups, ratios as low as 9 (e.g., 900 Hz carrier for 100 Hz) may suffice if filtering is applied post-generation, though efficiency drops due to higher peak currents.
Verify frequency selection against device limits: IGBTs tolerate carriers up to 20 kHz at 600 V/300 A, while MOSFETs extend to 100 kHz but degrade at high voltages (>400 V). Use the formula f_carrier = 2 × f_mod × (N + 1), where N is the desired harmonic order to suppress (e.g., N=5 for 5th harmonic elimination). For grid-tied systems, align the modulating signal with the grid frequency (50/60 Hz) and synchronize carriers to avoid subharmonic beats, which reduce filter effectiveness.
