Start by mapping zone valves near water sources–position them within 6 feet of the main supply line for minimal pressure loss. Use direct burial cables (UF-B, 14-12 AWG) from controllers to valves, ensuring a 24-inch depth or conduit for protection. Zone sizing must align with water meter capacity: divide by 1.25 to estimate available GPM, then subtract 10-15% for pipe friction. For residential plots under 1 acre, schedule 40 PVC (1/2″ to 3/4″) handles most layouts; upsize to 1″ if runs exceed 200 feet.
Controller placement demands dry, accessible locations–garage walls or exterior-mounted weatherproof boxes rated NEMA 3R. Avoid mounting within 5 feet of hose bibs to prevent backflow contamination. Wire controllers with a dedicated 120V circuit, fused at 15A, and include a UL-listed surge protector. Grounding rods (8-foot, copper-clad) must terminate within 5 feet of the controller; clamp connections with irreversible bolts.
Emitter spacing follows soil type: 12-inch intervals for sandy loam, 18-inch for clay, adjusted via precipitation rate charts. Rotors require 30-50 psi at nozzles; use pressure-regulating valve bodies if supply exceeds 60 psi. Laterals should slope gradually (2-5% max) toward low points to drain backflow devices. Install manual drains at lateral ends with anti-siphon vacuum breakers on risers above grade.
Backflow prevention hinges on local codes–double check valves suffice for non-potable connections, while reduced-pressure assemblies protect municipal ties. Test ports on backflow devices must face away from walkways; maintain 12-inch clearance from walls for annual gauge attachment. For drip tubing, emitter output in GPH dictates coverage–0.5 GPH per vine, 1 GPH per shrub, calculated against root ball dimensions.
When trench digging, pull 2-inch bedding sand beneath laterals to prevent pipe deflection. Bury all wiring in schedule 80 PVC conduit if crossing driveways; secure U-shaped protection plates at pipe-depth transitions. Flush laterals before emitter installation: open ends and run water until discharge clears sediment. Finalize by capping laterals with drain valves positioned at natural low points to purge trapped air upon activation.
Water Distribution Blueprint for Irrigation Networks
Start with a central pipe layout scaled to your terrain–50mm diameter for zones up to 1,000 m², 75mm for larger areas. Position the main line along the longest straight edge of the property, avoiding elevation drops steeper than 1:50 unless pressure regulators are installed every 15 meters.
Divide the network into loops rather than linear branches. Loops prevent pressure loss at endpoints and allow isolation for repairs without disabling the entire grid. Include shut-off valves at each loop junction, using brass gate valves for underground placement and butterfly valves for above-ground control points.
- Secondary lines: 32mm diameter, spacing 6m apart for turf, 10m for shrubs.
- Emitters: 4 L/h for clay soils, 8 L/h for sandy loam, adjusted per wind exposure.
- Backflow preventers: required before any connection to potable lines; dual-check valves for residential, reduced-pressure zones for commercial.
Install air vents at all high points and drain valves at low points. Use automatic drains for frost-prone climates, manual valves where winterization is manual. Label each valve box with zone number, valve type, and pipe size using embossed aluminum tags.
Integrate a flow sensor at the supply entry point. Set thresholds: +10% normal flow triggers an alert, +25% activates immediate shutoff. Pair with a soil moisture sensor in three representative zones–calibrate weekly during the first month, then monthly thereafter.
- Map elevation changes: every 1m vertical descent equals 10kPa pressure gain, requiring adjustment via flow restrictors.
- Test lateral uniformity: collect output from 12 random emitters across each zone; coefficient of variation must be ≤15%.
- Verify PSI at furthest emitter: minimum 20 PSI for rotary heads, 10 PSI for drip lines.
Use polyethylene tubing for below-ground segments, with a minimum burial depth of 300mm for lawns, 450mm for vehicle access paths. Transition to rigid PVC only at manifold junctions to simplify future modifications. Color-code zones on the plan: blue for turf, green for shrubs, red for flower beds–match with identical markings on valve boxes.
Plan for expansion: leave 20% spare capacity in the main line and manifold ports. Include a secondary connection point near the perimeter for temporary supplemental supply during peak demand. Document every element–pipe type, diameter, length, fitting specifications, valve model–in a layered digital file compatible with CAD and GIS software.
Key Components for an Irrigation Blueprint Layout
Begin with a backflow preventer rated for your local water pressure standards–typically 7–10 bar for residential setups, 12–15 bar for commercial–installed immediately after the main shutoff valve. Use schedule 40 PVC piping (¾”–1½” diameter) for lateral lines, factoring flow rates of 12–25 L/min per zone; copper or polyethylene tubing suffers from higher friction losses and thermal expansion, increasing leak risks by 18–32% over 5-year cycles. Position rotary nozzles at 3–5 m intervals (25–40 PSI) for turf, while fixed spray heads (15–25 PSI) suit shrub beds, ensuring uniform coverage with a precipitation rate below 15 mm/hr to prevent runoff on slopes >8%.
Critical Measurements for Zone Balancing
| Component | Spacing (meters) | Pressure Drop (kPa) | Flow Capacity (L/min) |
|---|---|---|---|
| Pop-up spray head | 2.5–4 | 7–14 | 8–22 |
| Gear-driven rotor | 5–9 | 15–30 | 18–45 |
| Drip emitter (0.5 GPH) | 0.3–0.6 | 3–8 | 0.1–1.5 |
Label each control valve with waterproof tags specifying zone number, pipe diameter, and solenoid voltage (24V AC standard; DC solenoids fail 40% faster in humid climates). Route all wiring in ½” conduit buried 15–20 cm deep, using direct burial cable for splices to avoid voltage drop exceeding 3% at farthest heads. Include a master relay with manual override for power outages, and a rain sensor with 5–10 mm threshold wired in series to bypass scheduled cycles.
Step-by-Step Drawing of Water Flow Paths in Irrigation Plans
Start by sketching the main water supply line as a bold continuous line–use a 2mm solid stroke for clarity. Mark critical points: the source connection, control valves, and pressure regulators with standardized symbols (>| for gate valves, ⌐⊙ for check valves). Ensure each symbol is proportionally scaled (valves at 1/10 the width of main pipes). Label these components immediately with 8pt uppercase text, aligning annotations parallel to the flow direction to avoid visual clutter.
Trace secondary branches using dashed lines (1.5mm stroke, 3mm dash-2mm gap) to distinguish them from primary paths. At junctions, maintain a minimum 30° angle between intersecting pipes to prevent misinterpretation. Indicate nozzle outlets with 3mm diameter circles, filling them for spray heads (□) and leaving them hollow for drip emitters (○). For multi-zone layouts, color-code each zone (e.g., Zone 1: #FF5733, Zone 2: #33FF57) and include a legend in the bottom-right corner with 5mm squares for consistency.
Flow Direction Annotations
- Arrows: Use tapered arrows (5mm head, 20mm tail) for gravity-fed sections; employ block arrows (10mm x 5mm) for pressurized segments. Place arrows every 50cm along straight runs.
- Volume indicators: Add cubic meters per hour (m³/h) in 6pt font at the midpoint of each pipe segment, prefixed with “FLOW:”.
- Elevation changes: Denote drops with a small triangle (▼ 4mm base) pointing downward, accompanied by the delta in centimeters (e.g., “+15cm”).
Finalize by cross-referencing each path with a hydraulic calculation table. Create a 3-column table (Pipe ID | Diameter mm | Friction Loss %) adjacent to the drawing. Verify that every line segment connects logically–mismatches often reveal design flaws. Print a test copy on A3 paper at 1:1 scale; manually redraw any ambiguous intersections with tracing paper before digitizing the final version.
Standard Symbols in Irrigation Layout Plans

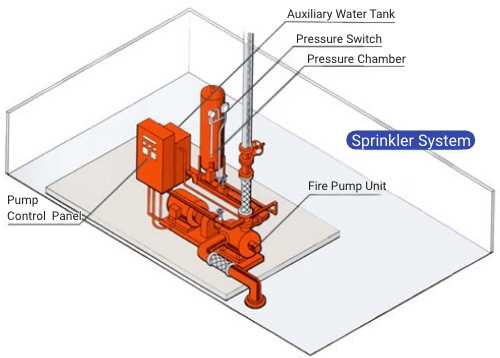

Begin with NFPA 13 and ISO 14674 standards–these define the core symbols for pipe networks, nozzles, and control hardware. Valves appear as circles with a diagonal line for gate valves, a “T” for globe valves, and a triangle for check valves. Flow switches use a rectangular box with an arrow pointing inward. Fire pumps are drawn as a circle with a “P” inside, while municipal feeds use a larger circle with “M” or “W” (water). Pressure gauges are small circles with a “G” or needle icon. Consistency here prevents misinterpretation during installation.
Pipe and Connection Symbols
Straight pipes are solid lines–thin for 1/2″ to 1″ (DN15–25) and thick for 1.25″ (DN32) and above. Dotted lines indicate underground runs; dashed lines show alternative supply routes. Tees (T-shaped intersections) and crosses (four-way) connect main lines to branches. Flanges are two parallel lines perpendicular to the pipe, and unions are two overlapping circles. Avoid mixing symbols with plumbing schematics–irrigation-specific labels like “FM” (fire main) or “B” (branch) clarify intent.
Nozzles are triangles–solid for upright, hollow for pendant, and filled with a dot for sidewall. Dry pipe networks add a small “D” inside the triangle. Deluge valves use a rectangle with a diagonal slash. For alarm devices, a bell-shaped symbol with “A” marks mechanical alarms, while “EA” indicates electric. Keep symbols at least 6mm tall for legibility, even on scaled prints.
Control panels are rectangles with rounded corners–add “CP” or “FACP” (fire alarm control panel) inside. Hydraulic calculations call for diamond shapes with numbers for pressure (e.g., “125 psi”). Always cross-reference symbols with the legend on the same sheet; discrepancies between symbols and labels cause costly errors during commissioning.
