Begin by marking the exact locations for each nozzle on the ceiling or wall using a measuring tape and level. Ensure a spacing of 6 to 15 feet between units, depending on the hazard classification (light, ordinary, or high-risk zones). For standard office settings, 12-foot intervals provide optimal coverage without overloading the system. Verify clearance–nozzles must be at least 18 inches from obstructions like beams or ductwork to prevent blockage during activation.
Mount the brackets using #12 screws or anchors rated for the substrate (drywall, concrete, or steel). For suspended ceilings, attach directly to the support grid using C-clips for stability. Tighten fasteners to 25 ft-lbs of torque to prevent loosening under water pressure. Use a pipe wrench–not pliers–to secure threaded connections, ensuring leaks are minimized with PTFE tape wrapped clockwise for a proper seal.
Route pipes from the main riser to each nozzle, maintaining a 1% downward slope toward the drain to avoid water traps. Use Schedule 40 steel piping for wet systems and Schedule 10 for dry systems, cutting lengths with a pipe cutter for clean edges. Test flow rates with a hydraulic calculator–each nozzle should deliver 15-25 GPM at 7-175 psi, varying by model. Label all valves and test points with self-adhesive tags to simplify future inspections.
After assembly, perform a 2-hour hydrostatic test at 200 psi to confirm integrity. Inspect joints for drips and tighten as needed. For antifreeze systems, add propylene glycol at a 30-50% concentration, testing freeze protection with a refractometer. Finally, activate the alarm relay and verify the control panel acknowledges the zone’s readiness before commissioning.
Guide to Positioning Fire Protection Nozzles in System Blueprints
Begin by marking nozzle locations at intervals no greater than 144 square feet per unit, adjusting for obstacles like beams or ductwork. Use a 15-foot spacing between lateral lines for standard coverage models, reducing to 12 feet in high-hazard zones as per NFPA 13 requirements. Ensure each device hangs no lower than 1 inch from the ceiling and no higher than 12 inches to maintain thermal sensitivity.

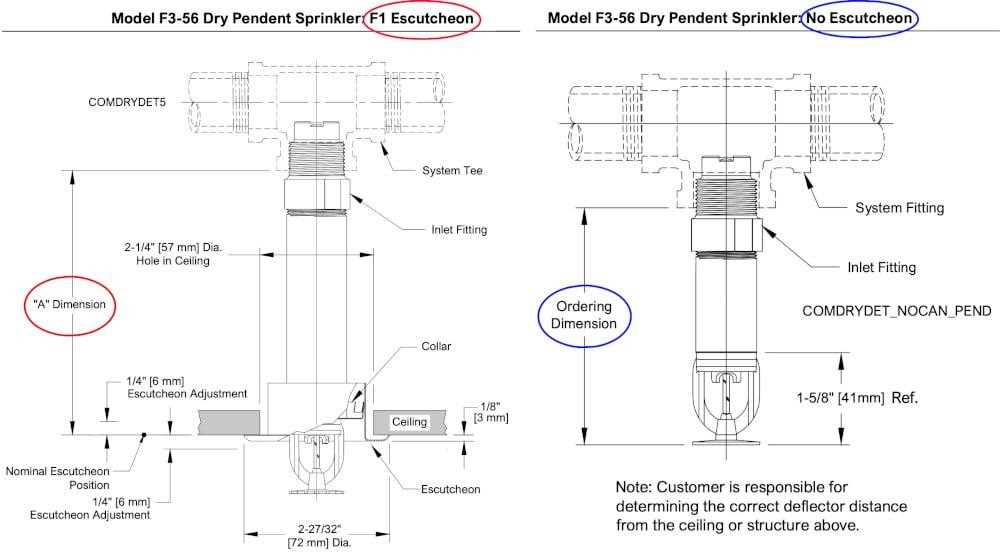

For pendent types, align the deflector perpendicular to the branch line with the waterway facing the obstruction-free path. Sidewall models require a 4- to 6-inch clearance from adjacent walls and must be orientated with the deflector parallel to the ceiling. Recessed units demand a minimum 1-inch annular space around the body to prevent heat entrapment.
Locate devices no closer than 18 inches from light fixtures or HVAC vents to avoid spray pattern disruption. In rack storage areas, position nozzles mid-tier between storage levels, maintaining a 3-foot vertical separation. For dry systems, slope branch lines 0.5% downward toward the main riser to ensure proper drainage after activation.
Calculate hydraulic demand by assigning 20 psi to the remotest device and adding 5 psi for every 10 additional devices in the zone. Verify pipe sizing using the Hazen-Williams equation, targeting velocities between 5 and 20 feet per second. Use Schedule 40 steel for mains and copper for laterals in corrosive environments.
Pressure and Flow Verification Steps

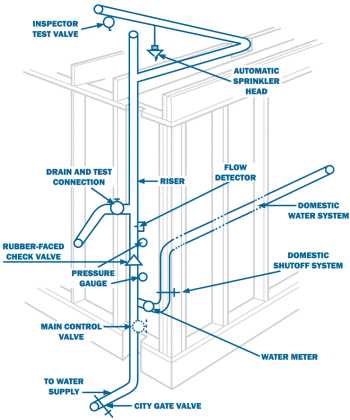

Test each zone sequentially: Open the inspector’s test valve fully and measure static pressure at the gauge near the alarm check valve. Activate one device at a time, recording residual pressure at 30-second intervals. Flows should stabilize within 60 seconds; deviations exceeding 10% indicate undersized piping or excessive friction loss.
Cross-reference readings with the approved hydraulic calculations. If measured flows fall short, increase pipe diameter one size or reduce nozzle density by 10%. For areas with excessive pressure drop, install pressure-regulating devices at the zone control valve. Document all adjustments on the as-built drawings.

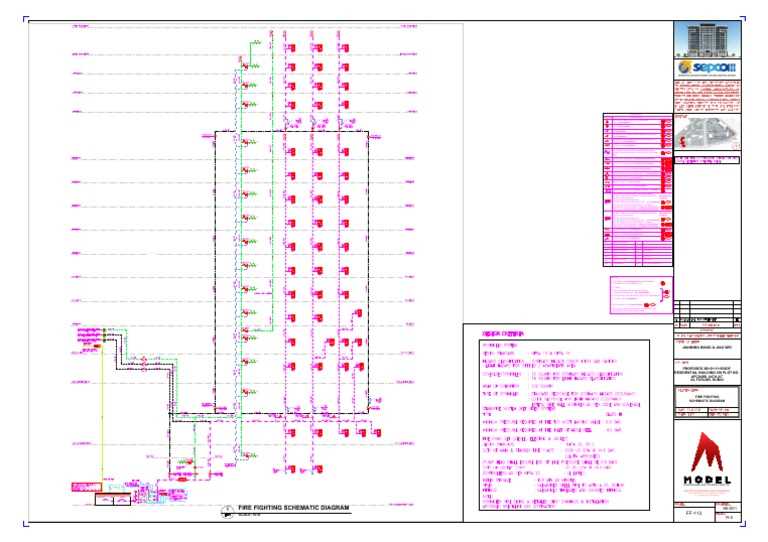

Color-code lines on blueprints: red for wet mains, blue for dry, green for pre-action, and orange for deluge. Label each device with its tag number, nominal K-factor, and orientation (e.g., “K8.0 – Pendent”). Add dimension lines showing distances to beams, columns, and structural elements with a tolerance of ±1 inch.
Post-Installation Compliance Checks
Conduct a hydrostatic test at 200 psi for two hours, monitoring for pressure loss exceeding 5 psi. Follow with an air test at 40 psi for 24 hours in dry systems. Attach a tag to each control valve listing the test date, inspector’s initials, and next scheduled maintenance. Update the digital asset management system with O&M manuals and warranty certificates.
Essential Equipment and Supplies for Fire Suppression Device Setup
Select a pipe cutter with a ratcheting mechanism for clean, precise cuts on copper or CPVC lines. Models with built-in deburring blades save time–avoid manual reaming to prevent internal burrs that restrict flow. For thread sealing, use PTFE tape (not thread sealant) on male adapters to prevent leaks under pressure; wrap clockwise with 3-5 layers, overlapping the starting edge.
- Pressure gauge: Minimum 0-300 psi range, glycerin-filled for dampening vibrations. Verify accuracy against a calibrated reference before reliance.
- Adjustable wrench: Two 18-inch forged steel wrenches (one for holding, one for turning) to prevent damaging fittings. Jaw openings must match hex sizes of ½” to 1″ nominal diameters.
- Torque wrench: Electronic model with audible click for 10-75 ft-lbs range. Apply 25 ft-lbs to brass connectors to avoid stress fractures.
- Dielectric union: Required at ferrous-to-nonferrous junctions to prevent galvanic corrosion. Use only brass or bronze components upstream of these unions.
Consumables and Specialized Components
Stock brass escutcheons in 4″ and 6″ diameters; plastic versions crack under UV exposure within 18 months. For dry systems, use nitrogen-grade copper tubing (ASTM B88 Type L) with wall thickness ≥ 0.045″ to withstand 175 psi without deformation. Seal wire connectors with heat-shrink tubing filled with adhesive; standard electrical tape degrades at -40°F.
- Hydrostatic test pump: 2-gallon capacity, 250 psi rating, with dual check valves to prevent backflow contamination. Test at 200 psi for 2 hours–drops > 5 psi indicate a failed joint.
- Inspection mirror: Extendable to 36″, with magnetic base for positioning under false ceilings. LED illumination critical for detecting hairline cracks in soldered joints.
- Pipe locator: Dual-mode (active/passive) with 3m depth detection. Mark underground lines with copper-core wire for future reference; tracer wire must be ≥ 12 AWG to survive soil corrosion.
Store O-rings at temperatures below 120°F to prevent premature hardening; EPDM variants resist ozone better than nitrile. For concealed systems, use chrome-plated escutcheons with concealed screws to deny tampering–screw heads must be torx #10 for security compliance. Keep a calibrated thermal imaging camera on-site to verify temperature uniformity across zones before final pressurization; discrepancies > 3°F indicate trapped air pockets requiring bleed-off.
Precision Placement for Irrigation Nozzles: A Field-Tested Method
Start by measuring the coverage radius of your selected emitter model–standard pop-up units typically project water 12–15 feet, while fixed-pattern rotary models reach 25–35 feet. Mark these distances on the ground with flags or spray paint before excavation. Overlap spray patterns by 10–15% to eliminate dry zones; for example, two emitters spaced 24 feet apart will create a 4-foot overlap if each has a 14-foot radius.
Terrain-Adaptive Spacing
Adjust spacing on slopes–reduce intervals by 20% on 8–12° inclines to counter runoff. For clay soils, increase spacing by 10–12% to prevent pooling; sandy soils require tighter clustering at 85–90% of listed coverage. In wind-prone areas, orient arcs perpendicular to prevailing gusts and add extra emitters downwind to compensate for drift loss.
Triangular patterns outperform rectangular grids for uniform distribution. Place the first emitter at a corner, then position subsequent units in concentric arcs following the formula: distance = radius × √3 × 0.5. This ensures each new emitter sits in the center of the gap between two existing units, creating a hexagonal coverage grid.
For mixed emitter types, pair 180° side strips with 90° corner units and full-circle models at intersections. Maintain consistent pressure by sizing supply lines with the formula π × (diameter/2)² ÷ 0.433 × PSI = GPM–a ¾-inch line at 40 PSI delivers 8 GPM, sufficient for 3–4 emitters with matched flow rates.
Zone-Specific Calibration
Microclimate adjustments: reduce spacing by 30% near south-facing walls to offset heat reflection that increases evaporation rates. In shaded north-facing zones, extend intervals by 20% to prevent oversaturation. For flower beds, use ¼-circle emitters at 6-foot intervals, angled upward 15° to avoid foliage interference.
Verify placement with a water audit–activate the system and check for puddles or missed patches. Adjust emitters by +/- 4 inches to fine-tune coverage. Document final positions with GPS coordinates or relative measurements from fixed landmarks for future maintenance.
Connecting Irrigation Emitters to the Primary Water Line
Shut off the main water supply valve before cutting into the lateral pipe. Use a pipe cutter or hacksaw to make a clean, perpendicular cut–avoid angled cuts, as they create gaps where leaks can form. Measure the inside diameter of the pipe; most residential systems use ¾” or 1″ PVC or polyethylene tubing. Select a tee fitting with matching measurements–barbed fittings work best for flexible tubing, while solvent-weld fittings are required for rigid PVC.
Deburr the cut edges immediately after cutting. Even slight roughness inside the pipe increases friction loss and traps debris, leading to premature clogging. For PVC, use a deburring tool or a utility knife to chamfer the edge at a 45° angle. For polyethylene, a heat gun can soften the edges briefly–press them flat with a damp cloth to prevent irregularities.
- Flush the lateral line for 30 seconds before attaching fittings to clear standing sediment.
- Apply primer only to PVC–skip it for polyethylene, as it degrades the material.
- Use strainers on emitters in areas with hard water to prevent calcium buildup.
Insert the tee fitting into the lateral pipe by twisting it ¼ turn while pushing firmly–resistance is normal, but forcing it risks cracks. For barbed fittings, use a rubber mallet to tap the fitting into place; for PVC, apply solvent cement within 10 seconds of priming. Let the joint cure for 15 minutes before pressurizing.
Attach riser tubing to the tee using a compression fitting or slip-lock coupling. Keep riser length under 12 inches to minimize wind drift–taller risers require staking to prevent bending under water pressure. Use flexible tubing (e.g., vinyl or polyurethane) for sloped terrain; rigid PVC risers are prone to breaking under foot traffic or frost heave.
- Test the connection at half-system pressure before backfilling. Watch for drips or weak spray patterns–both indicate improper seals.
- Backfill in 2-inch layers, tamping each layer to prevent settling that can torque emitters loose.
- Mark emitter locations with flags or GPS coordinates for future reference during maintenance.
For zones with variable flow rates, install an in-line flow sensor upstream of the tee. Sensors with ±2% accuracy cost $18–$35 but prevent dry-running pumps or overwatering. Wire the sensor directly to the controller’s master valve relay–bypassing it risks voiding warranties on smart controllers.
Seal exposed connections with self-vulcanizing tape or heat-shrink tubing. Avoid electrical tape–it degrades within months when exposed to UV or moisture. For buried connections, use direct-bury splice kits rated for 600V and submersion at depths up to 4 feet. Label all wiring with wire-nut caps color-coded to AS/NZS 3000 or NEC standards.
