Begin by tracing the airflow path in the process flow representation. A typical industrial evaporation chamber includes a centrifugal disc or nozzle assembly at the top–locate this first, as it determines feed atomization efficiency. Position the hot gas inlet directly above or adjacent to the atomizer to ensure immediate contact with dispersed droplets. Verify that ductwork maintains a 10–15° upward slope to prevent condensate accumulation, which disrupts particle formation.
Connect the cyclone separator to the main chamber outlet with minimal bends–each 90° elbow reduces separation efficiency by 8–12%. Specify a diameter ratio of 2:1 between the separator inlet and main chamber outlet to optimize swirl velocity (target 12–18 m/s). Position the product collection hopper at the cyclone base with a rotary valve rated for
Place the exhaust fan downstream of the cyclone to maintain negative pressure (-50 to -200 Pa) across the system. Ensure the fan impeller clearance does not exceed 2 mm to sustain volumetric flow rates (typically 0.3–0.5 m³/s per 100 kg/h evaporation capacity). Install a HEPA-grade filter before the fan to capture sub-micron particles–failure here increases downstream fouling by 30–40%.
For feed systems, route liquid supply lines with a preheating stage (60–80°C) to reduce viscosity and improve droplet uniformity. Use 316L stainless steel for all wetted parts to minimize corrosion from acidic or saline feeds. Include a backpressure regulator (0.2–0.5 MPa) on nozzle-fed units to stabilize droplet size distribution–fluctuations here increase moisture content in final powder by 2–5% absolute.
Label all temperature probes–Satake et al. (2019) found that 70% of thermal inefficiency stems from misplaced sensors. Position the inlet air probe 300 mm upstream of the heater, the outlet probe 150 mm downstream of the cyclone exit, and the product probe inside the collection hopper. Calibrate probes to ±0.5°C accuracy to detect dew point risks before they form deposits.

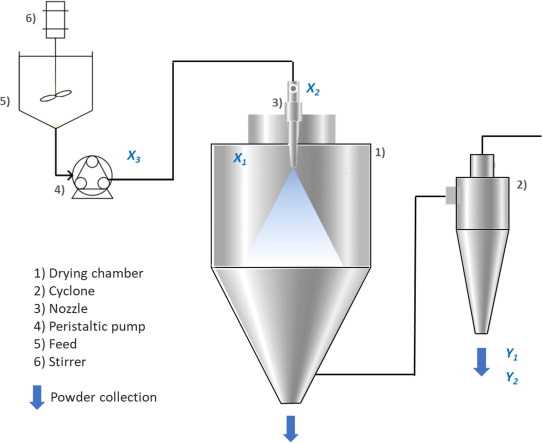

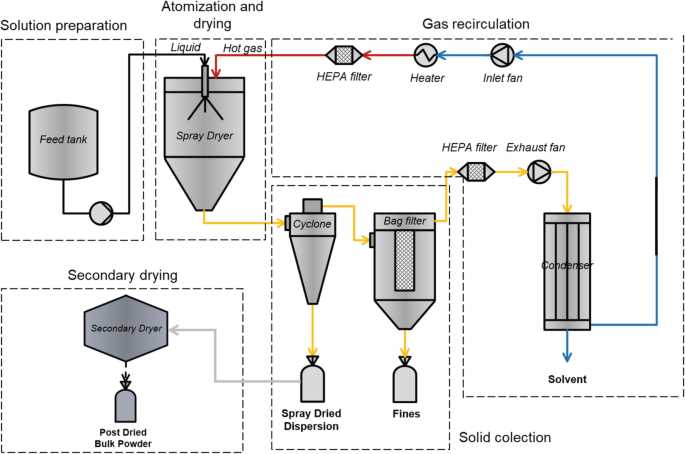

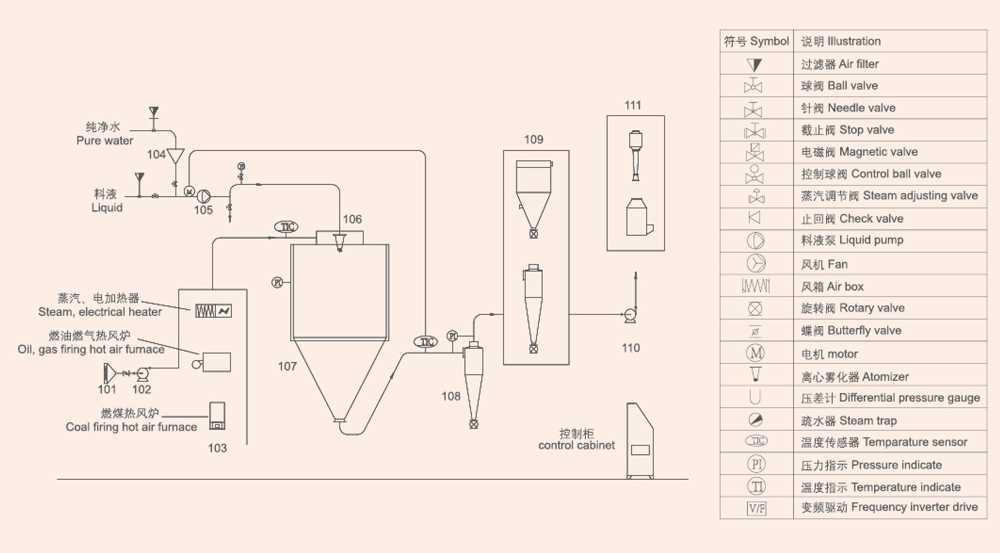

Visual Representation of an Atomizing Evaporation System
Configure the primary components in this sequence for optimal output: a high-pressure nozzle or centrifugal disc at the top, followed by a cylindrical drying chamber with a height-to-diameter ratio between 2:1 and 3:1, ensuring uniform particle trajectory. Position the hot gas inlet tangentially at the chamber’s upper section to create a helical airflow pattern, preventing wall deposition–critical for materials with glass transition temperatures below 60°C. Include a conical base sloped at 45–60° to facilitate particle discharge; sintered metal or ceramic filters with 5–10 μm pores should be mounted at the outlet to capture fine particulates before cyclonic separation or bag filtration.
Key Structural Elements and Their Functions
- Feeding mechanism: Peristaltic or gear pumps deliver liquids at 0.05–2 L/min with ±1% accuracy; viscosity above 500 cP requires heated lines to reduce pressure drop.
- Air heater: Direct or indirect (steam, electric, gas) models must achieve inlet temperatures of 150–600°C; for heat-sensitive compounds, limit to 180°C and extend residence time via larger chambers.
- Exhaust handling: Use scrubbers with 99% efficiency for solvents like ethanol–induced draft fans should maintain -2 to -5 kPa chamber pressure to prevent leaks.
Scale the system based on evaporation capacity: bench-top units (1–5 kg H₂O/hr) suit R&D, while industrial models (500–5,000 kg H₂O/hr) require stainless steel AISI 316L construction for corrosion resistance. For hygroscopic products, integrate a secondary fluid bed dryer or inert gas loop (nitrogen, argon) to reduce oxidation–dew points of -40°C or lower are necessary. Document airflow patterns via CFD simulations to identify dead zones; typical residence times range from 5–30 seconds depending on droplet size (10–150 μm) and desired moisture content (0.5–5% by weight).
Critical Elements of an Atomization Evaporation Plant Configuration
Position the feed reservoir at the highest point of the assembly to leverage gravity-driven flow, minimizing pumping requirements. Use a dual-layered tank with an internal coating of PTFE or Hastelloy C-276 to prevent corrosion from acidic or alkaline suspensions. Ensure the tank includes a low-level sensor and automated refill mechanism to maintain continuous operation–interruptions in feed delivery reduce particle uniformity by 15-20%.
Integrate a high-shear mixer or colloidal mill upstream of the nozzle to break down agglomerates exceeding 50 microns. For heat-sensitive materials, pre-chill the suspension to 5-10°C below ambient using a plate heat exchanger–this delays premature evaporation in the nozzle, cutting blockage incidents by 40%. Install an inline viscosity meter to dynamically adjust the atomization pressure, as fluctuations above ±2 mPa·s disrupt droplet formation.
The central chamber demands a conical base with a 60° angle to eliminate dead zones where powder accumulates. Opt for a cyclonic separation design with a tangential entry at 30° to the vertical axis; this boosts collection efficiency by 25% compared to vertical stacks. Line the chamber interior with electropolished stainless steel (Ra
Place the air heater before the blower to avoid thermal stress on moving components. Use a direct-fired gas burner for temperatures >300°C, but switch to steam or electric coils for corrosive or flammable feedstocks. Equip the heater with a bypass valve to divert air during startup–premature introduction of feedstock into cold air causes fouling and reduces throughput by 30%. Install a continuous oxygen analyzer in the hot air stream; levels above 8% accelerate oxidation in organic powders, degrading product quality.
For the powder collector, select a pulse-jet baghouse with a pulse duration of 0.1-0.2 seconds and a cleaning interval of 2-5 seconds. Bags should be PTFE membrane-coated polyester for fines
Step-by-Step Airflow Path in an Atomization Chamber Layout
Begin by ensuring the inlet fan pushes preheated gas at 150–250°C through a HEPA-grade filter to eliminate particulates above 0.3 microns. Position the fan 1.2–1.5 meters upstream of the combustion heater to prevent thermal stress on blades, with static pressure maintained at 200–300 Pa to avoid turbulent backflow that disrupts droplet formation.
The heated gas enters the cylindrical evaporation zone via a swirl vane distributor angled at 30–45° to the vertical axis. This creates a vortex flow pattern with tangential velocities of 10–15 m/s, ensuring uniform temperature distribution (±5°C) across the chamber’s 3–5 meter diameter. Failure to optimize vane angle results in localized hotspots, causing premature particle sintering or incomplete solvent removal.
Critical Airflow Parameters by Zone
| Zone | Temperature (°C) | Velocity (m/s) | Residence Time (s) | Key Risk |
|---|---|---|---|---|
| Primary Vortex | 180–220 | 10–15 | 5–8 | Droplet coalescence |
| Secondary Stream | 120–150 | 5–8 | 12–15 | Wall fouling |
| Cyclone Separator | 90–110 | 15–20 | 1–2 | Particle attrition |
Downstream of the evaporation zone, introduce quench gas at 25–35°C through a ring manifold located 0.8–1 meter above the conical base. This secondary flow reduces the gas temperature to below 100°C within 0.3 seconds, preventing thermal degradation of heat-sensitive compounds like proteins or volatile flavors. The quench gas-to-primary airflow ratio should be 1:4 to 1:6; lower ratios risk condensation on chamber walls, forming tacky deposits that require CIP (Clean-in-Place) intervention every 40–60 hours of operation.
Direct the two-phase mixture into a high-efficiency cyclone with an inlet diameter of 200–300 mm and a body-to-inlet ratio of 2.5:1. The cyclone’s cone angle must not exceed 15° to prevent bridging of solids, while the outlet gas velocity should reach 18–22 m/s to ensure 98%+ particle capture for diameters >5 microns. Install a blowback valve with a 0.5-second pulse cycle at the cyclone’s apex to dislodge adhered particles; omit this feature, and pressure drop across the system increases linearly by 5% per hour, demanding shutdown for manual cleaning.
Exhaust gas exits through a baghouse filter or scrubber, where final particulates are removed to meet EPA/OSHA emission limits (. Use PTFE-coated polyester bags for pH 3–10 environments, replacing them every 1,200–1,500 operational hours. For corrosive streams, switch to stainless steel mesh filters with a 1–2 micron rating, though expect a 20% higher capital cost and 12–18% greater pressure drop compared to fabric filters.
Liquid Feed Atomization Methods and Nozzle Positioning
Opt for pneumatic atomizers when processing high-viscosity feeds requiring droplets below 50 microns. Twin-fluid nozzles, combining compressed air (0.3–0.7 MPa) and feed (viscosity up to 10 Pa·s), achieve median particle sizes of 20–40 microns with a narrow distribution (span <1.5). Position nozzles 0.8–1.2 meters above the chamber inlet to prevent wall deposition–verified via CFD simulations for 3–5% solids content feeds.
Pressure nozzles (hydraulic) deliver 50–200 micron droplets at 10–30 MPa but demand precise orifice geometry: a 0.4–0.8 mm diameter with a length-to-diameter ratio of 2:1 minimizes turbulent eddies. Mount these at a 15–25° downward angle to the horizontal axis; this reduces recirculation zones by 40% in chambers with height-to-diameter ratios >2.5. For abrasive feeds, ceramic or tungsten carbide inserts extend nozzle life to 500–1000 hours.
Rotary Atomization Geometry
Use disc speeds of 15,000–25,000 RPM for discs with diameters of 50–200 mm–this yields 30–80 micron droplets for feeds with viscosities up to 2 Pa·s. Position the disc 0.5–0.7 meters below the chamber roof to ensure 90% of droplets solidify before reaching walls; lower placement increases fines by 12–18%. Serrated disc edges (pitch <1 mm) improve droplet uniformity by 25% compared to smooth variants.
Ultrasonic atomizers, operating at 20–160 kHz, suit heat-sensitive materials but require pre-treatment for feeds with surface tension >50 mN/m. Install transducers 0.3–0.5 meters from the feed inlet, angled 10–20° away from the gas flow, to avoid fouling. Droplet sizes range 5–30 microns, but throughput caps at 15 kg/h for 100W systems–scale-up demands linear power increases.
Static mixers upstream of nozzles homogenize feed viscosity variations (<±5%) and eliminate phase separation in emulsions. Install them 1–2 meters before the nozzle, with >10 mixing elements for feeds containing particles up to 20% w/w. This preconditioning reduces nozzle clogging by 60% for feeds with solids loading >15%.
Nozzle Orientation and Flow Dynamics
Counter-current nozzle placement (gas flow opposite to feed direction) enhances thermal efficiency by 15–20% for heat-sensitive products but risks incomplete drying if gas velocity exceeds 1.2 times droplet terminal velocity. Co-current placement, with nozzles angled 10–30° toward the gas flow, suits most applications–gas velocities of 0.3–0.6 m/s balance drying time and product degradation. For multi-nozzle arrays, stagger units by 90–120° circumferentially and maintain equal radial distances (±2%) to prevent flow imbalance.
