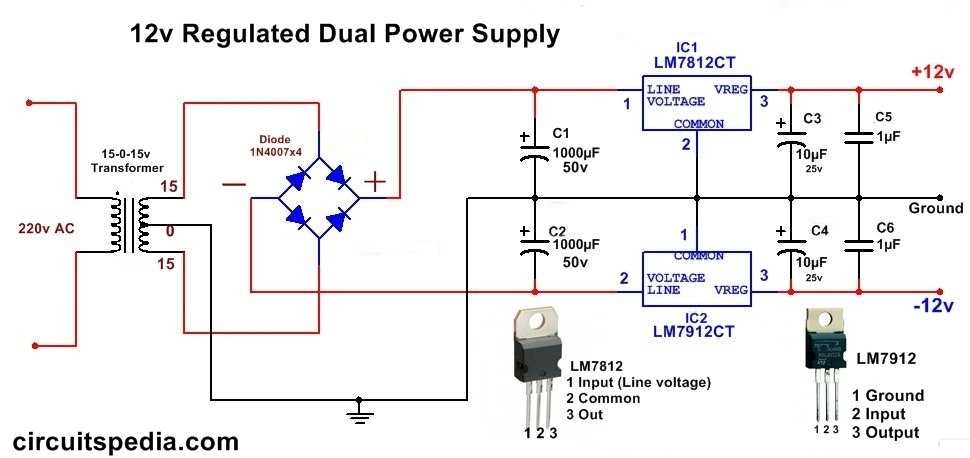

For precise analog signal processing, use a center-tapped transformer paired with a full-wave rectifier. Connect the tap to ground, then apply two diodes for each rail–positive and negative. A 2200µF 25V electrolytic capacitor on each side ensures stable output under load. Calculate ripple voltage using Vripple = Iload / (2 × f × C), where f is the mains frequency (50/60Hz) and C is capacitance. For a 500mA load, expect roughly 4.5mV ripple at 50Hz.

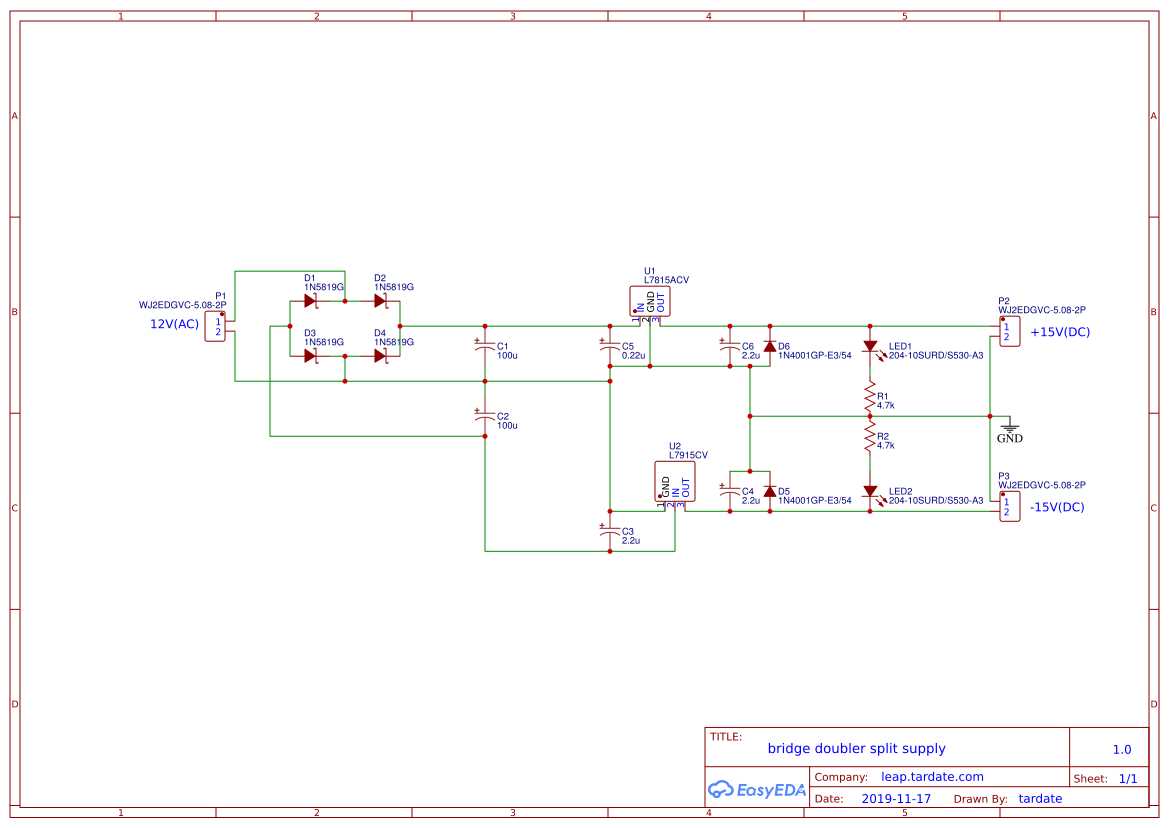

Linear regulators like the LM7815/LM7915 pair simplify design but waste energy as heat. Mount both on a shared heatsink with thermal paste. If efficiency matters, replace them with a buck-boost converter such as the TPS5430. Configure it for ±12V output with a 10µH inductor and 47µF ceramic capacitors. Adjust the feedback resistors to match Vout = Vref × (1 + R1/R2), where Vref is 0.8V for the TPS5430. Test transient response with a 1A load step–output voltage should recover within 200µs.
Avoid ground loops by routing the star ground directly to the transformer center tap. Use 1% tolerance resistors for voltage dividers to maintain symmetry. For noise-sensitive applications, add a pi filter (10Ω resistor + 100µF capacitor) on each rail. Measure output impedance with an LCR meter–target <0.1Ω at 1kHz. If op-amps exhibit unexpected offset, check for parasitic inductance in the PCB traces and relocate decoupling capacitors closer to the IC pins.
For lab prototypes, the MPS MP2359 offers a compact alternative. Set the switching frequency to 1.4MHz to reduce inductor size, then use a dual-layer PCB with 2oz copper. Keep high-current traces short and wide–minimum 1.5mm width per ampere. Verify cross-regulation by loading one rail to 80% while monitoring the other–voltage deviation should stay within ±2%. If outputs drift, recalculate the compensation network using the manufacturer’s stability criteria.
Dual-Voltage Source Schematic: Key Design Principles
Start with a center-tapped transformer rated for at least 30% above your load’s peak consumption to prevent core saturation during transient spikes. For a 15V dual output, opt for a 12-0-12V secondary winding–this minimizes wasted copper while ensuring stable regulation under asymmetric loads.
Use low-ESR capacitors on the DC rails: 2,200μF per side for general-purpose applications, but increase to 4,700μF if driving high-current devices like audio amplifiers or motor controllers. Place them no farther than 2cm from the rectifier diodes to suppress ripple below 50mV peak-to-peak.
Implement Schottky diodes (e.g., 1N5822) in the bridge configuration–their 0.3V forward drop reduces heat dissipation by 40% compared to standard silicon diodes. Ensure each diode’s current rating exceeds the transformer’s RMS secondary current by at least 50% to handle inductive kickback from loads like relays or solenoids.
Regulation and Protection Strategies
Adopt an LM317/LM337 pair for linear regulation–set output voltages via precision 0.1% tolerance resistors to maintain ±100mV symmetry across both rails. For higher efficiency, replace them with synchronous buck converters (e.g., TPS54331), but add ferrite beads to filter switching noise at the input and output.
- Overcurrent protection: Insert a 0.1Ω sense resistor in series with each rail; trip a MOSFET or SCR if voltage across the resistor exceeds 75mV (adjust for your current limit).
- Overvoltage clamp: Connect 15V Zener diodes from each rail to ground–ensure their power rating exceeds expected transient energy by 3x.
- Thermal monitoring: Mount a 10kΩ NTC thermistor near the heatsink; shut down the system if temperature surpasses 85°C.
Ground both rails’ capacitors at a single star point–this prevents ground loops that induce hum in sensitive analog circuits. If PCB space allows, use a four-layer board with dedicated ground and power planes; on two-layer designs, widen traces to 3mm per amp of current and reinforce with copper pours.
Testing and Validation Protocol
Verify performance with an oscilloscope: measure ripple under 50% load, then repeat with sudden 100% load steps–output voltage should recover within 20ms. Use a dummy load resistor bank to simulate worst-case scenarios, ensuring no rail dips below 80% of nominal value during transient events.
- Isolate noise sources by disconnecting the transformers’ primary and injecting 60Hz from a signal generator–ripple should not exceed 2mV RMS.
- Check cross-regulation by loading one rail to 90% of capacity while the other remains at 10%; voltage deviation must stay within ±2%.
- Log temperatures during an 8-hour burn-in test; heatsinks should not exceed 60°C in ambient 25°C environments.
For variable-voltage designs, replace fixed resistors with a 10-turn potentiometer (e.g., 3296W) and a 1kΩ series resistor–this achieves finer control over output symmetry. In systems requiring isolated rails, consider a flyback converter (e.g., LT3798) instead of a center-tap transformer, though this increases component count by 25%.
Key Components for Dual Voltage Output Configuration
Select a center-tapped transformer with a rating 20-30% above the intended load to prevent saturation during transient demands. Dual secondary windings should deliver equal RMS voltages–common values include 12-0-12V or 15-0-15V–ensuring symmetrical positive and negative rails relative to ground.
Bridge rectifiers rated for 50V minimum handling surpass most linear regulator dropout margins. For currents exceeding 1A, use TO-220 packaged diodes with heat sinks to disperse thermal energy, avoiding forward voltage drift that distorts rail balance.
Low-ESR capacitors between 2200µF and 10000µF per rail smooth rectified output, with ripple voltage kept below 2% of nominal rail voltage. Electrolytic types require parallel 0.1µF ceramic capacitors to suppress high-frequency transients, critical in analog signal processing stages.
Precision voltage regulators like the LM317/LM337 series simplify adjustment with a single resistor divider network. For fixed outputs, LM78XX/LM79XX series deliver ±0.2% line/load regulation, though dropout voltage drops them unsuitable for low-margin designs below 3.5V input.
PCB traces carrying dual rails must accommodate current density: 0.5mm width per ampere for copper thickness of 35µm avoids resistive losses that unbalance outputs. Separate ground planes for high-current paths and sensitive circuitry eliminate coupling, using star grounding at the transformer center tap.
Thermal protection is non-negotiable for linear stages under sustained loads. TO-3 packaged pass transistors paired with thermistors or dedicated overtemperature switches like the TSD (Thermal Shutdown) in modern regulators prevent thermal runaway before junction temperatures exceed 125°C.
Load-sharing resistors of 0.1Ω-0.5Ω resistances force current equilibrium between parallel regulators, though their power dissipation demands 5W or higher wattage ratings. For adjustable designs, multiturn trimpots simplify fine-tuning but introduce mechanical instability–fixed resistors soldered in place improve long-term drift resistance.
Sensing resistors below 0.1Ω monitor rail currents when coupled with instrumentation amplifiers like the INA146, offering 1mV/A granularity for feedback control. Embed ferrite beads on output leads to attenuate conducted EMI from switching noise exceeding 100kHz, preserving signal integrity in mixed-signal applications.
Step-by-Step Wiring of Dual Voltage Lines
Start by identifying the ground reference point–this is your zero-voltage node and must be the common return path for both rails. Use a thick gauge wire (18 AWG or lower) to minimize voltage drop, especially under load currents exceeding 500 mA. Connect this ground directly to the midpoint of the transformer’s secondary winding if using a center-tapped configuration, or to the junction of two symmetrical secondary windings in a dual-transformer setup. Avoid daisy-chaining ground connections; instead, run a single radial line from each component back to this central point to prevent ground loops and noise coupling.
Configuring the High-Side Line
Solder the positive rail to the outer terminal of the rectifier diode or bridge output marked for the elevated voltage. For a 12V rail, use a 25V smoothing capacitor (minimum 1000 µF) to reduce ripple; higher capacitance (4700 µF+) improves stability for audio or analog loads. Route this line through a series resistor (0.1–1Ω, depending on current draw) if transient suppression is needed–this limits inrush during capacitor charging. Label the wire at both ends with heat-shrink tubing to prevent accidental shorts during later adjustments; a mix-up here risks reversing polarities and damaging sensitive downstream electronics.
Mirror the process for the negative rail, ensuring symmetry in component values and wire lengths to maintain balanced impedance. If using linear regulators (e.g., LM317/LM337), wire the output capacitors as close as possible to their pins–no longer than 10 mm–to prevent oscillations. Test each rail independently with a multimeter set to DC voltage before connecting any load; a deviation greater than ±0.2V from the target suggests a faulty diode, improper grounding, or insufficient capacitance. For high-current applications (3A+), parallel multiple capacitors (e.g., three 2200 µF units) and distribute them evenly along the bus to avoid localized heating.
