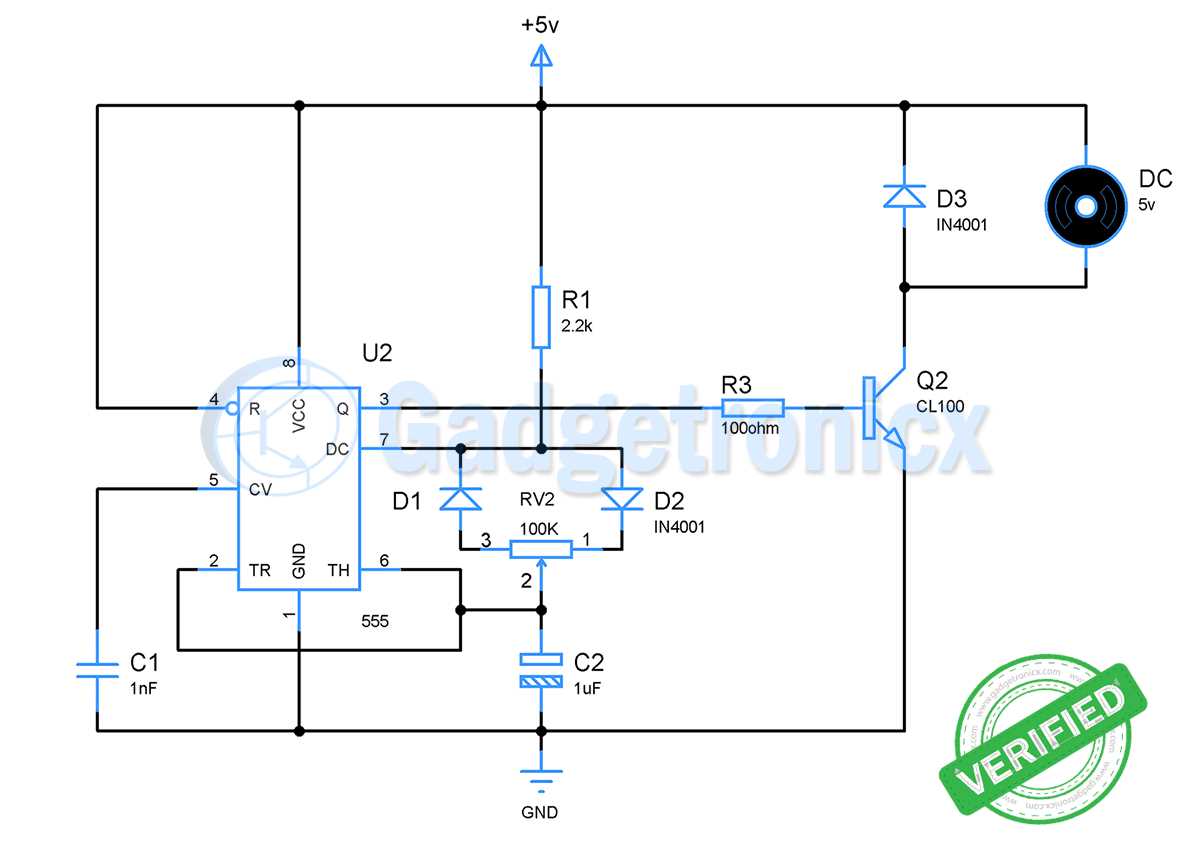

For precise RPM adjustment in DC motors under 12V, a PWM-based arrangement using a 555 timer IC delivers the most stable results. Configure the IC in astable mode with a 1kΩ resistor (R1), 100kΩ potentiometer (R2), and a 10μF capacitor (C1). This setup generates a variable duty cycle (10%–90%) without requiring complex calibration. Ensure the freewheeling diode (1N4007) is placed in reverse across the motor terminals to suppress voltage spikes–failure to include it risks permanent damage to the switching transistor.
When selecting components, prioritize low-ESR capacitors (e.g., tantalum or polypropylene) for C1 to minimize noise at higher frequencies. The switching element–typically a logic-level MOSFET (IRFZ44N) or darlington pair (TIP122)–must handle at least 2A continuous current with a safety margin of 50%. For loads above 500mA, add a heat sink to the transistor; even a small aluminum plate (2x2cm) reduces junction temperature by 30%. Avoid bipolar junction transistors (BJTs) for currents exceeding 500mA–their higher saturation voltage leads to excessive heat dissipation.

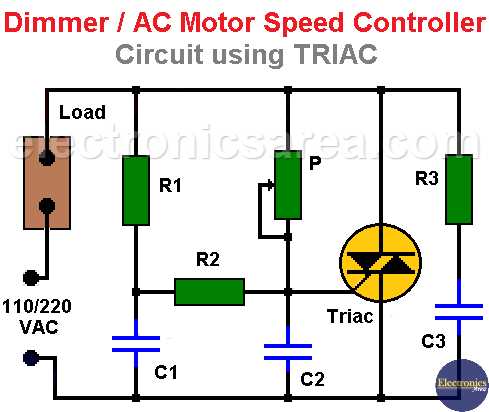

For AC motor regulation (e.g., 230V single-phase induction motors), a triac-based phase-angle drive with an optocoupler (MOC3021) ensures both isolation and smooth torque modulation. Use a 10kΩ resistor in series with the gate to limit current to 25mA, paired with a snubber network (47Ω + 0.1μF) to prevent false triggering from line noise. Critical: Never omit the RC snubber–it prevents destructive voltage transients that can exceed the triac’s breakdown rating by 3x.
Test the assembly with an oscilloscope before full deployment. For DC setups, verify the PWM frequency remains between 500Hz–5kHz; lower frequencies introduce audible motor whine, while higher frequencies increase switching losses. For AC circuits, confirm the zero-crossing detection circuit (using a 4N25 optocoupler) aligns with the mains frequency (±10μs)–misalignment causes erratic firing angles and motor stutter. Calibrate the potentiometer’s range using a multimeter: at 50% duty cycle, adjust R2 until the measured voltage at the motor terminals is exactly half the supply voltage.
Designing a Variable Throttle Regulator Layout
Start with a PWM-based adjustment mechanism using an NE555 timer IC for reliable pulse-width modulation. Configure the timer in astable mode with a 10 kΩ potentiometer for manual tuning of duty cycle (10%–90%). Pair it with an IRFZ44N MOSFET for handling currents up to 49A. Ensure proper heat dissipation–attach a 25 mm² aluminum heatsink if operating above 20W.
Key Component Specifications
| Part | Model | Rating | Purpose |
|---|---|---|---|
| IC | NE555 | 4.5V–15V | Pulse generation |
| Transistor | IRFZ44N | 55V, 49A | Switching load |
| Potentiometer | 10 kΩ linear | 0.25W | Duty cycle adjustment |
| Diode | 1N4007 | 1A, 1000V | Flyback protection |
Route traces for high-current paths (MOSFET drain-source) with 2 oz copper thickness to minimize voltage drop. Include a snubber circuit (0.1 µF capacitor + 10 Ω resistor) across the motor terminals to suppress EMI. For precision, calibrate the potentiometer with a multimeter–target 1 kHz for smooth motor response at mid-range settings. Test under load before finalizing the PCB to verify component stability.
Selecting Parts for a PWM-Based Motor Governor
Opt for a MOSFET with low RDS(on)–aim for under 20 mΩ for currents above 10 A. IRLZ44N or IRF540N handle 30–50 A peak while staying cool at 12–24 V input. Gate charge should stay below 50 nC to minimize switching losses; exceed this and thermal management becomes critical.
Choose a PWM generator with adjustable frequency between 5–25 kHz. NE555 variants work for simple setups, but for smoother control, an ATtiny85 programmed via Arduino IDE offers finer duty-cycle resolution. Ensure the microcontroller can sustain 10 kHz without jitter, as inconsistent pulses create audible whine and uneven torque.
Power diodes should have a reverse recovery time under 50 ns. UF4007 or SB560 clip reverse voltage spikes effectively, protecting the MOSFET. For high-current applications (15 A+), parallel two diodes to halve thermal resistance; derate by 30% for continuous operation.
Gate resistors dictate rise/fall times–start with 10–47 Ω for low-power motors (
Capacitors must handle ripple current without overheating. For input filtering, use 1000 µF/35 V electrolytic with a 1 µF ceramic in parallel to absorb high-frequency transients. Output caps follow the same rule but add a 0.1 µF XY safety capacitor to suppress noise on control lines.
Heat sinks are non-negotiable above 5 A continuous. A TO-220 MOSFET needs 5–10 °C/W thermal resistance for 20 W dissipation; clip-on types work, but machined aluminum (e.g., Fischer Elektronik SK 48) drops temperatures by 40% versus stamped equivalents. Apply thermal paste sparingly–excess creates insulating gaps.
For feedback, a linear potentiometer (10 kΩ, 0.2 W) suffices for manual adjustment. Digital encoders add precision but demand debounce circuitry. Hall-effect sensors (e.g., Allegro ACS712) enable closed-loop regulation, providing 20 mV/A sensitivity; calibrate offset at zero current to avoid drift errors.

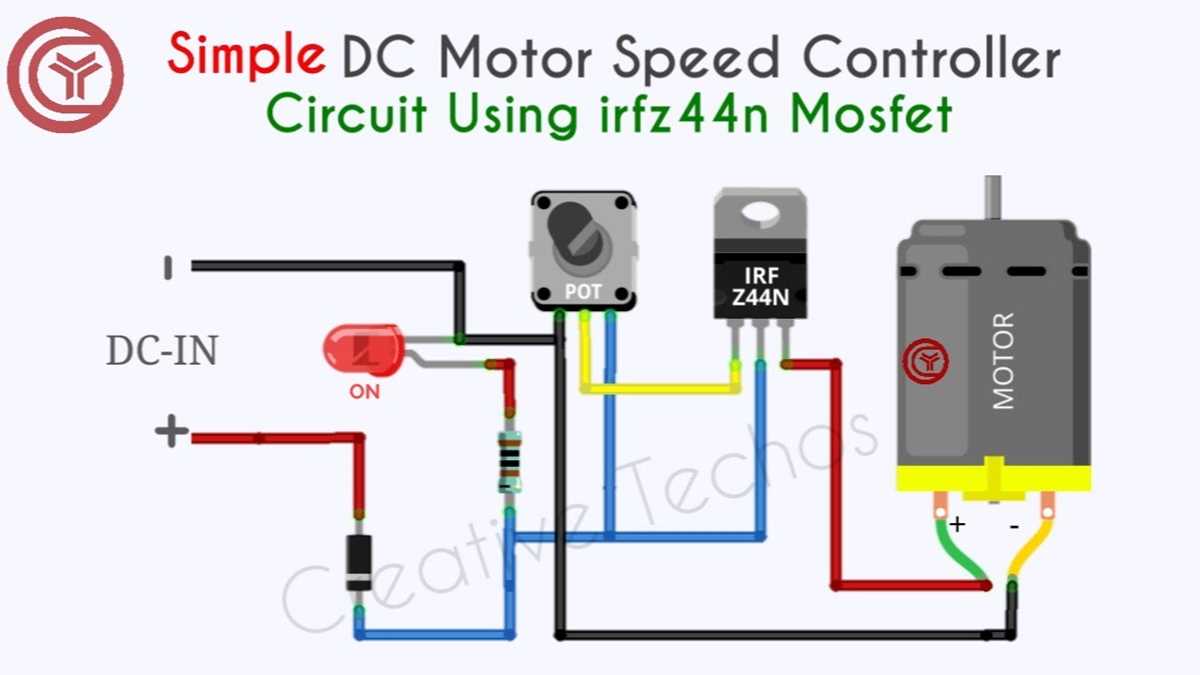

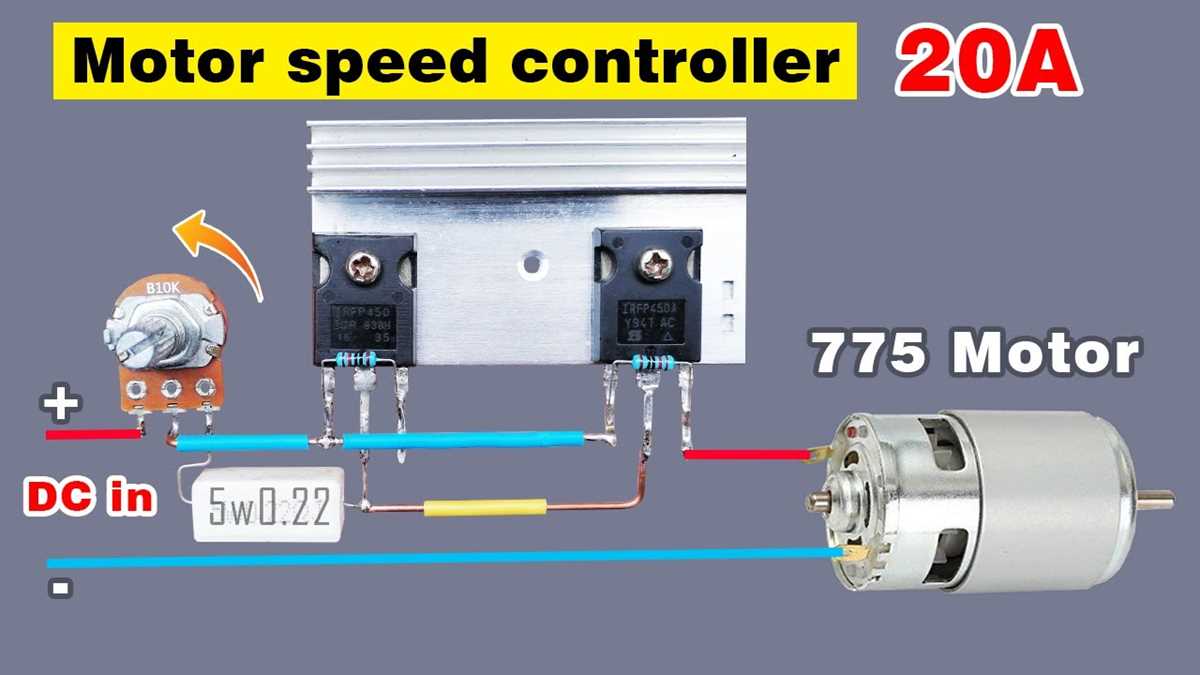

Building a MOSFET-Based Motor Regulator: Wiring Guide
Select a logic-level N-channel MOSFET like IRLZ44N for direct MCU control at 3.3V–5V gate voltages. Verify maximum drain current matches motor stall currents–IRLZ44N handles 47A continuous with proper cooling. Avoid generic IRFZ44N; its 10V gate threshold requires level shifting.
Mount the MOSFET on a heatsink if motor draws >5A. Use thermal grease between tab and heatsink; torque screws to 0.5–0.7Nm with thread-locking compound. For currents exceeding 20A, consider parallel MOSFETs with separate gate resistors (e.g., 33Ω) to prevent oscillation.
- Gate: Connect to microcontroller pin via 220Ω–1kΩ resistor. Insert 10kΩ pull-down resistor to ground to prevent false triggering during power-up.
- Drain: Attach directly to motor’s positive terminal. Add a 1N4007 flyback diode across motor terminals, cathode to drain, anode to ground, to clamp inductive spikes.
- Source: Link to ground bus. For noise immunity, separate digital and power grounds, joining them only at the power supply’s negative terminal.
Place a 100nF ceramic capacitor across MOSFET’s drain and source, within 2cm of its leads. This suppresses high-frequency ringing induced by motor brushes or PWM edges. For EMI reduction, add a ferrite bead (e.g., Murata BLM18PG121SN1) in series with the gate resistor.
Use twisted-pair wiring for motor connections (minimum 22AWG for currents ≤5A, 16AWG for ≤15A). Shield cable if runs exceed 30cm, grounding shield at power supply end only to avoid ground loops. Solder all joints; crimp connectors risk intermittent contact under vibration.
PWM Configuration
Set microcontroller PWM frequency between 5kHz–20kHz. Frequencies below 5kHz produce audible whine; above 20kHz increases MOSFET switching losses. For Arduinos, prescale Timer1 to 8x and adjust OCR1A register for 125–250 steps of resolution.
- Initialize serial port at 9600 baud to monitor throttle percentage (0–100%).
- Use
analogWrite()(Arduino) or register-level PWM on bare-metal MCUs. Avoidpwm()libraries that throttle resolution. - Implement dead time of 1µs between PWM edges if driving complementary half-bridge configurations to prevent shoot-through.
Test with oscilloscope probes on MOSFET gate and drain. Gate waveform should show sharp edges (5% of supply voltage). Adjust gate resistor if waveforms show ringing.

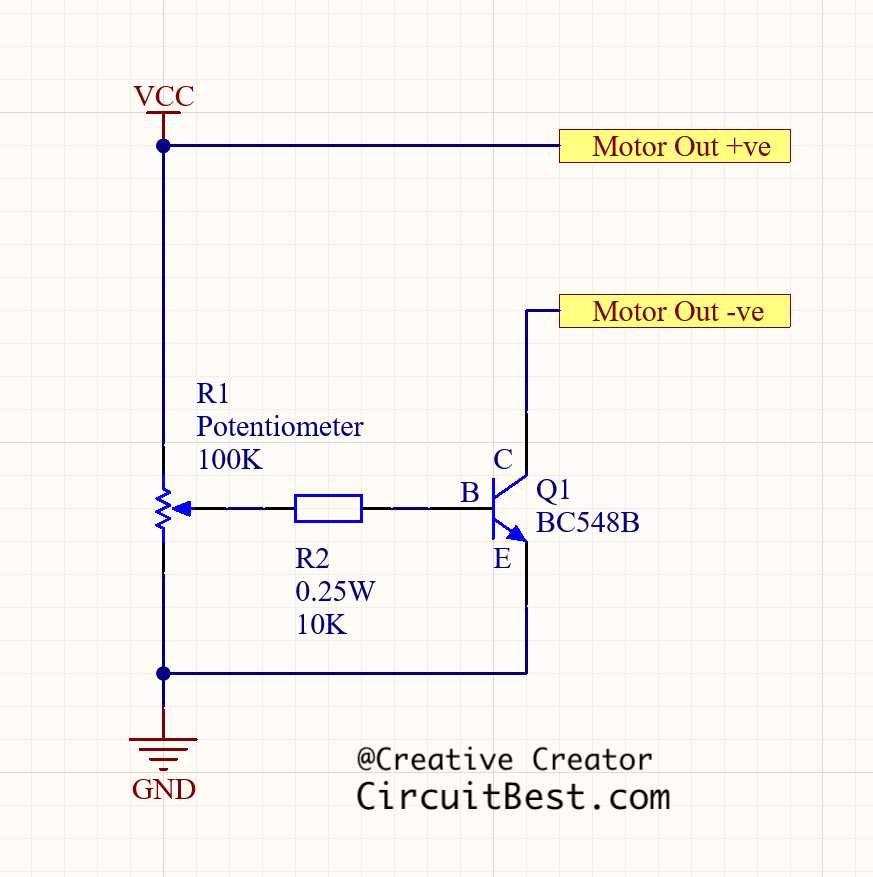

Adjusting Potentiometer for Precise Motor Speed Regulation
Select a multi-turn potentiometer with a linear taper (typically 10KΩ or 50KΩ) for finer adjustment resolution–single-turn variants lack the granularity needed for consistent RPM stabilization under varying loads.
Position the wiper at the 50% mark before powering the system to establish a neutral reference point, reducing the risk of abrupt torque shifts during initial calibration.
Use a non-conductive screwdriver (preferably plastic or ceramic) to avoid introducing parasitic capacitance or ground loops, which can distort feedback in closed-loop configurations.
Monitor motor current with a true RMS multimeter during adjustment; spikes exceeding 120% of nominal draw indicate incorrect wiper placement or saturation in the power stage.
For brushed DC motors, limit potentiometer adjustments to 3° increments when operating above 70% of maximum RPM to prevent commutator arcing and brush wear acceleration.
In PWM-driven systems, ensure the potentiometer’s resistance matches the driver IC’s input impedance (check datasheet for typical 10KΩ–100KΩ range) to avoid signal attenuation or phase lag.
For 3-phase BLDC setups, pair potentiometer adjustments with a Hall sensor feedback loop; mechanical positions alone introduce ±5% RPM drift under load fluctuations.
Seal potentiometer shafts with silicone grease in high-vibration environments to prevent dust ingress, which degrades contact resistance and causes erratic output fluctuations.
Heat Management in High-Current Drive Regulation Systems
Embed thermal vias directly beneath power semiconductor packages–each via should have a diameter of 0.3–0.5 mm, spaced at 1.2–1.5 mm centers. Copper plating thickness must reach 35–70 μm to achieve a via resistance below 0.3 mΩ per via. This reduces junction-to-board thermal resistance by 40–60% compared to standard SMD mounting.
Select aluminum or copper baseplate materials with a coefficient of thermal expansion (CTE) mismatch of less than ±2 ppm/°C relative to the semiconductor substrate (e.g., Si, SiC, or GaN). Forced-air cooling over finned heatsinks requires a minimum airflow velocity of 5 m/s with a fin density of 8–10 fins per inch to maintain a heat flux density of 30 W/cm² without exceeding a 85°C case temperature.
Apply thermal interface materials (TIMs) with a bulk thermal conductivity of 3–6 W/m·K; avoid silicone-based compounds if reworkability is required–opt for indium-based alloys (e.g., In-Ag, In-Sn) or phase-change polymers that liquefy above 70°C and solidify at room temperature, eliminating pump-out risk under thermal cycling.
Monitor transient thermal impedance using calibrated embedded NTC thermistors or diode temperature sensors positioned within 1 mm of the die edge. Sensor response time should be
Key Thermal Design Parameters for 100 A+ Systems
- Junction-to-ambient θJA target: ≤ 1.5 °C/W for SiC MOSFETs, ≤ 2.0 °C/W for silicon IGBTs.
- Heatsink volume constraint: ≤ 0.5 L/kW dissipated power for forced-air-cooled units, ≤ 0.2 L/kW for liquid-cooled variants.
- Thermal capacitance requirement: ≥ 0.8 J/°C per 10 A of continuous current to absorb 20 ms overload pulses.
- Creepage and clearance distances: ≥ 6 mm for pollution degree 2 environments; use conformal coating on PCBs operating above 85°C.
Liquid cooling loops must maintain a ΔT of ≤ 7°C between inlet and outlet at full load. Copper microchannel cold plates with a channel width of 0.8 mm and wall thickness of 0.2 mm achieve a pressure drop 18 kW/m²·K at flow rates of 2–3 L/min. Glycol-water mixtures (40:60) raise boiling points above 115°C but halve thermal conductivity compared to pure water.
Optimize switching frequency between 15–30 kHz to balance switching losses and conduction losses–SiC MOSFETs incur 0.2 mJ per switching event at 20 kHz, while silicon IGBTs reach 0.5 mJ. Below 15 kHz, conduction losses dominate; above 30 kHz, gate driver losses and EMI filtration requirements escalate exponentially, demanding parallel gate drivers with isolated power supplies.
Failure Prevention Checklist
- Validate heatsink-to-device flatness to
- Conduct pulsed-current tests simulating 2× nominal load for 5 ms to verify transient thermal response and electromigration margin.
- Apply power cycling tests: ≥ 10,000 cycles between 25°C and 120°C, dwell time ≥ 60 s, to detect delamination in TIM layers.
- Ensure PCB copper pours exceed 2 oz/ft² thickness in high-current paths and connect to thermal vias via multiple stitching vias to prevent void-induced hotspots.
