Start with a microphone element (electret or MEMS type) rated for 30–60 dB sensitivity. Connect its output to a JFET preamplifier stage with a 2.2 kΩ drain resistor and a 4.7 µF coupling capacitor to block DC offset. This setup ensures a 50–200 mV signal amplitude at typical voice levels (1–2 meters distance).
Add a bandpass filter using an op-amp (LM358) with cutoff frequencies at 80 Hz (low) and 3 kHz (high). Use a 10 kΩ resistor and 10 nF capacitor for the low-pass stage, then a 1 kΩ resistor with a 1 µF capacitor for the high-pass. This isolates human frequencies while rejecting mechanical vibrations (below 50 Hz) and electrical noise (above 5 kHz).

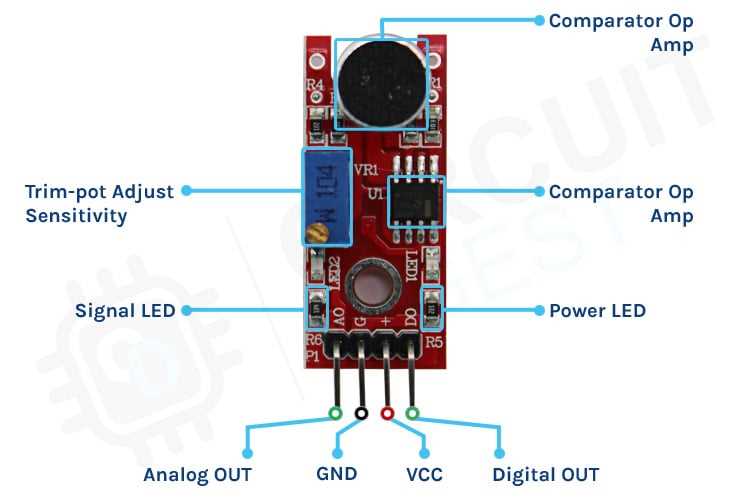

For threshold detection, incorporate a comparator circuit (LM393) with a 10 kΩ potentiometer for adjustable sensitivity. Set the reference voltage at 1.5 V for ambient noise rejection. Feed the comparator output to a transistor switch (2N2222) to drive a 5 V relay or LED indicator. Ensure power decoupling with a 100 µF capacitor across the supply rails to prevent false triggers.
Printed circuit layout demands ground plane isolation under the preamp section to avoid hum pickup. Keep signal traces shorter than 2 cm and use a star grounding scheme. For outdoor use, enclose the circuit in a shielded metal box with a foam-lined port for the pickup element to reduce wind interference.
Test with a calibrated 1 kHz sine wave at -20 dB from a signal generator. Verify the comparator toggles within ±50 mV of the threshold. For extended range, replace the electret with a piezo disc (resonant frequency 4 kHz) and adjust the high-pass filter to 200 Hz.
Constructing an Acoustic Detection Blueprint
Begin with an electret condenser capsule, such as the CMA-4544PF-W, configured as the primary signal capture element. Connect its output directly to a low-noise operational amplifier like the OPA340, using a single-supply configuration to simplify power requirements. Set the amplifier gain between 100–500 via feedback resistors (Rf = 100kΩ, Rin = 1–10kΩ) to accommodate environmental noise levels without clipping. Ensure the capsule’s ground reference is tied to a clean analog ground plane to minimize interference from digital circuits.
Signal Conditioning Pathways
Route the amplified signal through a high-pass filter (cutoff ~50Hz) using a 1µF ceramic capacitor and 3.3kΩ resistor to eliminate DC offsets and low-frequency rumble. Follow this with a precision rectifier circuit employing a dual op-amp like the LM358–configure the first stage for full-wave rectification and the second for buffering. For variable trigger thresholds, integrate a 10kΩ potentiometer between the rectifier output and a comparator (e.g., LM393), referencing a 2.5V midpoint from a voltage divider. This allows adjustable sensitivity tailored to ambient conditions.
Power the circuit with a regulated 5V supply, bypassing each IC’s power pins with 0.1µF and 10µF capacitors to suppress ripple. For microcontroller interfacing, add a 3.3V logic-level shifter (e.g., TXB0104) if connecting to a 3.3V system. Opt for a Schmitt-trigger input on the MCU (e.g., Arduino’s digital pins) to debounce the comparator’s output, reducing false triggers from spurious noise.
Critical traces–especially those carrying the raw capsule signal–should be no wider than 0.25mm and routed away from high-current paths. Place a 100nF decoupling capacitor within 1mm of the capsule’s power input to stabilize voltage fluctuations. For EMC compliance, envelop the entire capture component in a grounded copper pour on the PCB’s top layer, stitching it to the ground plane via vias every 5mm. Avoid crossing analog and digital traces perpendicularly to prevent crosstalk. Test the assembly with a 1kHz tone at 94dB SPL; output jitter should not exceed ±50mV at maximum gain.
Core Elements for Assembling an Acoustic Event Tracker
Start with a microphone capsule rated for the target frequency range–electret condensers like the CMA-4544PF-W offer a flat response from 20 Hz to 20 kHz, while MEMS alternatives such as the SPH0645LM4H provide built-in analog-to-digital conversion for direct interfacing with microcontrollers.
Incorporate an operational amplifier with low noise and high input impedance to pre-condition the signal; the MCP6002T-I/SL draws only 100 µA per channel and operates on single-supply voltages down to 1.8 V, making it ideal for portable builds. Alternatively, the OPA347 delivers a bandwidth of 3 MHz at unity gain, reducing phase distortion in fast transient events.
Signal conditioning demands precision–add a high-pass filter to eliminate DC offset and sub-audible rumble; a 0.1 µF coupling capacitor paired with a 1 MΩ resistor sets a cutoff around 1.6 Hz. For voice-band applications, a 300 Hz corner frequency using a 10 kΩ resistor and 53 nF capacitor ensures suppression of low-frequency interference without attenuating speech.
Integrate a comparator like the LM393 to digitize the envelope; adjust the threshold via a 10 kΩ potentiometer, feeding the output to an interrupt-capable GPIO pin. For more nuanced detection, swap the comparator for an ADC–an ESP32’s 12-bit SAR converter samples at 100 kHz, capturing transient details before they decay.
Power stabilization is non-negotiable–use a low-dropout regulator such as the TLV70033, which tolerates input spikes up to 16 V and outputs 3.3 V at 200 mA with
Finally, terminate unused op-amp channels by tying the non-inverting input to a reference voltage (VCC/2) and the inverting input to the output via 100 kΩ feedback resistor–this prevents latch-up and minimizes current draw. Ground the assembly through a star topology, isolating analog and digital returns to avoid crosstalk, especially if the board shares traces with inductive loads.
Step-by-Step Wiring Guide for Microphone-Based Detectors

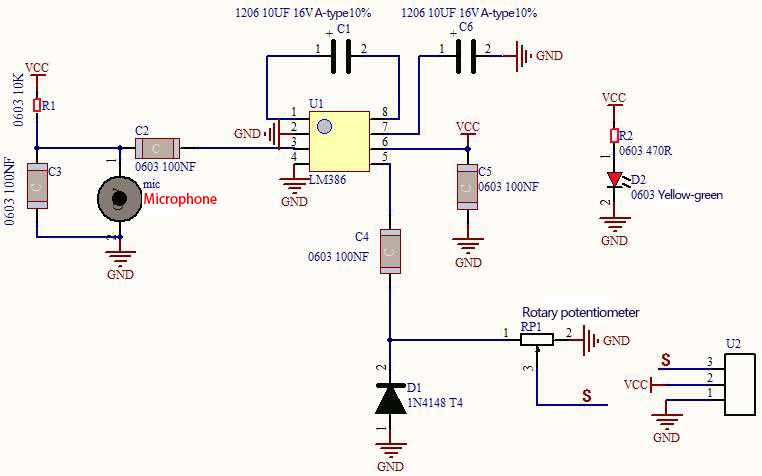

Connect a high-impedance electret capsule directly to an operational amplifier (op-amp) like the LM386 with a 10μF coupling capacitor between the mic output and op-amp input. Add a 1MΩ resistor from the mic’s positive terminal to VCC (3–12V) to set bias voltage, ensuring the capsule’s internal FET operates in its linear range. Skip additional pre-amplification stages if using an op-amp with a fixed gain of 20–200; the LM386’s built-in gain adjustment via pins 1 and 8 eliminates external resistors.
Critical Components and Values
- Electret capsule: Omnidirectional, 2-terminal (e.g., CMA-4544PF-W), +0.5–10dB sensitivity.
- Coupling capacitor: 10μF electrolytic (non-polarized for AC signals; X7R ceramic as alternative).
- Bias resistor: 1MΩ ±5% (adjust to 470kΩ–4.7MΩ for lower/higher sensitivity).
- Decoupling capacitor: 100nF ceramic between VCC and ground, placed ≤2mm from op-amp.
- Gain control: Short pins 1–8 on LM386 for 200x gain; add 1.2kΩ resistor in series with 10μF capacitor between pins 1–8 for 20x gain.
For noise suppression, route ground traces as a star topology, connecting all ground returns to a single point near the power supply. Use shielded cable (e.g., RG-174) for mic-to-op-amp connections longer than 5cm, grounding the shield only at the op-amp side. Calibrate detection thresholds by replacing the gain resistor with a 10kΩ trimpot in series with a 2.2kΩ fixed resistor, then adjust while monitoring output on an oscilloscope (target: 10–50mV peak for ambient noise, 200mV+ for signals). Secure the assembly in a grounded metal enclosure to reject EMI, drilling 3mm holes over the mic diaphragm for acoustic transparency.
Configuring Amplifier Stages to Enhance Signal Detection
Begin with a differential pair input stage to reject common-mode noise that degrades weak acoustic inputs. Use a JFET like the 2N5457 or a matched pair (e.g., SSM2212) with a tail current of 0.5–2 mA to balance high input impedance (>1 MΩ) and low noise (30–50% of their IDSS to avoid nonlinear distortion while maximizing transconductance. Decouple the power rails with 10 µF tantalum capacitors at each stage to suppress supply ripple, ensuring ripple rejection exceeds 90 dB.
Intermediate gain blocks should employ op-amps with low voltage noise, such as the OPA2134 (3.5 nV/√Hz) or LTC1050 (0.5 µVP-P noise). Configure each stage with a gain of 10–30 dB–higher values risk clipping on transients. Use RC networks (e.g., 1 kΩ + 100 nF) at inputs to roll off frequencies below 20 Hz, filtering DC offsets without Phase-lead compensation. For dynamic range expansion, add a compressor circuit using a JFET as a voltage-controlled resistor (e.g., 2N5486), adjusting the attack/release via 1 µF coupling capacitors and a threshold set by a 10 kΩ potentiometer.
For the output buffer, use a Class AB emitter follower (e.g., BC547/BC557 pair) or a dedicated buffer IC like the BUF634. Match the output impedance to the load–50–600 Ω for low-impedance systems–with a series resistor (20 Hz–20 kHz bandpass filter using a Sallen-Key topology (e.g., TL072) with Q = 0.7 to reject off-band interference while preserving transient fidelity. Test each stage with a -70 dBV (0.3 mVRMS) input signal, verifying output SNR exceeds 75 dB and THD stays below 0.05%.
Selecting the Optimal Comparator IC for Acoustic Event Detection
Start with the LM393 for low-power applications requiring basic threshold triggering. Its dual-channel configuration supports input frequencies up to 50 kHz, with a response time of 300 ns–sufficient for most clap or snap detection systems. Power consumption hovers at 0.4 mA per channel, making it ideal for battery-operated devices. Ensure input signals are pre-amplified to at least 50 mV to avoid false triggers.
For precision environments, the MAX913 delivers sub-nanosecond hysteresis control. Offering adjustable trip points via external resistors, it excels in rejecting ambient noise with a 2 mV built-in threshold window. Supply current peaks at 6 mA, but quiescent current drops to 2.5 mA. Use its latch feature to maintain state after transient events, though avoid capacitive loads over 100 pF to prevent oscillation.
High-speed scenarios demand the TLV3501. With a 4.5 ns propagation delay and 1.7 GHz gain-bandwidth product, it captures rapid acoustic spikes (e.g., gunshots or glass breakage). Operating voltage spans 2.7–5.5 V, but decouple power rails within 2 cm of the IC to suppress high-frequency noise. Pair with a 2-pole low-pass filter at 20 kHz to filter irrelevant signals.
Key Trade-offs
| IC | Response Time | Current Draw (Active) | Hysteresis | Best For |
|---|---|---|---|---|
| LM393 | 300 ns | 0.4 mA | Fixed (5–10 mV) | Battery devices, simple triggers |
| MAX913 | 25 ns | 6 mA | Adjustable (externally) | Precision, hysteresis control |
| TLV3501 | 4.5 ns | 4.5 mA | Fixed (2 mV) | High-frequency transients |
Temperature stability varies significantly among options. The LM393 exhibits a temperature drift of ±5 mV/°C, acceptable for indoor use, while the MAX913 reduces drift to ±0.5 mV/°C, critical for outdoor applications. The TLV3501 sacrifices drift performance (±2 mV/°C) for speed. For mission-critical deployments, add a thermistor network with a TCR of 3000 ppm/°C adjacent to the IC’s reference pin.
Avoid rail-to-rail input comparators unless signal swings exceed VCC–1.5 V. The LT1719 tolerates inputs beyond supply rails but introduces 100 ns delays per additional volt of headroom. Instead, use clamp diodes (e.g., 1N4148) on inputs exceeding ±0.3 V to prevent latch-up. For single-supply systems, the TS3021 eliminates crossover distortion with a common-mode range extending to VEE.
Output stage configuration impacts downstream circuitry. Open-collector types (LM393) require pull-up resistors (1 k–10 kΩ) and may need sink currents above 16 mA for interfacing with CMOS logic. Totem-pole outputs (TLV3501) drive capacitive loads directly but risk shoot-through currents during transitions. Use a 10 Ω series resistor for loads >50 pF to dampen ringing.
EMI susceptibility often necessitates shielded enclosures, but IC selection can mitigate issues. The MIC7220 integrates a 2 kV ESD protection clamp and withstands 5 kV surges per IEC 61000-4-2. Its 3 pF input capacitance minimizes high-frequency pickup. For wireless designs, position decoupling capacitors (100 nF X7R + 10 µF tantalum)
Cost-sensitive projects default to the LM311. Despite its 200 ns response time, it handles ±15 V inputs and outputs up to 50 mA, eliminating the need for additional transistors. However, its 2 mA quiescent current is unsuitable for ultra-low-power designs. For competitive pricing, bulk purchasing (
