Start by disconnecting the vehicle’s battery before handling any electrical components. Locate the harness adapter specific to your car model–common options include Metra or Scosche kits for seamless integration. Identify the power cables: the constant 12V (yellow) supplies memory, switched 12V (red) powers the unit when the ignition is on, and ground (black) must be secured to bare metal.
For speaker outputs, match the head unit’s color-coded wires to the vehicle’s harness: front left (+/-), front right (+/-), rear left (+/-), and rear right (+/-). Avoid twisting or soldering exposed wires; use crimp connectors or butt splices for reliable connections. If adding an amplifier, route the remote turn-on (blue/white) wire to trigger it–ensure it’s not connected to constant power.
USB and auxiliary inputs require direct wires to the device’s rear panel. For camera input, use shielded RCA cables to prevent interference. Test all connections before securing the unit in the dash–reattach the battery and verify power, sound, and display functions. If troubleshooting, check fuse ratings (typically 10A-15A) and ensure no wires are pinched or shorted behind the console.
Parking brake and reverse signal wires (green/violet and purple/white, respectively) must be properly spliced to enable safety features. For stealth installs, route excess wires under trim panels or behind the glovebox. Always consult the vehicle-specific pinout if the harness adaptor includes labeling discrepancies.
Connecting Your Multimedia System: Step-by-Step Installation
Begin by identifying the power harness’s red and yellow wires–these must connect to the vehicle’s fused ignition and constant 12V sources, respectively. Use a multimeter to verify voltage (12-14V) on both leads before splicing. Incorrect polarity risks damaging the unit’s internal circuitry or triggering a fuse blowout.
For audio output, strip the RCA cables to expose the copper core and shield. Secure them to the amplifier’s inputs with crimp connectors or solder, ensuring no strands touch adjacent channels. Label each pair (front/rear, left/right) with masking tape to prevent signal crossover during testing. Ground the shield at a single point near the chassis to minimize interference.
Handling Steering Wheel Controls and Antenna
Locate the aftermarket adapter for steering wheel interfaces–common models include Metra ASWC-1 or PAC RP4-CH11. Match the control wire colors from the vehicle’s harness to the adapter’s diagram, typically:
- Volume Up/Down: White
- Source/Mute: Blue
- Seek: Green
Skip this step if the vehicle lacks steering wheel buttons, but confirm with the manual to avoid false leads. For the antenna, use a 3.5mm coaxial adapter if the factory antenna lacks a Motorola-style plug.
Parking brake and reverse signal wires require precise placement. The parking brake input (usually pink) must connect to the handbrake switch, not the pedal–this prevents video playback restrictions while driving. The reverse signal (often purple) triggers the rear camera feed; verify its function by shifting into reverse and checking for an automatic display switch.
Finalize the setup by securing all connections with electrical tape or heat shrink tubing. Route cables away from moving parts and heat sources, using zip ties every 6 inches for strain relief. Power up the system and test each function: FM/AM reception, Bluetooth pairing, USB media, and camera feed. If the touchscreen flickers, recheck the ground connection–loose grounds cause erratic behavior.
Key Cables and Connection Points for Head Unit Integration

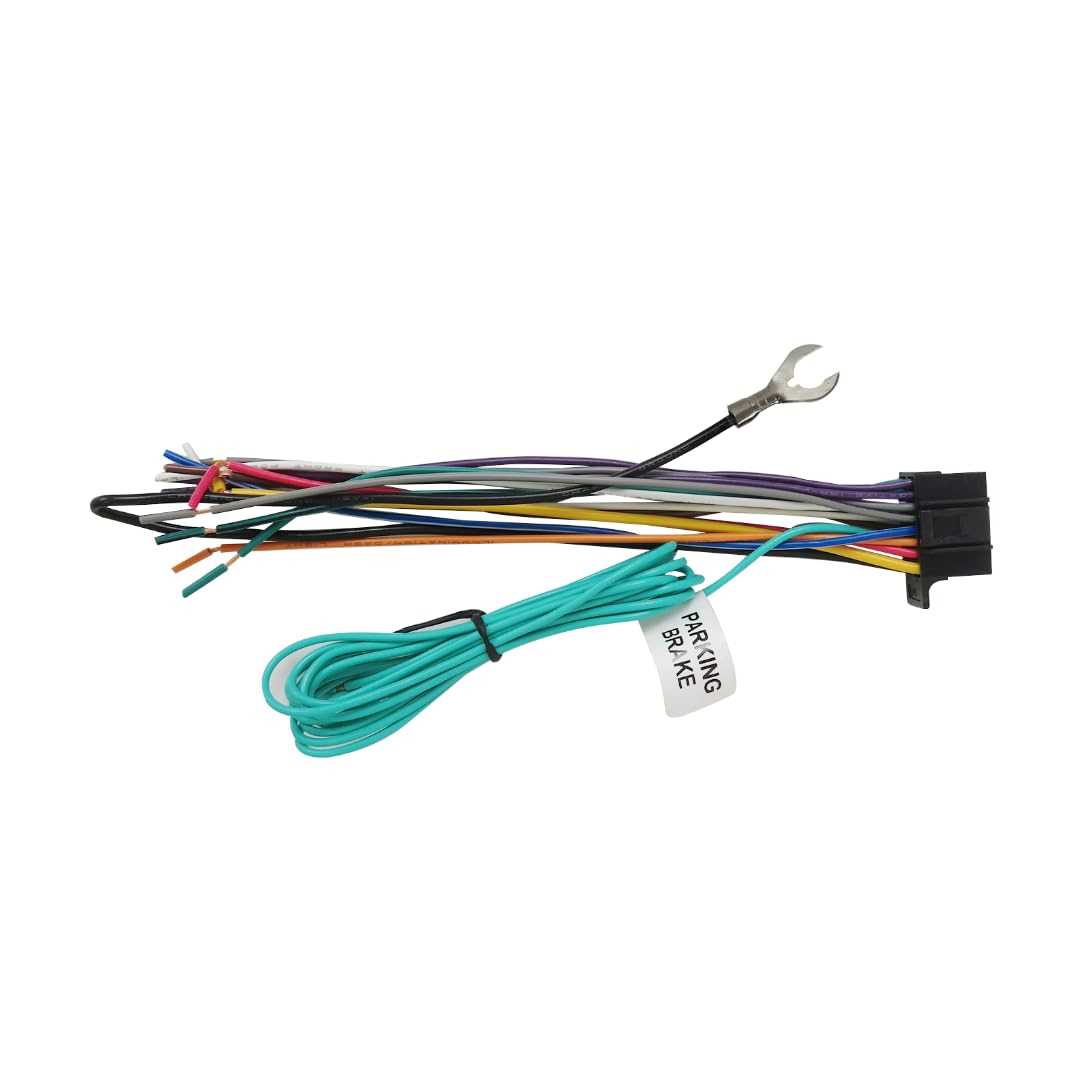

Begin by locating the 16-pin harness adapter included with your multimedia interface–this consolidates all necessary links into a single plug. Match each harness wire to the corresponding vehicle-side connector by color: yellow (constant 12V), red (switched 12V), black (ground), blue/white (antenna trigger), and orange (illumination). Verify your car’s harness documentation to confirm these assignments, as some models may invert red and yellow functions.
For audio output, pair the rear left/right RCA jacks with the preamp outputs on your amplifier or line-level converter. If retaining factory speakers, splice the green, purple, gray, and white wires from the harness directly into the OEM speaker leads–ensure polarity alignment by testing with a multimeter before finalizing connections. Avoid soldering without heat-shrink tubing to prevent corrosion.
Install a line-out converter (LOC) if your system lacks RCA preamp outputs. Connect the LOC’s power input to the red or yellow 12V line and ground it securely to chassis metal using a star washer for optimal conductivity. The LOC’s signal inputs attach to the speaker wires feeding your amplifier, while its outputs feed back into the 4-channel RCA jacks on the interface.
Route the steering wheel control adapter by identifying the data bus wires in your vehicle’s harness–typically white/black or brown/yellow striped. Connect these to the adapter’s input, then link the adapter’s output to the light blue and purple wires on the main harness. Use a resistance meter to confirm compatibility if controls fail to respond after installation.
Secure the parking brake bypass wire (usually pink or light green) to a switched 12V source only if your installation mandates its use for video functionality. For vehicles with manual transmissions, connect the reverse trigger wire (often purple/white) to the backup light circuit–this activates the rear camera input automatically. Test both functions before closing the dashboard.
Avoid using twist-and-tape splices for power and ground connections; instead, crimp butt connectors or solder joints reinforced with adhesive-lined heat shrink. For ground points, select unpainted metal near the interface’s mounting location–scratch away paint and corrosion before attaching the black eyelet terminal with a self-tapping screw rated for 10A minimum.
Label every cable with heat-resistant tags before routing them through the dash. Group power lines separately from signal cables to minimize interference, and use ferrite chokes on RCA runs longer than 18 inches. Double-check all connections against a pinout reference specific to your vehicle make–and disconnect the battery during splicing to prevent shorts.
Step-by-Step Power and Ground Connections for Your Multimedia Head Unit
Locate the yellow (constant 12V) and red (accessory/switched 12V) leads on the harness–these require direct connection to the vehicle’s battery-positive terminal via a 15A fuse within 30cm of the battery to prevent voltage drop. Strip 6mm of insulation from each wire, crimp ring terminals, and secure them to the battery post with a star washer to ensure corrosion-resistant contact. The black ground lead must terminate at a bare metal chassis point, ideally within 45cm of the unit’s mounting location–sand the paint down to exposed metal, apply dielectric grease to the connection, and torque the M6 bolt to 10-12Nm to avoid intermittent grounding.
Critical Connection Specifications
| Lead Color | Wire Gauge | Fuse Rating | Termination Method |
|---|---|---|---|
| Yellow | 18 AWG | 15A | Ring terminal + crimp |
| Red | 18 AWG | 10A | Ring terminal + crimp |
| Black | 16 AWG | N/A | Sand/chassis bolt |
Verify all connections with a multimeter–yellow should read 12.6V battery voltage, red should drop to 0V when the ignition is off, and chassis ground should show
Optimizing Speaker Connections and External Amplifier Setup for Car Media Units
Begin by identifying the factory speaker impedance ratings–most vehicles use 2-4 ohm nominal loads. The head unit’s internal amp delivers 20W RMS per channel into 4 ohms, but its performance degrades with lower impedances. For clean power delivery, wire front and rear channels directly to door or dash speakers without bridging. If bridging is unavoidable (e.g., for coaxial systems), ensure the combined load doesn’t drop below 4 ohms; otherwise, the unit may enter protection mode.
For aftermarket amplification, the RCA preouts (two pairs) support 2V output, sufficient for most compact amplifiers. Disable the internal amp by cutting the remote turn-on lead’s connection to the factory harness–this prevents signal interference. Connect the preouts to the amplifier’s line-level inputs using shielded RCA cables (minimum 18 AWG) to minimize noise, especially near power cables. Ground the amplifier’s chassis within 18 inches of the unit’s ground point to avoid ground loops.
Key Integration Steps for External Amplifiers
- Signal Sourcing: Tap the preouts *after* the head unit’s crossover filters (if enabled). Bypassing them risks sending full-range signals, forcing the amplifier to handle unnecessary bass.
- Power Distribution: Route the amplifier’s power cable (4 AWG minimum) directly from the battery, avoiding fusebox taps. Install an inline fuse (10A above the amplifier’s rated draw) within 18 inches of the battery terminal.
- Load Management: If adding subwoofers, split the preouts using a Y-adapter–but only if the amplifier’s input impedance exceeds 10k ohms to prevent signal degradation.
High-pass filters (HPF) on the head unit should be set to at least 80Hz for full-range speakers to protect tweeters from subsonic distortion. For component systems, pair the unit’s 12dB/octave slope with an external crossover’s steeper slope (24dB/octave) at the amplifier for precise handoff. Avoid daisy-chaining multiple filters; excessive attenuation creates phase cancellation.
Verify all connections with a multimeter before powering on. Measure DC offset at the preouts (should be
