For a seamless installation of your advanced head unit, focus on precise connection points. The main harness uses a 16-pin connector with distinct wire functions: yellow (12V constant), red (accessory), black (ground), and blue/white (antenna trigger). Verify these before proceeding–misaligned power sources can damage the device or cause intermittent issues.
Speaker outputs follow a standard color code: gray (front right positive), gray/black (front right negative), white (front left positive), white/black (front left negative), purple (rear right positive), and purple/black (rear right negative). Use a multimeter to confirm continuity in each circuit–factory stereos may have spliced or modified wires that contradict documentation.
Steering wheel controls require an adapter compatible with the vehicle’s protocol (CAN bus, resistive, or analog). Check resistance values between control wire and ground–typical ranges are 200–2,000 ohms for resistive systems. For optical parking sensors, ensure the pink/black wire connects to the vehicle’s reverse signal; incorrect routing will disable rear camera input.
Avoid soldering at the harness–use crimp connectors with heat-shrink tubing for durability. Secure loose wires with nylon ties every 15 cm to prevent rattling or shorts. After installation, test all outputs at 50% volume to detect clipping or phase issues before finalizing mounts.
Head Unit Connection Schematics: A Field-Tested Approach
Start by identifying the harness adapter matching your vehicle’s model year–OEM connectors vary even between trim levels of the same make. Use a multimeter in continuity mode to verify each pin’s function before connecting; mismatched wires risk permanent damage to the device’s power circuitry. The yellow (constant 12V) and red (switched 12V) leads must never be reversed–doing so drains the battery even when the ignition is off or blows the unit’s internal fuses.
The ground wire (black) requires a direct bolt connection to bare metal, not painted surfaces–secure it with a star washer to prevent oxidation. For vehicles with factory amplifiers, locate the remote turn-on lead (usually blue/white) and route it to the amp’s trigger input; skipping this step leaves speakers silent despite operational audio settings. Verify voltage drop across the ground path–values above 0.2V indicate corrosion or insufficient contact area.
Speaker wires follow a standardized color code: white/gray (front left), gray/black (front right), green/blue (rear left), and violet/red (rear right). Twist pairs together lightly before inserting into harness clips–this reduces interference from alternator whine or RF signals. For vehicles with polarity-sensitive systems, confirm correct phasing by playing a mono test tone; reversed connections create a hollow, unfocused soundstage.

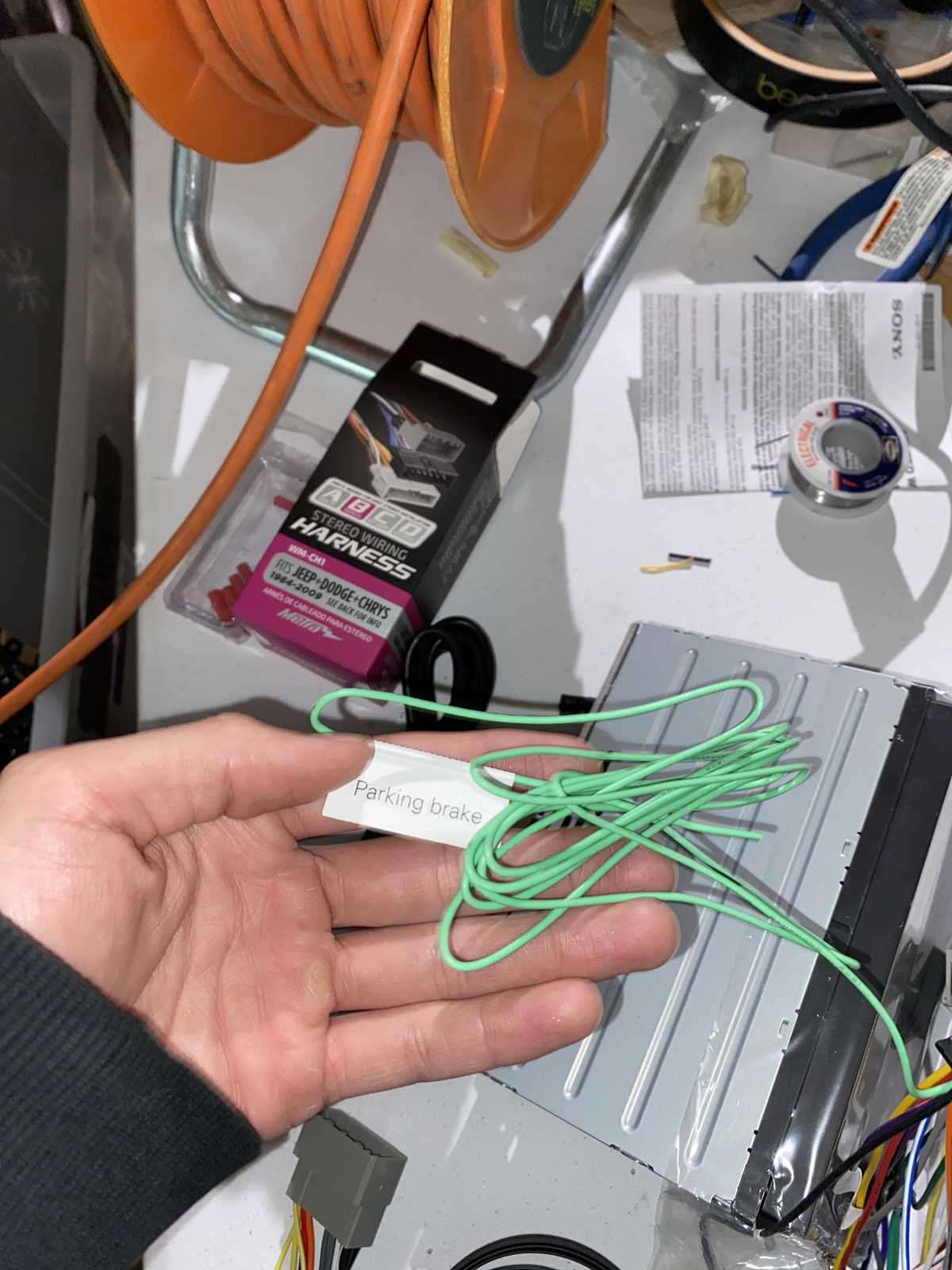

Parking brake and reverse signal wires (typically orange and purple) need direct integration with the vehicle’s safety circuits–bypass these and the unit defaults to safe mode, disabling navigation or video playback. For steering wheel control retention, pair a compatible adapter module; generic resistors rarely work across different vehicle platforms. Test each button’s function immediately after installation–failed adjustments require re-matching resistance values or checking harness integrity.
USB and RCA connections should be routed away from power cables to avoid signal degradation. Use shielded coaxial cables for RCA outputs if extending beyond 6 feet–unshielded runs pick up alternator noise under load. For vehicles with factory backup cameras, ensure the pink camera trigger wire aligns with the unit’s input; misrouted signals prevent automatic display switching when shifting into reverse.
Finalize by securing all connections with non-conductive tape–zip ties can chafe insulation over time. Power up the system and monitor for error codes during boot; persistent warnings often indicate misrouted CAN bus wires or insufficient current from the fuse rating. Adjust amplifier gains only after setting head unit volume to 80%–this prevents clipping during baseline audio testing.
Matching Wire Colors and Terminals for Head Unit Integration
Begin by locating the yellow cable in the vehicle’s harness–this carries the constant 12V power supply and must connect to the main unit’s battery input. Verify the wire’s voltage with a multimeter before securing; stray currents above 14.5V indicate a faulty alternator. Pair the red ignition wire to the car’s switched power source to enable startup only when the key is turned, preventing battery drain. If the head unit lacks a dedicated memory saver, disconnect the negative terminal before handling these leads to avoid short circuits.
The black ground line requires direct attachment to the vehicle’s chassis, preferably within 18 inches of the head unit’s mounting point. Sand away paint or corrosion at the connection site to ensure conductivity; a loose or oxidized ground can cause intermittent shutdowns or audio distortion. For speaker outputs, connect the gray (front right positive), gray/black (front right negative), white (front left positive), and white/black (front left negative) leads to their corresponding door or dash speakers–polarity matters to prevent phase cancellation. Rear channels follow a similar pattern with purple and green (positive) wires paired with their purple/black and green/black (negative) counterparts.
For amplifier triggers, use the blue/white remote turn-on wire, linking it to the amp’s remote input–this syncs power cycles between devices. If integrating steering wheel controls, splice the vehicle-specific adapter into the brown or orange data bus wire (varies by make) and confirm compatibility via the head unit’s interface settings. Double-check all connections with a wiring pinout specific to the car model; mismatches even in millimeter-scale deviations can disable features like parking sensors or rearview camera feeds.
Step-by-Step Power and Ground Connection Guide for the AX-Series Head Unit
Locate the ignition-switched power lead (typically a yellow wire, 16–18 AWG stranded copper) behind the dash fascia, adjacent to the fuse block. Strip 6 mm of insulation, crimp a 3 mm female spade terminal (UL-listed tin-plated), and slide it onto the corresponding fuse adapter (mini-blade, 10–15 A rating). Insert the adapter into the vacant slot labeled “ACC” or “IGN” in the vehicle’s fuse diagram–verify continuity with a multimeter set to 20 V DC before proceeding.
Ground the black chassis lead (minimum 14 AWG) to an unpainted steel mounting point within 45 cm of the head unit’s mounting cage. Sand the surface to bare metal using 120-grit emery cloth, apply dielectric grease (Dow Corning 4 Electrical Compound or equivalent), and secure with a stainless-steel M6x1.0 bolt torqued to 7–9 Nm. Avoid self-tapping screws longer than 12 mm; their threads create galvanic corrosion pathways that degrade signal integrity over time.
| Cable Gauge (AWG) | Max Current (A) | Recommended Fuse (A) | Termination Method |
|---|---|---|---|
| 18 | 8 | 7.5 | Butt splice + heat-shrink tubing |
| 16 | 13 | 10 | Ring terminal (vinyl-insulated) |
| 14 | 20 | 15 | Crimp + solder (60/40 rosin-core) |
Route the constant 12 V supply (red wire, 16 AWG) through a grommet in the firewall to the battery’s positive terminal. Install an in-line fuse holder (ANL type, 20 A rating) within 20 cm of the battery post–never tap into existing circuits carrying inductive loads (e.g., cooling fans, ABS modules). Use a 6-position distribution block (Blue Sea Systems 9013 or equivalent) to consolidate grounds; each circuit must have a dedicated path to the chassis to prevent ground loops.
Test all connections with a load simulator (e.g., 5 Ω resistive dummy load at 14 V) before finalizing the harness. Measure voltage drop across the ground path–values exceeding 0.1 V indicate poor conductivity requiring rework. Secure excess cable with nylon flat ties (Ty-Rap TY525M) every 15 cm, avoiding sharp edges and moving components like pedal assemblies or HVAC ducts.
After verifying voltage stability, energize the display and confirm the absence of radio frequency interference (RFI) using a portable spectrum analyzer (Tektronix RSA306B) set to 20 MHz–1 GHz span. If noise is detected, relocate the antenna cable (RG-58U, MMCX connector) at least 30 cm from power cables and add snap-on ferrite beads (Fair-Rite 0431177081) at both ends of the coax.
Proper Speaker Wire Connection Techniques for Your Car Media Receiver
Use a multimeter to verify polarity before attaching wires to the amplifier terminals. Set it to DC voltage mode, connect the probes to the loose ends of the speaker leads, and play a test tone. Positive voltage confirms correct alignment; reverse the wires if readings show negative.
Strip only 5–7mm of insulation from each wire end to expose copper strands. Excessive stripping weakens conductivity and increases short-circuit risks. Twist strands tightly to prevent fraying before inserting into terminal clamps.
Insert wires into the receiver’s spring-loaded terminals one at a time. Push the lever downward with a small flat-head screwdriver, slide the wire in until it stops, then release. Avoid forcing the lever–damaging it prevents secure connections.
For screw-type terminals, bend the wire end into a small hook (clockwise direction) to match the screw’s rotation. Tighten fully with a precision screwdriver, but don’t overtighten–excess torque strips threads or crushes wire strands, reducing signal quality.
Secure loose wires with zip ties spaced every 15cm along their length. Route them away from moving parts (seat rails, pedals) and heat sources (exhaust, engine bay). Leave 3–5cm slack at connection points to prevent tension during vehicle movement.
- Test volume levels at half maximum for 30 seconds before finalizing connections. Sudden distortion or popping noises indicate faulty grounding or reversed polarity.
- Avoid soldering wires to factory harnesses–heat damage voids warranties and degrades sound fidelity over time.
- Use oxygen-free copper wires (18–16 AWG) for optimal signal transfer. CCA (copper-clad aluminum) alternatives corrode faster and require frequent replacements.
Insulate all terminal connections with heat-shrink tubing or electrical tape rated for automotive use. Standard PVC tape degrades under heat and vibration, exposing wires to moisture and shorts. Apply tubing before tightening screws to ensure full coverage.
After installation, verify all connections with a continuity test. Disconnect the battery first to prevent accidental shorts. Recheck every 6 months–corrosion or loosening occurs even with secure initial setups.
