Begin with a DC combiner box rated for 1.2 times the maximum system voltage, even if panel strings operate at 1,000V. Use MC4 connectors with a minimum of 20A capacity and tinned copper wiring (6 AWG for currents above 50A) to prevent oxidation and resistive losses. Integrate a class II SPD (surge protective device) on both DC and AC sides, positioned within 30 cm of the inverter input terminals to mitigate transient spikes from nearby lightning strikes.
Select MPPT charge controllers with a tracking efficiency above 98% and a maximum input voltage of 150V for 12/24V battery banks. For off-grid applications, incorporate a PWM controller only if cost constraints are critical–its efficiency drops to 70% under partial shading. Ensure fuse holders are DIN rail-mounted with fast-acting 10xIn fuses to isolate faults within 100 ms. Place shunt resistors (0.001 Ω, 1% tolerance) in series with battery banks to monitor current flow via a Hall-effect sensor for accurate SOC (state of charge) calculations.

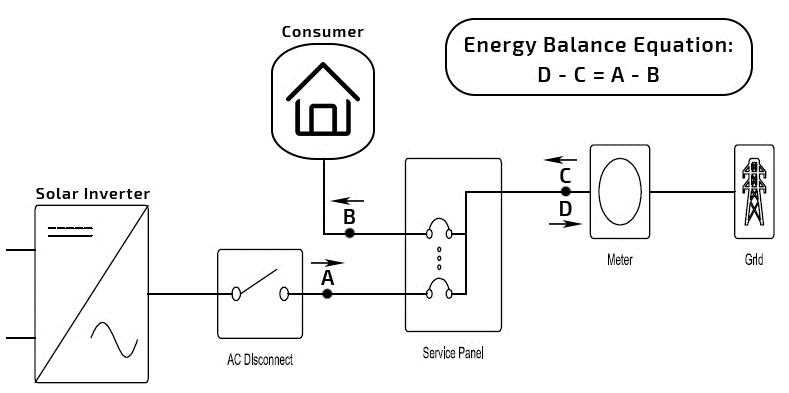

For grid-tied systems, use a transformerless inverter with a leakage current sensor (≤30 mA threshold) to comply with IEC 62109-2. Verify neutral-ground bonding at the main service panel–never bond at the inverter output. Include anti-islanding protection with a response time under 2 seconds and grid voltage/frequency monitoring set to trip at ±5% nominal values. Opt for three-phase inverters with true sine-wave output (THD
Label every component with heat-shrink tubing and vinyl wire markers (minimum 4 mm width) detailing voltage, current, and wire gauge. Store schematic backups in vector format (DXF/SVG) to allow scaling without resolution loss. Test insulation resistance (≥1 MΩ at 500V DC) before commissioning, and conduct thermal imaging on connectors after 24 hours of full-load operation to identify hotspots. Replace any connector exceeding a 30°C temperature rise above ambient.

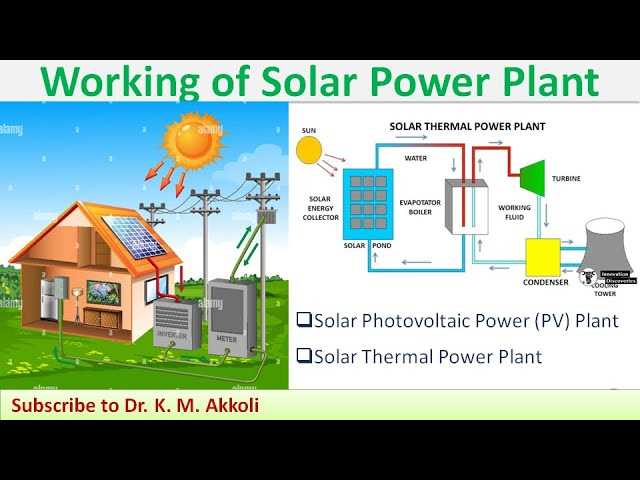

Key Components of a Photovoltaic Energy System Schematic
Start with a DC combiner box rated for at least 1.25 times the short-circuit current of your panel array. For a typical 400W module with an Isc of 11A, this means a minimum 14A fuse per string. Overlooking this leads to overheating risks in junction terminals–opt for UL-listed terminal blocks with a 90°C temperature rating or higher.
Position the charge controller within 5 meters of the battery bank to minimize voltage drop. MPPT units outperform PWM when panel voltage exceeds battery voltage by 5V or more. A 150V/20A MPPT controller handles strings up to 12 panels in series at 24V nominal, but derate by 25% if ambient temps exceed 45°C.
Select inverter wiring based on continuous load, not surge. A 3kW inverter drawing 12.5A at 240V AC requires 10AWG copper wire for runs under 10m, but step up to 8AWG if length exceeds 15m. Double-check torque specs on terminal screws–most inverter failures trace back to loose connections causing arcing at 3Nm+.
Grounding rods should penetrate 2.5m into moist soil with a resistance below 25Ω. For rocky terrain, use chemical grounding rods with backfill compounds like bentonite. Bond all metal enclosures to the same ground busbar using 6AWG copper wire, verified with a megohmmeter after installation.
Integrate a DC disconnect switch rated for 1.5x the array’s Voc. For cold climates (-20°C), derate panel specs: a 60-cell module typically drops Voc from 40V to 36V. Position the switch before the controller to isolate the array during maintenance–IGBT failures in controllers often occur if this step is skipped.
Use battery interconnects sized for 3% voltage drop maximum. A 200Ah LiFePO4 bank at 48V with 10m leads needs 2/0AWG copper, but AGM batteries require 1/0AWG due to higher charge acceptance. Install a 120A DC breaker between bank and inverter to prevent catastrophic short circuits, derated to 90A in high-ambient installations.
Label every wire with printed vinyl sleeves (not handwritten) including function, voltage, and fuse rating. Color-coding alone fails in low-light conditions. For DC wiring, use red for positive, black for negative–never reverse polarity. AC wiring follows local codes: brown/blue in EU, black/white in US. Include a one-line schematic laminated at the installation site for troubleshooting.

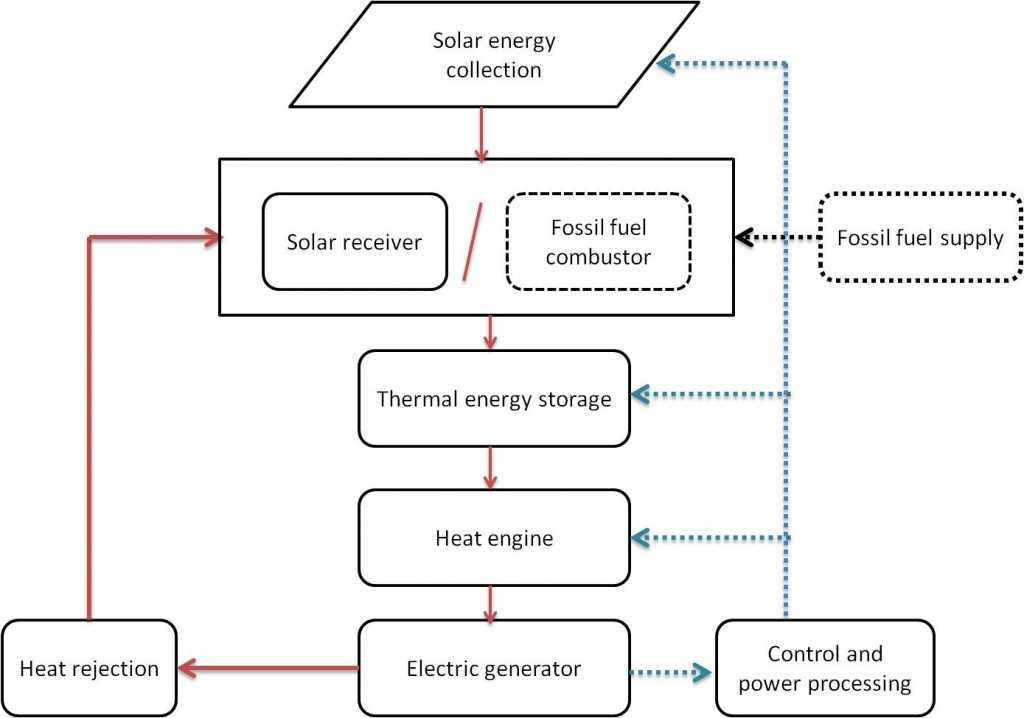

Critical Elements of Photovoltaic Energy Systems
Select monocrystalline silicon panels with efficiency ratings above 20% to maximize yield per square meter. Brands like LG NeON R, SunPower Maxeon, and REC Alpha deliver long-term performance, degrading at less than 0.5% annually. Pair these with microinverters–Enphase IQ8 or Hoymiles HMS–rated for 97% conversion efficiency to eliminate single-point failures. Mount panels at a fixed tilt angle calculated as latitude minus 15° for optimal irradiance capture, adjusting no more than twice yearly.
- Bypass diodes must be integrated every 20–24 cells to prevent hot-spot formation under partial shading.
- Use 6mm2 UV-resistant copper cabling for DC strings to minimize voltage drop (target <1.5% loss).
- Install surge arrestors on both DC and AC sides, specifically Class II devices with 10kA discharge capacity.
- Grounding copper rods should penetrate 2.4m into soil with resistivity below 10 Ω·m; treat soil with magnesium sulfate if needed.
Energy Storage and Grid Integration
Opt for lithium iron phosphate (LFP) batteries with a cycle life exceeding 6,000 cycles at 80% depth of discharge. Brands like Pylontech UP5000 or BYD B-Box Pro offer integrated battery management systems (BMS) monitoring cell voltage within 1–2mV tolerance. Size storage at 1.2–1.5× daily consumption to accommodate 2–3 days of autonomy.
- Grid-tied inverters must comply with IEEE 1547, featuring anti-islanding protection and reactive power control (PF = 0.8 leading/lagging).
- Include a revenue-grade meter (ANSI C12.20 Class 0.2) downstream of the inverter for net metering precision.
- Deploy remote monitoring via cellular modems or RS-485 to Modbus gateways–update firmware quarterly to patch vulnerabilities.
Step-by-Step Wiring for Photovoltaic Modules to Energy Converter
Begin by verifying module specifications against converter input limits. Most residential converters handle 24V or 48V DC systems, while string arrays typically produce 30V–60V per panel in full sunlight. Check the open-circuit voltage (Voc) on module labels–it must never exceed the converter’s maximum DC input voltage, typically 150V–600V for grid-tied setups. For example, connecting four 40V modules in series yields 160V DC; ensure the converter’s upper threshold exceeds this value by at least 10% to account for temperature fluctuations.
Configure the array layout before wiring. Parallel connections boost current but demand thicker cables; series connections multiply voltage but increase shading sensitivity. Use 10AWG copper wire for runs under 10 meters and 8AWG for longer distances to minimize voltage drop. Calculate wire gauge with Ohm’s law: for a 10m run at 8A and 3% permissible loss (≈1.44V at 48V), resistance per meter should not exceed 0.018Ω. Refer to this table for quick cross-reference:
| Wire Gauge | Max Current (A) | Voltage Drop per 10m at 8A (V) | Suitable for |
|---|---|---|---|
| 10 AWG | 30 | 0.6 | Short runs <15m |
| 8 AWG | 40 | 0.38 | Runs 15–30m |
| 6 AWG | 55 | 0.24 | Long runs >30m |
Grounding and Protection
Install a combiner box between modules and converter. Equip it with fuses or circuit breakers sized at 1.25× the short-circuit current (Isc) of the array. For instance, if each module has Isc=9A, a 12A fuse suffices for two parallel strings. Ground all metal frames using 6AWG bare copper wire tied to a grounding rod driven 2.4m into soil with resistivity ≤25Ω. Converters require dedicated grounding–consult NEC Article 690.43 for bonding requirements.
Final Connection Sequence
Connect the positive and negative leads from the combiner box to the converter’s DC terminals, ensuring polarity matches manufacturer markings. Tighten terminal screws to 2.5Nm torque. Before energizing, verify insulation resistance with a megohmmeter: measurements should exceed 1MΩ between live conductors and ground. Energize the converter in test mode first, monitoring input voltage and current on the display–discrepancies greater than 5% indicate wiring errors or mismatched module performance.
Battery Bank Integration and Regulator Configuration
Select a charge controller with a 20-30% higher current rating than the photovoltaic array’s short-circuit current to prevent overheating during peak irradiance. For a 48V system, pair it with a PWM regulator if the battery capacity exceeds 300Ah–MPPT versions offer minimal gains at this scale and introduce unnecessary complexity. Wire the regulator’s input directly to the combiner box using 6AWG stranded copper for distances under 15 meters; switch to 4AWG if voltage drop exceeds 0.5V during full load. Ground the negative busbar of both the controller and battery bank at a single point to avoid ground loops, using a 1/0 AWG bare copper conductor buried in a 60cm-deep trench with chemical grounding rods.
Battery Interconnection Methods
Use 2/0 AWG flexible welding cable for series-parallel connections in a 4x12V battery bank to minimize resistance; crimp lugs with a hydraulic crimper and apply heat-shrink adhesive sleeves. For flooded lead-acid units, maintain equal string voltages within 0.1V by balancing charging cycles–employ a shunt-based monitor measuring individual bank currents rather than relying on regulator metrics. Lithium iron phosphate arrays require a battery management system with cell-level balancing; ensure the BMS’s communication protocol matches the controller (CAN bus for Victron, RS485 for MidNite). Position the battery bank indoors with a 1:1.5 ventilation ratio–two 100mm ducts (intake low, exhaust high) for every 10kWh of storage–to prevent hydrogen accumulation.
Set the regulator’s absorption voltage at 56.4V for sealed AGM at 25°C, reducing by 0.18V per °C above 25°C; float voltage should be 54.0V adjusted similarly. Program a 3-stage charging profile with a 2-hour absorption duration–extending beyond increases electrolyte loss without improving capacity. For systems with variable cloud cover, enable a dynamic equalization cycle triggered at 80% state of charge twice monthly; limit duration to 1 hour at 60.0V to avoid gas venting. Test charge efficiency quarterly by logging watt-hours in versus watt-hours out under controlled conditions (50% DoD, 0.2C discharge rate)–a deviation exceeding 8% indicates sulfation requiring desulfation mode engagement.
