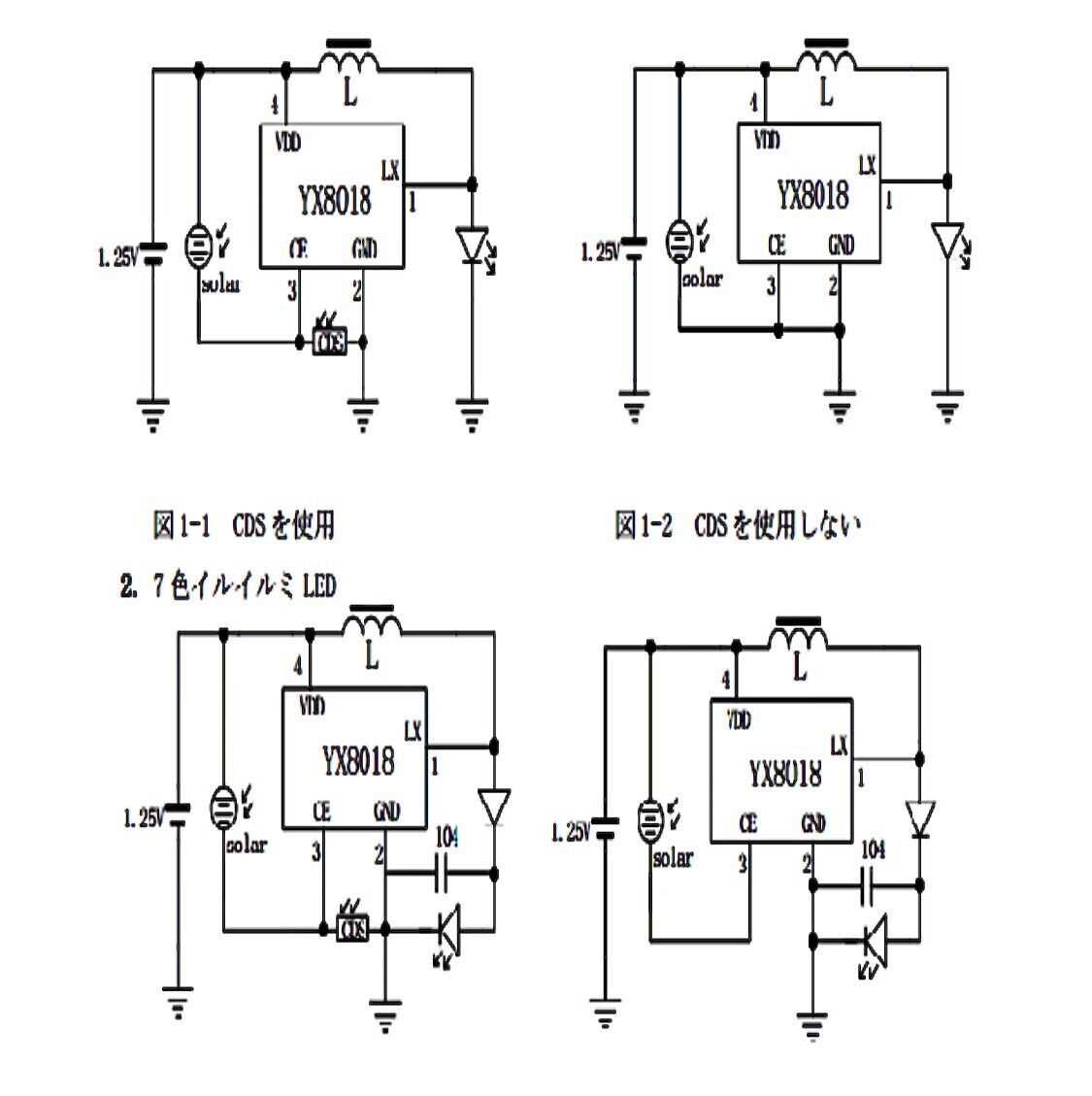

Begin with a 6V polycrystalline panel paired to a 2200mAh NiMH battery–this tandem ensures stable charge retention during intermittent sunlight while minimizing voltage sag under load. Configure a Schottky diode (1N5817) at the panel’s output to prevent reverse current leakage at night; generic silicon diodes introduce unnecessary forward voltage drops (~0.7V) that erode efficiency.

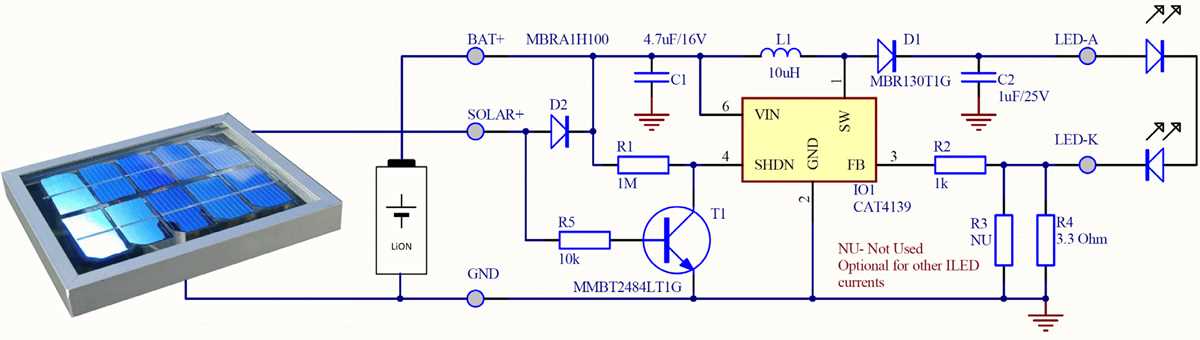

Select a buck converter (LM2596) for precise luminosity regulation–constant-current drivers (e.g., CAT4101) outperform resistive dimming, maintaining consistent radiance across battery voltage swings. For multi-diode assemblies, wire LEDs in series (3×3.2V) to match panel voltage, eliminating the need for additional step-down components that introduce switching noise.
Integrate a MOSFET (IRFZ44N) as a low-side switch to control on/off cycles via a microcontroller (ATTiny85). Use a 10kΩ pull-down resistor to prevent floating gate voltages, which cause erratic flickering. For solar tracks below 1W, omit the microcontroller–opt for a light-dependent resistor (GL5528) coupled to a transistor (2N3904) for automatic dusk-to-dawn activation.
Place electrolytic capacitors (470µF) at the battery terminals to smooth voltage ripples; ceramic capacitors (0.1µF) near the LEDs filter high-frequency noise from the converter. Test the assembled schematic under 200 lux (cloudy conditions) to verify the panel’s minimum operating threshold–any design failing this benchmark requires larger panel surface area or reduced LED count.

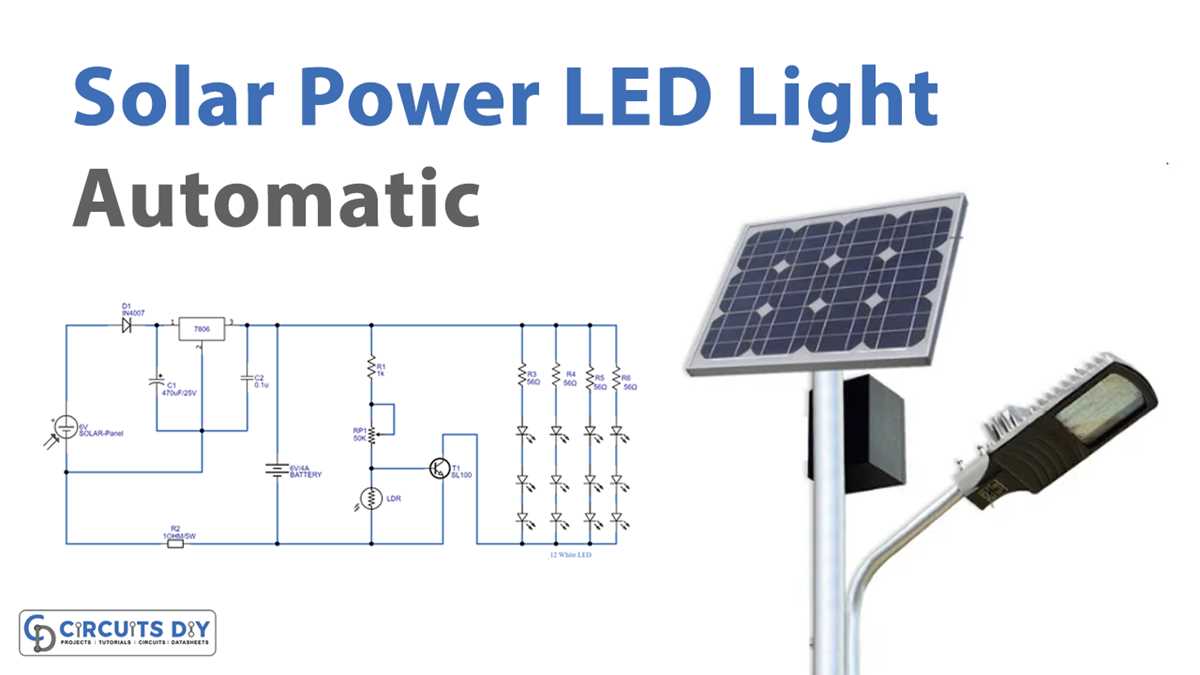

How to Assemble a Photoelectric Illumination Scheme
Begin by selecting a photovoltaic panel rated for at least 6V output under direct sunlight to ensure adequate charging of a single 18650 lithium-ion cell. Pair the panel with a low-dropout voltage regulator like the MCP1700, configured to step down to 3.3V for consistent power delivery to the light-emitting components. Verify the regulator’s quiescent current remains below 2μA to minimize parasitic drain during nighttime operation, preserving stored energy for prolonged dark periods.
Integrate a blocking diode such as the 1N4007 directly after the solar array to prevent reverse current flow when illumination levels drop, ensuring the battery recharges efficiently without premature discharge. Use a light-dependent resistor (LDR) with a resistance range of 10kΩ (dark) to 1kΩ (bright) to trigger a hysteresis comparator circuit–employ an LM393 for this purpose–designed to activate the illumination only when ambient lux falls below 10. This prevents flickering at dusk or dawn while optimizing energy conservation.
- Match the resistor values in the comparator to achieve a 2V reference voltage, ensuring reliable switching.
- Select a low-forward-voltage white emitter (e.g., Cree XQ-E, Vf=2.85V @ 350mA) to maximize luminous efficacy per milliamp-hour.
- Add a 1000μF smoothing capacitor across the battery terminals to mitigate voltage spikes during sudden insolation changes.
For extended runtime, incorporate a microcontroller like the ATtiny85 programmed with sleep-mode interrupts, reducing standby consumption to less than 1μA. Connect the LDR output to an interrupt pin to wake the controller only when illumination enable conditions are met, enabling PWM dimming (100Hz, 50% duty cycle) for balanced brightness and energy use. Test the assembly under controlled lighting–simulate 500 lux for “day” and 0 lux for “night”–to validate the comparator’s 30-second delay before activation, preventing false triggers.
Core Elements for a Self-Sustaining Photovoltaic Lighting Setup
Begin with a compact 6V monocrystalline panel rated at 2W–this strikes the optimal balance between size and output for small-scale applications. Polycrystalline alternatives underperform in low-light conditions by up to 20%, making them unsuitable for indoor or shaded environments. Verify the panel’s open-circuit voltage exceeds 7V to compensate for minor voltage drops during charging cycles.
A lithium-ion rechargeable battery with a 3.7V nominal rating (e.g., 18650 format) delivers the necessary capacity without excessive bulk. Avoid nickel-metal hydride cells; their higher self-discharge rate (up to 30% per month) undermines efficiency. Pair the battery with a TP4056 charge controller–pre-soldered modules simplify assembly, handling overcurrent protection and voltage regulation down to 3.3V for consistent luminosity.
Critical Peripheral Components
For illumination, select a 1W phosphor-converted white emitter with a forward voltage of 3.2–3.6V. Higher wattage models require heat sinks, adding complexity and weight. Attach a 100Ω resistor in series if driving the emitter directly from the battery to prevent thermal runaway–omit this only if using a dedicated constant-current driver board.
Incorporate a Schottky diode (e.g., 1N5817) between the panel and battery to block reverse current flow during darkness. Standard silicon diodes introduce unnecessary voltage losses (~0.7V), reducing charging efficiency. For automated operation, add a simple NPN transistor (2N3904) or MOSFET (IRFZ44N) as a switch, triggered by a light-dependent resistor (5528) with a 10kΩ pull-down resistor to dim the light below 5 lux.
Use 22-gauge stranded copper wire for all connections–thinner wires (e.g., 28-gauge) introduce resistance losses, while thicker ones add unnecessary weight. Secure joints with lead-free solder; crimp connectors introduce intermittent failures under vibration. Test the entire assembly under a 40W halogen bulb at 30cm distance–output should stabilize within 10 minutes, reaching 70–80% of nominal charge current.
Step-by-Step Wiring Guide for a 12V Photovoltaic Lighting System
Begin by connecting the battery’s positive terminal to the charge controller’s “Battery +” port using 10AWG wire, securing it with a crimped ring terminal. Measure voltage drop across the connection–it should not exceed 0.2V under load. If higher, re-crimp or upgrade to 8AWG. Repeat for the negative terminal, ensuring polarity matches the controller’s labeling. Most 15A-rated controllers tolerate up to 200W panel input, but verify yours against the manufacturer’s specs in the table below before proceeding.
| Component | Max Current (A) | Wire Gauge (AWG) | Voltage Drop Limit (V) |
|---|---|---|---|
| Controller to Battery | 15 | 10 | 0.2 |
| Panel to Controller | 10 | 12 | 0.3 |
| Controller to Lamps | 5 | 14 | 0.15 |
Panel and Luminaire Integration
Attach the photovoltaic module’s positive lead to the controller’s “PV +” input with 12AWG wire, using MC4 connectors for outdoor-rated strain relief. A 20A inline fuse within 15cm of the panel’s junction box prevents reverse current at night. For multiple luminaires, wire in parallel–never series–to maintain consistent brightness. Terminate each strip’s positive/negative leads at a 6-position terminal block, then run a single 14AWG cable back to the controller’s “Load” output. Test continuity with a multimeter; resistance should read under 1Ω across the entire path.
Selecting the Optimal Photovoltaic Module for Your Lighting Demand
Choose a panel with a wattage rating at least 30% higher than your luminaire’s continuous power consumption. A 5W lamp requires a minimum 6.5W module to account for efficiency losses, voltage drops, and ambient light fluctuations. Monocrystalline cells yield 18-22% efficiency, outperforming polycrystalline (15-18%) in low-light conditions.
Match the panel’s voltage output to your battery’s charging requirements. A 12V nominal system needs a module producing 17-21V open-circuit voltage to ensure proper charge termination. Check the IV curve: panels with a sharp knee at the maximum power point charge faster during partial cloud cover.
Size the module to your geographic irradiance. Regions averaging 4.5 kWh/m²/day need 1.5× the panel area of those receiving 6 kWh/m²/day for equal output. Use the following daily energy targets per watt of lighting load:
- Sunbelt zones (Phoenix, Dubai): 6.2 Wh/W
- Mid-latitudes (Berlin, Toronto): 3.8 Wh/W
- High latitudes (Oslo, Fairbanks): 2.5 Wh/W
Key Specifications to Verify
- Temperature coefficient below -0.35%/°C for stable performance at elevated temperatures
- Bypass diodes in every 20-cell substring to prevent partial shading losses
- Junction box rated IP67 with MC4 connectors for outdoor durability
- Frame anodized aluminium ≥1.5mm thickness for wind load resistance
Prioritize panels with a linear performance warranty covering ≥80% output after 25 years. Tier-1 manufacturers typically guarantee ≤0.7% annual degradation, while budget options degrade 1-2%. Request flash test reports to verify nameplate wattage.
Calculate your load’s daily amp-hour requirement then multiply by 1.6× to determine battery capacity. Divide by 0.7 (depth of discharge) and by 0.85 (round-trip battery efficiency) to get the necessary panel output. Example: a 2A, 12V luminaire running 8 hours nightly needs 16Ah daily → 24Ah battery → 30W module.
Installation Factors
- Tilt angle: latitude ±15° for seasonal optimization
- Azimuth: true south (northern hemisphere), true north (southern hemisphere)
- Clearance: minimum 3x panel width below to prevent soiling
- Mounting: stainless steel hardware with nylon washers to prevent galvanic corrosion
Integrate an MPPT controller for panels above 50W; PWM suffices for smaller systems. Charge controllers should handle 125% of the panel’s short-circuit current. Add a low-voltage disconnect ≥11.9V to protect batteries from overdischarge.
