For reliable low-voltage outdoor fixtures, use a 1N5817 Schottky diode to prevent battery drain during dark periods. Connect the photovoltaic panel output directly to the diode’s anode, then route the cathode to a 6V 4.5Ah sealed lead-acid battery. Avoid generic silicon diodes–voltage drop of 0.6V wastes 10-15% of harvested energy. Position the panel at a 30-40° tilt facing true south (Northern Hemisphere) for optimal irradiance capture between 10 AM and 3 PM.

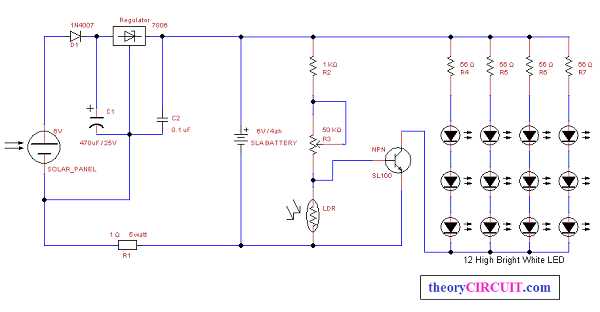

Integrate a MIC2779L battery charger IC for precise voltage regulation. The IC’s VSET pin should link to a 10kΩ resistor divider to clamp charging at 7.2V, preventing overcharge of the 6V battery. Place a 100μF 16V electrolytic capacitor between the IC’s VCC and GND to stabilize transient spikes from the panel. For load control, pair a 2N3904 transistor with a GL5528 photoresistor–set the bias resistor to 47kΩ for dusk activation at 10 lux.
Use 18 AWG tinned copper wire for all connections to minimize I²R losses; stranded wire resists vibration better than solid core. Solder joints must be encapsulated in heat-shrink tubing with adhesive lining to prevent corrosion in humid conditions. For LED selection, Cree XP-E2 emitters offer 130 lm/W efficacy–drive them at 350 mA with a MT3608 boost converter configured for 3.3V output. Bypass capacitors of 0.1μF should sit within 5mm of each LED to suppress EMI.

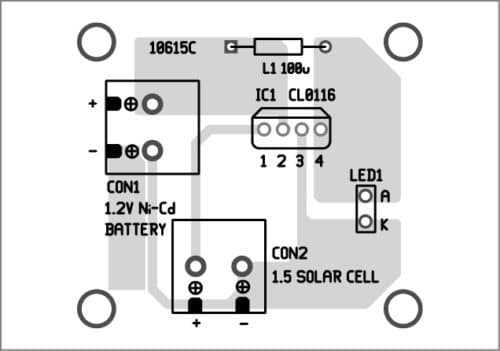

Route all traces on a FR-4 PCB with 2 oz copper; use 6 mil minimum trace width for current paths exceeding 500 mA. Enclose the assembly in a polycarbonate IP65-rated housing with UV-stabilized additives–standard acrylic yellows within 18 months in direct sunlight. Ground the metal fixture base to a copper rod driven 0.6m into moist soil to prevent static buildup from degrading semiconductor junctions.
Designing Outdoor Illumination Systems
Begin with a 6V monocrystalline panel rated for at least 2W output under direct sunlight. Pair it with a 3.7V lithium-ion rechargeable cell (18650 type, 2000mAh minimum) for optimal energy storage. Use a low-dropout Schottky diode (1N5817) between the panel and battery to prevent backflow at night, ensuring a forward voltage drop below 0.3V. For regulation, select a TP4056 charging module with overcharge and overdischarge protection to extend battery lifespan.
LED selection determines efficiency: white 5mm diodes with 20mA current draw and 3.2-3.4V forward voltage provide the best luminous efficacy. Connect two to four LEDs in parallel, each with its own 100Ω current-limiting resistor to balance brightness and prevent thermal runaway. Calculate resistor values using R = (Vsource – VLED) / ILED, where Vsource equals battery voltage (4.2V fully charged), VLED is 3.3V typical, and ILED is 0.02A. Test resistor tolerance (±5%) before soldering.
| Component | Specification | Substitute |
|---|---|---|
| Photoresistor | 5528 (10-20kΩ dark/100-200Ω light) | GL5528 |
| MOSFET | IRF540N (logic-level, 10A) | IRLZ44N |
| Timing IC | NE555 (astable mode) | LMC555 (CMOS) |
Automatic activation requires a light-dependent switch. The GL5528 photoresistor paired with an N-channel MOSFET (IRF540N) creates a reliable on/off trigger. Set the threshold by adjusting the potentiometer (10kΩ) in series with the photoresistor: aim for 2kΩ resistance at twilight (20-50 lux). For pulsing effects, integrate an NE555 timer in astable configuration with R1=1MΩ, R2=470kΩ, and C=10µF to generate a 0.5Hz blink interval.
Housing materials impact longevity. Use IP65-rated polycarbonate for the enclosure with UV stabilization to resist yellowing. Mount the panel at a 30-45° angle facing true south (Northern Hemisphere) to maximize daily energy harvest. Apply a thin layer of silicone conformal coating to the PCB to prevent moisture ingress, focusing on solder joints and component leads. Test the system for 72 hours under varying weather conditions, monitoring battery voltage (should not drop below 3.5V at full discharge) and LED brightness consistency.
Critical Parts for Building an Outdoor Photovoltaic Illumination System
Start with a polycrystalline photovoltaic panel rated at 6V/1W minimum–opt for monocrystalline if space allows, as efficiency rises by 15-20% under identical conditions. Pair it with a NiMH or Li-ion rechargeable cell (1.2V for NiMH, 3.7V for Li-ion) sized to hold at least 1.5x the panel’s daily output to counteract voltage drops during overcast conditions. A low-voltage disconnect (LVD) IC like the TP4056 or MCP73831 prevents deep discharge, extending cell lifespan by 30-40%. Add a Schottky diode (1N5817) in series with the panel to block reverse current at night; silicon diodes introduce unnecessary 0.7V losses.
For illumination, prioritize white 5mm LEDs with a forward voltage of 3.0-3.3V and 20mA current rating–use resistors calculated via (Vsource – VLED) / ILED to avoid thermal runaway. A MOSFET switch (e.g., IRLML6401) toggled by a light-dependent resistor (LDR) automates dusk/dawn operation with a 10kΩ-1MΩ potentiometer to fine-tune sensitivity. For stability, include a 100µF electrolytic capacitor across the cell to smooth ripples, and a 0.1µF ceramic capacitor near the IC to filter high-frequency noise. Verify all joints with a multimeter to ensure resistance below 0.2Ω before powering the assembly.
Step-by-Step Wiring Guide for Photovoltaic Panel to Energy Storage Connection
Select a charge controller with a current rating 20% higher than the panel’s short-circuit current (Isc). For a 10W monocrystalline module, this typically means a 1A controller minimum. Skipping this step risks overheating the diodes in low-quality controllers, reducing efficiency by 15-25% over time.
Use 16-14 AWG copper wire for distances up to 2 meters; increase to 12 AWG for longer runs to prevent voltage drop exceeding 3%. Tin the stripped ends of wires before soldering to the controller’s terminals–untinned connections corrode 5x faster in outdoor conditions. Apply heat-shrink tubing or liquid electrical tape to seal exposed conductors.
Battery Selection and Polarization
Prioritize deep-cycle energy cells with a C20 discharge rate matching the panel’s daily output. For example, a 12V 7Ah battery pairs optimally with a 20W panel generating ~10Ah/day. Connect the positive output of the controller to the battery’s positive terminal first–reverse polarization can destroy the controller’s MOSFETs in under 2 seconds.
Add a 10A automotive fuse within 15cm of the battery’s positive terminal to protect against short circuits. Omit this component only in low-power (<5W) setups where the controller’s internal fuse suffices. Test the connection with a multimeter: a healthy system shows 13.2-14.4V during peak illumination, dropping to 12.6-12.8V in standby.
Controller Configuration
Set the controller’s load output to 12V if powering LED arrays or DC appliances. For PWM controllers, enable temperature compensation to prevent overcharging in ambient temps above 35°C. MPPT controllers require manual entry of the panel’s Voc and Isc–incorrect values reduce charging efficiency by 8-12%. Secure all connections with lock washers to prevent loosening from thermal cycling.
Selecting Optimal LED Parameters for Outdoor Illumination
Prioritize LEDs with a luminous efficacy of at least 90–120 lm/W for energy-efficient performance. Lower values waste power; higher ones reduce runtime on compact batteries. For most decorative fixtures, 100 lm/W strikes a balance between brightness and efficiency.
Match color temperature (CCT) to function:
- 2700–3000K (warm white): ideal for pathways and accent lighting, mimics incandescent warmth.
- 4000–4500K (neutral white): enhances visibility for security fixtures without harshness.
- 5000K+ (cool white): improves contrast but may appear clinical; limit to task-specific areas.
Avoid extremes–below 2500K feels dim, above 6000K strains eyes.
Opt for high CRI (Color Rendering Index) LEDs if accurate hues matter. CRI 80+ suffices for most outdoor uses, but 90+ is critical for artistic installations (e.g., highlighting sculptures). Lower CRI distorts greens/reds, dulling foliage or floral displays. Test samples in situ before bulk purchases.
Choose forward voltage (Vf) aligned with your system’s battery capacity:
- White/blue LEDs: 3.0–3.3V per diode–compatible with 3.7V Li-ion batteries.
- Red/yellow LEDs: 1.8–2.2V–run two in series on a single cell to avoid excess current.
Mismatched Vf causes flickering or thermal damage. Use resistors only as a fallback; proper pairing eliminates voltage waste.
For longevity, verify maximum current ratings:
- Standard 5mm diodes: 20–30mA (continuous), 50mA (pulsed).
- SMD LEDs (e.g., 2835/5050): 60–100mA (check datasheet).
- High-power COBs: 350mA–1A (require heatsinks).
Exceeding ratings reduces lifespan by 50% per 10°C rise. PWM dimming extends usability compared to linear current reduction.
Factor in beam angle:
- Narrow (8–30°): focus beams (spotlights, uplighting).
- Medium (45–60°): general area coverage (pathways, shrubbery).
- Wide (90–120°): ambient glow (canopy fixtures, diffused effects).
Narrow angles create hotspots; wide angles dilute light output. Pair angles with fixture optics (lenses/reflectors) to avoid spill or shadows.
Preventing Reverse Current: Critical Protection Measures
Install a Schottky diode (e.g., 1N5817) between the battery and photovoltaic panel output to block reverse current flow at night. This component minimizes voltage drop (≈0.2–0.3V) compared to standard silicon diodes (≈0.7V), preserving charging efficiency. Position the diode in series with the positive lead, ensuring proper polarity–cathode toward the battery terminal. For enhanced safety, select a diode with a current rating exceeding the panel’s short-circuit current by 30% to handle transient spikes without failure.
Integrate a TP4056 or CN3791 charge regulator if using Li-ion or NiMH cells. These ICs provide overcharge protection (4.2V for Li-ion), thermal regulation, and under-voltage lockout (≈2.5V). Connect the regulator’s input to the panel’s output and output to the battery, with decoupling capacitors (10µF) on both terminals. For lead-acid storage, opt for a LM2576-based buck converter set to 14.4V, ensuring float charging without electrolyte boil-off.
