Start by matching the battery bank’s voltage to the regulator’s specifications–typically 12V, 24V, or 48V. Use a multimeter to verify polarities before making any connections. Reverse polarity will damage both the battery and the regulator unit. For lead-acid batteries, ensure the cutoff settings align with the manufacturer’s recommended float and bulk charging voltages (e.g., 14.4V bulk and 13.8V float for a 12V system). Lithium batteries require lower bulk voltages (around 14.2V) and no float stage.
Run 6 AWG or thicker copper cables from the panel array to the regulator input terminals, minimizing length to reduce voltage drop. For a 100W panel (6A at 12V), 10 AWG may suffice if the run is under 10 feet; beyond that, upsize. Secure connections with crimped ring terminals and heat-shrink tubing to prevent corrosion–especially in humid or coastal environments. Never rely on loose or tinned wires alone; oxidization will degrade performance over time.
Ground the regulator chassis to the battery’s negative terminal or a dedicated earth rod. This protects against transient voltage spikes, particularly in off-grid setups with inductive loads. For MPPT units, program the temperature compensation if the battery and regulator are exposed to wide temperature swings (adjust charging voltages by -5mV/°C for lead-acid). PWM models lack this feature, so select them only for small, stable systems where efficiency losses (up to 30% in high temperatures) are acceptable.
Add a 20A fuse or circuit breaker within 7 inches of the positive battery terminal to prevent fire hazards. The fuse rating should be 1.25–1.5 times the panel’s short-circuit current (Isc). For example, a 10A panel needs a 15A fuse. Use a charge isolator or blocking diode if multiple strings of panels feed into a single regulator to avoid back-feeding. Without one, a shaded panel can drain the battery overnight.
Test the system under load by monitoring battery voltage after a full charge cycle. A properly configured regulator will maintain the battery at 100% state of charge without overcharging, evident by stable float voltages and no excessive electrolyte gassing. If the voltage drifts downward during float, recalibrate the regulator or check for parasitic loads. Always log voltage readings at dawn and dusk to track performance degradation over time.

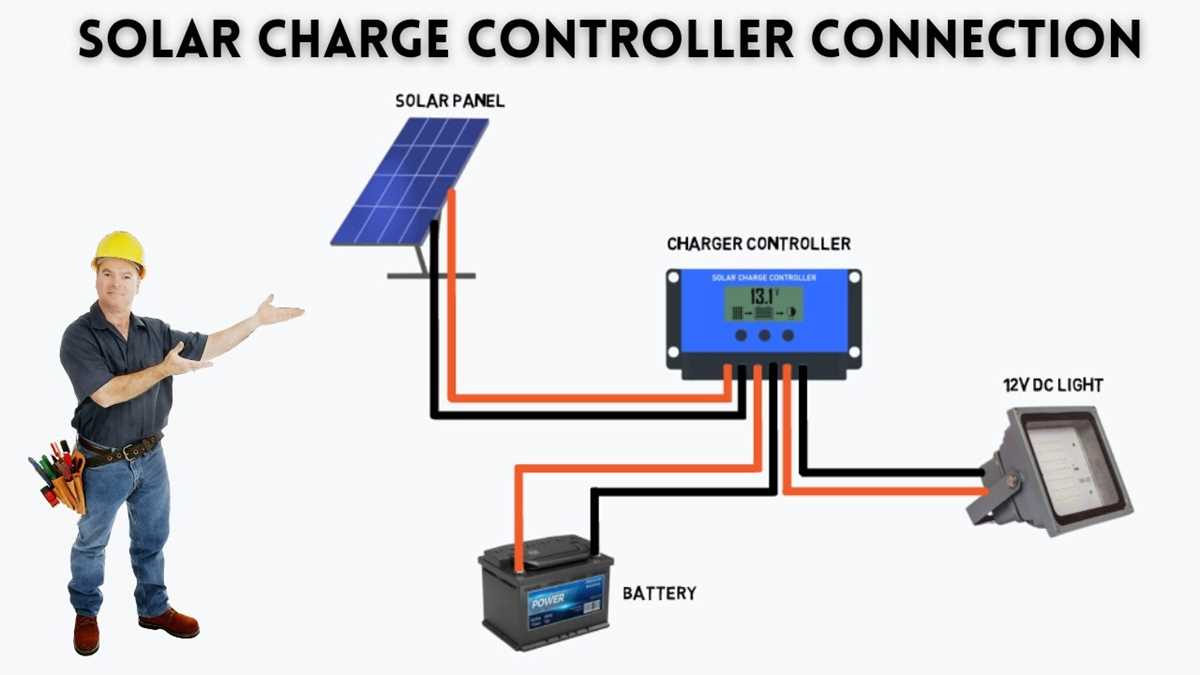

Connecting Renewable Energy Regulators: Key Steps and Schematics
Begin by identifying the battery type–lead-acid, lithium-ion, or gel–before connecting any components. Each chemistry requires specific voltage thresholds, typically 14.4V for flooded lead-acid and 14.2V for sealed variants, while lithium-ion demands precise cutoffs at 4.2V per cell. Use a multimeter to verify these values at the regulator’s output terminals before finalizing connections.
For a 12V system, the panel’s combined open-circuit voltage must not exceed 22V to prevent regulator damage. Series connections increase voltage but require identical panels; parallel setups maintain voltage while boosting current. Measure panel outputs under load with a clamp meter to confirm compatibility with the regulator’s maximum input rating, usually 50V or 100V for 12V/24V systems.
Cable Sizing and Fusing Essentials
Select cables based on current and distance: 10A at 12V over 3m requires 6mm² wire, while 30A at 24V over 10m needs 16mm². Undersized cables cause voltage drops, reducing efficiency by up to 15%. Place fuses within 15cm of the battery’s positive terminal, using ratings 1.25x the maximum system current–e.g., a 20A regulator needs a 25A fuse.
Grounding deserves equal attention. Connect the regulator’s negative terminal to a dedicated earth rod, not the chassis, to prevent corrosion in marine or humid environments. For mobile setups, use a 4AWG cable to link the regulator’s ground to the battery’s negative bus bar, isolating sensitive components from voltage spikes.
Load and Voltage Sensing Configuration
Always connect loads–such as inverters or DC appliances–directly to the battery, not the regulator’s load terminals. This prevents unexpected shutdowns due to the regulator’s built-in low-voltage disconnect (LVD), which triggers at ~11.5V for 12V systems. If LVD must control loads, ensure the regulator supports it natively, as some models lack this feature.
Voltage sensing wires compensate for line losses. Attach these thin (18AWG) wires directly to the battery terminals, not the main power cables. Failure to do so may result in float-stage overcharging, as the regulator relies on accurate sensing to taper current delivery. For lithium batteries, prioritize regulators with programmable charging profiles to avoid balancing issues.
For MPPT units, verify the panel’s maximum power point voltage aligns with the regulator’s input range. A 100W panel with a Vmp of 18V pairs well with a 20A MPPT regulator, while a 300W panel at 36V requires a 40A model. Mismatches force the regulator into suboptimal power tracking, wasting up to 30% of potential energy.
Test the setup under partial shade. PWM regulators maintain output but reduce efficiency, while MPPT units dynamically adjust to maximize power extraction. Use an oscilloscope to confirm clean voltage waveforms at the battery terminals–ripples exceeding 0.1V indicate grounding issues or insufficient filtering capacitors.

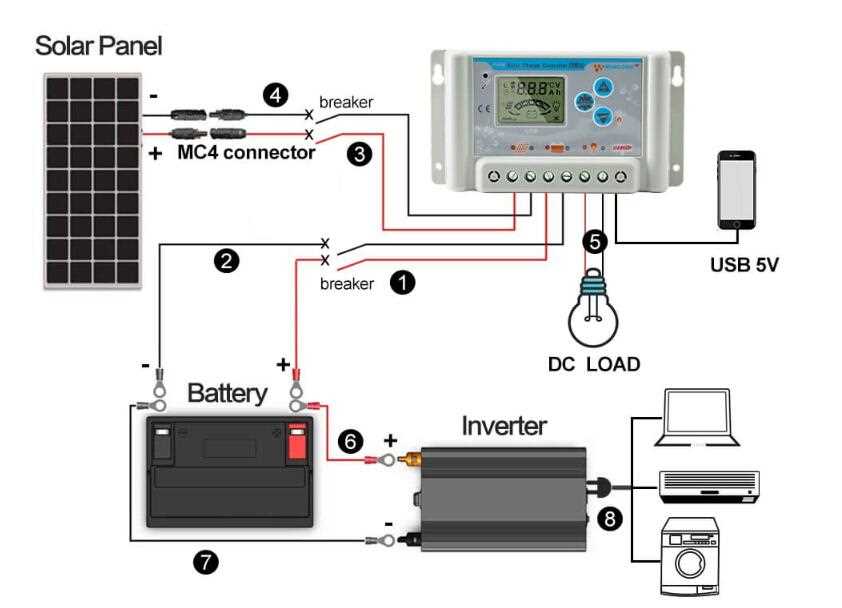

Step-by-Step Guide to Linking Photovoltaic Arrays with a Regulation Device
Position the power regulator near the battery bank to minimize voltage drop. Use 10 AWG or thicker cables for systems under 30 amps; 4 AWG or larger for higher currents. Measure the distance between components and select cable gauge based on the NEC 310.16 table, accounting for 2% maximum voltage loss.
Disconnect all loads and energy storage batteries before making connections. Verify polarization at every terminal–the positive lead is typically marked red or with a “+” symbol, while the negative may be black, blue, or unmarked. Cross-check with a multimeter set to DC voltage; touching probes to the panel outputs should register open-circuit voltage (Voc) under full sunlight.
Attach the photovoltaic module’s positive cable to the input terminal labeled “PV+” or “Array In” on the regulation device. Secure tightly using a torque wrench calibrated to the manufacturer’s specifications–usually 8-12 inch-pounds for most MC4 connectors. Repeat for the negative cable at the “PV-” terminal, ensuring no exposed conductors remain outside insulated sleeves.
Connect the energy storage bank beginning with the positive terminal. Strip 6-8 mm of insulation, then crimp a ring terminal sized for the battery post. Apply dielectric grease to prevent corrosion before fastening with a nut tightened to 10 Nm. Match the negative lead to the regulation device’s “Batt-” output, maintaining consistent grounding to a common point if multiple batteries are paralleled.
Install a 30-amp breaker or fuse between the regulation device and battery bank, as close to the battery as possible. For lithium systems, use a fuse rated at 1.2 times the system’s rated current; for lead-acid, 1.5 times. Check for thermal protection features–some devices require external fuses while others integrate them internally.
Link load outputs last, observing maximum current ratings. Some regulation devices offer low-voltage disconnect; enable this feature to protect batteries from deep discharge. Test by simulating full load with a resistive heater while monitoring voltage recovery–battery voltage should rebound within 1-2 minutes after disconnect if the load exceeds set thresholds.
Activate the regulation device and verify status indicators. A blinking green LED typically signals absorption stage, while solid red warns of faults. Confirm battery voltage aligns with expected values: lithium should float at 3.4-3.6V per cell, lead-acid at 13.6-14.6V. Use a shunt-based meter for accurate current readings if the device lacks built-in monitoring.
Inspect all connections after 24 hours of operation. Tighten terminals that may have settled, then seal exposed ends with adhesive-lined heat shrink tubing. For outdoor installations, apply waterproof junction boxes meeting IP67 standards around connectors and route cables through conduit if exposed to physical stress or UV radiation.

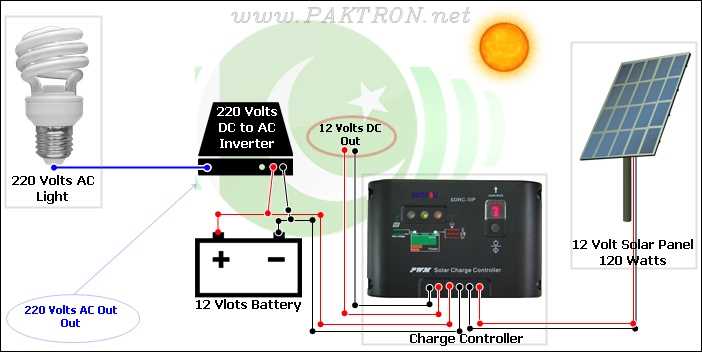

Proper Connection Techniques for PWM vs. MPPT Photovoltaic Regulators
Start by matching the battery bank’s voltage to the regulator’s specifications–12V, 24V, or 48V systems require exact alignment. PWM units operate at the battery’s voltage level, meaning panels must be wired in parallel if their nominal voltage exceeds the battery’s by less than 2–3V. For example, a 12V lead-acid battery paired with a 36-cell panel (18–20V open-circuit) is ideal. Deviations beyond ±5V will reduce efficiency or risk overheating.
MPPT devices, however, tolerate higher input voltages–typically 150V max for residential models–allowing series wiring of panels to reach 60–90V. This boosts energy harvest in low-light conditions, as MPPT tracks the maximum power point dynamically. Always confirm the device’s maximum input wattage; exceeding it risks permanent damage. A 1000W unit with a 75V limit should not be paired with four 300W panels (120V combined) even if individual voltages seem safe.
Panel Configurations for Each Regulator Type
For PWM, parallel wiring is non-negotiable with voltage-sensitive setups. Use MC4 branch connectors to merge positive/negative leads from each panel, ensuring uniform current flow. A 4-panel array (each 10A) will deliver 40A to the PWM regulator–verify the unit’s fuse rating (e.g., 40A) won’t trip under full load. MPPT setups permit series-wired “strings” to elevate voltage: two 40V panels in series yield 80V, well within a 100V device’s range, while total amperage halves (e.g., 5A per panel → 5A total).
Grounding is critical for both types. Connect the negative battery terminal to the regulator’s ground lug, then link to a dedicated earth rod using 6AWG copper wire. Omit grounding only in floating systems (e.g., lithium batteries with integrated BMS), but never with flooded lead-acid. Check local codes–some regions mandate dual grounding (panel frame + regulator).
wire gauge selection depends on distance and current. For PWM, 10A at 10 meters requires 8AWG to limit voltage drop below 3%. MPPT’s higher efficiency tolerates thinner wiring–14AWG suffices for 20A over 5 meters (1.5% drop). Always use tinned copper wire for outdoor connections; corrosion accelerates resistance buildup. Pre-crimped lugs with heat shrink reduce failure points compared to solder-only joints.
Battery and Load Wiring Protocols
Attach the battery first to avoid voltage spikes. Use an in-line 150A fuse within 15cm of the positive terminal–both PWM and MPPT lack internal surge protection. MPPT units often include load output terminals, but never draw more than 20% of the regulator’s rated current (e.g., 20A device = 4A max load). PWM’s load output is less efficient; prioritize direct battery connections for high-draw devices like inverters.
Temp sensors improve battery longevity. Most regulators support NTC thermistors (10kΩ at 25°C)–mount it on the battery’s midpoint, not the terminal, for accurate readings. MPPT devices auto-adjust charging algorithms (Bulk, Absorption, Float) based on temperature; PWM relies on fixed thresholds and may require manual compensation below 10°C. Lithium batteries need a regulator with a dedicated “LiFePO4” profile–PWM units without this will undercharge, MPPT without it risks overvoltage.
Final checks before energizing: confirm polarity at every connection (reversed panels will destroy MPPT units instantly), verify no exposed conductors, and ensure the regulator’s firmware is updated. MPPT models occasionally miscalculate power points after updates–monitor the first full charge cycle via the device’s Bluetooth/app interface. PWM’s simplicity minimizes error, but check for clamp meter readings: voltage at the panel should match specs ±0.5V, current should rise gradually with sunlight.
