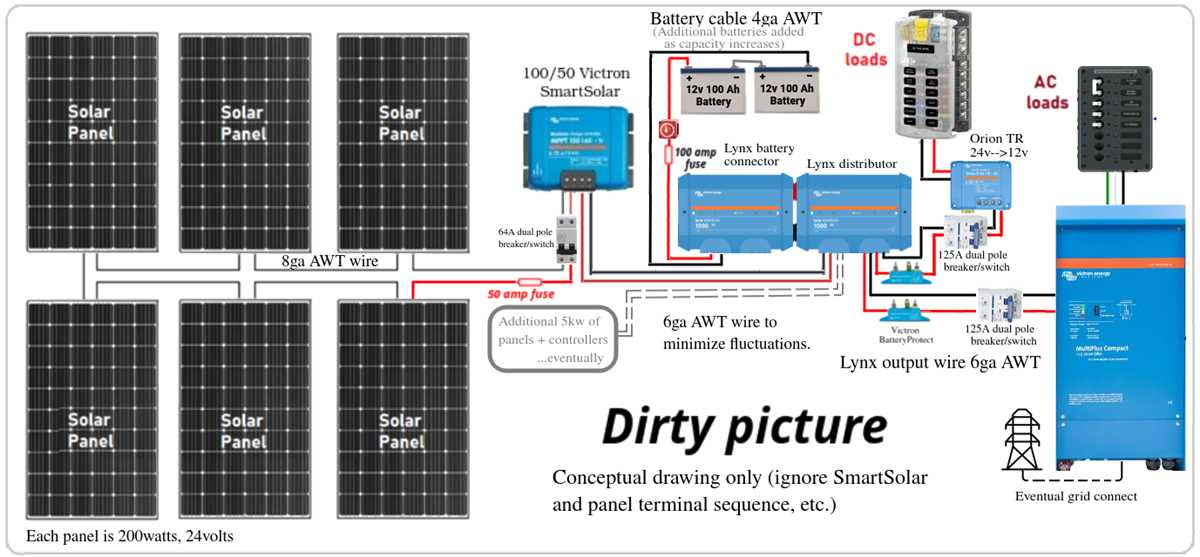

Begin by grouping modules into strings that match the inverter’s input voltage range. For a 24V off-grid system, a series of two 12V panels yields 24V, while four 6V panels achieve the same. Parallel connections multiply current but maintain voltage; avoid mixing string lengths to prevent mismatch losses. Use 10 AWG copper cable for runs under 20 feet and 8 AWG for longer distances to limit voltage drop to less than 2%. Label each conductor at both ends with its function and polarity.
Install combiner boxes near panel clusters to consolidate strings. Size fuses or circuit breakers at 115%–125% of the string’s short-circuit current (Isc), ensuring rapid disconnection during faults. Ground each module frame and racking system with 6 AWG bare copper wire to a ground rod driven 8 feet into earth. Route cables through conduit if exposed to UV or physical damage; use liquid-tight flexible conduit for moving parts.
Calculate wire gauge based on temperature, distance, and current. A 30A load running 40 feet in 90°F ambient requires 8 AWG, while the same load at 120°F needs 6 AWG. Use MC4 connectors rated for dual-contact waterproofing, crimping–not soldering–terminals to avoid cold joints. Disconnect strings at the combiner box before servicing to prevent backfeed into damaged circuits. Test open-circuit voltage and short-circuit current with a multimeter before final connections to verify string integrity.
Mount charge controllers within 3 feet of batteries, using 2 AWG cable for high-current links. PWM controllers demand matched string voltage to battery voltage; MPPT controllers accept wider input ranges (e.g., 30V–100V) but require thicker cables for low-voltage output. Isolate DC and AC circuits with separate conduits to minimize interference. Include surges protectors on both DC and AC sides, sized to handle the full short-circuit current of the system. Document every junction, splice, and termination in a schematic with conductor specs, lengths, and endpoint identifiers.
Connecting Photovoltaic Panels: Electrical Layout Guide
Start with a voltage drop calculation for your circuit–use 3% as a strict maximum for strings under 50V and 2% for systems exceeding 100V. For 10 AWG copper cables, a 20-meter run at 8A will lose 1.8V; adjust wire gauge or reduce distance to stay within limits. Combine these readings with panel specs to size combiner boxes: 15A per string minimum, but add 25% derating for ambient temperatures above 40°C.
Series-parallel configurations demand matched current across strings; a single weak module can drag down an entire branch. Use a multimeter to verify open-circuit voltage (Voc) at dawn–cold mornings can push Voc 15% above datasheet values. Divide total system voltage by panel Voc to determine maximum modules per string, then divide total modules by this number for parallel paths. Example: 48V nominal with 22V panels allows 2 series elements; 8 panels would split into 4 parallel lines of 2.
Key Protection Components
- DC disconnects: Position one immediately after each combiner box, sized for 125% of short-circuit current (Isc).
- Surge arrestors: Place bidirectional Type 2 devices at both inverter and combiner box ends; 800V minimum clamping voltage.
- Blocking diodes: Only necessary in partial shading scenarios–choose Schottky models with 0.5V forward drop to minimize losses.
- Grounding: Bond all rails and frames to a dedicated earth rod; use 6 AWG copper for runs over 30 meters.
Avoid daisy-chaining–expandable splitters save 18% in copper costs over long runs. For rooftop layouts, orient combiner boxes within 3 meters of panels; underground conduits between boxes and inverter should use THWN-2 wire rated for 90°C. Label every conductor at both ends with voltage, current rating, and circuit identifier–white heat-shrink tubing over printed tags withstands UV degradation.
Testing Protocol Before Energizing
- Dark test: Cover all panels, verify zero voltage at inverter terminals.
- String validation: Measure Voc across each string–deviation over 3% signals mismatched modules.
- Polarization check: Confirm positive leads align from panel to inverter; reverse connections can damage MPPT controllers.
- Torque audit: Use a calibrated driver to tighten all terminations to 2.5 N·m; loose connections cause hotspots detectable with a thermal camera.
- Insulation resistance: Disconnect inverters, apply 500V megohmmeter–readings below 1 MΩ indicate compromised cables.
For off-grid setups, integrate a 1.2x Isc charge controller rating–lithium batteries demand precision current control during equalization. Track daily energy yield: a sudden 8% drop often traces to oxidation at terminals; apply antioxidant paste during installation to prevent this. Update schematics immediately after modifications–handwritten notes on waterproof paper stored near the inverter prevent future troubleshooting errors.
Choosing Between Series and Parallel Panel Configurations for Optimal Energy Harvesting
Connect panels in series when your inverter’s maximum input voltage exceeds the combined open-circuit voltage (Voc) of the modules. For example, a 20-module setup with individual Voc of 44V reaches 880V–check if your inverter supports 1000V or higher. Series strings reduce current, minimizing resistive losses in cables, especially over long distances (e.g., 50m+ runs). Match cable gauge to the lower amperage; 6mm² handles 15A comfortably, while 10mm² suits 30A in series layouts.
Opt for parallel when shading affects portions of your installation. A single shaded module in series drops the entire string’s output by 20-80%, whereas parallel keeps unshaded sections at full capacity. Use combiner boxes with blocking diodes (e.g., 15A, 600V) to prevent reverse current. Calculate total current: 10 modules at 9A each yield 90A; ensure your charge controller handles 100A or above for a 10% buffer.
Voltage drop dictates cable length. For series, 3% drop over 30m with 4mm² copper wire at 8A is negligible (0.7V), but parallel at 50A loses 4.5V–switch to 16mm² or shorten the run. Use voltage drop calculators (e.g., Southwire’s tool) for precise sizing. Temperature derating matters: at 50°C, reduce cable ampacity by 20% per NEC 310.15(B)(16).
MPPT charge controllers benefit from series strings, as higher voltages (e.g., 200-600V) improve efficiency to 98%. Parallel suits PWM controllers, which operate at battery voltage (12V/24V/48V). Check controller specs: an MPPT rated for 300V/50A won’t pair with 600V series strings. For mixed configurations, use separate MPPT inputs–most dual-input models handle 150V/40A each.
Microinverters (e.g., Enphase IQ8) eliminate series vs. parallel debate by isolating each module. Panel-level optimization achieves 5-10% higher yields in partial shade. Cost scales linearly: $0.30/W vs. $0.15/W for string inverters. For grid-tied systems, series dominates due to inverter input limits (typically 600-1000V DC), while off-grid favors parallel for battery compatibility (48V nominal).
Fuse each parallel string individually. A 10A fuse protects 14AWG wires from fire hazards–select ceramic fuses for DC arc resistance. Series strings rarely need fusing if module Isc stays below 0.5A above cable ampacity. Ground fault detectors (GFPD) mandate a dedicated 15A breaker before the inverter; use Class T fuses for 125V DC systems.
Cold climates favor series, as Voc rises by 0.3% per °C below 25°C. A 60-cell module at -20°C jumps from 44V to 51V–ensure the inverter’s max input (e.g., 600V) isn’t exceeded. Heat reduces parallel performance: module efficiency drops 0.5% per °C above 25°C; at 60°C, output falls 17.5%. Series maintains higher voltages, offsetting heat losses.
Monitor system performance with string-level data. Series strings show identical current readings; parallel strings reveal imbalances caused by shading or soiling. Use a clamp meter (e.g., Fluke 325) to measure DC current–expect 10% below spec.

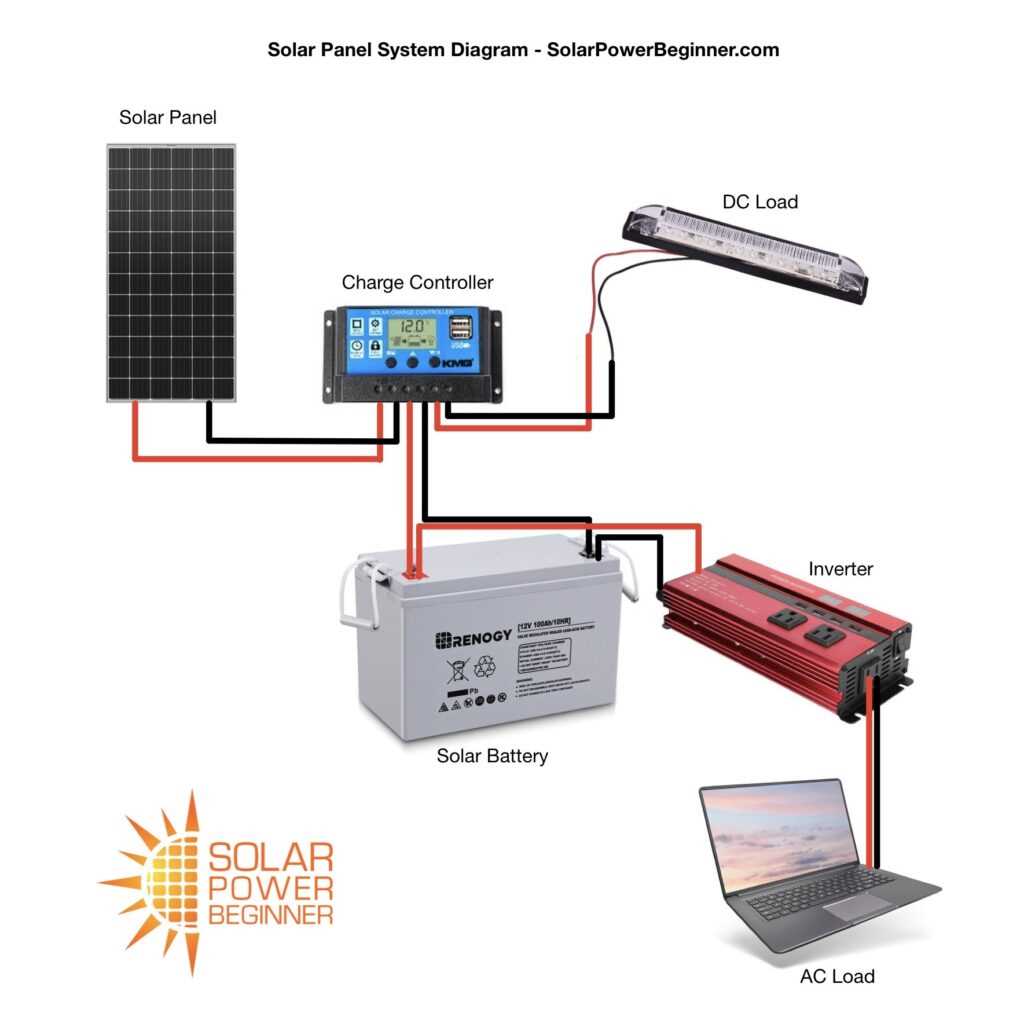

Step-by-Step Guide to Linking Photovoltaic Modules with Battery Regulators
Measure the open-circuit voltage (Voc) of each panel using a multimeter before making any connections. Record values at identical light conditions–deviations exceeding 5% indicate potential mismatches that can reduce system efficiency. For 12V nominal setups, Voc should range between 18-22V; for 24V, 36-44V. Verify these numbers against the regulator’s maximum input voltage specification to prevent damage.
Group panels in series or parallel based on the regulator’s voltage window and battery bank configuration. Series connections sum voltages while keeping amperage constant–ideal when total Voc matches the regulator’s upper limit. Parallel connections sum amperage while keeping voltage stable, suited for lower-voltage systems. Use this table to determine compatibility:
| Regulator Type | Max Input Voltage (V) | Suggested Panel Configuration | Fuse Rating (A) |
|---|---|---|---|
| PWM (12V) | 25 | 1 panel or 2x 6V in series | 10 |
| MPPT (12V) | 100 | 2-3x 12V in series | 15 |
| MPPT (24V) | 150 | 4-6x 12V in series | 20 |
Install a blocking diode on the positive lead of each parallel branch to prevent reverse current at night or during shading. Bypass diodes in junction boxes are insufficient–add external Schottky diodes (e.g., 1N5822) with a forward voltage drop of ≤0.45V. Position them near the regulator input to minimize voltage loss.
Secure all connections with weatherproof MC4 connectors or terminal blocks rated for 1.5x the expected current. Crimp lugs with a hydraulic crimper, then solder for low-resistance joints. Apply dielectric grease to terminals to inhibit corrosion. Route cables in conduit for outdoor installations, keeping runs under 10 meters to limit voltage drop–use 10AWG wire for ≤10A currents, 6AWG for 10-20A.
Program the regulator’s charge parameters before connecting the battery. Set absorption voltage to 14.4V for flooded lead-acid, 14.6V for AGM, or 14.2V for lithium-ion. Configure float voltage at 13.2V-13.8V depending on battery chemistry. Enable temperature compensation if the regulator supports it–adjust float voltage by -24mV/°C above 25°C.
Test the system under load by connecting a resistive dummy load (e.g., a 12V halogen bulb). Monitor the regulator’s display for current flow–if readings fluctuate by >10%, recheck connections for loose terminals or mismatched panels. Log performance data for 24 hours to confirm stable operation before integrating with the battery bank.
