Complete Guide to SMPS Circuit Design Schematic and Working Principles

Start by identifying the primary sections of any high-frequency power conversion schematic. The input rectifier and filtering stage must handle AC voltage ranges between 85V and 265V efficiently. Use a full-wave bridge rectifier paired with low-ESR capacitors (typically 100–470μF) to suppress ripple below 5%. Ensure the inrush current limiter (NTC thermistor or MOSFET-based) prevents surge peaks exceeding 30A during startup.

For the switching element, prioritize MOSFETs with low R_DS(on) (under 100mΩ) and fast switching times (rise/fall ≤ 20ns). Pair them with a gate driver IC like the UCC28C40, which provides 1.5A peak current to minimize cross-conduction. Isolate the control circuitry using a flyback or forward transformer with a turns ratio between 5:1 and 10:1, balancing leakage inductance (≤ 2%) and core saturation limits (typically 0.3T for ferrite).

Critical feedback loops rely on optocouplers (e.g., PC817) with CTR ≥ 50% and a TL431 shunt regulator for stable 2.5V reference. Place the snubber network (RC, 10Ω/2.2nF) across the MOSFET drain-source to clamp voltage spikes below 600V. Output filtering requires LC stages: use a 10µH inductor and 220µF low-ESR capacitors to achieve ripple under 50mV_pp at full load.

Thermal management dictates PCB layout rules. Allocate copper pours (2oz) for heat dissipation on the MOSFET and diode pads. Keep high-current traces (>3A) wide (≥2mm) and short to reduce resistive losses. Position the PWM controller (e.g., UC3843) ≤5cm from the MOSFET to prevent EMI-induced jitter. Test for conducted emissions using a LISN network, ensuring compliance with CISPR 22 Class B (≤46dBµV at 150kHz–30MHz).

Understanding a Switch-Mode Power Supply Schematic

Select a flyback topology for low-power applications under 150W due to its simplicity and cost-effectiveness. Ensure the primary switch–typically a MOSFET–handles at least 1.5x the input voltage peak, with a current rating exceeding the maximum load current by 30%. For example, if the input is 230V AC (325V DC after rectification), a 600V MOSFET with a 10A rating provides adequate headroom.

Place a snubber network across the primary winding to suppress voltage spikes. A common configuration includes a 2.2nF capacitor in series with a 47Ω resistor, sized for 500mW dissipation. Omit this only if the transformer’s leakage inductance is under 1% of the primary inductance, verified via an LCR meter.

Critical Components and Layout

• Rectifier bridge: Use ultrafast diodes (e.g., MUR460) for input stages; standard recovery types increase switching losses by 15-20%.
• Output capacitors: Tantalum or polymer types for low ESR, 2x the calculated ripple current rating. A 470μF/25V capacitor with 3A ripple handles most 12V outputs.
• Feedback path: Optocouplers (e.g., PC817) isolate the secondary; pair with a TL431 shunt regulator for stability. Maintain a 1kΩ pull-up resistor on the primary side to ensure swift shutdown during faults.

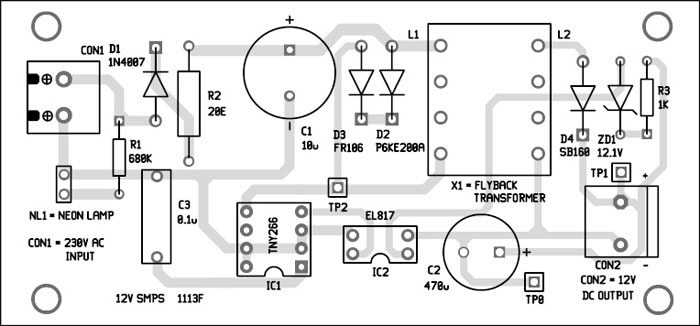

Design the PCB with high-current paths as 2oz copper, 3mm width per amp of DC current. Keep the switch node (MOSFET drain to transformer) compact to minimize EMI, using a ground plane on the bottom layer. Separate analog and power grounds, connecting them at a single point near the input capacitor.

Test the prototype with an oscilloscope: probe the MOSFET gate (should show 10-15V peaks), output ripple (target <50mVpp), and transformer core temperature (max 60°C). If ringing exceeds 20% of the switching frequency, add a damping resistor (10-100Ω) in parallel with the output diode. For 5V outputs, use a Schottky diode (e.g., SB560) to reduce forward voltage drop by 0.3V compared to silicon.

Troubleshooting Checklist

1. No output: Verify the transformer winding polarity (dot convention) and MOSFET gate drive signal (scope the PWM IC output).
2. Excessive heat: Check for discontinuous conduction mode (increase load current or primary inductance).
3. Instability: Confirm the feedback compensation network–22pF capacitor across the TL431’s reference pin stabilizes most designs.
4. EMI failures: Add a common-mode choke (e.g., 10mH) on the input and Y-capacitors (1nF/2kV) from primary to secondary ground.

Key Components of a Switch-Mode Power Supply and Their Roles

Start isolation with an optocoupler: it transfers feedback signals between output and control stages while maintaining galvanic separation. Choose models like PC817 or TLP292 with a current transfer ratio (CTR) of 50–200% to ensure stable regulation under varying loads. Pair it with a precision shunt regulator (TL431) configured for 2.5V reference to maintain tight output voltage tolerance.

Input rectifier and filter demand careful selection:

• Use ultrafast or Schottky diodes (e.g., MUR460, 1N5822) for low forward voltage drop and reduced switching losses.
• Film capacitors (X2/Y2-rated) handle AC line filtering; electrolytic capacitors (105°C, ripple current > 0.2A/μF) smooth DC after rectification.
• Avoid undersizing–calculate capacitance using C = I_load / (2 × f_line × ΔV) where ΔV ≤ 10% of nominal input.

Power switch (MOSFET or IGBT) dictates efficiency. For 24V/5A designs, select a 100V/30A MOSFET (e.g., IPA60R125P6) with:

1. Low RDS(on) (<50mΩ) to minimize conduction losses.
2. High Qg (>20nC) for faster gate drive, reducing switching transitions.
3. Built-in Zener clamp (or external TVS) to protect against voltage spikes exceeding VDSS.

Drive it with a dedicated IC (e.g., UC3843) or isolated gate driver (Si8271) to prevent shoot-through.

High-frequency transformer requires:

• Core material: Ferrite (3C90, N87) for >100kHz operation; avoid saturation by limiting flux density to 0.3T.
• Primary inductance Lp calculated as Lp = (Vin × D) / (fsw × ΔIL), where D = duty cycle (0.4–0.6), ΔI_L = 20–30% of peak current.
• Windings: Use Litz wire for >50kHz to reduce skin effect; sandwich primary/secondary layers to minimize leakage inductance (<2% of L_p).

Output rectifier and filter define transient response:

• Schottky diodes (e.g., SB560) for <30V outputs; ultrafast diodes (e.g., BYV29-500) for >30V.
• Output capacitors: Low-ESR electrolytics (Nichicon HM) or polymer types (Kemet T520) to handle RMS ripple current (≥0.5 × I_out).
• Add a small LC filter (1μH + 10μF) to attenuate switching noise (>40dB at f_sw).

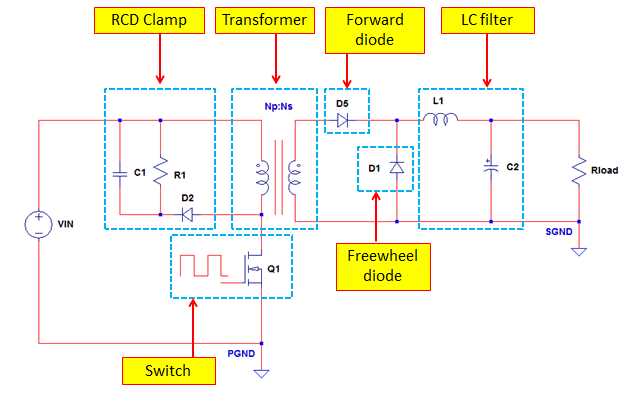

Snubber networks prevent voltage overshoot across semiconductors. For MOSFETs, use an RCD snubber:

• Resistor: R = Vspike / (2 × Ileak) (typically 10–100Ω, 1W).
• Capacitor: C = (Ileak × trise) / Vspike (usually 1–10nF, X7R ceramic).
• Diode: Fast recovery (e.g., UF4007) to clamp energy dissipation.

Feedback loop demands stability. Configure the error amplifier for:

• Gain: AOL ≥ (Vref / ΔVout) + 20dB (e.g., 60dB for ±1% regulation).
• Phase margin: Target 60° at crossover frequency (f_c = f_sw/10).
• Compensation: Type III network (two poles, one zero) for voltage-mode control; adjust components empirically with a network analyzer.

Thermal management dictates longevity. Mount power components on a copper plane (≥2oz/ft²) with:

• Thermal vias (0.3mm diameter, 1mm pitch) connecting to a heatsink.
• Thermal conductivity compounds (e.g., Arctic MX-6) to fill interface gaps (<0.1°C/W junction-to-case).
• Fans or natural convection: Ensure ΘJA ≤ (Tj_max – Ta_max) / Pdiss (e.g., 50°C/W for ambient 50°C).

Force cooling if power density exceeds 5W/in³.

Step-by-Step Wiring of a Flyback Power Converter

Begin by selecting a primary-side switching transistor with a breakdown voltage at least 3x the input voltage. For a 230VAC input, a 700V MOSFET (e.g., Infineon IPA60R125P6) prevents avalanche breakdown during transient spikes. Mount it on a heatsink with a thermal resistance under 2K/W if continuous output exceeds 50W.

Connect the flyback transformer’s primary winding in series with the MOSFET drain. Use AWG 20 litz wire for windings above 50kHz to minimize skin-effect losses. The turns ratio should calculate as (V_out + V_diode) / (V_{in_min} × D_max), where D_max = 0.45 for discontinuous mode. Wind the secondary with 1–3 turns per volt, depending on core material (e.g., ETD39 ferrite: ~2.5 turns/V).

Place a 1N4007 diode across the MOSFET’s drain-source with reverse polarity to clamp voltage spikes. For outputs above 12V, use a schottky diode (e.g., STMicroelectronics STPS30L60C) on the secondary side; its 0.3V forward drop improves efficiency by 8–12% over ultrafast diodes. Ensure the diode’s P_IV exceeds 2 × V_out.

Wire the feedback loop using an optocoupler (e.g., PC817) and a TL431 shunt regulator. Configure the TL431’s reference voltage at 2.5V and connect its cathode to the optocoupler’s LED via a 5.1kΩ resistor. This setup isolates the primary-side controller from the secondary, complying with IEC 60950 for safety. Add a 10nF capacitor across the TL431’s cathode-anode to filter noise.

For startup, use a 22μF/400V electrolytic capacitor at the input to smooth rectified DC. Calculate the primary snubber resistor as R = V_spike² / (L_leakage × f_switch × I_pp²). A 2.2nF/1kV polypropylene capacitor in series with a 2.7kΩ/2W resistor forms an effective snubber, reducing ringing by 60%.

Test with a 10Ω/5W dummy load before connecting sensitive components. Probe the MOSFET’s gate drive with a 10x oscilloscope to verify rise/fall times under 50ns. If the waveform shows overshoot above 20%, increase the gate resistor by 22Ω increments. Finalize by enclosing the assembly in a shielding case if EMI exceeds CISPR 22 Class B limits.
