Begin by identifying power sources for interconnected detection units. Standard household circuits at 120V AC must be isolated before handling live terminals. Use a dedicated 15-amp breaker for clusters of devices to prevent overloads. For battery-backed designs, verify compatibility with sealed lead-acid or lithium-ion cells, ensuring at least 9V output for consistent operation.
Connect detection nodes in series for whole-property coverage. Run 18-gauge solid copper wire (rated CL2 for in-wall use) between units, maintaining polarity–red to positive, black to negative. At each unit, strip ½ inch of insulation, twist exposed strands tightly, and secure with wire nuts. Avoid daisy-chaining more than 12 devices on a single loop to preserve signal clarity.

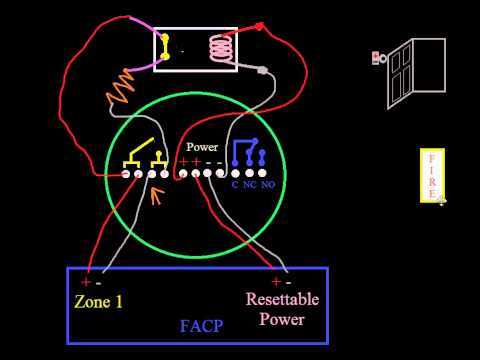

Intermediate modules require specific resistor values. Install a 4.7kΩ resistor across terminals marked “auxiliary” on hardwired interconnects to stabilize voltages. For units interfacing with sprinklers or ventilation shutoffs, consult manufacturer tables–some models mandate 1kΩ or 2.2kΩ resistors depending on load characteristics.
Test continuity before restoring power. Use a multimeter in ohmmeter mode (
Grounding is non-negotiable. Bond the neutral bus bar in the main panel to a grounding rod via #6 AWG green-insulated wire. For retrofit installations in older structures, upgrade the service panel if it lacks a dedicated ground–code violations risk equipment failure during surges.
Connecting Fire Detection Devices: Key Circuit Layouts
Begin by verifying the voltage specifications on each device–most household units operate at 12V DC or 230V AC, while interconnected models require matching power ratings to prevent damage. For a basic hardwired setup, link the primary detector’s red (positive) terminal to the backup battery’s positive pole and the black (negative) terminal to ground. Secondary sensors connect in parallel using the yellow auxiliary wire, ensuring loop continuity. Use 1.5 mm² solid copper wire for AC-powered systems and 2.5 mm² stranded wire for battery-backed installations to handle circuit load–measured resistances should not exceed 50 ohms across the entire loop.
Common Circuit Configurations
| Configuration | Wire Color Code | Maximum Devices per Loop | Voltage Drop Tolerance |
|---|---|---|---|
| Standalone AC-powered | Red (+), Black (-) | 1 | <3V |
| Interconnected (AC) | Red (+), Black (-), Yellow (aux) | 12 | <5V |
| Battery-only cluster | Red (+), Black (-), Yellow (common) | 8 | <1V per device |
Test every connection with a multimeter before sealing junction boxes–open circuits trigger false positives, while reversed polarity may disable functions without alerting. For split-level dwellings, run auxiliary wires through dedicated conduit alongside electrical lines, keeping a 30 cm separation from high-current cables to minimize interference. Label each wire at both ends with heat-shrink tubing marked “FD” followed by the circuit number (e.g., FD-L1) to simplify future troubleshooting.
Step-by-Step Guide to Connecting Fire Detector Power Leads
Before handling any electrical connections, shut off the circuit breaker supplying power to the detection unit. Use a non-contact voltage tester to confirm the circuit is dead–this prevents accidental shocks during installation. If wiring spans multiple breakers, label each one clearly to avoid confusion when restoring power.
Identify the designated power feed cables. Most residential units require a 120V AC supply, typically consisting of a black (hot), white (neutral), and green or bare (ground) conductor. Verify wire gauge matches local electrical codes–usually 14 AWG for 15-amp circuits or 12 AWG for 20-amp circuits. Strip 3/8 inch of insulation from each conductor using wire strippers, ensuring no frayed strands remain.
Connect the detection device’s power terminals in the following sequence:
- Hot (black): Attach to the unit’s L or LINE terminal, securing with a terminal screw or push-in connector. Tug gently to confirm a solid grip.
- Neutral (white): Link to the N or NEUTRAL terminal, matching the polarisation of the hot wire.
- Ground (green/bare): Fasten to the ground terminal or metal junction box. If no ground terminal exists, bond to the box using a green grounding screw.
For hardwired interlinked units, additional red or yellow conductors may need splicing. Use a UL-listed wire nut to join matching colours–twist clockwise, then tug each wire to ensure a tight connection. Secure with electrical tape if exposed strands exceed 1/8 inch beyond the nut. Avoid daisy-chaining more than six devices per circuit to prevent voltage drop.
Mount the detection unit to its bracket, ensuring no wires pinch between the backplate and wall. Restore power at the breaker, then press the test button–audible confirmation should sound within 30 seconds. If silence persists, recheck connections for reversed wires, loose terminals, or incorrect voltage using a multimeter (hot-to-neutral should read ~120V, hot-to-ground should match).
For battery backup models, install a fresh 9V or lithium cell as per the manufacturer’s polarity markings. Tuck excess wiring into the electrical box, leaving at least 6 inches of slack for future servicing. Snap the cover into place, then label the circuit breaker with the unit’s location–this simplifies troubleshooting during false triggers or maintenance.
Critical Errors in Connecting Detection Devices Sequentially vs. Independently
Avoid mixing 24V and 12V units within the same loop. Voltage mismatches cause devices to fail silently or trigger false activations. Verify specifications before connecting; most residential systems require consistent 12V models, while commercial setups may use 24V. Even a single incorrect unit can disrupt the entire network.
Never daisy-chain more than 12 units in a single circuit. Each additional detector increases resistance, reducing current to levels where sensors become unreliable. Manufacturers specify maximum limits–exceeding them leads to delayed reactions or complete system collapse. Split circuits into smaller groups if coverage demands more units.
Incorrect polarity reversal ranks as a frequent yet avoidable blunder. Reversing positive and negative terminals prevents communication between interconnected devices, isolating them from group triggers. Use a multimeter to confirm polarity before finalizing connections, especially if wires lack color coding.
Overlooking Power Source Stability
Relying on battery backup alone for hardwired loops invites failure. Battery-dependent systems drain quickly during outages, leaving gaps in protection. Always pair with a dedicated, monitored power supply that includes surge protection–unexpected voltage spikes destroy sensitive circuitry.
Misjudging circuit load causes overheating. Cheap, undersized wiring struggles under prolonged current, melting insulation or tripping breakers. Calculate total amperage draw (typically 0.05A per unit) and use 14-gauge wire for runs under 30 meters; switch to 12-gauge for longer distances or higher loads.
Ignoring Local Regulations
Skipping junction box inspections violates safety codes. Exposed connections corrode or short circuit, especially in humid environments like basements or kitchens. Seal all joints with waterproof connectors and house them in approved electrical boxes–even “temporary” setups must comply.
Assuming all devices are interchangeable leads to compatibility errors. Photoelectric, ionization, and heat detectors serve different purposes and often require specific voltage thresholds or algorithms. Consult manufacturers’ compatibility matrices; mixing incompatible models results in missed signals or false negatives during emergencies.

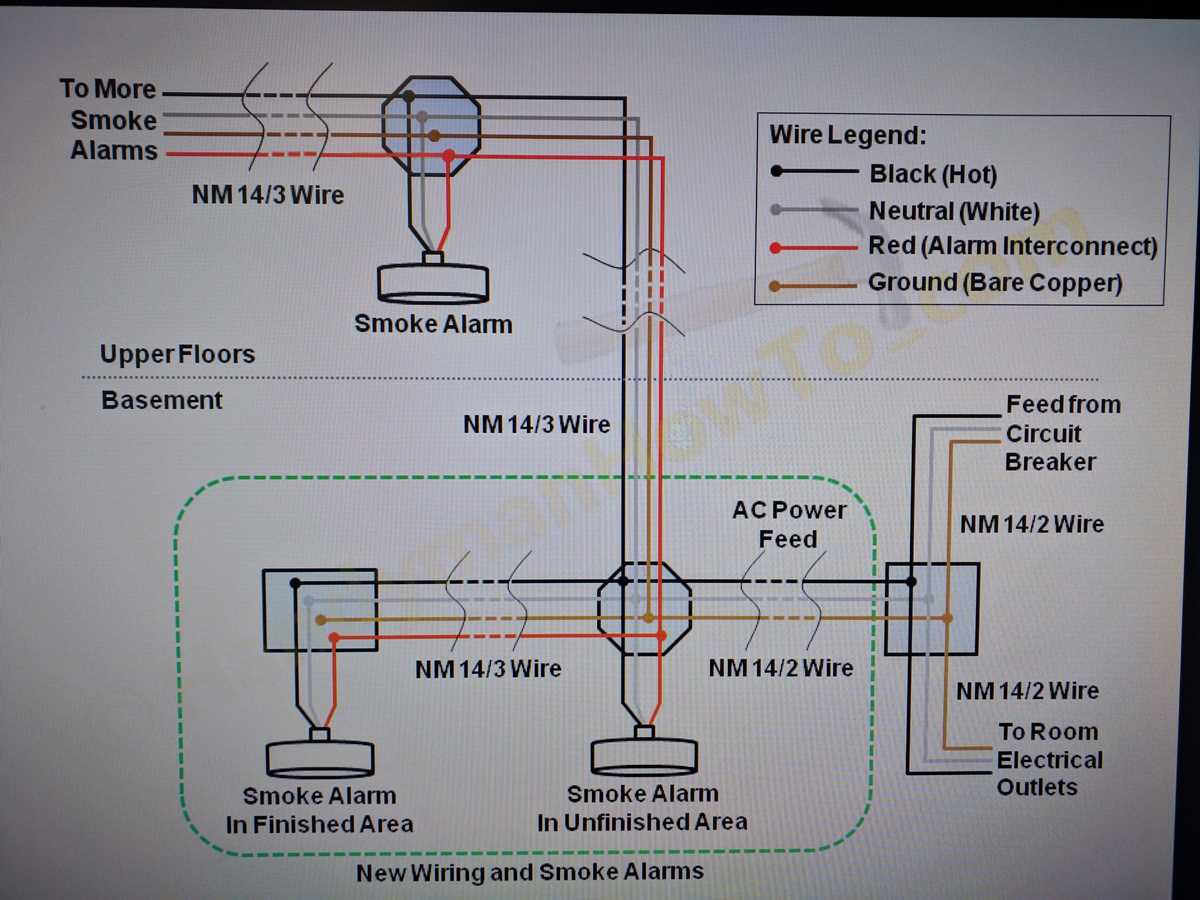

How to Identify and Use Interconnect Cables for Multi-Detector Setups
Locate the third conductor in your device’s harness–typically a yellow, orange, or white wire–distinct from the power and ground lines. This strand enables synchronization between units, triggering all linked devices when one detects an event. Verify compatibility by checking for a labeled “interconnect” or “signal” terminal in the user manual; mismatched connections risk false activations or silent failures.
Use a multimeter to test continuity between interconnect pins across devices before installation. Set the meter to resistance mode (200 ohms) and probe each terminal; a reading near zero confirms proper contact. If resistance exceeds 1 ohm, inspect for damaged cables or corroded connectors–oxidation on copper strands can disrupt signaling.
Color Coding and Pin Assignments
Refer to the following standard color mappings for common brands:
- Kidde: Red (power), black (ground), yellow (interconnect)
- First Alert: White (power), black (ground), orange (interconnect)
- BRK: White (power), black (ground), white/red stripe (interconnect)
Cross-reference these with your own unit’s documentation; deviations exist in older models or international variants. Misidentification leads to non-functional links.
For legacy systems lacking color standardization, trace the wires back to their corresponding screw terminals. The interconnect line usually shares a terminal with a “T3” or “IO” label (input/output). Mark this wire with heat-shrink tubing or tape to prevent mix-ups during subsequent upgrades.
Strip 6–8 mm of insulation from the interconnect cable ends, then twist the strands tightly to avoid fraying. Insert into terminal blocks using a flathead screwdriver–apply 0.5 Nm of torque for secure contact. Over-tightening risks thread stripping; under-tightening causes intermittent faults. Test electrical isolation by measuring voltage between the interconnect cable and ground–readings should not exceed 1V AC/DC.
Troubleshooting Interconnected Failures
If secondary units remain silent during testing, isolate each segment by disconnecting half the network and retesting. Narrow down the faulty link systematically–common culprits include:
- Loose wire nuts (twist until resistance is felt, then secure with electrical tape)
- Damaged conductors (replace sections with solid-core 18 AWG wire)
- Incorrect neutral sharing (dedicate a neutral per circuit; shared neutrals disrupt signaling)
For power-limited systems, ensure interconnect cables run parallel to–but not bundled with–high-current wires (e.g., lighting circuits). Induced noise from nearby AC lines can trigger false positives. Separate by at least 30 cm or use shielded twisted pair (STP) cable for distances over 15 meters.
