Begin by connecting the ground wire to the tow vehicle’s frame–this ensures stable current flow and prevents short circuits. Use a 12-gauge copper conductor for standard setups or 10-gauge if the system draws over 20 amps. Secure the connection with a zinc-plated ring terminal to resist corrosion. Avoid attaching grounds to painted or coated surfaces; bare metal guarantees reliability.
For lighting circuits, match the color-coded wires to the correct functions: yellow (left turn/brake), green (right turn/brake), and brown (tail/running lights). Use waterproof butt connectors rated for 600V to join wires–crimp firmly and seal with heat-shrink tubing. If the tow vehicle lacks a dedicated connector, install a 4-pin flat plug; verify pinout alignment with a multimeter before testing.

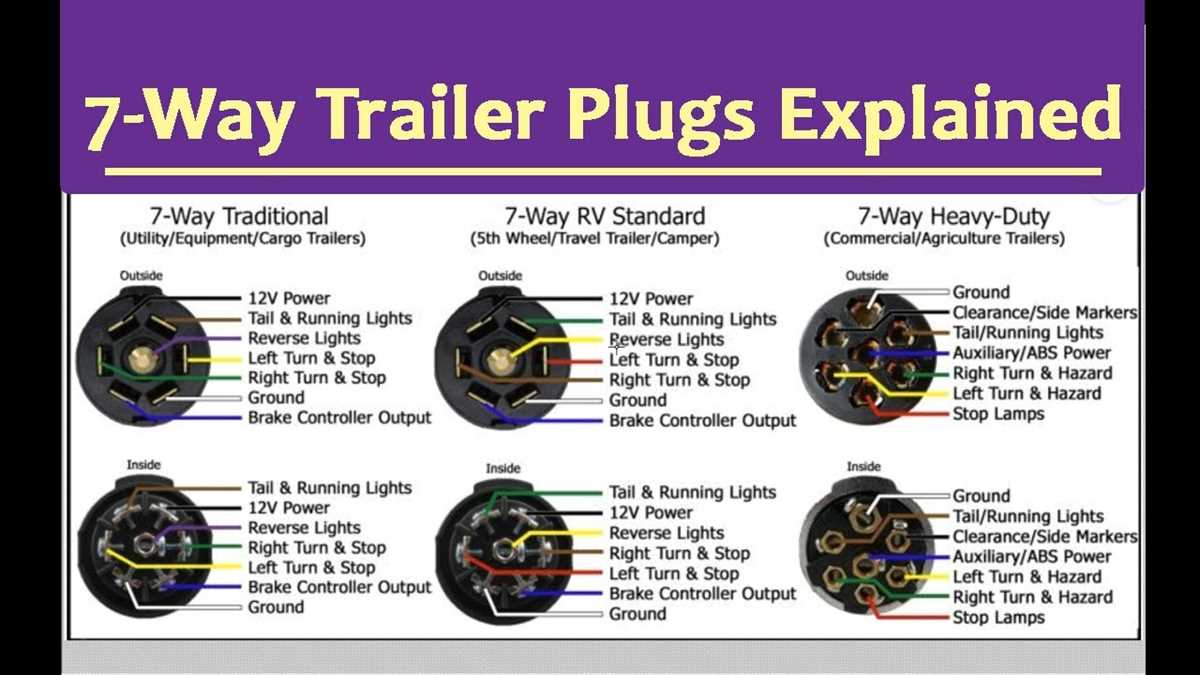

For heavier loads like electric brakes or auxiliary power, add a 7-pin round connector. Route the blue (brake control) and black (12V hot lead) wires through a 40-amp fuse holder near the battery to protect against overloads. Ground the brake controller’s power wire directly to the chassis, not through the lighting circuit, to prevent voltage drop.
Inspect all connections for tension or fraying–loose strands create resistance and heat. Apply dielectric grease to plugs to repel moisture. Test each function before towing: activate turn signals, brake lights, and hazards while observing the rear assembly. If lights flicker, check for weak grounds or excessive draw from other vehicle systems.
Connecting Lightweight Haulers: A Circuit Guide
Begin by matching the vehicle’s socket type to the towable’s plug–standard 4-pin flat connectors suit basic lighting needs (running lights, left/right signals, brake lamps), while 7-pin variants add reverse lights and electric brakes. Wire colors follow a strict code: white for ground, brown for tail/license plate illumination, yellow for left turn/brake, green for right, and blue (if present) for auxiliary functions. Verify voltage at the connector with a multimeter–12V should register across all active pins when the corresponding vehicle circuit is engaged. Use marine-grade heat-shrink butt connectors for splices to prevent corrosion, and route cables through conduit or spiral wrap to shield against chafing near suspension components.
Test each function sequentially before finalizing connections: activate the tow vehicle’s running lights to confirm both rear markers illuminate; toggle turn signals to ensure the corresponding LED flasher on the hauler blinks at 60-120 cycles per minute; depress the brake pedal to verify brake lights engage without affecting turn signals (a telltale dual-filament bulb failure if both brighten). For 7-pin systems, engage reverse gear to check backup lights, then measure current draw at the brake controller output–expect 3-5 amps per wheel for surge brakes, or 7-10 amps for electric setups. Secure excess length with UV-resistant zip ties, avoiding sharp edges or rotating parts, and coat all connectors with dielectric grease to repel moisture.
Understanding Basic Vehicle Towing Connection Color Standards
Match the brown wire to the rear running lights on any towed equipment–this is non-negotiable. Confusion between brown and other colors routinely causes blown fuses or accidental short circuits. Verify continuity with a multimeter before attaching connectors, as faded or modified harnesses often swap this circuit.
Follow these standard color assignments universally adopted across makes and models:
- White – ground (always secure to bare metal, never painted surfaces)
- Yellow – left turn/stop lamp
- Green – right turn/stop lamp
- Blue – auxiliary or electric brakes (not present in all setups)
Double-check for voltage spikes when connecting blue circuits–especially in vehicles with integrated braking controllers. Use a surge protector inline to prevent damage to the tow vehicle’s onboard computer during sudden brake applications.
Troubleshooting Common Miswiring Scenarios
If turn signals flicker abnormally fast, the issue almost always stems from an incorrect ground (white wire) or cross-connected yellow/green circuits. Disconnect the connector, strip ½ inch of insulation from the white wire, and secure it to a clean chassis point with a star washer–no exceptions.
For adapters bridging different formats (e.g, 4-way to 7-way), map each pin before splicing. Use a wiring diagram specific to both the towing vehicle and towed unit to avoid incompatibility. Label every splice with heat-shrink tubing to simplify future diagnostics, and avoid cheap crimp connectors–solder and marine-grade heat shrink reduce corrosion and intermittent failures.
Step-by-Step Guide to Connecting a 4-Way Tow Vehicle Socket
Disconnect the vehicle’s battery before starting to prevent short circuits. Locate the towing port beneath the rear bumper or behind a removable panel–most manufacturers include a dedicated plug for easy access. If absent, identify the taillight harness by tracing the main wiring loom from the rear lights.
Expose the wires by carefully stripping ¼ inch of insulation from each: brown (running lights), yellow (left turn/brake), green (right turn/brake), and white (ground). For older vehicles, verify colors using a multimeter–probe the connector pins while activating each function to confirm correspondence. Use crimp connectors or solder for durable bonds, then seal with heat-shrink tubing.
Mount the ground wire first. Attach the white lead to a clean, bare metal surface–preferably the vehicle’s frame–using a self-tapping screw or bolt. Rusty or painted surfaces cause poor conductivity; scrape away corrosion or apply dielectric grease to improve connection. Avoid relying on the bumper or plastic-covered components.
Avoid twisting the signal wires together. Route each colored wire directly to its matching function on the tow socket. For vehicles with separate brake and turn signals, splice into the brake light wire (typically thicker) to ensure proper illumination. Test each circuit with a 12V tester: activate the vehicle’s lights and turn signals while observing the socket pins for voltage.
Secure excess wiring with zip ties or loom tubing, keeping it away from exhaust pipes, moving parts, and sharp edges. Insert the plug into the socket and verify functionality by attaching a test light or trailer. Confirm all lights (running, brake, turn) operate without flickering–flickering indicates a weak ground or loose connection. Recheck splices if issues persist.
For universal sockets, some European vehicles use a red wire for brakes instead of combining with turn signals. Consult the owner’s manual for specific wiring diagrams if standard connections fail. Apply dielectric grease inside the socket to prevent moisture ingress, then cover the assembly with a weatherproof cap when not in use.
How to Test Auxiliary Vehicle Lighting Systems for Faults
Connect a multimeter set to 12V DC between the ground terminal and each bulb socket contact while the tow hitch plug is engaged. A reading below 11.8V indicates voltage drop–check for corroded pins, loose crimping, or undersized conductors in the harness. Replace any terminals showing green oxidation, then apply dielectric grease to prevent recurrence. For LED modules, measure current draw–values under 100mA per bulb suggest internal component failure or cold solder joints.
- Activate each lighting function individually using the vehicle’s control lever. Observe the following fault patterns:
- Both turn signals blinking rapidly: Replace the corresponding flasher relay or verify fuse integrity with a spare fuse of equal amperage.
- Taillights dim but brake lamps full brightness: Locate the shared ground wire behind the rear panel and tighten the ring terminal secured to chassis metal.
- One side lights functional, opposite side dead: Swap bulbs between sockets–if fault migrates, discard the defective bulb; if not, test the socket brass contacts for spring tension and scrape clean with emery cloth.
Solving Electrical Problems in Compact Towables
Check the ground connection first–most failures stem from corrosion or loose terminals. Disconnect the battery, scrape the contact points with a wire brush, and apply dielectric grease before reattaching. Poor grounding causes erratic lights, flickering signals, or complete system dropout.
Inspect the 4-way connector for bent pins or moisture intrusion. Use a multimeter to test continuity across each terminal: tail lights (brown), left turn (yellow), right turn (green), and brake/running lights (white). A reading below 12V indicates a break in the circuit requiring splice repair.
Replace any wire showing cracked insulation or green oxidation. Use marine-grade 16-gauge copper wire for lengths under 15 feet and 14-gauge for longer runs. Secure splices with heat-shrink tubing, never electrical tape alone–vibration loosens tape connections within weeks.
Test brake light switching by manually activating the tow vehicle’s stop lamps. If the rear lamps fail to illuminate, bypass the brake controller by jumping the brake feed wire directly to the battery. Persistent failure suggests a faulty controller or bad solenoid.
| Symptom | Likely Cause | Corrective Action |
|---|---|---|
| Flickering turn signals | Loose bulb socket | Tighten bulb base, clean contacts with emery cloth |
| All lights dim when brakes applied | Shared neutral wire overloaded | Separate neutral wires for tail and brake circuits |
| Single lamp dead | Broken wire inside harness | Trace with circuit tester, repair break with soldered splice |
For intermittent shorts, flex each wire while monitoring with a test light. Sharp bends near the coupler or axle often pinch wires–route bundles through loom tubing and secure with zip ties every 18 inches to prevent chafing.
Verify the fuse rating matches the harness specifications. A 15A fuse protects most utility setups; 20A is required for setups with electric brakes. Swap blown fuses with identical ratings–never upgrade to a higher amperage as a temporary fix.
Clean the tow vehicle’s receptacle with contact cleaner. Apply a thin coat of lithium grease to prevent future corrosion. Test mating surfaces for spring tension; weak tension can cause erratic connections during travel. Replace receptacles showing pitted or discolored contacts.
