Begin by locating the control panel access cover–typically secured with two M8 bolts near the base of the mast. Remove it to expose the terminal block labeled TB1, where all major harness connections terminate. Verify continuity between pin 6 (black/yellow) and pin 12 (red/blue) with a multimeter set to 200Ω; readings below 0.5Ω indicate proper ground integrity. Failure here means corrosion at the chassis bonding point, usually behind the battery tray.
Trace the hydraulic pump relay–marked K4 on the PCB–back to its power source: a fused 40A circuit via cable #AW-12-24. Check for voltage at the relay coil (terminals 85/86) with the ignition switch in the “ON” position; expect 12V DC ±0.2V. If absent, inspect the ignition switch wiring loom for chafing near the turntable pivot point. Splice repairs here require crimping with yellow barrel connectors and heat-shrink tubing rated for 90°C.
The joystick potentiometer circuit relies on a dual-axis 5kΩ sensor. Test each axis by measuring resistance between pin 3 (white/green) and pin 4 (white/blue) across the full travel range–values should sweep smoothly from ~500Ω to ~4.5kΩ. Erratic readings point to worn carbon tracks; replacement sensors must match the original TPE-180 footprint to avoid signal mismatch with the controller’s 4-20mA input loop.
For the beacon strobe circuit, confirm the flasher unit draws no more than 2.5A under load. Exceeding this trips the thermal cutoff in the FL-7 module. Bypass testing: disconnect the beacon at the harness spade connector and wire a 10W test resistor across the terminals–if the circuit powers normally, the beacon is faulty. Substitutes must have an input voltage tolerance of 9-32V DC to avoid flickering.
Attach a scope to the CAN bus data lines (green/yellow and green/orange) at the central junction box. Bitrate should stabilize at 250 kbit/s with less than 1% error frames. Higher error rates suggest noise from improperly shielded cables–route CAN lines at least 100mm from any AC motors or relays, using twisted-pair wiring with a minimum of 2 twists per 25mm.
Electrical Schematic for SJ32 Series Lift Systems
Begin troubleshooting the control panel by verifying continuity on terminals 7-9 (24V DC supply). Use a multimeter set to 200Ω range; resistance should read below 1Ω. If values exceed this threshold, inspect the harness connectors for corrosion–clean with isopropyl alcohol and re-crimp terminals using AWG 14-16 spade lugs. Replace the 10A fuse if the circuit remains open after reconnection.
For the joystick assembly, trace the purple (UP) and orange (DOWN) wires from the actuator motor back to the PCB. Disconnect the 6-pin molex connector–pin 3 (purple) and pin 5 (orange) must show 48V AC when activated. No voltage? Test the relays K1/K2: swap with confirmed functional units or bench-test using a 12V trigger. Replace failed relays only with OEM part #RLY-SJ-042 to prevent voltage drop issues.
Identifying Critical Connection Elements in SJ3219 Lifts
Begin by examining the control panel’s rear interface, where colored leads consolidate into a central harness. Pinpoint the 12-pin rectangular connector marked “J1” – this houses power distribution and signal pathways for lift operation. Trace each cable from this connector to its termination: red/black dual wires relate to motor activation, while blue/white strands manage hydraulic valve feedback. Verify continuity with a multimeter; expect resistance below 0.5 ohms across active circuits, exceeding 1MΩ for isolated segments.

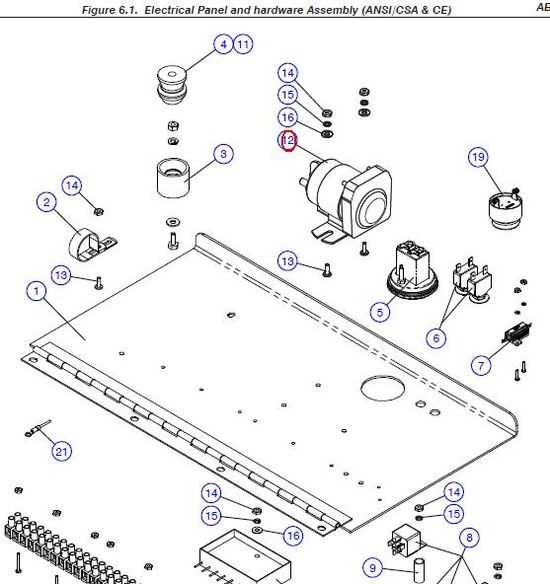

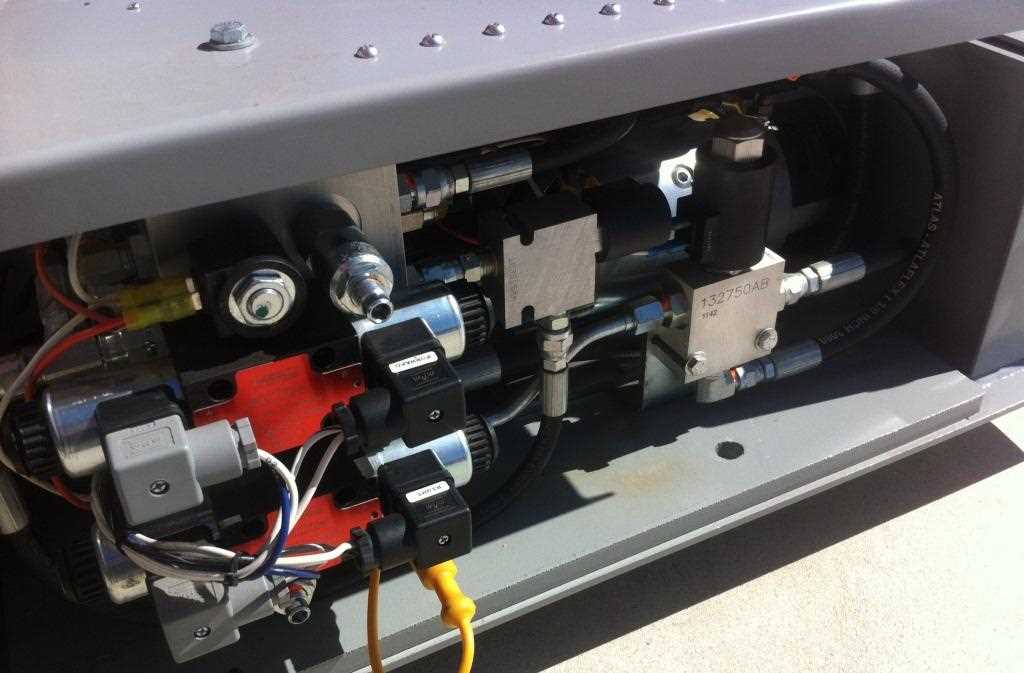

Inspect the hydraulic manifold next, focusing on the solenoid pairs. Locate the twin valve assemblies at the base; their wiring forms a mirrored pattern on either side of the chassis. The upper valve trio typically handles platform extension, with crimped terminals secured by 6mm Phillips screws. Loose connections here often manifest as erratic movement or hydraulic lag – torque screws to 8-10 Nm. Label each solenoid lead before disconnecting: left valve bank governs descent, right controls ascent and auxiliary functions.
| Component | Wire Color Code | Function | Voltage Range |
|---|---|---|---|
| Emergency Stop Relay | Yellow/Black (Y/B) | Circuit interruption | 24V DC |
| Lower Control Joystick | Green/White (G/W) | Directional input | 5V DC |
| Battery Main Lead | Red (+), Black (-) | Power supply | 12V DC |
| Hydraulic Pump Motor | Brown/Blue (B/U) | Pressure regulation | 48V DC |
Access the emergency stop module by removing the operator console’s underside cover – the switch’s wiring attaches via a 4-pin Molex connector. Observe two key terminals: the normally closed circuit (pin 2) must maintain contact unless depressed; pin 4 carries auxiliary power to warning lights. Replace any oxidized pins immediately, as corrosion here disables safety mechanisms entirely. Verify the switch’s mechanical linkage aligns with the plunger’s full range of motion during testing.
Follow the thickest cable bundle from the battery compartment to the main fuse block. The primary feed splits here: a 60A fuse protects the drive motors, while a separate 30A fuse governs control systems. Check each fuse’s rating against the engraving on the holder’s faceplate – mismatches risk overheating the 10 AWG copper conductors. Note the fuse block’s orientation; reversing input/output polarity destroys downstream electronics irreparably.
Probe the limit switch array at the platform’s corners. Each switch uses a three-wire configuration: common (black), normally open (blue), and normally closed (red). Faulty switches cause the platform to overtravel or refuse to extend fully – calibrate by adjusting the cam roller’s position so it triggers at 5mm before mechanical stops engage. Replace switches showing cracked housings or erratic behavior during manual activation tests.

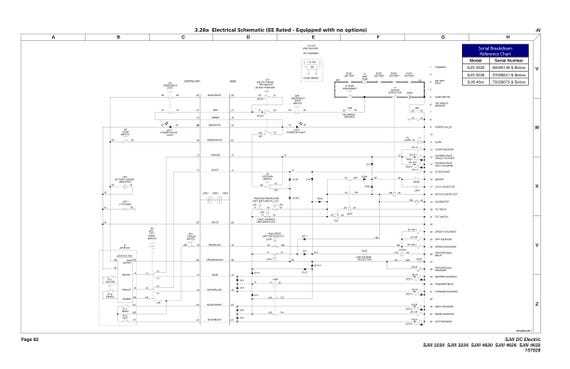

Understanding the Electrical Schematic for Aerial Lift Models
Begin by locating the legend in the upper-left corner of the schematic. Identify each symbol’s meaning, as they represent components like relays, switches, and connectors. The legend will include abbreviations such as “OL” for overload relay and “CR” for control relay–memorize these first.
Trace the power source pathway from the battery terminals. Follow the thickest lines on the diagram, which typically indicate high-current circuits. These lines lead to the main disconnect switch, then split into branches feeding hydraulic pumps, control valves, and auxiliary systems.
Examine the fuse block layout. Each fuse is labeled with its amperage rating and circuit function, such as “F2 – 10A – Platform Controls.” Verify these values against the label inside the fuse panel cover; mismatches signal potential errors in the schematic or equipment modifications.
Check the wiring colors alongside the lines. The schematic uses standardized color codes:
- Red – Positive power
- Black – Ground return
- Yellow – Signal or sensor circuits
- Blue – Control circuits
Cross-reference these with the physical wires at connectors to avoid misinterpretation.
Troubleshooting Common Circuit Issues
Isolate sections using the schematic’s grid references. For example, “A5” might correspond to the platform joystick controls. If a function fails, focus on components within that grid square first–start with physical inspections of wires and connectors, then proceed to relays and switches.
Follow the ground paths carefully. Poor grounding causes intermittent faults. The schematic shows multiple ground points; ensure each one connects directly to the chassis or battery negative terminal. Use a multimeter to confirm continuity between ground points and the battery’s negative post.
Test relays by manually activating them. Most schematics indicate relay coil activation points; use a 12V power probe to energize the coil while observing if the contacts close. Listen for a click–no sound may indicate a faulty relay or broken coil circuit.
Document deviations between the schematic and actual wiring. Field modifications, repairs, or aftermarket installations often introduce inconsistencies. Note these changes directly on a printed copy of the schematic for future reference, or update a digital diagram if available.
Diagnosing Faults in the Elevating Platform Control Interface
Start by verifying voltage across the main contactor coils–measure between terminals A1 and A2 with a multimeter set to DC 24V. If readings drop below 20V, inspect the power supply relay (part #832-715) for corrosion or burnt contacts. Replace if resistance exceeds 0.5 ohms. Common failure points include the fuse block adjacent to the joystick assembly; remove and test each 10A fuse individually.
Common error codes and fixes:
- E3 (Overload): Check for binding in the hydraulic cylinders by manually retracting the outriggers. If movement is restricted, lubricate pivot points with silicone-based grease (NLGI 2).
- E8 (Joystick fault):
- E12 (Solenoid valve issue):
Disconnect the 12-pin connector from the control board and inspect for bent pins or moisture ingress. Clean with contact cleaner (manufacturer-approved only) and reseat firmly.
Test solenoid coils with a multimeter–resistance should be 25-35 ohms. If outside this range, replace the coil (part #427-103).
For intermittent power loss, trace the harness from the battery to the control box, focusing on:
- Crimp connections–reterminate any showing green oxidation with solder and heat-shrink tubing.
- Ground strap (bolted behind the operator panel)–sand the mounting surface to bare metal if corrosion is present.
- Relay sockets–press each relay into its socket while observing voltage at the output terminal. If voltage spikes, the socket requires replacement.
Advanced Diagnostic Steps
When standard checks fail, probe the CPU board (marked “Rev C2”) with an oscilloscope at test points TP1 (PWM signal) and TP2 (5V reference). A distorted waveform at TP1 indicates a faulty joystick potentiometer–calibrate via the hidden menu (hold “Up” + “Down” buttons for 5 seconds). For persistent hydraulic errors, bypass the pressure switch with a jumper wire temporarily; if the system operates, replace the switch (part #671-042). Always disconnect the battery before probing live circuits.
