For reliable operation of a motor-driven system, use a push-button control scheme with a holding contact. Begin by installing a normally open (NO) momentary contact at the activation point and pair it with a normally closed (NC) stop button for immediate disconnection. Wire the NO contact in parallel with an auxiliary holding relay to maintain current after the initial press–this prevents dropout when releasing the start command.
Connect the motor’s overload protection in series with the stop button and the holding relay coil to ensure the circuit breaks during thermal or overcurrent events. Use 14 AWG or thicker copper wire for power paths and 18 AWG for control signals, minimizing voltage drop over extended runs. Label each conductor at both ends–color-coding alone is insufficient for troubleshooting. Verify all connections with a multimeter before energizing: measure continuity across the holding relay coil (typically 120V or 240V AC) and confirm the stop button opens the circuit when pressed.
For panel-mounted setups, mount the buttons and relay within 500mm of each other to reduce signal latency. Position the holding relay adjacent to the motor contactor to avoid EMI interference from high-power lines. If using a reversing setup, install interlocking contacts between forward and reverse coils to prevent simultaneous engagement. Ground all metallic enclosures and provide a separate grounding conductor back to the main service panel, sized per NEC 250.122.
Test the circuit under load before full deployment. Simulate a stop command by pressing the NC button–observe the contactor drop-out within 50ms. Check holding relay performance by initiating the NO button and releasing–current should persist without flicker. If dropout occurs, inspect for loose connections or insufficient coil voltage. Document the exact wire routing and component placement for future reference, including breaker ratings and conductor ampacity.

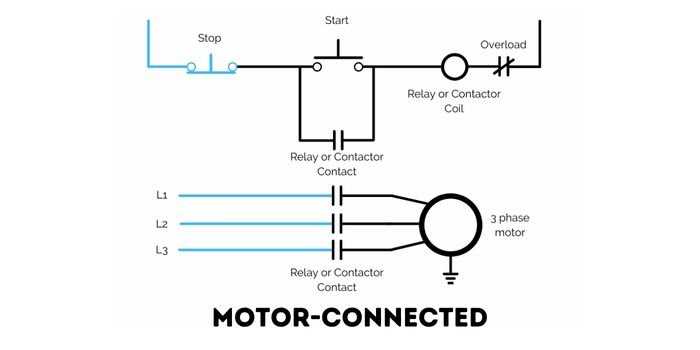

Basic Motor Control Circuit Layout for On/Off Stations
Connect the live input to a 10A thermal overload protector before branching into the pushbutton station; route normally open contacts of the momentary “run” pushbutton in series with the holding coil of a 24V AC relay, then bridge them with a second set of relay contacts to maintain circuit continuity after release–this prevents nuisance trips if the button is held longer than 0.5 seconds. Ground the relay frame and coil return directly to the motor chassis; any upstream neutral splice within the enclosure will introduce interference at 50/60 Hz.
Terminate the “halt” pushbutton (normally closed) immediately upstream of the relay coil, ensuring its leads are shielded with spiral-wound nylon tubing if running parallel to power conductors for distances exceeding 6 inches. Label every conductor at both ends with heat-shrink sleeves printed at minimum 6 pt font: L1, OL, CR, M, PB1, PB2; verification sequence is polarity test with a solenoid-tester before applying 230V, followed by continuity check across the holding contact path at 12 VDC to confirm less than 0.3 Ω resistance.
Core Elements for Motor Control Circuit Construction
Select a contactor with a coil voltage matching your system’s supply–typically 110V, 230V, or 400V AC–to ensure reliable activation. Overdimension the main contacts by at least 20% above the motor’s full-load current to prevent overheating during inrush transients. Verify the auxiliary contacts (NO/NC) align with the control logic; misalignment leads to operational failures.
Fuses or circuit breakers must correspond to the motor’s locked-rotor current, not just nominal current. For 1 hp motors, use a 10A time-delay fuse; for 3 hp, 30A. Position the protective device immediately after the power source to isolate faults upstream. Avoid substituting fuses with generic breakers; they lack the necessary delay for transient spikes.
Pushbutton and Relay Specifications
| Component | Voltage Rating | Current Rating | Key Feature |
|---|---|---|---|
| Maintain pushbutton | 24-600V AC/DC | 5-10A | Momentary action, silver alloy contacts |
| Override relay | 24-480V AC | 6-16A | Mechanical latch, 2NO/2NC contacts |
| Contactor coil | 24-230V AC | N/A | Class F insulation, inrush ≤ 5x hold current |
Verify pushbutton durability: industrial-grade variants withstand 50,000+ cycles under 6A resistive load. For ambient temperatures above 50°C, opt for ceramic-based buttons to prevent premature failure. Relays with silver-nickel contacts tolerate frequent switching better than copper alternatives.
Thermal overload relays must trip at 105-125% of the motor’s rated current. Set the dial to match the nameplate value–factory presets often misalign with application requirements. Manual reset models prevent automatic restart after faults; use automatic reset only where immediate recovery is safe. For three-wire control, confirm the seal-in circuit uses a NO auxiliary contact, not a power contact.
Wire gauge selection depends on conduit length and ambient temperature. For 1.5 mm² (16 AWG) conductors, derate to 80% if bundled in groups of 3+ in 40°C conditions. Use stranded copper wire (class 5) for flexibility; solid core increases termination stress. Terminal blocks rated for 10A minimum ensure secure connections under vibration.
Enclosure and Safety Compliance
IP54 enclosures suffice for indoor environments; IP66 is required for washdown or outdoor exposure. Ventilation slots reduce heat buildup but must be mosquito-proof to prevent debris ingress. Ground the enclosure separately from the neutral–verify continuity with a multimeter before energizing. Label all conductors per IEC 60445 (L1, T1, 13, A1) to avoid miswiring during maintenance.

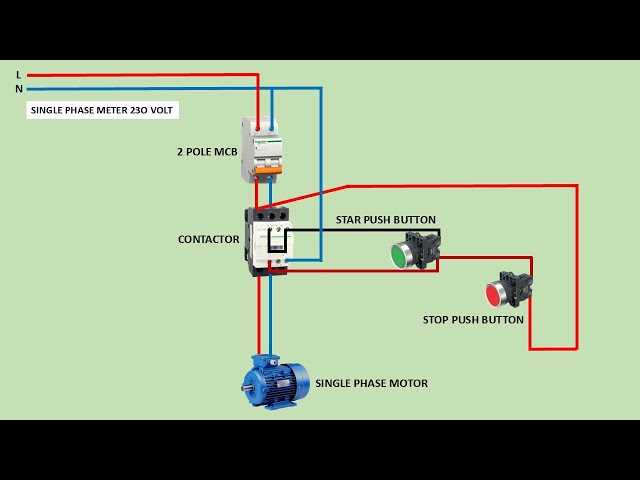

Connecting Pushbutton Controls in Sequential Steps
Identify the power source terminals first–locate the live (L) and neutral (N) lines on the contactor or relay. Use a multimeter to confirm voltage (typically 110V–240V AC) before handling. Attach the incoming live wire to the upper contact of the holding coil (often labeled A1 or L1) to energize the circuit when activated. Ensure the neutral connects to the opposite coil terminal (A2 or L2) without interruption; improper connection here prevents the coil from engaging and risks overheating.
Wire the momentary buttons: connect one terminal of the green (normally open) pushbutton to the same coil terminal (A1) as the live feed. Run a jumper from its second terminal to the red (normally closed) pushbutton’s first contact–this creates the self-holding path. Attach the second red button terminal to the coil’s opposite side (A2) via a auxiliary contactor block (NO, 13–14) if available; otherwise, bridge directly to the coil’s N input. Test continuity with a probe to verify the path closes when the green button is pressed and breaks when the red button is actuated.
Secure connections with crimped ring terminals for stranded wire; twisting and taping invites vibration-induced failures. Label every conductor at both ends–miswiring a single strand wastes hours troubleshooting. After assembly, apply power and observe coil response: green button should latch current, red button release it. If coil buzzes but doesn’t hold, recheck auxiliary contact alignment; if silent, confirm voltage reaches both coil terminals.
Common Errors in Control Circuit Connections
Avoid reversing the auxiliary contacts on the pushbutton–confusing NO (normally open) with NC (normally closed) terminals leads to immediate faults or failed self-holding. Label wires before disconnecting: L1 to coil, COM to return, NO for start, NC for stop. Verify continuity with a multimeter; reversed NO/NC will show ≈0Ω when pressed if miswired, not open. Use DIN 0.75mm² conductors for coil circuits and heat-shrink sleeves on splices–exposed strands in 18AWG wire cause short-to-ground errors under 24VAC.
Overloading control circuit contacts with indicators or relays exceeding 10A resistive/3A inductive draw burns contacts within weeks; PWM drives or switching PSUs require snap-action reed relays instead. Skipping overload protection in the auxiliary circuit trips motor protection without warning–install a 2A fuse upstream of the coil for fault isolation. Ensure starter coil voltage matches supply: 120V coil on 240V burns instantly, 240V coil on 120V fails to pull in; measure supply voltage at coil terminals before energizing.
Testing the Circuit for Proper Functionality Before Powering On
Begin by visually inspecting all connections to ensure no exposed wires or loose terminals exist. Use a multimeter set to continuity mode to verify the absence of unintended shorts between the live conductor and neutral, as well as ground. Probe each terminal pair–hot-to-neutral, hot-to-ground, and neutral-to-ground–recording zero ohms only where intended (e.g., across closed contacts). Any resistance below 1 MΩ warrants rechecking splices or crimped connectors for corrosion or improper insulation.
Measure the voltage across the control device’s input terminals with the multimeter in AC mode. Expect the full supply voltage (e.g., 120V or 230V) when the actuator is in the “off” position. Energize the actuator and confirm the voltage drops to near zero, indicating proper contact closure. If readings deviate by more than ±5V from expected values, test the coil for continuity or replace the actuator.
Critical Isolation Checks
- Disconnect power at the breaker and lock it off with a hasp.
- Attach the multimeter leads to the hot wire and ground–open circuit (infinite resistance) must be confirmed.
- Repeat for neutral and ground; any measurable resistance suggests a fault in the grounding path.
- Inspect the overload relay’s contacts; they should open fully when tripped. Use a screwdriver to manually trip the relay and verify separation with a feeler gauge (minimum 0.5mm clearance).
After confirming no shorts, perform a dry run with the load disconnected. Restore power, activate the actuator, and listen for unusual humming or arcing sounds. Use a non-contact voltage tester to ensure no stray voltage leaks to adjacent metal surfaces. If the actuator cycles correctly but the load fails to respond, swap the load with a known-working one (e.g., a 10W bulb) to isolate whether the issue lies in the wiring or the device itself.
Load-Specific Validation
- For inductive loads, such as motors, connect a clamp meter around the hot wire and check for inrush current–typically 6–8 times the running current. Current spikes lasting over 3 seconds may require a soft starter.
- Resistive loads (e.g., heaters) should show stable current within 10% of the nameplate rating. Any fluctuation suggests poor connections or undersized conductors.
- Capacitive loads demand a bleeder resistor across the terminals; absent one, residual voltage may persist for minutes. Measure residual voltage with a high-impedance multimeter (10 MΩ minimum) after power-off, ensuring it decays to under 30V within 1 second.
Finally, simulate an emergency stop by yanking the actuator’s pushbutton or relay. The circuit must de-energize within 50ms; verify this with an oscilloscope if available. Document all readings, including timestamps, for baseline comparison during future maintenance. Reapply power only after all tests confirm the absence of faults–never rely on visual checks alone for safety-critical installations.
