Begin with the main power feed directly to the battery terminals–positive to the starter solenoid’s heavy-gauge post and negative to an engine ground bolt. Use at least 4-gauge copper cable for these connections to handle the 300+ amp surge during startup without voltage drop. Avoid cheaper aluminum-clad alternatives; they corrode quickly under vibration and heat.
Route the ignition switch output to a fused distribution block, splitting the current to the headlight, taillight, and accessory circuits. Install a 15-amp fuse on each branch–any higher risks melting insulation if a short occurs. Label every wire with heat-shrink tubing or adhesive markers; yellow for lighting, red for power, black for ground. This prevents tracing errors later.
The turn signal circuit requires a dedicated flasher relay, mounted near the handlebars to minimize wire length. Harley’s OEM relays often fail under 120°F temperatures; replace with a solid-state HD-8 relay rated for 30 amps continuous. Connect the hazard switch in parallel with the turn signal switch, ensuring both levers activate the flasher independently.
Ground every component back to a single, clean engine stud. Remove paint and oxidation from the mounting surface; a single loose ground causes intermittent failures that are nearly impossible to diagnose. For lighting circuits, run separate ground wires back to the battery negative–do not rely on the frame alone. Test continuity with a multimeter set to ohms; readings above 0.5 ohms indicate corrosion or poor contact.
Integrate the voltage regulator adjacent to the alternator, using the shortest possible wires to reduce EM interference. Stock Harley regulators often burn out; upgrade to a MOSFET-based unit like the Cycle Electric CE-60A for consistent 14.4V output under load. Connect the regulator’s field wire directly to the alternator’s F-terminal, bypassing the stock resistor to improve charging efficiency.
Solder all connections with 60/40 rosin-core solder–never use butt connectors or crimp terminals alone. Heat shrink every joint with adhesive-lined tubing to seal out moisture. After assembly, power the system with a 10-amp bench supply and verify each circuit with a test light before riding. Any dimming under load signals insufficient wire gauge or a loose connection.
Basic Electrical Layout for Classic V-Twin Motorcycles
Start by disconnecting the battery to avoid shorts. Label each connection with masking tape or a permanent marker–use clear abbreviations like “IGN” for ignition, “ST” for starter, “HL” for headlight. A 6-circuit fuse block is optimal for most models: allocate one fuse per critical path:
- 5A for ignition system (coil, points, condenser)
- 15A for lights (headlight, taillight, turn signals)
- 20A for accessory circuits (horn, heated grips, charging ports)
- 30A for the main starter relay
Route ground wires directly to the frame using 10-gauge cable; cluster them near the battery tray to minimize voltage drop. Replace OEM bullet connectors with soldered and heat-shrinked joints for reliability–especially in high-vibration areas like the handlebars and rear fender.
Test continuity with a multimeter after assembly: probe between the battery negative terminal and each ground point–resistance should read under 0.5 ohms. If voltage drops below 12.4V at idle, upgrade the stator (aim for 18A+ output) or add a 50A rectifier. Keep the main harness away from exhaust headers–use split loom tubing and secure every 6 inches with nylon zip ties.
Selecting the Optimal Electrical Blueprint for Your Touring Bike
Match your circuit layout to the exact year and trim of your Sportster or Big Twin–resist generic templates. Factory schematics from 2004–2013 Twin Cams omit CAN bus details found in ’14+ models, causing misfires if swapped. For Iron 883 or Softails, prioritize color-coded guides separating ignition, lighting, and accessory feeds; aftermarket manuals often merge these into illegible blocks.

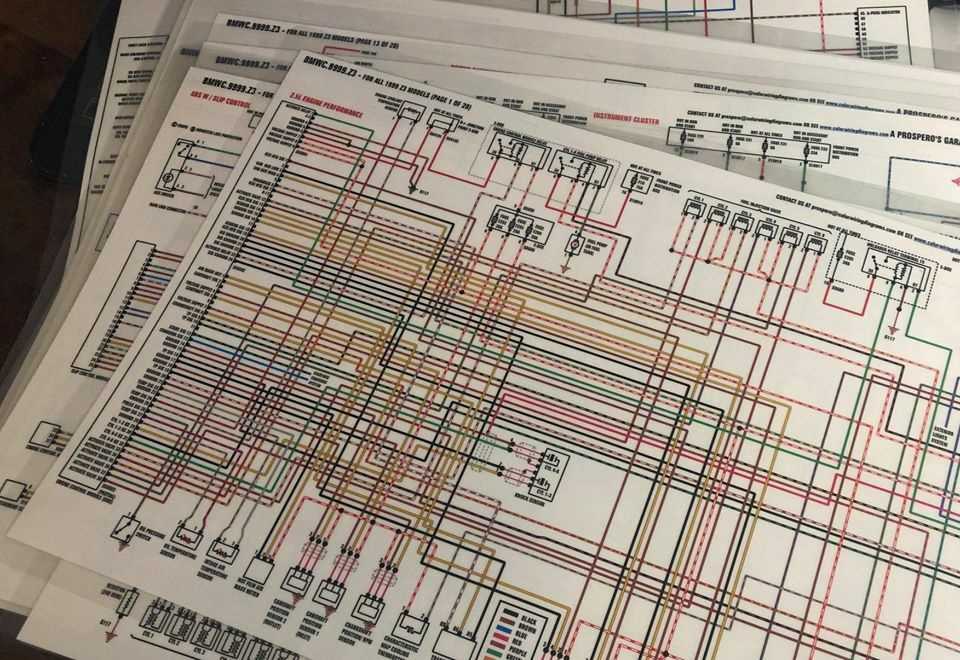

Verify scaling: printed OE diagrams measure 24” x 36” but shrink legibly to 11” x 17” without losing fuse or relay positions–essential for troubleshooting parasitic drain. Third-party PDFs default to low resolution, obscuring ground symbols near the voltage regulator, a frequent failure point on FLHR Road Kings.
Essential Equipment for Interpreting and Adjusting Motorcycle Electrical Blueprints
Start with a multimeter calibrated for both DC voltage (0–20V) and resistance (up to 2MΩ). Brands like Fluke 17B or Klein Tools MM400 offer accuracy for low-current circuits typical in Harley Davidson models. Identify stray voltages–common in 2007–2013 Touring bikes–by probing connectors with the ignition off, then on, and finally running. This isolates phantom draws caused by corroded pins or faulty relays.
A pinout extractor (e.g., TE Connectivity 1531171-1) prevents bent terminals when removing wires from 12-way Deutsch connectors. Pair it with heat-shrink tubing (minimum 3:1 shrink ratio) in sizes 2.5mm and 4mm to seal splices without melting adjacent wires–a frequent issue in Sportster tail sections where routing leaves little space. For color-code verification, use leads with alligator clips and match them to the factory wire gauge: 18–20 AWG for signals, 14–16 AWG for power feeds.
Label every modification with P-touch tape or polyester tags resistant to oil and UV. Store schematics on a ruggedized tablet (like Panasonic Toughbook) pre-loaded with PDFs and a circuit simulator (e.g., AutoCAD Electrical). Keep a magnifying light (8x–10x) for inspecting tiny relay contacts–especially in 2014–2020 Softails where the BCM hides behind the dashboard.
Step-by-Step Guide to Tracing Main Power Circuits
Begin by locating the battery terminals–mark the positive (+) and ground (-) connections with masking tape to prevent confusion. Use a multimeter set to DC voltage (20V range) to verify live power at the battery; expect 12.6V on a fully charged system. If readings deviate, check for corroded terminals or loose cables before proceeding.
Identify the main fuse block, typically mounted near the battery or under the seat. Remove the cover and inspect the fuse ratings–common values include 30A for primary circuits and 15A for lighting or ignition subsystems. Label each fuse with its function using a marker; refer to factory schematics if labels are missing. A blown fuse indicates a short–replace only after isolating the fault.
- Disconnect the negative battery terminal to prevent accidental shorts.
- Trace the red (power) cable from the battery to the fuse block using a continuity tester.
- Follow the fused line to the ignition switch; test for voltage drop (should be <0.5V).
- Check solder joints or crimp connectors for heat damage–replace compromised sections.
Move to the ignition switch output, probing the yellow (start) and black/white (run) leads. Activate the switch and measure voltage–failure here points to a faulty switch or loose wiring harness connection. Next, trace power to the starter relay, typically a 4-post unit near the battery. Test coil activation by jumping terminals 85 and 86 with 12V; the relay should click audibly.
Inspect the charging system by following the stator output wires (usually 3-phase, white with colored stripes) to the rectifier/regulator. Test AC voltage at the stator (idle: 15-20V AC, 3000 RPM: 50-70V AC). Low output suggests a failing stator or shorted diode in the rectifier. Finally, trace the 10-gauge brown wire from the regulator to the battery–voltage should rise to 13.8-14.4V under load.
- Reconnect the battery negative terminal and start the engine.
- Monitor voltage at the battery posts; fluctuations indicate charging issues.
- Test all accessory circuits (headlight, turn signals, horn) individually.
- Use a load tester on the battery if parasitic drain exceeds 50mA.
Document each traced circuit with labels or photographs for future reference. Replace zip ties securing wires and apply dielectric grease to connectors to prevent corrosion. Store all tools and secure the bike’s electrical cover panels before final operation.
Diagnosing Frequent Electrical Problems in Harley-Davidson Bikes
Begin troubleshooting by checking the battery terminals for corrosion–white or greenish deposits disrupt current flow. Clean with a wire brush and apply dielectric grease to prevent recurrence. Voltage readings below 12.4V at rest indicate a weak battery needing recharge or replacement, while voltages above 14.8V while running point to a faulty voltage regulator.
Inspect the main fuse block under the seat. Harley models often use blade-style fuses rated between 20-40A for primary circuits. A blown fuse typically leaves a visible break in the filament; replace only with the exact amperage. If the new fuse blows immediately, suspect a short in the corresponding circuit–use a multimeter to trace resistance from the fuse holder to ground, looking for values under 1Ω.
Loose or frayed connectors cause intermittent failures. Focus on the ignition switch, handlebar controls, and turn signal module plugs. Gently tug each wire while observing voltage changes with a multimeter; a drop or spike signals a faulty connection. Harley’s factory connectors use a mix of bullet-style and WeatherPack terminals–ensure both halves are fully seated and free of oxidation.
Common Fault Codes and Fixes
| Fault Code | Component Affected | Typical Cause | Action Required |
|---|---|---|---|
| P0562 | Charging System | Stator overvoltage | Test stator resistance (should be 0.1–0.5Ω between phases); replace if out of spec |
| P1478 | Speed Sensor | Sensor gap misaligned | Adjust gap to 0.020–0.030 inches; clean tooth wheel of debris |
| P0261 | Injector Circuit | Open injector coil | Check resistance (11–13Ω); replace injector if outside range |
| P2100 | Throttle Body | Unplugged throttle position sensor | Reconnect harness; verify 5V reference voltage at sensor connector |
Ground points–especially behind the headlight housing and near the battery tray–are prone to corrosion. Scrape paint down to bare metal where wires attach, then tighten bolts with star washers to ensure solid contact. Harley’s ground wires often share paths with high-current circuits; a single poor ground can affect multiple systems simultaneously.
Examine the turn signal module for melted solder joints. Harley’s flasher units operate at 12V but draw high pulse currents; overheating causes solder cracks. Resolder connections with 60/40 rosin-core solder if joints appear dull or granular. For models with self-canceling signals, confirm the wheel speed sensor pickup aligns properly with the tone ring–misalignment triggers erratic flash patterns.
Stator failures manifest as dimming lights under load. Measure AC voltage between each stator lead while cranking: readings should match within 1V. If one phase reads significantly lower, the stator has internal shorts. Replace the entire stator assembly–harness repairs rarely last. Ensure the new stator’s resistance matches factory specs (typically 0.1–0.5Ω between phases).
Handlebar switch clusters fail progressively. Test each switch with a continuity tester while actuating: infinite resistance in the “on” position means the switch contacts are worn. Harley’s turn signal switches use sliding contacts inside plastic housings; disassemble and clean with contact cleaner, avoiding lubricants that attract dust. Replace the entire cluster if contacts are pitted.
Quick Checks for Roadside Diagnostics
Carry a 12V test light and spare fuses. Probe the fuse terminals: both sides should illuminate brightly if powered correctly. If only one side lights, the circuit is incomplete–trace the unpowered side back to its source. For handlebar switches, bypass by connecting the appropriate wires (e.g., green for left turn) directly to the flasher output to confirm a switch issue. Never bypass safety circuits like kill switches or brake light switches.
