Start by isolating the core components: a charger, battery, inverter, and switching mechanism. Use a 12V sealed lead-acid or lithium-ion battery with at least 7Ah capacity for 30–60 minutes of runtime under a 100W load. Connect a 20A Schottky diode between the charger and battery to prevent backflow, reducing voltage drop to 0.3V compared to standard silicon diodes. For the inverter, a push-pull or half-bridge topology works for low-power applications, but ensure MOSFETs (IRFZ44N) or IGBTs (IRG4PC50U) have a breakdown voltage exceeding 2x the input voltage to handle transient spikes.
Add a microcontroller (PIC16F877A or STM32) to manage charging cycles and automatic switchover. Implement PWM at 50kHz for efficient battery charging, adjusting duty cycle via feedback from a voltage divider (10kΩ + 10kΩ) and ADC input. For overload protection, include a resettable 15A fuse and a Hall-effect sensor (ACS712) to monitor current draw. A relay (SRD-12VDC-SL-C) or solid-state switch (BTA16-600B) should transition between mains and battery power within 20ms to avoid load disruption.
Grounding and noise suppression are critical. Use ferrite beads on input/output lines to minimize EMI, and connect a 100nF ceramic capacitor close to the microcontroller’s power pins. Test the circuit under varying loads–start with 50W resistive (incandescent bulb) and up to 150W inductive (small motor)–to validate stability. Avoid cheap electrolytic capacitors in the inverter stage; replace with polypropylene or polyester types rated for 250VAC to extend lifespan.
Optimize thermal management. Mount MOSFETs on a heatsink with thermal paste, ensuring a maximum case temperature of 60°C under continuous load. For lithium-ion batteries, integrate a BMS with overcharge/over-discharge protection (e.g., TP4056 module). Log voltage and current data every 5 seconds during runtime to diagnose potential failures. If efficiency drops below 85%, recheck transformer windings (use AWG 18 wire for primary, AWG 22 for secondary) or replace MOSFETs with lower RDS(on) models (e.g., IRLZ44N).

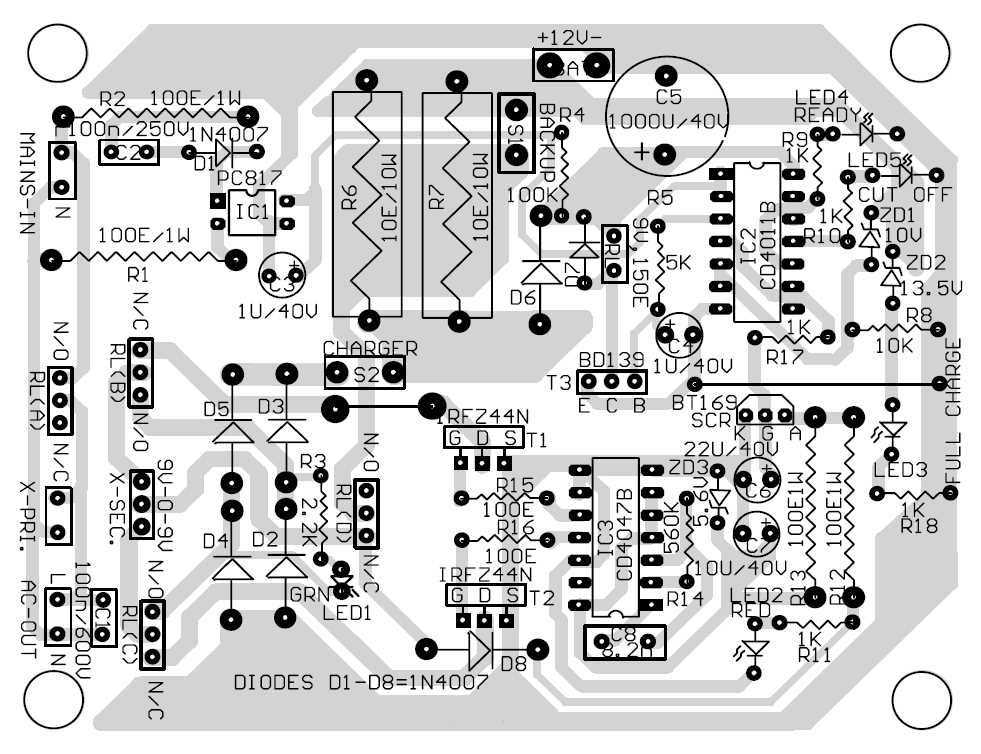

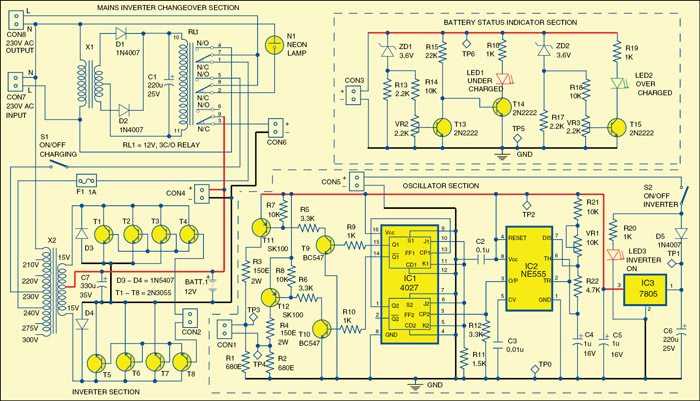

Basic Uninterruptible Power Supply Circuit Layout
Start with a 12V lead-acid battery as the energy storage core–its capacity dictates runtime; a 7Ah unit provides ~30 minutes at 20W load. Connect the battery’s positive terminal directly to a 10A fuse to prevent overheating during faults.
Use an N-channel MOSFET (e.g., IRFZ44N) as the switching element, driven by a 555 timer configured in astable mode at 50kHz. This frequency balances efficiency and component stress; lower values increase inductor size, higher ones raise EMI.
Place a 100μH inductor between the MOSFET’s drain and the load’s positive input. A 1N5822 Schottky diode across the inductor clamps voltage spikes to ≤40V, protecting downstream components. Choose a diode with ≤0.5V forward drop to minimize losses.
For voltage regulation, employ an LM317 adjustable regulator with a 240Ω resistor to ground and a 5kΩ potentiometer. Output adjusts from 1.25V to ~15V; set it to 5V for USB devices or 12V for DC appliances. Add a 10μF electrolytic capacitor at the output to smooth ripple to
Solder a 2N3904 transistor as a power-on indicator; its base connects to the MOSFET gate via a 4.7kΩ resistor. A red LED with a 220Ω series resistor provides visual confirmation when the circuit is active.
Ensure the PCB traces carrying battery current are ≥2mm wide for 5A handling. Use a ground plane for the control section to reduce noise; keep it isolated from the high-current path to prevent interference.
Mount a slow-blow 1A fuse in series with the AC input (if using a transformer) to disconnect during prolonged overloads. A 1μF X-certificate capacitor across the AC line suppresses transients from upstream surges.
Test the assembled layout under load–measure voltage sag at the output terminals with a 50W halogen bulb. Expect ≤0.2V drop at full load; if greater, reevaluate inductor core material (ferrite outperforms powdered iron at 50kHz).
Core Building Blocks of a Backup Power Supply Circuit
Start with a high-quality lead-acid or lithium-ion battery bank (12V–48V) as the energy reservoir. For a 200W load, a 12V 20Ah battery will deliver ~1 hour of runtime, while a 48V 10Ah unit sustains the same load for ~2.5 hours. Select based on discharge curves–avoid deep-cycle batteries below 50% capacity to prevent sulfation or diminished lifespan. Pair with a low-voltage cutoff circuit (e.g., TL431 shunt regulator) to block overdischarge, setting the threshold at 1.75V/cell for lead-acid or 2.8V/cell for lithium.
Power Conversion: Inverter and Charger Selection
Use a pure sine wave inverter (e.g., IR2110 + MOSFET half-bridge) for sensitive electronics; modified sine wave distortors (THD >5%) damage motors and SMPS. Size the inverter 1.5–2× the peak load–for a 300W continuous draw, opt for a 500W–600W unit. Incorporate a PWM or MPPT charger (e.g., UC3906) for lead-acid, or a CC/CV buck converter (e.g., XL6009) for lithium, ensuring charging currents stay at C/10 (10-hour rate) to avoid thermal runaway. Add a PTC fuse (1A–3A) on the input to handle short circuits.
Integrate a transfer switch (DPDT relay or SSR) with flyback diode (1N4007) across inductive loads (relays, transformers) to clamp voltage spikes, preventing MOSFET failure. For overcurrent protection, use a resettable polyfuse (e.g., Littelfuse 1210L) on the output; combine with a hall-effect sensor (ACS712) for current monitoring, feeding data to a microcontroller (e.g., ATtiny85) to trigger shutdown at 120% of nominal load.
For filtering, deploy LC networks (470µH inductor + 1000µF capacitor) on both input and output to suppress ripple–target TVS diode (SMBJ12A) across the battery terminals to absorb surges >15V (e.g., automotive load dumps). Ground all metal enclosures to a star-point earth terminal, using 10AWG wire for
Step-by-Step Assembly of a Transformer-Based Backup Power Unit
Select a toroidal transformer with a 12V–15V secondary winding and a current rating 20% above your device’s peak load. For a 100W load, a 12V/10A transformer ensures headroom for inrush currents during startup. Verify the primary winding matches your mains voltage (110V or 220V) and label the wires immediately to prevent confusion during soldering.
Mount a bridge rectifier rated for 35A or higher on a heatsink. Use a KBPC3510 or equivalent if soldering by hand; for surface-mount designs, choose a GBPC3510W. Secure the rectifier with thermal paste and a spring clip to dissipate the 1.4V forward drop efficiently. Connect AC leads to the transformer’s secondary and DC outputs to a 4700µF/25V electrolytic capacitor, observing polarity–reverse voltage will destroy the capacitor in milliseconds.
Wire a 1N4007 diode in series with the capacitor’s positive terminal to block backflow during battery charging. The diode’s 1A rating suffices for trickle charging but replace it with a 3A Schottky (e.g., SB560) if fast recharging is required. Install a 10kΩ resistor across the capacitor to bleed stored voltage when the unit powers down, reducing shock risk when servicing.
Battery Integration and Charge Regulation
Connect a 12V sealed lead-acid battery (7Ah minimum for 1-hour runtime) via a current-limiting resistor or a dedicated charge controller. For manual control, use a 10Ω/10W wirewound resistor in series to limit charge current to 1.2A. Monitor battery voltage with a multimeter–terminate charging at 13.8V to prevent overcharging and electrolyte loss. Alternatively, integrate a TL431 shunt regulator with a 2.5V reference to automate cutoff.
Add a SPDT relay (e.g., Omron G5V-2) to switch between mains and battery power. Drive the relay coil with a 2N2222 transistor, triggered by a voltage divider monitoring the transformer’s output. Set the threshold at 10.5V to activate the relay before battery discharge damages sensitive electronics. Include a flyback diode (1N4007) across the relay coil to quench inductive spikes that could destroy the transistor.
Fit a 5A fuse in the battery’s positive lead and a slower 3A fuse in the mains input. Use panel-mounted fuse holders for easy replacement; avoid glass fuses for high-current paths–ceramic types withstand inrush surges better. Label each fuse with its rating and function to speed troubleshooting. Route all high-current wires (16AWG or thicker) directly to terminals, avoiding breadboard connections which introduce resistance and heat.
Final Testing and Protection Measures
Power the unit with a dummy load (e.g., 12V bulb) and verify seamless switchover under simulated power loss. Check relay response time–it should transition in under 20ms to prevent load disruption. Add a 100nF ceramic capacitor across the relay’s switch contacts to suppress arcing, extending contact life. Test the bleed resistor’s function by disconnecting power and confirming the capacitor discharges within 5 seconds.
Enclose the assembly in a ventilated metal chassis, grounding the chassis to the transformer’s core for noise suppression. Drill 3mm holes above heatsinks to prevent thermal overload; position the capacitor and battery away from heat sources. Use standoffs to elevate the PCB if included, improving airflow. Label all outputs and inputs on the chassis front to standardize usage and simplify maintenance.
Battery Selection and Charging Circuit Design for Power Backup Systems
Choose sealed lead-acid (SLA) batteries for applications requiring 12V nominal voltage and low maintenance–opt for AGM (Absorbent Glass Mat) variants over flooded types due to superior cycle life and vibration resistance. For higher energy density, lithium iron phosphate (LiFePO4) batteries deliver 300–500% longer lifespan than SLA but demand precise charging control to prevent thermal runaway. Calculate required capacity in ampere-hours (Ah) using the formula: Ah = (Load Power × Runtime) / (System Voltage × 0.8), where 0.8 accounts for 20% discharge depth to maximize battery longevity.
Design the charging circuit around a dedicated IC like the LT3652 (for Li-ion/LiFePO4) or UC3906 (for SLA), which integrate float, bulk, and trickle charging modes. For LiFePO4, set the termination voltage to 3.65V/cell (±0.05V tolerance) and current limit to 0.5C to avoid plating. SLA batteries require a three-stage charge profile: bulk (constant current up to 14.4–14.8V), absorption (constant voltage for 2–4 hours), and float (13.5–13.8V). Use a current-sense resistor (0.1Ω, 1% tolerance) to monitor charging current and trigger cutoff at C/10 (where C is the battery capacity).
- For SLA: Add a reverse polarity diode (e.g., 1N5822) on the input to prevent damage from incorrect battery connection.
- For LiFePO4: Include a thermistor (NTC 10kΩ) adjacent to the battery pack to disable charging if temperature exceeds 45°C.
- Use MOSFETs (e.g., IRLZ44N) for charge/discharge control, driven by a microcontroller or comparator circuit to isolate the battery during faults.
- Opt for low-ESR capacitors (10μF–100μF) on the charging IC’s input/output to stabilize voltage and filter noise.
Select charging current based on battery chemistry: 0.1–0.2C for SLA to balance speed and heat dissipation, and 0.5C for LiFePO4 to reduce charge time without compromising safety. For example, a 20Ah SLA battery should charge at 2–4A, while a 10Ah LiFePO4 pack tolerates 5A. Ensure the power supply delivering the charging current has a minimum 30% headroom above the peak demand–for instance, a 5A charger requires a 6.5A-rated supply.
Isolate the charging circuit from the load using back-to-back MOSFETs or a relay with 10A+ contact rating to prevent backflow during power loss. For LiFePO4 systems, implement a balancing circuit (e.g., passive resistors or active ICs like the LTC6811) if the battery pack exceeds 4 cells in series. Monitor state of charge (SoC) via coulomb counting or voltage-based estimation, but prioritize voltage thresholds for simplicity: 11.8V for SLA (full discharge cutoff) and 3.0V/cell for LiFePO4.
Place charging components on a PCB with thermal vias under the IC and MOSFETs, connecting to a heatsink (20°C/W or better) if power dissipation exceeds 1W. Route high-current traces (>2A) with 2oz copper thickness and minimum 3mm width per ampere. Test the circuit under full load for 24 hours, verifying:
- Charging termination accuracy (±0.05V).
- Float voltage stability (±0.1V over temperature range).
- No thermal hotspots (>60°C).
- Battery voltage recovery within 1 minute after load removal.
For extended runtimes, combine multiple batteries in parallel only if they share identical chemistry, age, and capacity–even a 10% mismatch reduces efficiency by 15–20%. Series connections demand voltage balancing but allow higher system voltages (e.g., 24V for industrial loads). Avoid mixing chemistries; a Li-ion charger will overcharge SLA batteries, leading to hydrogen gas venting or explosive failure. Document all parameters:
- Battery model/manufacturer.
- Charging IC datasheet settings.
- Test results (voltage curves, SoC behavior).
