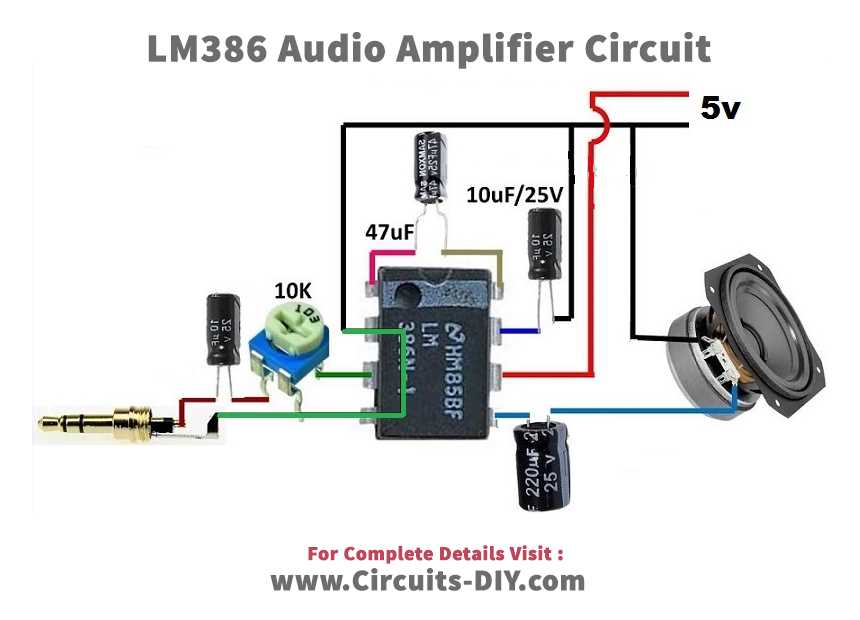

Start with an LM386 IC–an 8-pin low-voltage amplifier ideal for small-scale audio projects. Connect pin 6 to a 9V battery or DC power source, ensuring stable voltage between 4V and 12V for optimal performance. Ground pin 4 to the circuit’s reference point to minimize noise interference.
Wire the input signal to pin 3 via a 10kΩ potentiometer for volume control. Bypass capacitors (0.1µF at pin 7 and 250µF at pin 1) filter high-frequency noise and stabilize gain. For better bass response, add a 10µF capacitor between pins 1 and 8, adjusting gain to 200x.
Terminate the output (pin 5) with an 8Ω transducer or small driver unit, pairing it with a 220µF electrolytic capacitor to block DC offset. Keep wiring short and use a breadboard for initial testing before soldering. Avoid shared ground loops by routing all grounds to a single point.
For troubleshooting, check for oscillations–add a 0.05µF ceramic capacitor in parallel with the power supply if noisy. Test without the enclosure first; plastic casings may introduce interference. Measure output distortion with an oscilloscope–total harmonic distortion (THD) should stay below 0.5% at moderate volumes.
Building a Basic Audio Reproduction Setup
Start with an LM386 amplifier IC–its low voltage requirement (4V–12V) makes it ideal for portable designs. Pair it with a 10µF input capacitor to block DC offset and a 220µF output capacitor to prevent damage to your 8Ω transducer. The IC’s gain can be adjusted from 20x to 200x using a 10kΩ potentiometer between pins 1 and 8, allowing volume control without distortion.
Choose a mono jack connector for signal input if your source is unbalanced–common for headphone outputs or auxiliary ports. For stereo sources, use two identical channels with separate amplifiers or a dual-gang potentiometer to maintain balance. Avoid grounding issues by keeping the input ground separate from the power supply ground until they meet at a single point near the IC.
Power supply selection directly impacts audio clarity. A 9V battery works for testing, but for prolonged use, a regulated 5V–9V DC adapter with a 1000µF smoothing capacitor reduces ripple. If noise persists, add a 0.1µF ceramic capacitor across the power pins of the IC to filter high-frequency interference.
For transducer selection, dynamic drivers under 1W (e.g., 0.25W 8Ω) work best–larger units risk overloading the LM386. If distortion occurs at higher volumes, lower the gain by adding a 1.2kΩ resistor in parallel with the existing gain control pins. Experiment with bass boost by placing a 47nF capacitor between pins 1 and 5, but expect reduced high-frequency response.
Heat dissipation matters: the LM386 can reach 60°C under load, so attach a small heatsink or ensure adequate airflow. For outdoor or high-noise environments, shield the input cables with braided copper and keep them away from power lines to minimize hum. If using a microcontroller for signal modulation, isolate it with an optocoupler to prevent ground loops.
Testing is critical–start with a 1kHz sine wave from a signal generator before introducing music. Use an oscilloscope to check for clipping: a clean waveform should resemble the input, while distortion appears as flattened peaks. If the output is weak, verify the transducer impedance matches the amplifier’s design; mismatches cause power loss.
Expand functionality by adding a power indicator LED with a 470Ω resistor or a shutdown switch to conserve battery life. For multi-room setups, cascade multiple LM386 modules, ensuring each has dedicated power decoupling. Keep traces short on perfboard to reduce parasitic capacitance–alternatively, use a PCB with ground planes for cleaner performance.
Core Elements for a Basic Audio Output Assembly
Begin with an 8-ohm dynamic driver (e.g., Dayton ND90-8 or Tang Band W3-1364SA) to ensure consistent frequency response between 100Hz and 20kHz without distortion. Avoid drivers below 6 ohms for battery-powered setups–efficiency drops, and current draw surges beyond 500mA at moderate volumes. For compact builds, consider a 40mm neodymium driver (Visaton FRWS 40) with a sensitivity of 88dB/W/m; it outperforms ferrite magnets in power-to-size ratios.
Select a dual-rail power supply using two 9V alkaline batteries wired in series or a single 18V DC adapter (e.g., Mean Well LRS-50-18). Ensure the adapter’s ripple noise stays below 150mV p-p; test with an oscilloscope at 20MHz bandwidth. For portable designs, add a 1000µF electrolytic capacitor (Nichicon UHE) across the power rails to filter transients–this prevents audible clicks during signal peaks. Avoid cheap capacitors rated below 50V; ESR values above 0.1 ohms introduce phase shifts at mid frequencies.
Required components per stage:
- Signal source:
- 3.5mm audio jack (CUI SJ-3523N) or Bluetooth module (JDY-40, pre-soldered 10kΩ pull-up resistors).
- 1µF film capacitor (WIMA MKP2) in series to block DC–polypropylene types reduce distortion by 12dB at 1kHz vs. ceramic.
- Amplification:
- IC: LM386 (gain=200) or PAM8403 (class-D, 3W @ 4Ω). Solder a 10Ω resistor in series with pin 1 (LM386) to stabilize gain.
- Decoupling: Two 0.1µF X7R capacitors (Murata GRM188R71E104KA01) near IC power pins–prevents oscillation above 50kHz.
- Output stage:
- Ferrite bead (Fair-Rite 2643006602) between amp IC and driver–reduces RF interference by 20dB at 1MHz.
- Zobel network: 10Ω resistor + 0.1µF capacitor in parallel to driver terminals–dampens impedance spikes at 2kHz.
For enclosures, use 1.5mm MDF sheets cut to a 2:1 width-to-depth ratio (e.g., 100mm x 50mm). Acoustically transparent grille fabric (acoustic transparency >85% at 8kHz) should span 1.2x the driver’s diameter. Avoid sealed boxes for drivers below 3 inches–vent a 6mm hole (tuned to 60Hz) to extend bass response by 1.5 octaves. Test with pink noise; peak SPL should not drop below 85dB at 1m with 1W input.
Step-by-Step Wiring Guide for a Single-Transistor Amplifier
Select a 2N3904 NPN transistor for this setup–its low cost and reliable performance make it ideal for basic audio signal boosting. Gather these components: a 10kΩ potentiometer, a 1kΩ resistor, two 10μF electrolytic capacitors, an 8Ω driver, a 9V battery, and breadboard jumper wires. Ensure the capacitors are rated for at least 16V to handle voltage spikes.
Insert the transistor into the breadboard, leaving three empty rows between each lead (collector, base, emitter) for easy access. Verify the pinout: flat side facing left, leads from top to bottom are collector, base, emitter. Misalignment will prevent the device from functioning.
Connect the 9V battery’s positive terminal to the top rail of the breadboard. Run a jumper wire from this rail to the collector lead of the transistor. This supplies the necessary current for amplification. Avoid reverse polarity–the transistor will overheat if connected incorrectly.
Attach one 10μF capacitor to the emitter lead, ensuring the negative terminal (marked with a stripe) connects to the ground rail. The positive terminal should face outward for signal input. This capacitor stabilizes the output by filtering DC offsets, improving clarity.
Wire the 1kΩ resistor between the base lead and the middle pin of the 10kΩ potentiometer. The outer pins of the potentiometer connect to the 9V rail (right pin) and ground (left pin). This variable resistor adjusts input signal strength–turn it clockwise to increase gain.
Link the audio source (e.g., a phone or MP3 player) to the free end of the 10μF input capacitor. Use a 3.5mm audio jack or shielded cable to minimize noise interference. Connect the ground of the audio source to the ground rail of the breadboard–ground loops will introduce hum if ignored.
Test the assembly by playing a 1kHz sine wave at low volume. The driver should produce a clean tone; if distortion occurs, reduce input volume via the potentiometer. For stability, solder connections after testing–breadboard contacts may introduce resistance or intermittent faults under vibration.
- Use heat shrink tubing on soldered joints to prevent short circuits.
- Replace electrolytic capacitors every 5 years–their performance degrades over time.
- For deeper bass, swap the 10μF output capacitor with a 100μF unit (25V rating).
- Add a 100nF ceramic capacitor across the battery terminals to suppress high-frequency noise.
How to Select Optimal Resistor and Capacitor Values for Audio Components
Begin with the amplifier’s impedance rating–match the load resistance within 10-20% of the nominal value. For a 4Ω driver, use resistors between 3.6Ω and 4.8Ω to prevent distortion while maintaining efficiency. Higher resistances above 8Ω reduce current draw but may dampen output power by 30-40%. Check the power handling; a 5W resistor suffices for most 0.5-2W applications, but scale to 10W for high-impedance tweeters.
Capacitor selection depends on frequency response targets. For crossover networks, electrolytic capacitors suit mid-to-low frequencies (50Hz-5kHz) with values between 4.7µF and 100µF, but ceramic or film types (1µF-10µF) minimize phase shifts in high-pass filters. Polarized capacitors require correct orientation; reverse voltage degrades performance by 50% in minutes. Use non-polarized variants for AC signals to avoid failure.
Calculate cut-off frequencies using the formula fc = 1 / (2πRC). For a 2kHz crossover, pair a 4.7Ω resistor with a 16.8µF capacitor–rounded to 18µF for practicality. Below 200Hz, increase capacitance to 220µF to avoid bass attenuation. Higher tolerances (±5%) improve consistency, but ±10% components suffice for hobbyist builds. Test with an LCR meter; discrepancies over ±15% introduce audible distortions.
| Frequency Range (Hz) | Resistor (Ω) | Capacitor (µF) | Component Type |
|---|---|---|---|
| 20-200 | 2.2-10 | 100-470 | Electrolytic (non-polarized) |
| 200-2k | 4.7-22 | 4.7-47 | Film/Polyester |
| 2k-20k | 10-47 | 0.1-4.7 | Ceramic/Polystyrene |
Prioritize component quality for signal integrity. Metal film resistors (1% tolerance) outperform carbon types by 12dB in noise reduction. For capacitors, polypropylene exceeds electrolytic in longevity, lasting 10,000+ hours vs. 1,000 hours under sustained 50V loads. Avoid Y5V ceramics–they lose 50% capacitance at 20°C below rated temperature. X7R types offer stability within ±15% across -55°C to 125°C.
Adjust values for tonal balance. Increasing resistance by 30% rolls off treble, while halving capacitance sharpens transient response. For vocal clarity, use 0.68µF capacitors with 8Ω resistors–this shifts the cut-off to 3.5kHz, emphasizing midrange harmonics. Lower ESR capacitors (≤0.1Ω) improve dynamic contrast; film types average 0.02Ω, outperforming electrolytics at 0.5Ω.
Validate selections with an oscilloscope. Clipping occurs when input voltage exceeds 70% of the resistor’s power rating. For a 12V supply, limit current to 0.2A through 60Ω resistors; higher currents require heatsinks. Capacitors above 470µF introduce 1-2ms delay, audible in percussion. Use bypass capacitors (0.1µF) across larger electrolytics to filter high-frequency noise.
Document and test incremental changes. Replacing a 10µF capacitor with 4.7µF raises the cut-off from 3.4kHz to 7.2kHz–altering timbre significantly. Pair a 22µF capacitor with a 3.3Ω resistor for sub-100Hz emphasis, but expect 0.5W power loss. Measure impedance sweep at 1V RMS; peaks outside ±3dB indicate mismatched components.
