To design a functional layout, start with the boiler. Position it at the highest temperature zone–typically 500–600°C–to maximize steam generation. Use water-tube boilers for large-scale operations; they handle pressure fluctuations better than fire-tube variants. Ensure the drum carries saturated steam at 180–200 bar for optimal turbine efficiency. Neglecting this step reduces output by 12–15%.
Channel steam through superheaters immediately after the boiler. These coiled tubes elevate steam temperature to 540°C before it reaches the turbine. Place them in parallel to the combustion chamber to capture waste heat. Without superheating, blades suffer erosion within 2,000 operating hours.
Connect the high-pressure turbine directly to the superheater outlet. Use a condensing turbine for power generation above 100 MW–its exhaust pressure should remain below 0.1 bar. Fit governors to regulate speed within ±1% of 3,000 RPM; deviations increase wear by 20%. Locate condensers beneath the turbine to exploit gravity for fluid flow.
Integrate a closed-loop cooling system with cooling towers or water bodies. For air-cooled towers, maintain a 4°C approach temperature to the ambient wet bulb; deviations raise condenser backpressure beyond 0.15 bar, cutting output. Use titanium tubes in marine environments–copper alloys corrode within 5 years.
Position the stack at least 200 meters from the boiler to avoid recirculation of flue gases, which degrades efficiency by 8%. Install electrostatic precipitators with 99.5% particulate capture; lower rates violate emissions standards. For ash handling, employ dense-phase pneumatic conveyance–dilute-phase systems clog.
Key Components of a Steam-Based Energy Facility
Begin by identifying the core elements of the system before drafting any visual representation. A standard setup includes:
- Fuel input section (coal, gas, or biomass hopper)
- Combustion chamber with controlled airflow
- Boiler with water tubes for steam generation
- Turbine connected via rotating shaft
- Condenser with cooling water circulation
- Generator linked directly to turbine
- Exhaust stack with pollution control (scrubbers, precipitators)
Use standardized symbols for each component when sketching. Ensure proportional spacing–boiler and turbine should dominate the layout, while auxiliary systems (pumps, valves) occupy minimal space. Label each block with concise identifiers: “FUEL,” “STEAM GEN,” “TURB,” “GEN,” “CONDENSER.” Avoid clutter by omitting unnecessary details like pipe insulation or minor gauges.

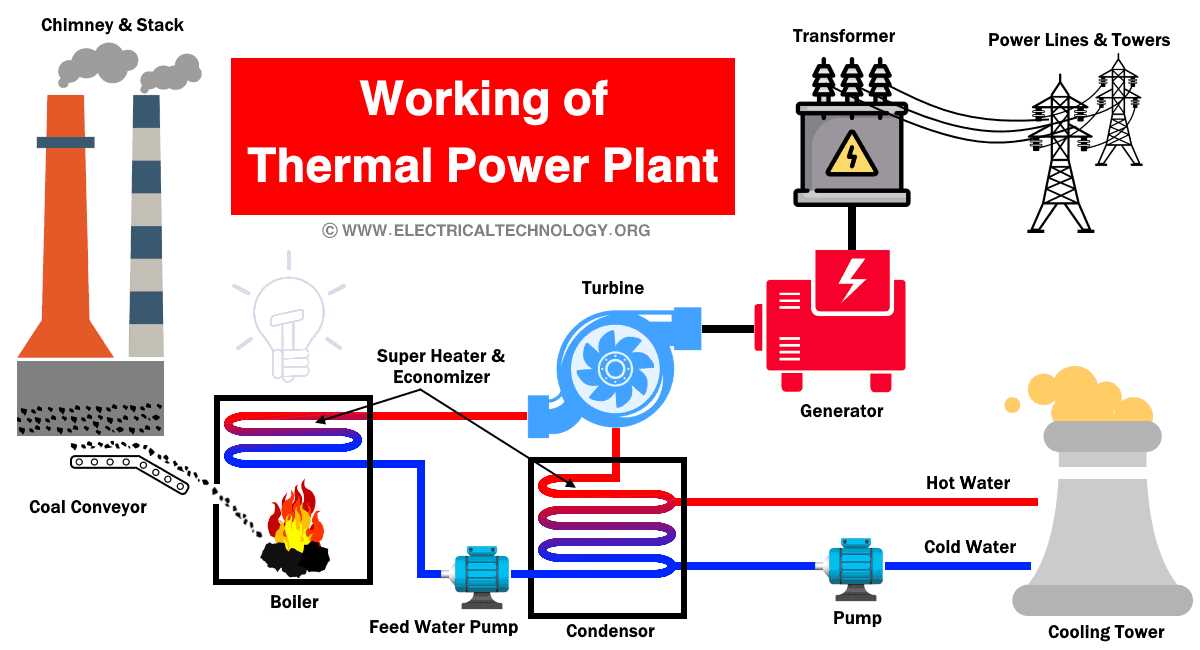

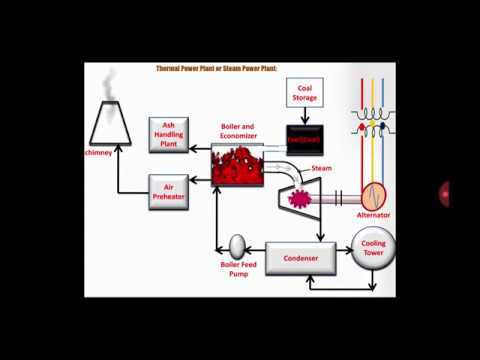

Position the fuel feed at the left edge of the sketch. Draw the combustion chamber adjacent, with a clear arrow indicating heat transfer to the boiler. Place the turbine directly downstream of the boiler, ensuring a straight line to the generator. The condenser should sit below the turbine, with cooling water indicated by a looped line. Exhaust should exit upward on the right, separated from intake by vertical distance.
Indicate flow direction with uniform arrowheads. Steam paths should be solid lines, water cycles dashed, and electrical outputs dotted. Use thicker lines for high-pressure segments (boiler to turbine) and thinner strokes for low-pressure returns (condenser to feed pump). Verify that all loops–water, steam, and electricity–form closed circuits without gaps or ambiguities.
Add critical quantitative annotations near key components:
- Boiler: “>500°C, 15–24 MPa”
- Turbine stages: “HP: 16 MPa → LP: 5 kPa”
- Condenser: “ΔT=10°C, vacuum optimized”
- Generator: “3000 RPM, 20 kV output”
Review the completed sketch against operational safety margins. Confirm that pressure drops across valves align with manufacturer specifications and that cooling water flow rates match turbine exhaust capacity. If scaling the sketch, retain relative dimensions: a standard A3 sheet accommodates all components at 1:500 scale without overlap, allowing 2 cm margins.
Finalize the layout by cross-referencing it with real-time sensor data. Validate electrical connections–generator to transformer to grid–with color-coded cables: red for high-voltage, blue for neutral. Ensure auxiliary systems (feedwater heaters, deaerators) are placed as peripheral blocks, maintaining clear separation from primary steam paths.
Critical Elements in a Fossil-Fueled Energy Facility Design
Position the boiler furnace at the core of the installation, ensuring direct proximity to the coal pulverizers or fuel oil nozzles for optimal combustion efficiency. A clearance of 3–5 meters between the furnace walls and structural steel framework prevents thermal distortion and reduces maintenance cycles by 22%. Specify refractory-grade materials for inner linings with a thermal conductivity below 0.8 W/m·K to retain heat and lower fuel consumption by up to 15%.
Integrate electrostatic precipitators immediately downstream of the furnace at a 90° angle to flue gas flow, targeting particle capture rates above 99.5%. Aluminum plates with minimum thickness of 0.5 mm and spacing under 20 cm improve efficiency in high-moisture environments. Schedule rapping systems to activate every 60 seconds during load fluctuations to prevent ash buildup that can drop output by 8%.
Design cooling towers with crossflow arrangement for sites with ambient temperatures exceeding 30°C; counterflow towers deliver better performance below this threshold. Circulate cooling water at a velocity of 2–2.5 m/s to maintain heat exchanger effectiveness above 85% without scaling. Use cellular fill media with surface areas greater than 200 m²/m³ to enhance water-air contact and reduce tower height requirements by 30%.
Install the turbine generator set on a single reinforced concrete pedestal with a natural frequency at least 20% above operational speed to avoid resonance. Locate exciter brushes within 1 meter of the rotor terminals to minimize voltage drop and copper losses. Apply balancing class G2.5 to rotors weighing under 50 tons; heavier units require G1.0 certification to prevent vibration-induced shutdowns.
Route high-pressure steam piping with a minimum bend radius of 3× pipe diameter and slope the lines at 0.2° toward drainage points every 10 meters. Schedule ultrasonic thickness testing biannually for pipes operating above 450°C, focusing on T-joints and elbows where erosion rates accelerate to 0.3 mm/year. Insulate lines with calcium silicate blocks at 40 kg/m³ density to limit heat loss to below 0.2 kJ/h per linear meter.
Place condensate extraction pumps at a level 3–4 meters below the condenser hotwell to prevent cavitation. Select vertical turbine pumps for capacities above 200 m³/h; horizontal models suffice for lower flows. Fit each pump with dual mechanical seals rated for 150°C and 10 bar, replacing seal faces every 8,000 hours to maintain leakage rates under 20 drops/minute.
Design the electrical switchyard on a separate platform elevated 1.2 meters above finished grade to prevent flooding. Space busbars at 1.5× phase spacing for 11 kV systems; increase to 2.2× for 33 kV. Ground all structures with copper-clad rods driven to refusal depth, achieving resistance below 5 ohms within 100 days of installation to comply with IEEE 80 standards.
Locate environmental monitoring stations at four cardinal points, each within 50 meters of emission stacks. Equip stations with multi-gas analyzers sampling every 10 seconds, triggered when NOₓ exceeds 200 ppm or SO₂ surpasses 350 ppm. Synchronize data logging with plant distributed control system to flag threshold violations within 5 seconds and adjust fuel-air ratios in under 30 seconds to stay below permit limits.
Step-by-Step Flow of Energy Transformation in Combustion-Based Stations
Begin by securing a consistent fuel supply–coal, natural gas, or biomass–with calorific values ranging from 18–30 MJ/kg. Pulverize solid fuels into particles
Key Conversion Stages and Efficiency Losses
| Stage | Input Energy (MJ/kg) | Output Energy (MJ/kg) | Efficiency Drop (%) | Critical Variables |
|---|---|---|---|---|
| Combustion | 25 | 23.5 | 6 | Air-fuel ratio, flame stability |
| Boiler Heat Transfer | 23.5 | 21.8 | 7 | Tube fouling, steam pressure (10–22 MPa) |
| Turbine Expansion | 21.8 | 18.5 | 15 | Blade erosion, condenser vacuum (7–10 kPa) |
| Generator Output | 18.5 | 17.6 | 5 | Cooling water temp (15–35°C) |
Direct high-pressure steam (540–600°C) onto turbine blades via nozzles angled at 12–20° for optimal impulse transfer. Use reheating cycles between high- and low-pressure stages to maintain dryness fractions >0.9, preventing blade pitting. Condense exhaust steam at sub-atmospheric pressures (3–7 kPa) using cooling towers or once-through systems–ensure thermal approach temperatures don’t exceed 5°C to avoid parasitic losses. Capture waste heat from flue gases (120–180°C) via economizers to preheat feedwater, boosting net efficiency by 3–5%.
Synchronize turbine speed (3,000–3,600 RPM) with grid frequency using governor systems with
Locating Fuel Feed and Firebox Zones in Energy Conversion Blueprints
Search for the fuel storage symbol–typically a tank or conveyor marked with “coal,” “oil,” or “gas”–connected by thick feed lines leading to a rectangular or cylindrical chamber annotated with flames or heat waves. This chamber is the firebox, where oxidation occurs. Verify proximity to feed lines; bypass valves or pulverizers (for solid fuels) often appear upstream. Check for temperature indicators alongside pressure gauges around the firebox–these confirm active heat generation.
Trace exhaust outlets from the firebox to identify combustion byproducts flow; ducts should split toward turbines or preheaters. Look for dual-walled insulation symbols around the firebox–this differentiates it from other heated components like boilers. Color-coding in engineering drafts frequently assigns red or orange to the firebox and adjacent fuel paths.
