Start with a linear regulator for low-noise applications where efficiency below 50% is acceptable. A classic LM7805 delivers 5V from a 7–35V input range with built-in thermal and short-circuit protection–ideal for microcontroller-based projects or sensors requiring stable reference levels. Ensure input voltage exceeds the output by at least 2V to prevent dropout; for example, an 8V AC-DC adapter fed into a rectifier bridge before the regulator guarantees sufficient headroom. Filter capacitors matter: place a 1000µF electrolytic on the input and a 10µF tantalum on the output to minimize ripple, especially under load fluctuations.

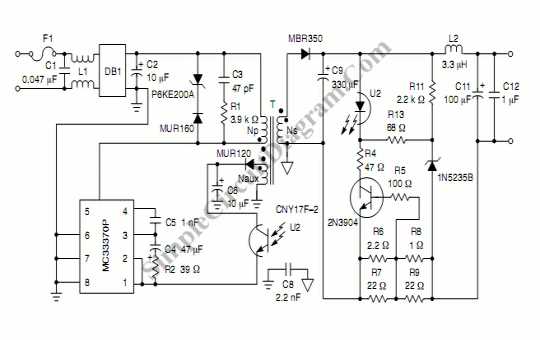

Switching topologies outperform linear designs in efficiency and compact size when current demands exceed 500mA or input voltages vary wildly. A buck converter using the LM2596 handles 4.5–40V inputs, converting them to adjustable outputs (1.2–37V) at 90% efficiency with only an inductor, diode, and feedback resistor as external components. For 3.3V loads, the AP6503 integrates a 2A switcher in a SOT-23 package, requiring just 10µH/2A inductor and 22µF/6.3V ceramics for input/output filtering. Avoid excessive capacitance on the output of switching regulators–it destabilizes feedback loops; instead, match values to the datasheet’s reference circuit.
Ground layout demands attention: route high-current return paths separately from sensitive analog traces to prevent noise coupling. A star grounding scheme, where all ground returns converge at a single point near the regulator’s ground pin, keeps transient voltages from corrupting signals. For dual-rail needs (e.g., ±12V op-amp circuits), a center-tapped transformer paired with two half-wave rectifiers and 7912/7812 regulators creates symmetric supplies from a single AC source. Use 1N4007 diodes for rectification–cheap and robust, but replace with Schottky types if power dissipation is critical.
Test load stability before finalizing: a 10% step-load (e.g., toggling a 50Ω resistor across the output) reveals overshoot and undershoot behavior. If ringing exceeds 200mV, increase output capacitance or add a snubber R-C network (typically 1Ω + 0.1µF) across the switching node. For extreme conditions, thermal calculations ensure viability–dissipated power equals (Vin – Vout) × Iload; if exceeding 1W, attach a TO-220 regulator to a heatsink with thermal paste and verify case temperature stays below 80°C.
Basic Electrical Source Circuit Design
Start with a transformer rated at least 20% above the desired output voltage to account for load fluctuations. For a 12V DC output, use a 12V AC secondary winding with a current rating matching your load requirements. Example: A 1A load necessitates a transformer with at least 1.2A capacity to ensure stable operation under varying conditions.

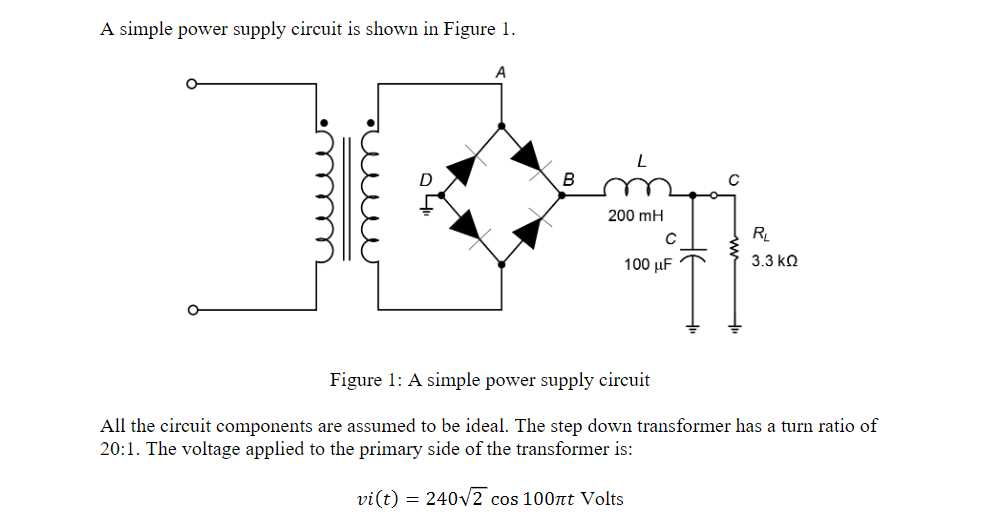

Connect a full-wave bridge rectifier after the transformer. Use four 1N4007 diodes or a pre-assembled bridge module like the KBPC3510. Ensure the diode reverse voltage rating exceeds twice the peak transformer output voltage (e.g., 50V minimum for a 12V AC input) to prevent breakdown during reverse polarity.
| Component | Specification | Example Part |
|---|---|---|
| Transformer | 12V AC, 1.5A | MCT12VA1500 |
| Rectifier Diodes | 100V, 1A | 1N4007 (x4) or KBPC3510 |
| Filter Capacitor | 1000µF, 25V | Nichicon UHE1E102MPD |
| Voltage Regulator | 12V, 1A | LM7812 |
Add a smoothing capacitor immediately after the rectifier. A 1000µF electrolytic capacitor rated for 25V or higher reduces ripple voltage to under 1V peak-to-peak. For critical applications, parallel it with a 0.1µF ceramic capacitor to suppress high-frequency noise. Calculate ripple voltage using Vripple = Iload / (2 * f * C), where f is 100Hz for full-wave rectification.
Select a linear regulator like the LM7812 for fixed 12V output. Mount it on a heatsink if the load exceeds 500mA. The regulator requires an input-output voltage differential of at least 2V; for 12V output, ensure unregulated input voltage remains above 14V. Bypass the input and output with 0.33µF and 0.1µF capacitors respectively to prevent oscillation.
For adjustable outputs, replace the fixed regulator with an LM317. Configure it using two resistors: R1 (240Ω fixed) and R2 (variable, 0–5kΩ). Output voltage follows Vout = 1.25 * (1 + R2/R1). Include protection diodes (1N4007) to safeguard against capacitor discharge through the adjustment pin.
Test the circuit under load before final assembly. Measure DC output voltage with a multimeter; expect 1–2% deviation from the nominal value. Connect an oscilloscope to monitor ripple–it should not exceed 5% of the output voltage. For loads above 1A, consider switching regulators (e.g., LM2596) to improve efficiency, reducing heat dissipation by up to 40% compared to linear solutions.
Enclose the circuit in a metal chassis to shield against EMI. Ground the chassis to the circuit’s common terminal. Use a slow-blow fuse rated at 150% of the maximum expected current (e.g., 1.5A fuse for a 1A circuit) to protect against short circuits. Label all connections clearly to prevent miswiring during maintenance.
Core Elements for a Linear Regulator Circuit
Select a transformer with an AC output matching your target DC voltage, accounting for a 1.4× multiplier from RMS to peak. For 5V DC, use a 6V AC secondary; for 12V DC, an 8.5V AC secondary ensures headroom. Choose a bridge rectifier (e.g., GBPC3510) rated at least 1.5× the expected current–2A for low-load circuits, 10A for higher demands. Add a smoothing capacitor (2,200µF–10,000µF) based on load: 4,700µF per amp prevents ripple above 50mV. Include a linear regulator (LM7805/LM7812) with a heatsink if dissipating over 1W; TO-220 packages require thermal compound and a 10°C/W sink for 5W loads. Add a 0.1µF ceramic input capacitor and 10µF electrolytic output capacitor to stabilize transient response.

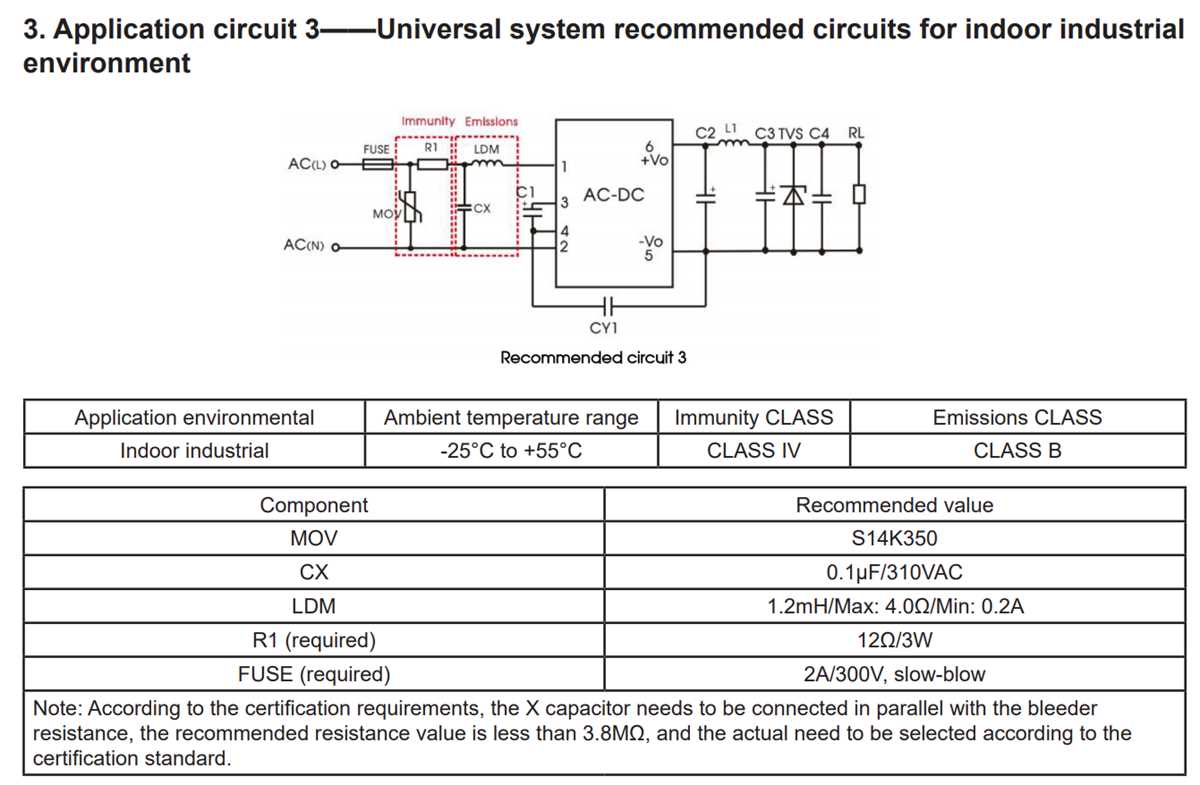

Incorporate a fuse rated at 120% of the maximum current draw (e.g., 1.2A for 1A load) in series with the primary winding. Use a varistor (MOV) across the transformer primary for surge protection (e.g., V130LA2P for 120V AC). For adjustable outputs, opt for an LM317 with a 240Ω resistor between ADJ and OUT, plus a 5kΩ potentiometer for fine-tuning. Ensure all capacitors have a voltage rating 50% above the operating voltage–50V for 35V circuits, 25V for 16V circuits. Opt for 1N4007 diodes in the rectifier bridge unless current exceeds 1A, where Schottky diodes (e.g., 1N5822) reduce dropout by 0.3V.
Building a Transformer-Based Regulated Source: Hands-On Construction
Secure a toroidal transformer rated for 12 VAC at 1 A minimum; verify the winding resistance with a multimeter (primary: ~20 Ω, secondary: ~0.5 Ω). Mount the core vertically on a phenolic board using nylon standoffs to prevent eddy currents from bleeding into the chassis. Orient the secondary tags downward, aligning the center tap to the future ground lug for balanced load distribution.
Feed the secondary leads into a full-wave bridge rectifier module–MB10F or equivalent–ensuring the AC pins are paired correctly (positive to the outer lugs, negative to the inner lug) to avoid phase cancellation. Insert a 2.2 mF electrolytic capacitor immediately after the rectifier, observing polarity (negative stripe faces the chassis ground plane); a 40 V rating exceeds the peak inverse voltage margin (~17 V) and eliminates thermal runaway risks.
Solder a three-terminal linear regulator–LM7809 for 9 VDC output–onto the board with thermal compound beneath the metal tab, torqueing the mounting screw to 15 in-lbs to ensure consistent heat transfer. Wire the input terminal to the reservoir capacitor, the ground terminal to the common return path, and attach a 100 nF ceramic decoupling capacitor within 2 mm of the output pin to suppress high-frequency transients from switching loads.
Connect all ground paths–transformer center tap, rectifier negative, regulator ground, and output return–via a single 14 AWG braided strap to a star-point terminal block; avoid shared PCB traces longer than 1 cm to eliminate ground-loop hum. Install a 1 A slow-blow fuse in series with the primary winding using heat-shrink tubing on the leads to prevent arcing against the core’s enamel coating.
Test the completed assembly with a dummy load–2 × 10 Ω, 10 W wire-wound resistors in parallel–monitoring ripple on an oscilloscope: ≤50 mVpp across the output terminals at full load confirms proper decoupling and thermal stability. Reflow any joints exhibiting resistance >0.1 Ω, as cold solder points degrade long-term consistency.
Key Calculations for Voltage Regulation and Current Limits
Determine the dropout voltage by subtracting the output voltage from the input voltage and ensure the regulator’s minimum dropout is below this value. For a 7805 regulator with a 2V dropout, the input must exceed the output by at least 2V; for a 5V output, use 7V or higher. Linear regulators lose efficiency as input voltage rises, so keep the margin just above the dropout to minimize heat dissipation.
Calculate the maximum load current using Ohm’s Law: divide the output voltage by the load resistance. For a 5V output and 10Ω load, expect 0.5A. Verify the regulator’s datasheet for absolute maximum current–most TO-220 packages handle 1A to 1.5A safely, but exceed this and thermal shutdown triggers. Add a heatsink if power dissipation exceeds 1W: multiply the voltage drop by the load current (e.g., 7V input, 5V output, 0.5A = 1W).
Size the input capacitor at 1000µF per ampere of load current to suppress voltage ripple, with a minimum of 25V rating for 12V inputs. The output capacitor should follow the regulator’s spec–typically 0.1µF to 10µF–with low ESR for stability. Use tantalum or ceramic caps for frequencies above 10kHz; electrolytics introduce inductance that destabilizes low-dropout types.
Estimate power dissipation in worst-case scenarios: multiply the differential voltage (input minus output) by the maximum current. A 7805 with 12V input, 5V output, and 1A load dissipates (12-5)*1 = 7W. Calculate heatsink thermal resistance: subtract ambient (typically 50°C/W for TO-220) from the maximum junction temperature (125°C), then divide by power (θ = (125-50)/7 ≈ 10.7°C/W). Choose a heatsink with lower thermal resistance.
For overcurrent protection, place a fuse or polyswitch between the input and regulator, sized at 20% above the maximum load current. A 1A load requires a 1.2A fuse. Add a reverse-polarity diode (1N4007) across the input/output to protect against inductive loads; without it, flyback voltages destroy the regulator. Log the transient response with an oscilloscope: connect a 1µs rise-time load step and verify the output recovers within 5% of nominal in under 100µs.
