To build a functional passive infrared detection unit, start with a BISS0001 IC or equivalent microcontroller. These components process thermal radiation changes from a pyroelectric element, converting them into usable voltage signals. Connect the sensing module’s output directly to the IC’s input pin (typically labeled OUT or SIG) using a 10kΩ pull-down resistor for stability. Avoid placing the assembly near heat vents, fluorescent lighting, or high-frequency electronics, as these sources generate interference equivalent to 50-60Hz noise.
Select a 2N3904 NPN transistor or logic-level MOSFET for relay control when triggering loads above 10mA. The base/gate requires a 1kΩ resistor from the microcontroller’s output to prevent thermal runaway in the switching component. For power, regulate input voltage to 5V ±0.2V–fluctuations beyond this range cause false activations or permanent sensor degradation. Use a 470µF electrolytic capacitor across the power rails to filter voltage spikes caused by inductive loads like solenoids or DC motors.
Position the sensing lens at 2.0–2.2 meters above the target area, angled downward by 30–40 degrees for optimal coverage. The Fresnel lens focuses infrared emissions into discrete detection zones; misalignment reduces range by up to 40%. Calibrate the delay adjustment potentiometer (typically 1MΩ) to hold the output signal for 2–5 seconds–longer intervals waste power, while shorter ones risk missed detections. Test sensitivity by walking perpendicular to the sensor axis at 0.3–1.0 meters per second; inconsistent triggering indicates lens contamination or incorrect resistor values.
For prolonged outdoor use, seal the assembly with conformal coating and add a 1N4007 diode reverse-polarity protection. Direct sunlight elevates false positives by 15–20%; mount in shaded areas or use an angled hood. Replace the default 3mm LED with a low-current 1.8V red variant if power conservation is critical, reducing quiescent draw by 35–45mA.

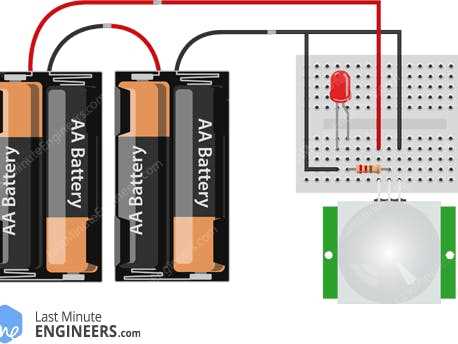

Basic Motion Detector Wiring Guide
Start by connecting a 5V power supply to the positive rail of a breadboard. Ensure the ground (GND) rail is properly linked to the negative terminal. Most passive infrared modules require 4.5–12V DC, but verify the datasheet for exact voltage tolerances–exceeding limits may permanently damage the component.
Attach the module’s VCC pin to the breadboard’s positive rail and GND to the negative rail. For standalone operation, wire the output signal pin through a 10kΩ pull-down resistor to GND to stabilize readings. Without this, false triggers from electrical noise are common, especially in environments with fluorescent lighting or Wi-Fi interference.
Signal Processing Adjustments
Solder a 100µF electrolytic capacitor between VCC and GND near the detector to filter voltage spikes. Modules like the HC-SR501 include onboard trimpots–one adjusts sensitivity (0.3–7 meters), the other sets the hold time (3–300 seconds). Turn the sensitivity knob counterclockwise to reduce detection range in cluttered spaces.
For microcontroller integration, connect the signal output to a digital input pin with interrupt capability (e.g., Arduino’s D2 or D3). Use the following snippet to avoid debounce issues: attachInterrupt(digitalPinToInterrupt(2), triggerISR, RISING);. Test with a 30-second timeout loop to confirm consistency before permanent mounting.
Position the unit at a 2–3 meter height, angled downward at 30–45 degrees for optimal coverage. Avoid pointing directly at heat sources like radiators or sunlight through windows–PIR elements respond to infrared radiation, not motion alone. Replace the standard Fresnel lens with a custom grid-lens if needing a narrower field of view (e.g., hallway applications).
Troubleshooting Common Issues
If false alarms persist, add a 0.1µF ceramic capacitor across the signal and ground pins to suppress high-frequency noise. For battery-powered setups, replace the linear regulator with a buck converter (e.g., MP1584) to extend runtime–expect ~200mA current draw during trigger events. Calibrate the module by obstructing its view for 30 seconds upon power-up to allow internal stabilization.
Key Components for a Foundational Motion Detection Assembly
Select a passive infrared detector with built-in amplification and a 3.3V–12V operating range, such as the HC-SR501–its adjustable sensitivity and 3–7 meter detection span cover most indoor applications without extra conditioning. Pair it with a microcontroller board like Arduino Nano for compact signal processing; reserve GPIO pins for powering the module directly to minimize voltage drop across wiring. For reliable triggering, combine a 10 kΩ pull-down resistor between the output and ground to prevent floating states; transient noise suppression demands a 100 nF decoupling capacitor across the detector’s power pins, soldered within 1 cm of the device.
- Low-dropout voltage regulator (e.g., AMS1117-5V) if powering from unregulated 6–12V sources–input/output capacitors of 10 µF each stabilize output when current draw spikes above 50 mA.
- Reed relay or solid-state switch (e.g., TLP222A) rated for 250 mA; heatsinks become necessary only if load exceeds 100 mA continuously.
- 5 mm LED with 220 Ω series resistor for visual confirmation–place within 10 cm of the detector to maintain low stray light interference.
- Single-core 22 AWG wiring for connections under 30 cm; shielded twisted pair for runs over 1 m to prevent capacitive coupling.
Step-by-Step Wiring Guide for Motion Detection Module to MCU
Connect the VCC pin of the detection module directly to the 3.3V or 5V output of your microcontroller, ensuring voltage compatibility–most modules tolerate both, but check the datasheet for absolute maximum ratings. Use a decoupling capacitor (10µF) between VCC and ground near the module’s power pins to filter noise and stabilize readings during activation. For signal integrity, route the output pin (typically labeled “OUT” or “SIG”) to a digital input pin on the MCU, using a 10kΩ pull-down resistor if the module lacks internal pull-ups to prevent floating voltages.
Configure the MCU’s input pin for interrupt-driven or polling mode–interrupts reduce latency for time-sensitive applications like lighting control, while polling suffices for non-critical tasks. Enable a debounce delay (50–100ms) in firmware to ignore spurious triggers caused by environmental noise or module settling time. If the module includes a potentiometer for sensitivity, adjust it clockwise to increase detection range (up to ~7m) or counterclockwise to restrict it (down to ~3m); minimize false positives by testing in the deployment environment with controlled movement patterns at target distances.
Adjusting Sensitivity and Delay Settings on a Motion Detector Module
Set the potentiometers on most passive infrared boards to values between 20-50 kΩ for sensitivity and 5-30 seconds for delay. Lower resistance on the sensitivity trimmer increases detection range from 3-5 meters (default) to 7-9 meters, but may trigger false alarms from small heat sources like insects or ventilation. For indoor lighting control, turn the delay trimmer to 10-15 seconds to avoid unnecessary toggles; for security systems, extend it to 25-30 seconds to prevent gaps during brief pauses in movement.
| Environment | Sensitivity Range (kΩ) | Delay Setting (seconds) | Recommended Detection Radius |
|---|---|---|---|
| Office/Workshop | 35-45 | 5-10 | 3-4 m |
| Hallway/Staircase | 25-30 | 12-20 | 5-6 m |
| Outdoor (Temperature Stable) | 15-20 | 25-30 | 8-9 m |
| Outdoor (Temperature Fluctuations) | 40-50 | 3-5 | 2-3 m |
Use shielding–aluminum foil or grounded mesh–to block ±15° lateral zones if ambient heat sources interfere. Test adjustments with an oscilloscope: a clean 3.3V pulse confirms proper tuning, while jagged waveforms indicate noise requiring lower sensitivity or improved grounding. Replace default 47 μF capacitors with 100 μF in high-traffic areas to smooth signal transitions and reduce “chatter” during continuous motion.
Power Supply Options and Voltage Requirements for Motion Detection Modules
For reliable operation, 5V DC is the standard input for most passive infrared modules, requiring a stable source delivering 100–200 mA under load. Linear regulators like the 7805 provide clean power but dissipate excess voltage as heat, making them inefficient for battery-driven setups. Switching regulators (e.g., LM2596) convert higher input voltages (9–12V) to 5V with up to 85% efficiency, ideal for remote installations.
Battery-powered deployments benefit from 3.3V–5V low-dropout regulators (e.g., AMS1117) paired with lithium-ion cells (3.7V nominal) or alkaline packs (3×1.5V). Efficiency drops sharply if voltage exceeds module tolerance; a 6V input risks permanent damage. Always include a 1N4007 diode for polarity protection and a 100µF capacitor to smooth transients during motion-triggered current spikes.
Alternative Energy Sources
Solar-charged systems use a 6V/2W panel with a 18650 Li-ion battery (3.7V, 2600mAh) via a TP4056 charge controller. The panel’s output must surpass 7V in peak sunlight to compensate for controller losses. For indoor use, USB power banks (5V, 1A) suffice but require 220Ω series resistors to prevent false triggers from inrush currents during wake-up.
Wall adapters should output 5V±5% at 500mA minimum, though higher current ratings (1A) extend component lifespan. Avoid cheap SMPS units; opt for adapters with isolated secondaries to eliminate EMI-induced false positives. Measure output under load–volts ranging ±0.2V outside spec can degrade performance. For 24/7 operation, prioritize adapters with thermal shutdown to prevent overheating.
Voltage Regulation and Noise Mitigation
Modules with onboard comparators (e.g., BISS0001) tolerate 3.3–6V, but precision drops below 4V. Use a Schottky diode (e.g., 1N5817) to clamp voltage spikes from inductive loads. Decoupling capacitors (0.1µF ceramic + 10µF tantalum) at the input filter high-frequency noise, critical for installations near fluorescent lighting or relays. For extended cable runs (>2m), add a 22µF capacitor at the module’s power pins to counteract IR drops.
