Start with a passive infrared (PIR) module–opt for the HC-SR501 for its adjustable sensitivity and delay timers. Solder the unit’s VCC pin to a 5V regulated supply, GND to ground, and connect the output pin to a 2N3904 NPN transistor base via a 1kΩ resistor. This transistor acts as a switch, controlling a relay or LED indicator when movement is detected.
Use a 3.3V Zener diode across the PIR’s power input to prevent voltage spikes from damaging the module. Power the entire setup with a 9V battery through a 7805 voltage regulator to maintain stable 5V output. The regulator’s input and output capacitors–10µF electrolytic for input and 0.1µF ceramic for output–are critical to filter noise.
For broader coverage, position the PIR at a 2-meter height tilted downward by 15–20 degrees. Adjust the onboard potentiometers: sensitivity (clockwise increases range up to 7m), and time delay (adjustable from 5 seconds to 300 seconds). Test detection angles by moving perpendicular to the sensor’s lens at 0.5–1.5m/s–the module’s Fresnel lens will focus infrared signatures onto its pyroelectric element.
Extend battery life by adding a sleep mode: wire the PIR’s output to a CD4017 decade counter input. Configure the counter to trigger a mosfet (IRFZ44N) that cuts power to non-essential components after 5 idle detections. Recharge the 9V battery via a TP4056 module with a 5V solar panel for standalone operation.
Troubleshoot false triggers by shielding the module from direct sunlight, incandescent bulbs, or HVAC vents–these emit infrared radiation detectable by the PIR. For multi-zone detection, daisy-chain multiple HC-SR501 units through an OR gate (74LS32), then feed the output to a microcontroller for centralized logging.

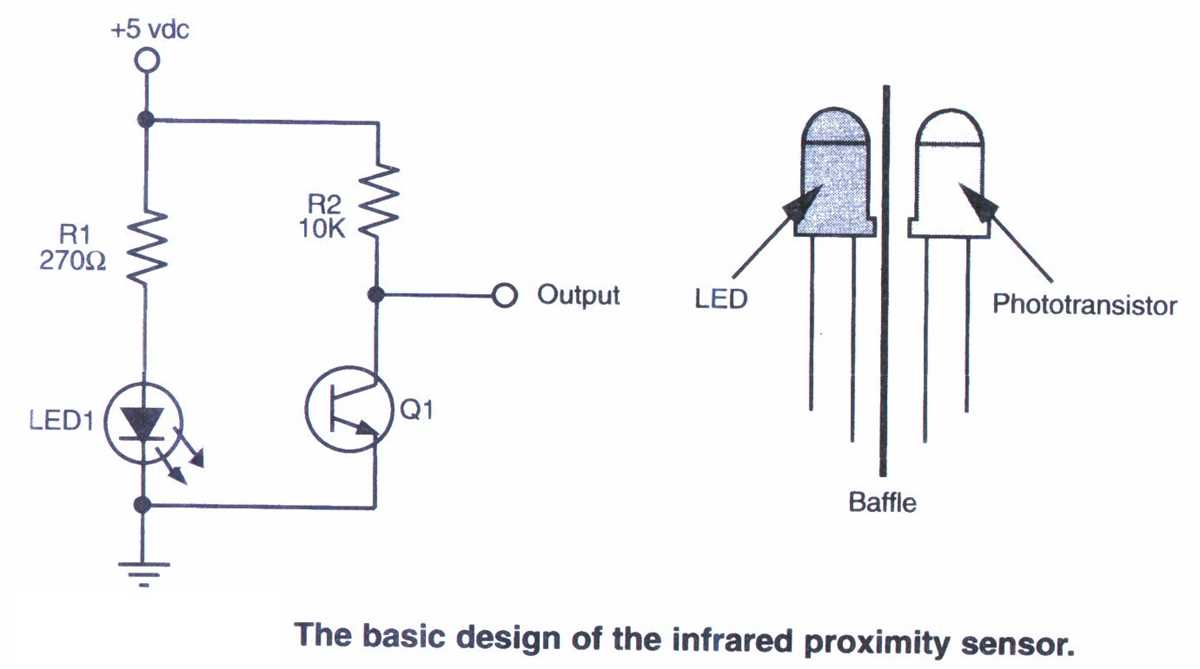

Building a Basic Infrared Detection Setup
Start by selecting a passive infrared (PIR) module–HC-SR501 is widely available, cost-effective, and requires minimal configuration. Connect its power pins to a 5V supply, ground it properly, and attach the output to a microcontroller like Arduino Uno or a standalone transistor switch if real-time processing isn’t needed.
For adjustable sensitivity, locate the two potentiometers on the PIR board. The first controls detection range (3–7 meters), while the second sets the retention delay (5 seconds to 5 minutes). Twist clockwise to increase; counterclockwise decreases. Measure changes with a multimeter to avoid over-tuning.
- Power compatibility: PIR modules often tolerate 4.5–20V. Use a voltage regulator (LM7805) if supplying 12V from a battery to prevent overheating.
- Signal interference: Position the module away from fluorescent lights, heat sources, or reflective surfaces to reduce false triggers.
- Trigger modes: Toggle the onboard jumper between single-shot (retries after timeout) and repeatable (continuous output while movement persists).
If extending wiring beyond 1 meter, use shielded twisted pair to minimize noise. For outdoor use, enclose the PIR in a weatherproof housing with a Fresnel lens cover–often sold separately. Ensure the lens is clean and free from condensation before operation.

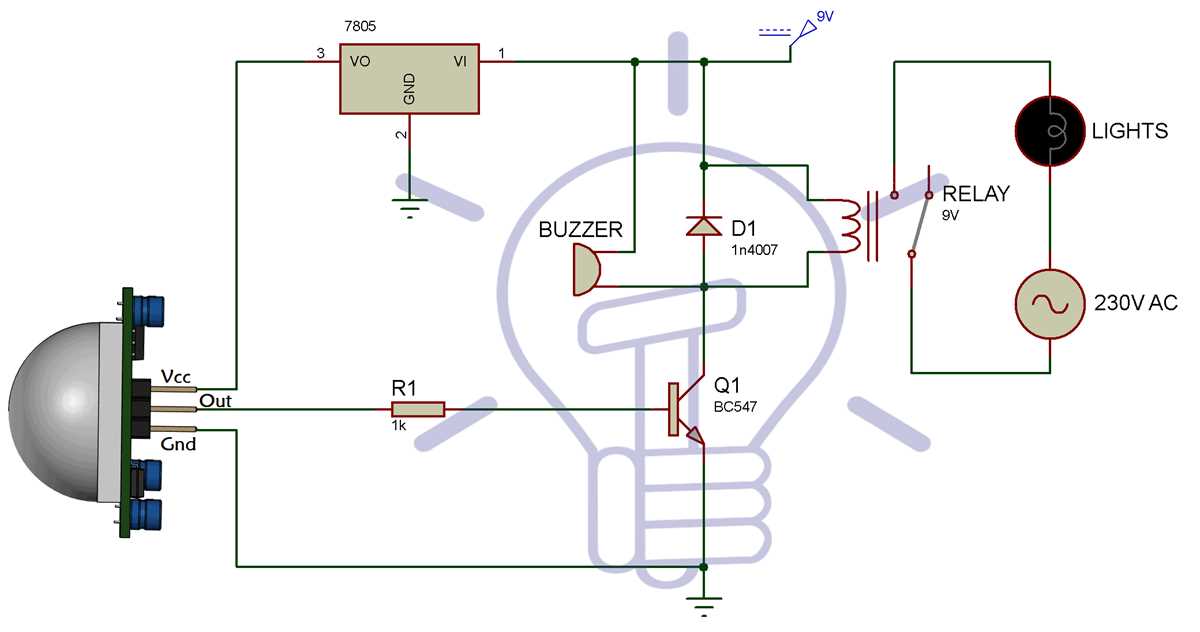

Integrate a NPN transistor (e.g., 2N2222) to drive higher-load devices like relays or buzzers. Connect the PIR output to the transistor base, emitter to ground, and collector to the load. Add a flyback diode (1N4007) across the relay coil to protect against voltage spikes.
For battery-powered deployments, disable the PIR’s onboard LED (typically a 0603 SMD resistor) by removing it or covering with solder mask. This reduces current draw from ~50µA to ~15µA in standby, extending battery life. Pair with a microcontroller in low-power mode for intermittent polling.
When calibrating detection zones, note that PIRs respond to thermal gradients, not absolute temperature. Moving perpendicular to the sensor’s field generates stronger signals than lateral shifts. Adjust the module’s mount angle (optimal: 15–30° downward tilt) to cover doorways or hallways.
- Test the setup with a multimeter: output should toggle from 0V to ~3.3V on detection.
- If false alarms persist, increase hysteresis by adding a 0.1µF capacitor between the PIR output and ground.
- For long-term reliability, replace electrolytic capacitors with solid-state variants to avoid leakage.
- Ensure solder joints use 60/40 rosin-core for compatibility.
- Verify connections with a continuity tester after assembly.
Choosing Parts for a Fundamental Detection Setup
Opt for a PIR module like the HC-SR501–its 7-meter range suits most indoor applications, and it consumes under 50 µA in standby mode. Verify the detection angle (typically 110°) matches your coverage needs; narrower angles force tighter placement. Confirm the operating voltage (4.5–20V for this model) aligns with your power source to avoid voltage regulators.
Select a microcontroller with native interrupt support–an ATtiny85 handles low-power wake-up events efficiently, drawing ~0.1 µA in sleep mode. Prioritize units with built-in timers if pulse stretching is required; external RC networks introduce drift. For wireless integration, ESP8266 or ESP32-S2 offer Wi-Fi/Bluetooth with deep-sleep currents below 100 µA.
Power delivery dictates reliability: LiPo cells (3.7V) paired with an MCP1700 LDO (low quiescent current) ensure stable output during transient loads. Avoid alkaline batteries for long-term deployments–their self-discharge (1–2%/month) compounds with low draw. For solar recharging, a 6V panel with a TP4056 charge controller balances cost and efficiency.
Passive vs Active Component Trade-offs
Resistors and capacitors shape signal behavior. Use 1% tolerance resistors (e.g., 10 kΩ) to fine-tune PIR sensitivity–values outside ±5% risk false triggers. Ceramic capacitors (X7R dielectric) stabilize voltage rails; electrolytic types degrade if unused for extended periods. For delay timing, film capacitors offer tighter tolerances than ceramics but require more board space.
Transient suppression demands a TVS diode (e.g., SMAJ6.5A) to clamp inductive spikes from relays or solenoids. Without it, ESD events can corrupt microcontroller flash memory. Ensure the diode’s clamping voltage exceeds the circuit’s max operating voltage by ≥20%. For high-side switching, logic-level MOSFETs (IRLML6401) simplify interface with 3.3V/5V controllers without gate drivers.
Test interactions before final assembly–breadboard prototypes reveal noise coupling issues undetectable in simulations. Measure quiescent current across temperature ranges (-10°C to 60°C); cheap components drift unpredictably. Prioritize parts with documented derating curves; counterfeit modules often omit these, leading to thermal runaway at elevated loads.
Step-by-Step Wiring Guide for PIR Detector and Switching Module
Select a 5V or 12V passive infrared unit with a detection range of 5–7 meters and a 100° field of view to ensure consistent triggering.
Cut three 22 AWG stranded wires–red for power, black for ground, and yellow for signal–each 30 cm long, stripping 5 mm from both ends for secure connections.
| Component Pin | Wire Color | Destination |
|---|---|---|
| PIR VCC | Red | Power supply positive |
| PIR GND | Black | Power supply negative |
| PIR OUT | Yellow | Relay control input |
Solder the red wire to the PIR’s VCC pad and the black wire to GND, applying rosin flux before heating to prevent cold joints. Verify solder points under magnification for bridges.
Connect the yellow wire to the PIR’s OUT pin, routing it through a 1 kΩ resistor to limit current before attaching it to the relay’s coil input. This protects the switching module from voltage spikes.
Secure the relay’s common terminal to the load–such as a 230V lamp–using 14 AWG wire, crimping ring terminals for a vibration-resistant connection. Insulate splices with heat-shrink tubing rated for 600V.
Power the setup with a regulated benchtop supply set to 5.1V or 12.1V, depending on the PIR’s voltage requirements. Use a multimeter to confirm polarity before energizing the circuit to avoid damaging components.
Test activation by entering the detection zone at 3 meters. The relay should click within 2 seconds, and the load must remain energized for the duration set by the PIR’s time-delay potentiometer. Adjust sensitivity with the module’s trimmer if false triggers occur near drafts or heat sources.
Troubleshooting Reference
| Symptom | Likely Cause | Corrective Action |
|---|---|---|
| Relay cycles erratically | Insufficient power supply current | Replace supply with 1A unit |
| No detection response | Open signal wire | Check continuity with multimeter |
| Load stays on indefinitely | Short between PIR OUT and VCC | Inspect solder joints with microscope |
Adjusting Sensitivity and Time Delay on a PIR Detector
Locate the Sensitivity (Sens) and Time Delay (Tx) potentiometers on the PIR module–typically marked on the PCB or specified in the datasheet. For standard 12V HC-SR501 modules, turn the Sens trimmer clockwise to increase detection range (up to 7 meters max) or counterclockwise to reduce it (minimum ~3 meters). The Tx dial adjusts how long the output remains active after detection: a 3-second to 300-second range is common. Use a precision screwdriver and a multimeter set to DC voltage to monitor output voltage (3.3V or 5V) at the signal pin while tweaking–stop when the desired duration is achieved.
Fine-Tuning for Specific Environments
In high-interference areas (e.g., near fans or HVAC vents), decrease sensitivity by 30-40% from the default setting to avoid false triggers. For outdoor use, cap the detection range at 5 meters and set the time delay to 15-30 seconds to conserve power in battery-operated setups. Test adjustments with heat sources (e.g., a warm hand) at varying distances–if the output flickers, lower the sensitivity further. Modules with LHI778 or BIS0001 ICs may require recalibration after firmware updates or long-term disuse due to drift in the pyroelectric elements.
