Start with a thermistor (NTC 10kΩ) as the core sensor–place it in a voltage divider with a 4.7kΩ resistor to ensure stable readings at ambient temperatures. Connect the midpoint of the divider to a comparator IC like the LM358, configured with a reference voltage of 2.5V using a precision voltage divider (two 10kΩ resistors). This setup triggers an output when the thermistor’s resistance drops below 5kΩ, signaling an abnormal temperature rise (typically above 50°C in enclosed spaces).
For the alert mechanism, use a 5V piezoelectric buzzer paired with a BC547 NPN transistor as a switch. Keep the base resistor at 1kΩ to prevent excessive current draw, and route the comparator’s output directly to the transistor’s base. Add a mechanical relay (OMRON G5V-1) if you need to handle higher loads, such as a strobe light or siren, but include a flyback diode (1N4007) to protect the transistor from voltage spikes.
Power the system with a 9V battery or a regulated 5V DC adapter, but add a 1000µF electrolytic capacitor across the power rails to smooth voltage fluctuations. For testing, simulate heat with a hairdryer or heat gun–observe the comparator’s output (pin 7 on LM358) with a multimeter; it should toggle from low to high when the threshold is crossed. Replace the thermistor annually if used in dusty or humid environments, as oxide buildup alters sensitivity.
For redundancy, integrate a second parallel stage using an MCP9700 analog temperature sensor (outputs 10mV/°C). Feed its signal into an operational amplifier (LM324) configured as a non-inverting amplifier with a gain of 2. This provides a linear voltage output that can be logged or compared to a secondary threshold for confirmation. Avoid placing sensors near drafts or direct sunlight–thermal inertia distorts readings.
To expand functionality, add an ATtiny85 microcontroller to monitor the comparator’s output and introduce delays (e.g., 3-second hold before alarm activation). Use the microcontroller’s internal pull-up resistors to debounce a manual reset button. If wireless alerts are needed, pair the microcontroller with an HC-12 transceiver module–set it to 433MHz, 1200 baud, and transmit a unique 8-byte identifier every 5 minutes as a heartbeat check.

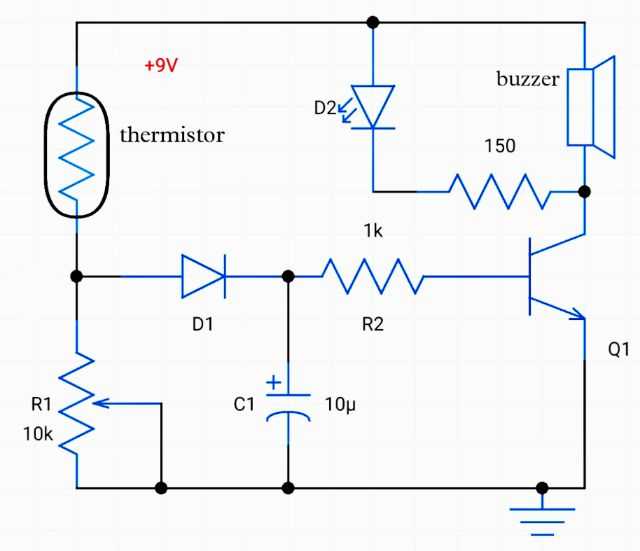

Basic Heat Detection Electrical Layout
Begin by selecting a thermistor (NTC 10kΩ) as the primary sensing element. Position it near potential ignition sources–20cm above stoves, 15cm from heating elements, or along ceiling mounts in storage areas. Ensure the component’s resistance drops below 2kΩ at 60°C for reliable triggering.
Connect the sensor to a comparator IC (LM358) via a voltage divider. Use a 10kΩ fixed resistor paired with the thermistor; adjust the reference voltage to 2.5V using a potentiometer (10kΩ). This configuration ensures the comparator outputs a high signal when ambient temperature exceeds the threshold.
Integrate a 555 timer IC in monostable mode to control the duration of the alert. Set the timing capacitor (100µF) and resistor (100kΩ) to produce a 10-second pulse–sufficient for evacuation without overwhelming noise. The 555’s output pin (3) should feed into a transistor driver (BC547) to handle higher current loads.
- Power requirements: 9V DC battery (alkaline preferred for longevity) or 12V adapter (regulated via 7809 IC).
- Alert mechanism: Piezo buzzer (9V, 30mA) or 12V siren (if outdoor deployment).
- Visual indicator: Red LED (20mA, 3mm) with a 220Ω current-limiting resistor.
Solder components onto a perfboard (5x7cm) or a custom PCB with copper tracks at least 1.5mm wide to prevent overheating. Test the layout in stages:
- Verify sensor response with a heat gun–output voltage should jump from 0V to 5V.
- Check comparator output–ensure it flips from low to high at the target temperature.
- Confirm timing accuracy–buzzer duration must match calculations (±1 second).
Enclose the assembly in a flame-retardant ABS plastic case (IP44 rating). Drill 4mm holes for the buzzer and LED, and a 7mm ventilation gap near the thermistor to avoid false triggers. Secure wiring with heat-shrink tubing and strain-relief grommets.
Troubleshooting Common Issues
If the device fails to activate:
- Check continuity across the thermistor-comparator link with a multimeter (expected: 0Ω cold, ∞Ω heated).
- Measure voltage at the comparator’s inverting terminal (
- Replace the 555 IC if the timing capacitor discharges erratically–common with counterfeit chips.
Alternative Configurations
For extended coverage, daisy-chain multiple nodes using a wired OR gate (4x 1N4148 diodes). Each unit’s output connects to a shared bus; a single master alert module centralizes warnings. Reduce false alarms in humid environments by swapping the thermistor for a heat-sensitive resistor (PTC 1kΩ)–resistance spikes at 70°C instead of dropping.
Core Elements for an Emergency Heat Detection System
Begin with a thermistor (NTC 10KΩ) as the primary sensing unit. This component reacts to temperature spikes above 60°C, triggering the alert mechanism. Pair it with a 555 timer IC configured in monostable mode for a controlled 10-second output pulse–long enough to activate downstream elements without false positives. Ensure the thermistor’s resistance at ambient (25°C) remains within ±5% of its stated value to maintain accuracy.
A 12V piezoelectric buzzer (≥90dB) serves as the acoustic warning device. Connect it via a BC547 NPN transistor to handle current demands beyond the timer’s 200mA limit. Use a 1N4007 diode in parallel to protect against voltage spikes when powering inductive loads. For visual warnings, include a high-intensity LED (>5000mCd) with a 330Ω current-limiting resistor to ensure visibility in smoke-filled environments.
The power supply must sustain 12V DC ±0.5V under load. A 7812 voltage regulator stabilizes input from a 14.4V battery pack, preventing fluctuations that could disrupt sensitivity thresholds. For backup, integrate a 1,200mAh LiPo battery with overcharge protection–sufficient for 4+ hours of continuous operation. Calculate power draw using P = VI with components’ datasheet specs to validate runtime.
| Component | Critical Specification | Typical Value/Range |
|---|---|---|
| NTC Thermistor | Resistance @ 25°C | 10KΩ ±1% |
| 555 Timer | Monostable Pulse Width | 10s (±0.1s) |
| Buzzer | Sound Pressure Level | ≥90dB @ 10cm |
| LED | Luminous Intensity | >5000mCd |
Signal reliability depends on shielded 22AWG wiring for all sensor connections, minimizing electromagnetic interference from nearby devices. Route wires away from high-voltage paths (e.g., >48V) and avoid tight loops to reduce inductive coupling. For adjustable sensitivity, incorporate a 10KΩ potentiometer to fine-tune the thermistor’s response threshold within a 50°C–80°C window, accommodating varying installation environments.
Testing requires a calibrated heat gun set to 70°C (±3°C) aimed at the thermistor from 30cm away. Verify the buzzer’s output frequency (typically 2–4kHz) with an oscilloscope, ensuring no distortion at 0.2V decrease after 1 hour signals inadequate capacity or resistive losses in connections. Document all component tolerances and operating conditions in a log for troubleshooting–deviations beyond ±5% may indicate failure precursors.
Deploy the system in a ventilated enclosure with ingress protection rating IP54 to prevent dust or moisture from affecting the thermistor’s accuracy. Mount the sensor module 30–50cm below ceilings to detect rising heat efficiently, adhering to NFPA 72 guidelines. Avoid placements near HVAC vents, direct sunlight, or machinery >8kW output, as thermal gradients can trigger false activations. For multi-zone setups, replicate the core assembly for each area, linking outputs via optocouplers (PC817) to isolate circuits and prevent ground loops.
Connecting a Thermal Sensor to an Audible Alert Device
Select a normally-open thermal switch rated for 10–15 A and a 12 V piezoelectric buzzer with built-in oscillator. Strip 5 mm of insulation from the ends of two 22 AWG red and black wires. Connect the red wire to the thermal switch’s output terminal and the black wire to its common terminal, securing each with a 2.5 mm crimp terminal and a screwdriver torque of 0.5 Nm. Thread the opposite ends through a 10 mm grommet in the enclosure, then attach the red wire to the buzzer’s positive pin and the black wire to the negative pin, ensuring polarity matches the device’s silkscreen markings.
Verify continuity between the thermal switch and buzzer using a multimeter set to the 200 Ω range. With the sensor cold, resistance should exceed 1 MΩ; when heated to 58 °C with a heat gun, resistance should drop to less than 1 Ω. If readings deviate, replace the thermal switch–do not attempt adjustment. Apply a 1 mm layer of silicone conformal coating to solder joints after testing to prevent oxidation without impairing heat transfer to the sensor.
Power the assembly with a regulated 12 V supply capable of 300 mA. Route input wires away from the thermal switch’s sensing element to avoid false activation. Test the system by applying localized heat directly above the sensor’s bimetallic disc: the buzzer should sound within 3 seconds of reaching 57 ± 2 °C. Secure the enclosure with M4 machine screws torqued to 1.2 Nm, positioning the thermal switch at least 30 mm from any obstruction for unimpeded airflow.
